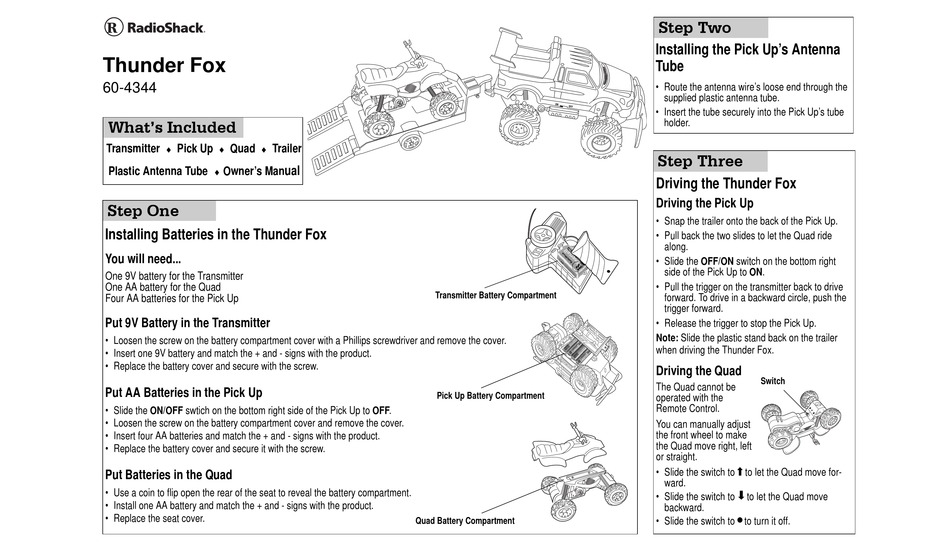

Radio Shack THUNDER FOX 60-4344 Owner's Manual

Thunder Fox
60-4344
What's Included
Transmitter Pick Up Quad Trailer
Plastic Antenna Tube Owner's Man
Step One
Installing Batteries in the Thunder Fox
You will need...
One 9V battery for the Transmitter
One AA battery for the Quad
Four AA batteries for the Pick Up
Put 9V Battery in the Transmitter
• Loosen the screw on the battery compartment cover with a Phillips screwdriver and remove the cover.
• Insert one 9V battery and match the + and - signs with the product.
• Replace the battery cover and secure with the screw.
Put AA Batteries in the Pick Up
• Slide the ON/OFF swtich on the bottom right side of the Pick Up to OFF.
• Loosen the screw on the battery compartment cover and remove the cover.
• Insert four AA batteries and match the + and - signs with the product.
• Replace the battery cover and secure it with the screw.
Put Batteries in the Quad
• Use a coin to flip open the rear of the seat to reveal the battery compartment.
• Install one AA battery and match the + and - signs with the product.
• Replace the seat cover.
ual
Transmitter Battery Compartment
Pick Up Battery Compartment
Quad Battery Compartment
Step Two
Installing the Pick Up's Antenna
Tube
• Route the antenna wire's loose end through the
supplied plastic antenna tube.
• Insert the tube securely into the Pick Up's tube
holder.
Step Three
Driving the Thunder Fox
Driving the Pick Up
• Snap the trailer onto the back of the Pick Up.
• Pull back the two slides to let the Quad ride
along.
• Slide the OFF/ON switch on the bottom right
side of the Pick Up to ON.
• Pull the trigger on the transmitter back to drive
forward. To drive in a backward circle, push the
trigger forward.
• Release the trigger to stop the Pick Up.
Note: Slide the plastic stand back on the trailer
when driving the Thunder Fox.
Driving the Quad
Switch
The Quad cannot be
operated with the
Remote Control.
You can manually adjust
the front wheel to make
the Quad move right, left
or straight.
• Slide the switch to Z to let the Quad move for-
ward.
â to let the Quad move
• Slide the switch to
backward.
• Slide the switch to 6 to turn it off.
