ASSEMBLING THE AA195PM TWO HOLE OUTDOOR POLE MOUNTING KIT
The AA195PM mounting kit contains everything required for pole mounting and weatherproofing the ESTeem Model 195E for
outdoor installations. The 195E with AA195PM mounting kit can be directly mounted to a round pole from 1.25" to a diameter of
2.25" OD. Any mounting structure greater than 2" requires hose clamp strapping run through the Pole Mount Brackets. The
mounting kit requires the following assembly:
1.
If you purchased an AA195PM mounting kit with your Model 195E, the kit will be packed in the same packing box as the
ESTeem (Figure 1).
2.
Remove and inventory the two (2) Pole Mounting Brackets, one (1) Two-Hole Face Plate Cover (with single port cover
installed), one (1) Heat Shield and (1) AA195PM Hardware bag from the packing box (Figure 1). Report any missing or
damaged items to ESTeem Customer Support (509-735-9092 Phone) as soon as possible for replacement.
(4) 10-24 Pan Screws
Revised: 11 Aug 08
(2) Square Bend U-Bolts with Hardware
(1) Weather Proof
Boot for Antenna
Port B (if not used)
ANTENNA SETUPS
(2) Pole Mount Clamps
(2) Ethernet
Cable Boot
8-3
CHAPTER 8

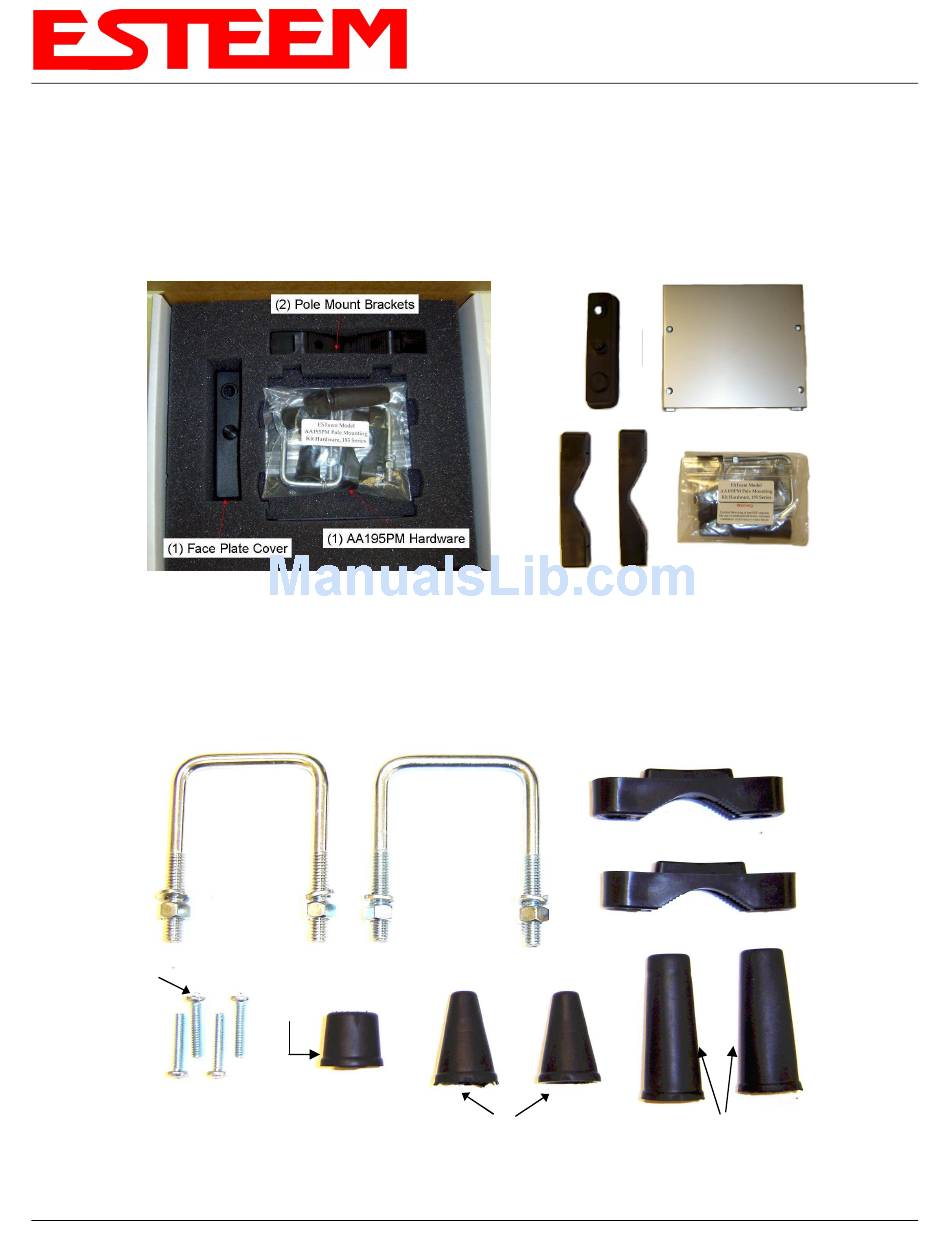

Figure 1: Packet Box Contents
(2) Direct Mount Antenna Boots for ESTeem
Approved Direct Mount Antenna Only
Figure 2: AA195PM Hardware Contents
EST P/N AA107D
