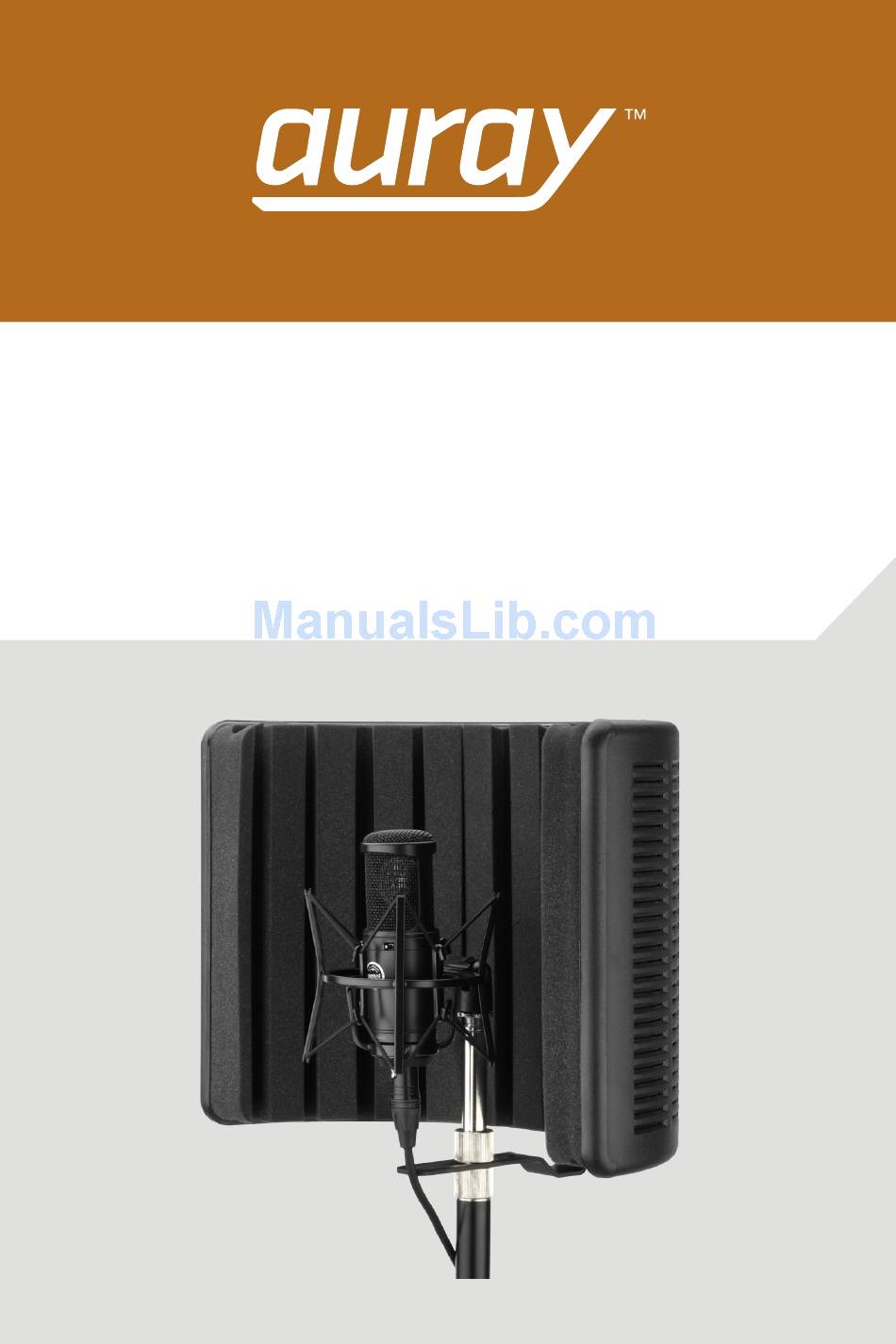

- Page 1 RF-PBO-16 Premium Reflection Filter Owner’s Manual Owner’s Manual RF-PBO-16...
-
Page 2: Reflection Filter
When recording vocals, voiceovers, or podcasts in a studio or acoustically untreated space, the RF-PBO-16 creates a dry and close sound for clean vocal tracks. This reflection filter is designed with multilayered protection that absorbs unwanted ambient noise and controls acoustic reflections that can compromise your recording or broadcast. -
Page 3: Table Of Contents
Overview Reflection filter Locking screws (×2) L bracket Threaded thumbscrews (×2) Extender Star nut Owner’s Manual RF-PBO-16... -
Page 4: L Bracket
Tighten until secure. Screw the extender onto the post of the top thumbscrew. Attach your shock mount to the extender, and secure it by tightening the star nut. Mount your microphone into the shock mount. Owner’s Manual RF-PBO-16... -
Page 5: Rf-Pbo
Tighten until secure. Screw the extender onto the post of the top thumbscrew. Attach your shock mount to the extender, and secure it by tightening the star nut. Mount your microphone into the shock mount. Owner’s Manual RF-PBO-16... -
Page 6: Extender
To adjust the distance of the microphone from the filter: Loosen the bottom thumbscrew , and slide the extender and microphone along the L-bracket slot. Once you have placed the microphone in the correct position, tighten the top thumbscrew until secure. Owner’s Manual RF-PBO-16... -
Page 7: Specifications
Inner: High-density open-cell acoustic foam layer , double wool layer Shield dimensions (H × W × D): 11.8 × 16.5 × 7.75 in. (30 × 42 × 19.7 cm) Extender height: 3.5 in. (9 cm) Weight: 3.5 lb. (1.6 kg) Owner’s Manual RF-PBO-16... - Page 8 One-Year Limited Warranty This Auray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later.
