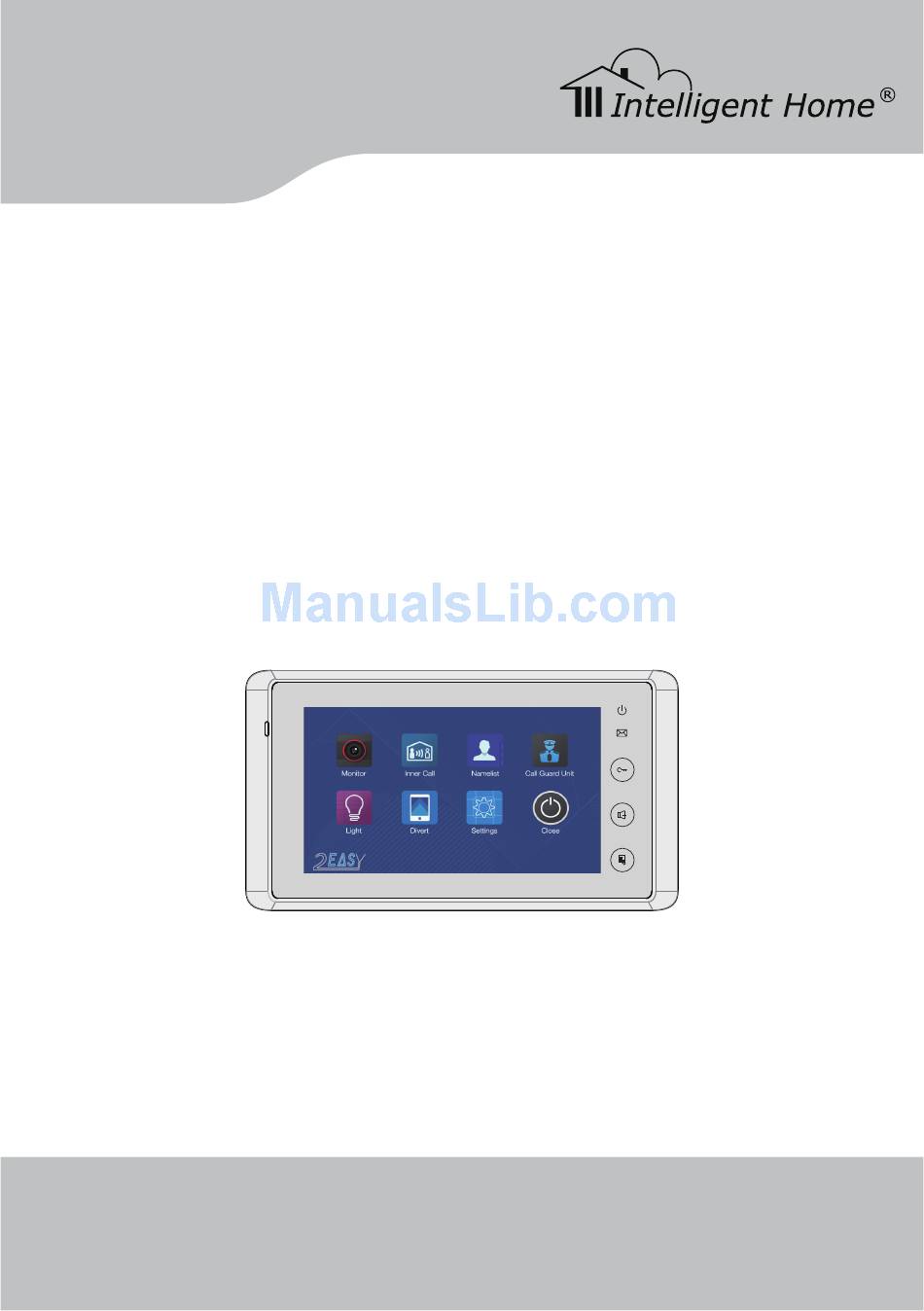

- Page 1 Cronus Video Door System 2-wire Series Installation and User Manual Digital Touch Screen 7 inch Monitor www.intelligenthomeonline.com...
- Page 3 PRECAUTIONS • Read this manual through before using the product • Slots and openings in the back of the monitor, are provided for ventilation and to ensure reliable operation of the video monitor or equipment and to protect it from overheating. These openings must not be blocked or covered.
-
Page 4: Table Of Contents
CONTENTS Monitor Parts and Functions....................Mounting ..........................Screen ............................. Answering a call ........................Adjusting screen&volume ......................Door R elease ........................Intercom Function ........................Manual Monitoring ......................... Operating Staircase Light ...................... Call Divert ..........................Monitor settings ........................Ring tone settings ........................Language . -
Page 5: Monitor Parts And Functions
Monitor Parts and Functions DIPS 1 2 3 4 5 6 Item Description Digital LCD touch screen • Display visitors' image Power indicator ON when monitor powered Message indicator ON when monitor has missed call Unlock button Press to Unlock door or gate •... - Page 6 Monitor Terminals L1,L2: Bus line terminal SW+,SW-: External Call button connection port Ring,GND: External Ringer connection port DIPS 1 2 3 4 5 6 NC: Not in use DIP switches: • DIP1~DIP5: User Code setting • DIP6: End of line setting. Set ON if the monitor is at the end of the line or if connected with DBC4 DIPS...
-
Page 7: Mounting
Monitor Mounting Monitor 2 wire cable Mounting screw s Mounting bracket 1. Use the screws to fix the mounting bracket on the wall 2. Hang the Monitor on the mounting bracket firmly... -
Page 8: Screen
Screen Main Menu- Home Page The Main menu is your starting point for using all the applications on your monitor Touch screen anywhere and Main menu will appear as following: INNER CALL NAMELIST Touch to start Intercom to all Touch to start Intercom to rooms a specific room MONITOR... -
Page 9: Answering A Call
BASIC OP ER ATIONS Answering a Door Call • When Door Station is rung, the monitor comes On with video • To start conversation touch TALK/MON icon on the button or Talk icon on the screen TALK/MON To end conversation touch icon on the button once again or touch icon •... - Page 10 Here you can choose screen ratio 4:3 or 16:9 Here you can adjust Speaker volume. The range are 0 (Mute) ~ 9 Touch - or + to set desired levels 00:10 DS-1 00:10 DS-1 00:10 DS-1 Normal 4 scene modes are available to select: Normal, Bright, Soft and User S creen Contrast.
-
Page 11: Door R Elease
Electric Lock Release If system connected to a lock, you can open the lock from the Video Monitor. Video from Door Station must be on the screen to perform unlocking 00:10 DS-1 Touch either icon on the screen or press UNLOCK button on a side to open the lock . -
Page 12: Manual Monitoring
2. Namelist: Allows to call one specific Monitor at the time in House system or to call other apartments in Apartment system. All Monitors should be programmed with unique User Codes/Addresses with DIP switches. See ‘User Codes Tables’ on page 18 00:10 DS-1 00:10... -
Page 13: Operating Staircase Light
Operating Staircase Light To use this function, t h e staircase light should be connected with additional Interface DT- RLC Touch Light icon on home page or touch icon during monitoring or talking to turn the light On 00:10 DS-1 *Touch Light icon again to turn off the light or it will be turned off automatically after 60 sec *Touch icon again to turn off the light or it will be turned off automatically... -
Page 14: Monitor Settings
There are two Divert Modes available to choose from : 1. Divert, Simultaneously: call will be diverted immediately. All Monitors and home telephone handsets will ring. All Monitors will come On with video from Door Station. Call can be answered from any Monitor or home telephone handset 2. -
Page 15: Ring Tone Settings
Ring Tone Settings Here you can set ring tones for multiple Door Stations and Intercom between Monitors to distinguish different calling sources On the Home page, touch Settings icon -> Touch Door Station, Intercom, Bell Button tone individually + / - Touch icon to change. -
Page 16: Restoring To Default Settings
Restoring to Factory Default Settings To recover factory settings • On the Home page, touch Logo icon to enter About page • Touch icon to restore to default 00.00 AUTO 00.01.00 Entering Installer Setup • On the Home page, touch Logo icon to enter About page •... - Page 17 Setting Codes Tables Code Setting Item Code Setting Item 2412 Reset To Default Setting 8016-8017 Bypass Enable/Disable 2499 Restore Factory Settings 8401-8499 Unlock Time 8000 Master Monitor 8018-8020 Video Display Standard 8001~8003 Slave Monitor 9015-9016 Enable/Disable Intercom Call 8006-8007 Setting Slave Monitor Panel On/Off 9017-9018 Screen Ratio 4:3/16:9 8010-8011 Unlock Mode:Close/Open Power Saving Mode On/Off By default the system is set to Power S aving Mode, where only the first Monitor in the system...
- Page 18 Multiple Monitor System Configuration There are two way of connecting multiple Monitors: 1. Daisy C hain - each Monitor connects to a next Monitor 2. Star C onnection - all Monitors connects to a central point Up to 16 video Monitors can be connected in a House system. Up to 4 Monitors in each apartment for Apartments system.
- Page 19 On ‘ Address S etting’ page, select Manual Input Address setting mode, then touch Type in User C ode using digital keypad Touch # key to save Touch key to delete Cursor Edit box 00-31 Delete the last character Exit current page Save setting Always start with User Code 00 for House system and 01 for Apartment system.
-
Page 20: Screen Calibration
Screen Calibration • In standby mode, press UNLOCK button hold for 3 seconds • Red cross symbol will appear • Keep touching Red cross symbol until calibration complete and OK! will appear Specification ● Power supply for indoor monitor: DC 24V ●... - Page 21 4. Attempting to force the device to perform functions for which it is not intended 5. Attaching the device to power supplies other than thoserecommended by the manufacturer Distributor for Warranty purposes: Intelligent Home Online Ltd 62 Hartley Old Road Purley Surrey...
- Page 22 Cronus 2-wire series Right to interpret and copyright of this manual are preserved. www.intelligenthomeonline.com -18-...
