CONFIGURATION GUIDE

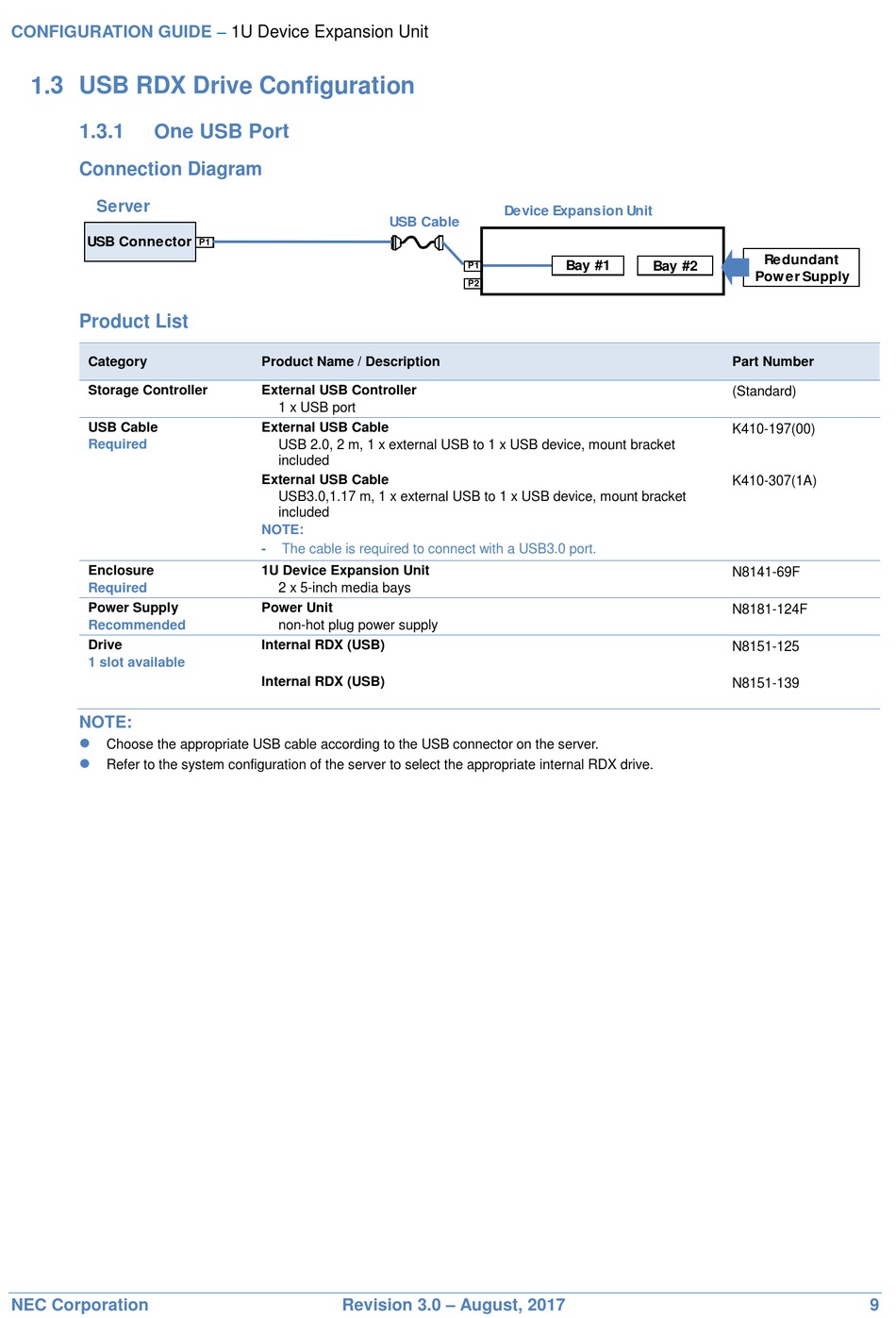

1.3 USB RDX Drive Configuration

1.3.1 One USB Port
Connection Diagram
Server
USB Connector
Product List
Category
Storage Controller
USB Cable
Required
Enclosure
Required
Power Supply
Recommended
Drive
1 slot available
NOTE:

Choose the appropriate USB cable according to the USB connector on the server.

Refer to the system configuration of the server to select the appropriate internal RDX drive.
NEC Corporation
–
1U Device Expansion Unit
P1
Product Name / Description
External USB Controller
1 x USB port
External USB Cable
USB 2.0, 2 m, 1 x external USB to 1 x USB device, mount bracket
included
External USB Cable
USB3.0,1.17 m, 1 x external USB to 1 x USB device, mount bracket
included
NOTE:
- The cable is required to connect with a USB3.0 port.
1U Device Expansion Unit
2 x 5-inch media bays
Power Unit
non-hot plug power supply
Internal RDX (USB)
Internal RDX (USB)
Revision 3.0 – August, 2017
Device Expansion Unit
USB Cable
P1
P2
Bay #1 Bay #2
Part Number
(Standard)
K410-197(00)
K410-307(1A)
N8141-69F
N8181-124F
N8151-125
N8151-139
Redundant
Pow er Supply
