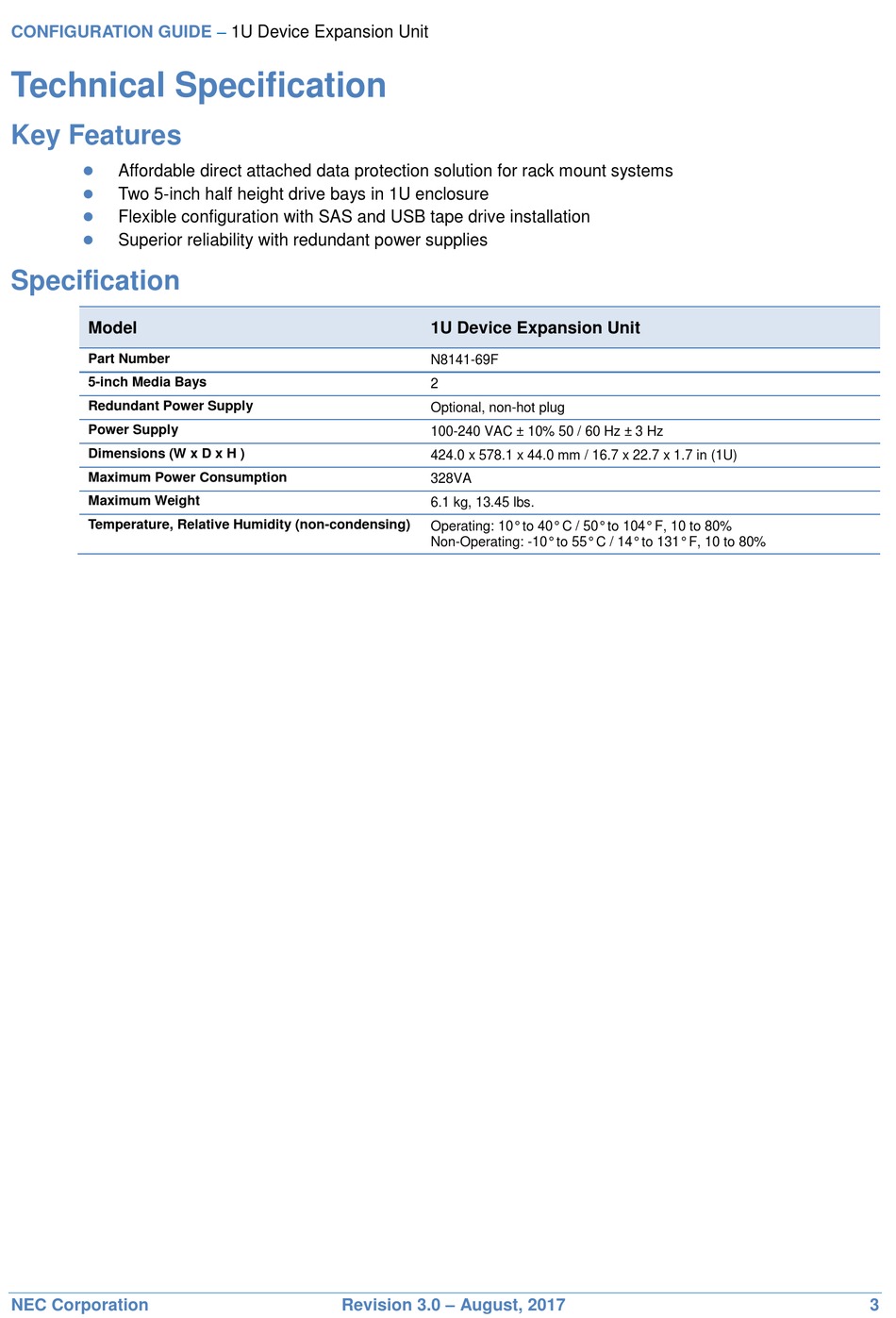

Technical Specification; Key Features; Specification - NEC N8141-69F Configuration Manual

CONFIGURATION GUIDE

Technical Specification

Key Features


Affordable direct attached data protection solution for rack mount systems

Two 5-inch half height drive bays in 1U enclosure

Flexible configuration with SAS and USB tape drive installation

Superior reliability with redundant power supplies

Specification

Model
Part Number
5-inch Media Bays
Redundant Power Supply
Power Supply
Dimensions (W x D x H )
Maximum Power Consumption
Maximum Weight
Temperature, Relative Humidity (non-condensing)
NEC Corporation
–
1U Device Expansion Unit
Revision 3.0 – August, 2017
1U Device Expansion Unit
N8141-69F
2
Optional, non-hot plug
100-240 VAC ± 10% 50 / 60 Hz ± 3 Hz
424.0 x 578.1 x 44.0 mm / 16.7 x 22.7 x 1.7 in (1U)
328VA
6.1 kg, 13.45 lbs.
Operating: 10° to 40° C / 50° to 104° F, 10 to 80%
Non-Operating: -10° to 55° C / 14° to 131° F, 10 to 80%
3
