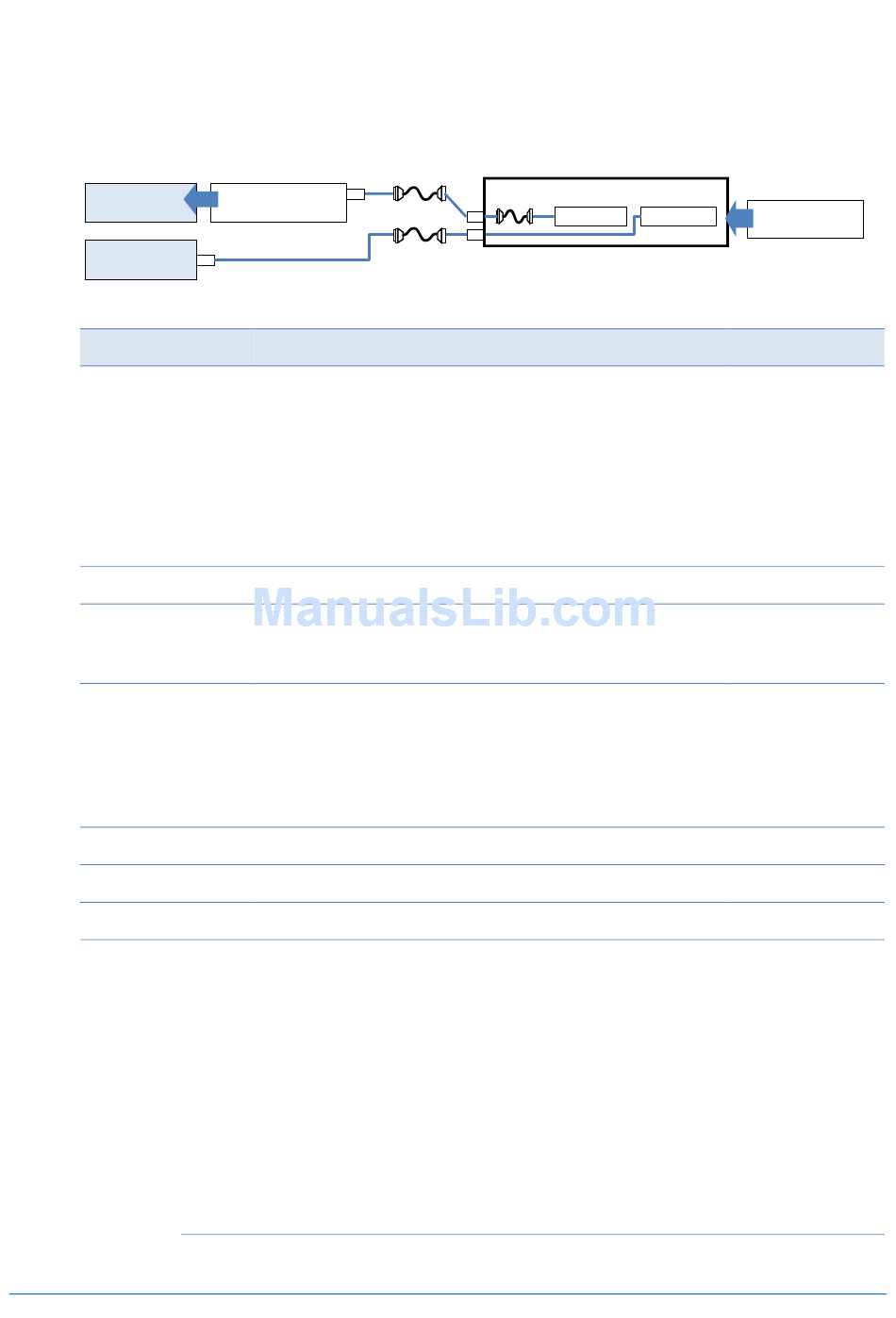

1.4 SAS and USB Tape/RDX Drive Configuration

Connection Diagram
Server
PCI Slot
USB Connector
Product List
Category
Storage Controller
Required
Storage Controller
SAS Cable
Required
USB Cable
Required
Enclosure
Required
Power Supply
Recommended
SAS Cable
Required
Drive
1 slot per
HBA
available
NEC Corporation
–
1U Device Expansion Unit
P1
SAS Controller
P1
Product Name / Description
SAS Controller
LSI SAS9212-4i4e Host Bus Adapter
6Gb/s SAS, Int. 4 / Ext. 4, 7-pin SATA / SFF-8088, PCIe 2.0 x8
SAS Controller
1 x LSILogic SAS9300-8e 12Gb/s SAS, 8(SFF-8644),
PCIe3.0(x8), Low Profile / Full Height
SAS Controller
12Gb/s SAS, Ext. 8(SFF-8644), PCIe3.0(x8)
SAS Controller
LSI SAS9300-8e
12Gb/s SAS, Ext. 8(SFF-8644), PCIe3.0(x8)
External USB Controller
1 x USB port
External SAS Cable
2 m, 1 x SFF-8088 to 1 x SFF-8088
External SAS cable
2 m, 1x Mini SAS HD -1x Mini SAS
External USB Cable
USB 2.0, 2 m, 1 x external USB to 1 x USB device, mount bracket
included
External USB Cable
USB3.0,1.17 m, 1 x external USB to 1 x USB device, mount bracket
included
NOTE:
- The cable is required to connect with a USB3.0 port.
1U Device Expansion Unit
2 x 5-inch media bays
Power Unit
non-hot plug power supply
Internal SAS Cable
1 x SFF-8088 to 2 x SFF-8482
LTO Internal LTO (SAS)
LTO3, Half height, Native capacity 400 GB
Internal LTO (SAS)
LTO4, Half height, Native capacity 800 GB
Internal LTO (SAS)
LTO5, Half height, Native capacity 1.5 TB
Internal LTO (SAS)
LTO6, Half height, Native capacity 2.5 TB
Internal LTO (SAS)
LTO7, Half height, Native capacity 6 TB
Internal LTO (SAS)
LTO5, Half height, Native capacity 1.5 TB
Internal LTO (SAS)
LTO6, Half height, Native capacity 2.5 TB
Internal LTO (SAS)
LTO7, Half height, Native capacity 6 TB
RDX Internal RDX (USB)
Revision 3.0 – August, 2017
Device Expansion Unit
SAS Cable
Internal SAS Cable
P1
P2
USB Cable
Bay #1 Bay #2
Part Number
N8103-142
N8803-041
N8103-197
N8103-184
(Standard)
K410-191(02)
K410-322(02)
K410-197(00)
K410-307(1A)
N8141-69F
N8181-124F
K410-335(00)
N8151-126
N8151-127
N8151-128
N8151-129
N8151-136
N8151-141
N8151-142
N8151-143
N8151-125
Redundant
Pow er Supply
