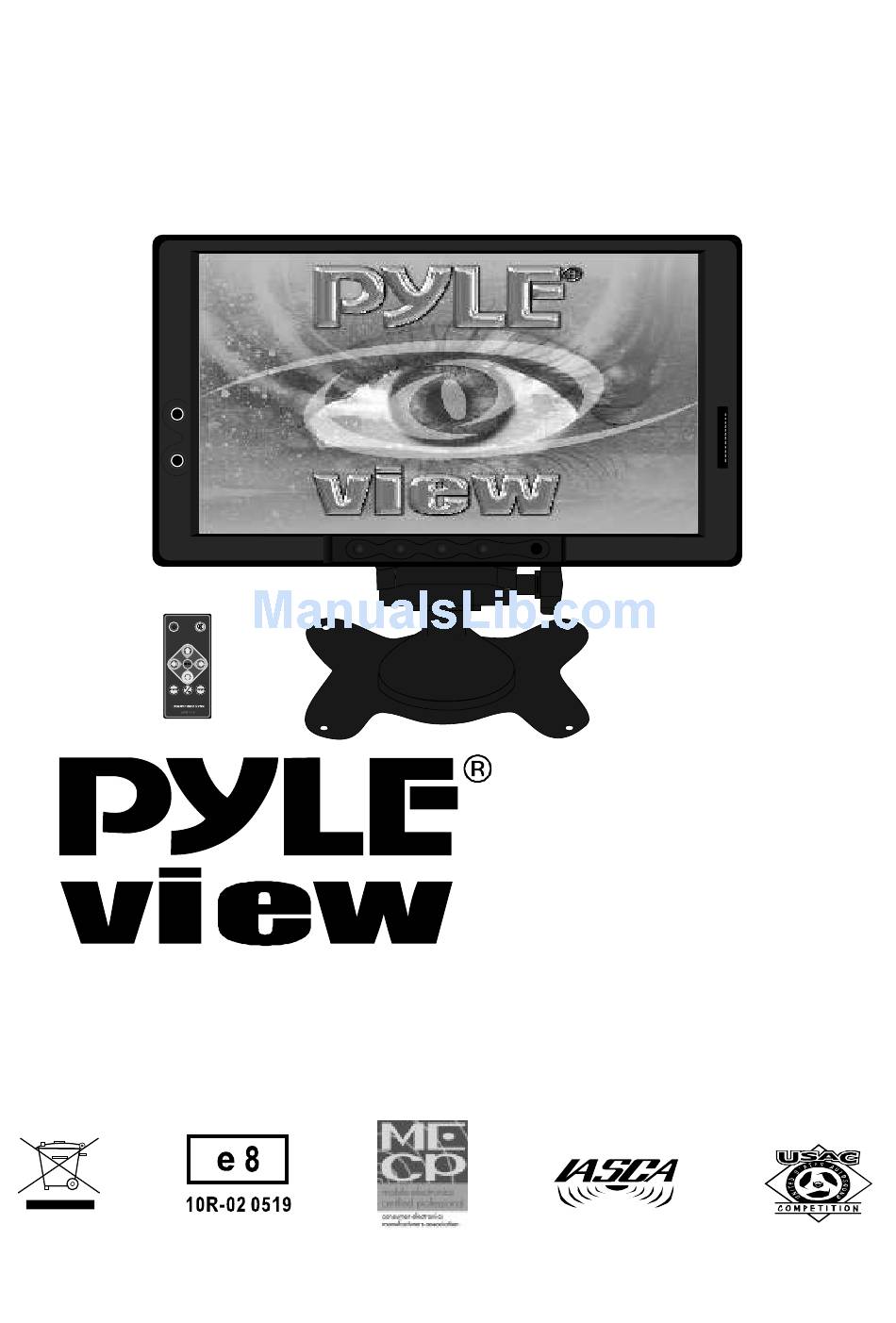

- Page 1 7 " W i d e LCD M o n i t o r W i t h 4 M o u n t in g O p t i o n s PLVH7IP INSTRUCTION MANUAL www.pyleaduio.com...
-
Page 2: Table Of Contents
Table of Contents About the liquid crystal display (LCD) panel Precautions Control & Layout for monitor / wireless remote Accessories Connection diagram Replacing the remote control battery Installing headrest with shroud Installing sun-visor with shroud Installing of headrest case Function Setting Troubleshooting guide Specifications 9-10... -
Page 3: About The Liquid Crystal Display (Lcd) Panel
About the liquid crystal display (LCD) panel 1. Do not press on the LCD panel on the monitor unit as doing so can distort the picture or cause a malfunction, the picture may become unclear, or the LCD panel may be damaged. 2. -
Page 4: Precautions
Precautions Please read this manual completely and carefully prior to attempt to install your new car video equipment. Install correctly, your new equipment will provide you with years of enjoyable and safe usage. Installing this unit requires technical expertise. This unit should be installed by a qualified technician or service personnel. -
Page 5: Control & Layout For Monitor / Wireless Remote
Control and layout for the monitor Front Audio Output Front audio output (headphones) Front A/V Input Front audio video input Power Cord (Male) Adjust Decrease This multipurpose button serves to decrease the selected parameters, such as volume, contrast etc. Notice: some functions are work by remote control. Control and layout for the remote control Power On/Off Turn On / Off the monitor... -
Page 6: Accessories
Accessories Universal Stand Headrest & Sun Visor Shroud Headrest Bag Remote Control Extension Min Din Cable Key-for removing the monitor from headrest or visor shroud AV Cable INSTRUCTION MANUAL Earphone Instruction Manual... -
Page 7: Connection Diagram
Connection Diagram BATTERY Replacing the Remote Control Batter y 1 )Alwa ys use ne w battery when rep lace the o ld se t. 2 )Do not attempt to charge , short-circuit, disassemble, heat or burn used batteries, b attery ma y b e explode if mistreate d. -
Page 8: Installing Headrest With Shroud
Steps For Installing Headrest with Shroud Setup work Remove the headrest and set it in an uncluttered work area. Pay the appropriate precautions to ensure that it is not damaged during the installation. CAUTION: make sure the screws are not long enough to go through the headrest! If you have any doubtsabout this typeof installation, please consult your local mobile electronics retailer. - Page 9 Route the cable through the headre st Run the su pplied cable through the opening a nd ou t to the bottom of the headre st. If possib le , conceal the wires with a sh aft covering. Con nect the power, g round a nd video lea ds to test the MO NITOR.
-
Page 10: Installing Sun-Visor With Shroud
Steps For Installing Sun-visor with Shroud Setup work Remove the visor and set it in an uncluttered work area. Pay appropriate precautions to ensure that it is not damaged during the installation. CAUTION: make surethe screws are not long enoughto go through the visor! If youhave any doubts about this type of installation, please consult yourlocal mobile electronics retailer. - Page 11 Oper ate your syst em in a saf e and legal manner When oper ate a motor vehi cle, it shoul d always be your highest priority to maintain saf e driving habi ts. It is illegal in many areas of most count ries to drive with TV or MONITOR on, when it is visible to the driver.
-
Page 12: Installing Of Headrest Case
Steps For Installing Headrest Bag Rear side of headrest Front side of headrest Insert the monitor to the headrest bag Put the monitor with headrest bag at the rear side center of pillow. Cut the magic tape to the fit your pillow size, then fasten it as X as diagram show. -
Page 13: Function Setting
Function setting SOURCE RETURN SOURCE RETURN SOURCE RETURN Press MENU button (1)from the remote or press manu button (1) from the monitor to call out the function menu, press button (2 or 3) to the desired setting. Remote When screen appears “SOURCE” Press Menu button (1) to enter video signal input selection. - Page 14 PICTURE BRIGHT CONTRAST COLOR RETURN PICTURE BRIGHT CONTRAST COLOR RETURN PICTURE BRIGHT 50 When screen appears “PICTURE” press the menu button (1)to enter picture parameters setting. Remote Press the button( 2or3) to adjust the to choose “BRIGHT”. Press menu button (1) to enter BRIGHT setting. Brightness: Makes black appear darker or lighter Remote Press button 2: adjust brightness to lighter level.
- Page 15 PICTURE BRIGHT CONTRAST COLOR RETURN PICTURE CONTRAST 50 PICTURE BRIGHT CONTRAST COLOR RETURN Press the button( 2or3) to adjust the to choose “CONTRAST”. Press menu button (1) to enter CONTRAST setting. Contrast: Narrows or widens the gap between black & white (darken &...
- Page 16 PICTURE COLOR 50 PICTURE BRIGHT CONTRAST COLOR RETURN AUDIO VOLUME RETURN Press button 2: adjust more color intensity level. Press button 3: adjust less color intensity level. Press button 1 to confirm setting and exit. [Color adjustable level: 0~100 . Preset: 50] Remote Exit Picture setting, Press the button( 2or3) to adjust the...
- Page 17 AUDIO VOLUME 50 FUNCTION INVERT 1 SIZE: Full 16:9 Language Select: RETURN FUNCTION INVERT 1 SIZE: Full 16:9 Language Select: RETURN Press button 2: adjust sound to more loud level. Press button 3: adjust sound to more soft level. Press button 1 to confirm setting and exit. [Volume adjustable level: 0~100 .
- Page 18 FUNCTION INVERT 1 SIZE: Full 16:9 Language Select: RETURN FUNCTION INVERT 1 SIZE: Full 16:9 Language Select: RETURN FUNCTION English German French Spanish Portugal Italian Chinese C RETURN Normal 4:3 Diagram When the symbol at “SIZE” Press the MENU (1) button repeatedly to change the picture display size to Full 16:9 or Normal 4:3 as the diagram show.
-
Page 19: Troubleshooting Guide
FUNCTION Exit Troubleshooting guide The following checklist will help you solve problems you may encounter with your unit. Before going through the checklist below, check the connection and operating. if you can not solve the problem with follows guide, please contact your nearest dealer. Problem No picture, no sound Good picture, but no sound... -
Page 20: Specifications
Specifications: LCD Drive Method: a-SI Visible Screen Size: 7 Inch Wide Screen (Diagonal) Aspect Ratio: 16:9 Display Format: 480 x RGB x 234 Number of Pixels: 336,960 Response Time: 15ms Backlight : High Brightness CCFT 2 #3 Luminance: 380 cd/m Backlight Life: 15,000 Hrs Contrast Ratio: 300:1 Viewing Angle: (H/V): 120 / 100...
