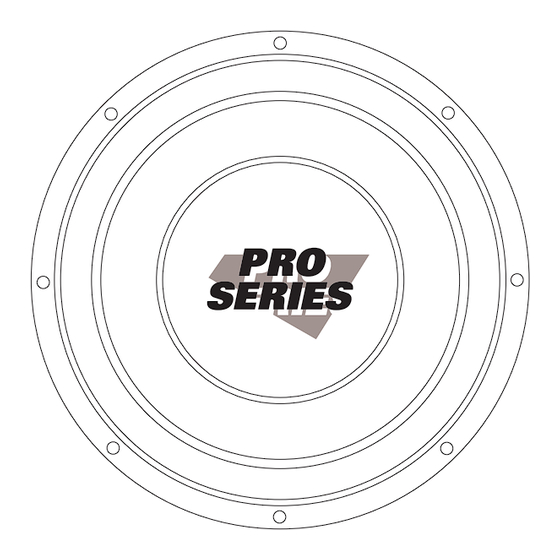

PRO-CSW800 8 " Car Subwoofer
Your RadioShack PRO-CSW800 8" Car Subwoofer lets
you increase the bass response of your vehicle's sound
system. When mounted inside an enclosure, your sub-
woofer's high-output, low-distortion design provides qual-
ity bass sound reproduction. The subwoofer's long-travel
voice coil lets it handle high input power with ease.
Note: To connect the subwoofer to your stereo amplifier's
wires, you need 2 banana plugs such as Cat. No. 278-
306 (not supplied).
CHOOSING AN ENCLOSURE
To get the best performance from your subwoofer, you
must mount it inside an enclosure. An enclosure makes
your subwoofer more efficient and improves its sound
quality.
Some common enclosure designs are:
• Acoustic suspension (sealed)
• Ported reflex (vented)
• Single reflex bandpass (vented)
For more information about a single reflex bandpass en-
closure, see "Single Reflex Bandpass (vented)" on
Page 2.
To learn more about and build an acoustic suspension or
ported reflex enclosure, we recommend you use the book
Building Speaker Systems (Cat. No. 62-1087A, available
at your local RadioShack store) along with this Owner's
Manual. That book has complete information about build-
ing enclosures, including obtaining construction materi-
als, and design and construction tips.
Note: Check with RadioShack Unlimited for a pre-built
enclosure for this subwoofer.
© 1998 Tandy Corporation.
All Rights Reserved.
RadioShack is a registered trademark used by Tandy Corporation.
ENCLOSURE SIZES
After you choose an enclosure type for your subwoofer,
for the best results, build the enclosure to the dimensions
recommended in this section.
Acoustic Suspension (sealed)
C
A
11
11
9
.50 Cubic Feet (.47 net)
—
"
"
A (2)
11
11
(one with 7
—
B (2)
—
C (2)
9
F3: 63 Hz
Ripple: 0 dB
Excursion Limited Power Handling: 79 Watts
Ported Reflex (vented)
C
A
11
11
14
.75 Cubic Feet (.70 net)
—
"
"
A (2)
11
11
(one with 7
—
"
"
1
B (2)
11
14
/
HW (one with 2
4
—
C (2)
9
Tuning Frequency: 37 Hz
F3: 46Hz
Ripple: 1.3 dB
Excursion Limited Power Handling: 96 Watts
40-1017
Cat. No.
A
B
C
B
1
/
Inches (HWD)
2
"
1
/
diameter cutout)
16
"
"
1
11
9
/
HW
2
"
"
1
1
/
9
/
HW
2
2
B
A
C
B
1
/
Inches (HWD)
4
"
1
/
diameter cutout)
16
"
diameter cutout)
1
"
1
"
/
14
/
HW
2
4
