PROBE CELL DATA: GENFLEX
Target Base
Probe Base
Position
Tile
® TAG ARRAY
Figure 3.8

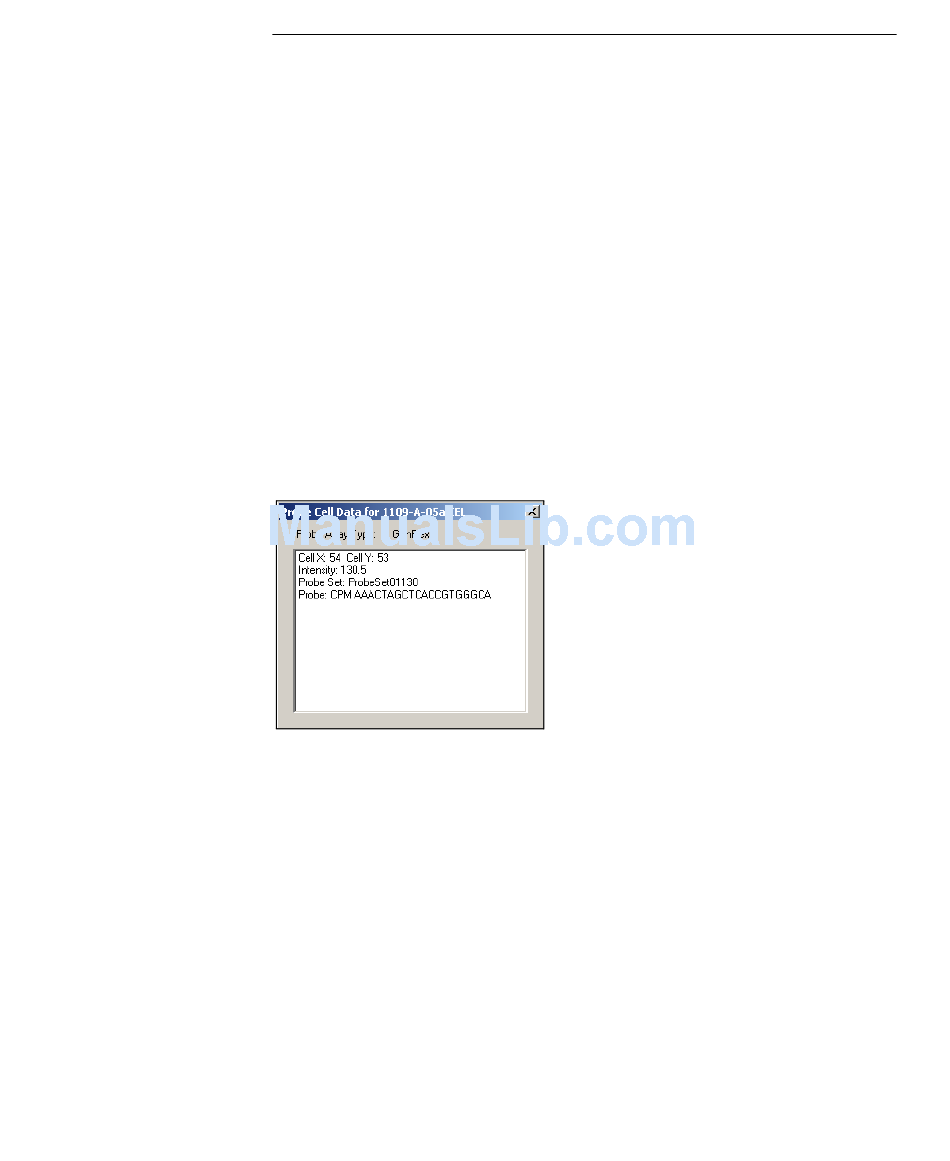

Probe cell data, GenFlex
The following information is displayed for a GenFlex Tag assay probe
cell:
Cell Coordinates
Intensity
Probe Set
Probe
Chapter 3 | Working with Images
The expected nucleotide at the position that corresponds
to the substitution position of the probe sequence.
The actual nucleotide located at the substitution position
of the probe sequence.
Specifies a probe pair in the probe set.
Identifier for the probe set
®
Tag Array
The probe cell x and y coordinates in cell units.
The cell intensity calculated by the cell analysis algorithm.
The identifier of the probe set containing the probe cell.
The probe type located in the probe cell (perfect match
(PM), mismatch (MM), complement to the perfect match
(CPM), or complement to the mismatch (CMM)) and the
probe sequence.
