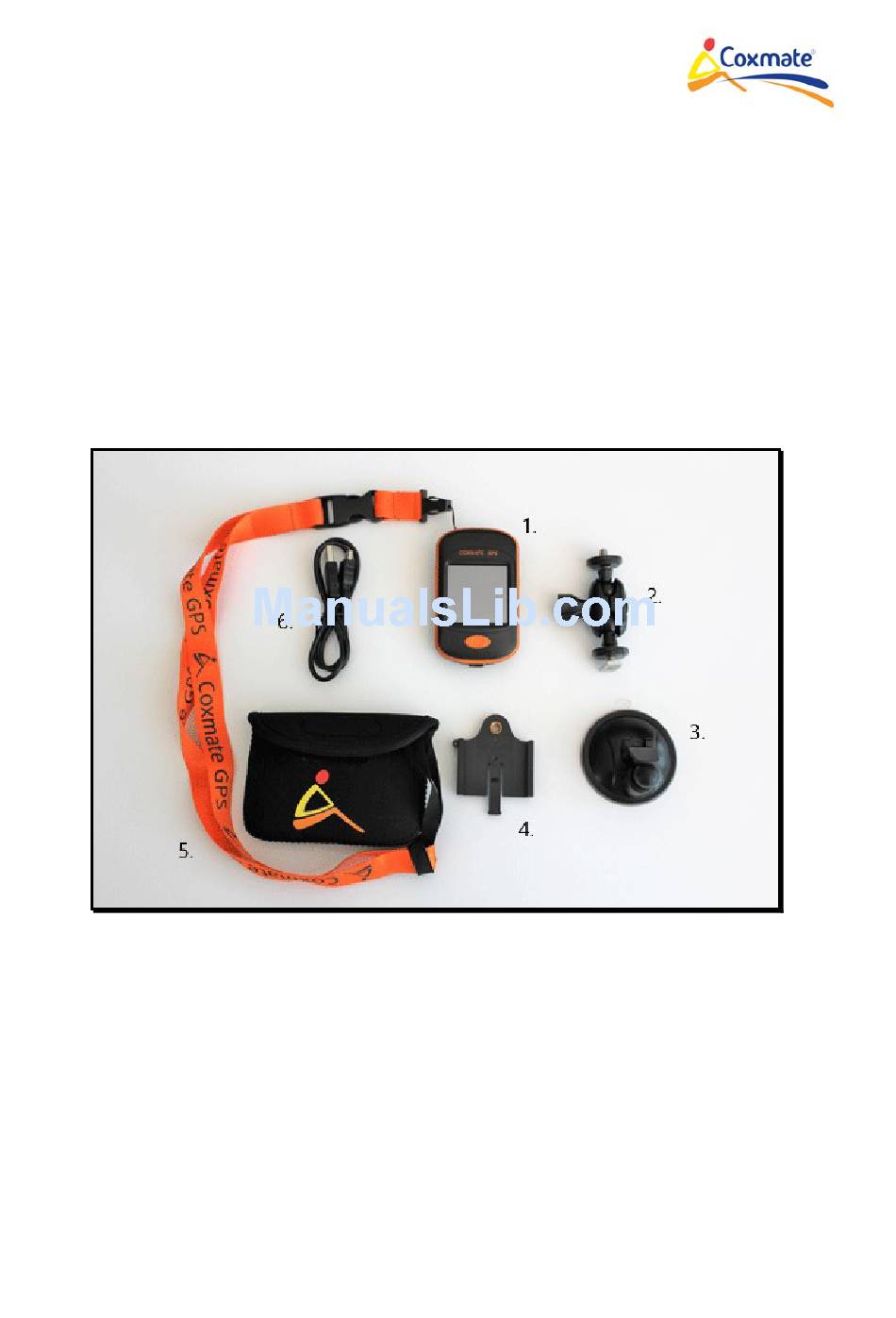

What's in the Box:
1. GPS Unit
2. Stretcher attachment
3. Suction mount
4. NK compatible adaptor bracket
5. Lanyard & Neoprene case
6. USB lead
7. Quick start guide (not shown)
1. Some quick Tips to Set Up Your Unit
a. Stroke sensitivity:
b. Averaging:
Coxmate GPS 17 May 2017 Firmware V1.20 Copyright 2017
GPS USER MANUAL
i. This will depend on your sport. We suggest as a starting point:
1. Rowing
a. Normal stroke: very low
b. Start stroke: low
2. Kayaking
a. Normal stroke: high
b. Start stroke: very high
ii. Be prepared to try different settings, depending on your sport and the type
of training you like to do (e.g. lots of high rating work versus low rating) the
effectiveness of the settings will vary
i. Again this will depend on your sport
Page 1
Advertisement
Related Manuals for Coxmate GPS
Summary of Contents for Coxmate GPS
- Page 1 GPS USER MANUAL What’s in the Box: 1. GPS Unit 2. Stretcher attachment 3. Suction mount 4. NK compatible adaptor bracket 5. Lanyard & Neoprene case 6. USB lead 7. Quick start guide (not shown) ...
- Page 2 2. Introduction The Coxmate GPS is designed to provide performance monitoring for a variety of water sports. This manual provides an overview of the general operation of the Coxmate GPS. The support section of the Coxmate website offers additional resources for users.
- Page 3 It is recommended that the lanyard is used as a safety strap. Simply loop it around a part of the vessel before mounting. For some sports a tether point is highly recommended. If the GPS falls into water it will sink.
- Page 4 3. Insert unit/bracket onto existing NK mount Coxmate GPS 17 May 2017 Firmware V1.20 Copyright 2017 Page 4...
- Page 5 The position of the GPS can be adjusted by loosening the thumb screw on the bracket – tighten it up once in correct position. Check unit is firmly attached and be sure to secure the unit with lanyard provided.
- Page 6 (image 2. below). Position/angle adjustment is achieved by loosening the thumb screw, manoeuvring then tightening to secure position of unit for maximum visibility. Foot stretcher rail mount Position the mount as desired Coxmate GPS 17 May 2017 Firmware V1.20 Copyright 2017 Page 6...
- Page 7 5. Getting Started (see image 1. Below) a. ON/OFF: The power ON/OFF button is on the side. This button requires firm pressure to operate – to prevent it accidentally operating when it is in your kit bag. It needs to be held down for approximately one second. Depending on several factors it may take a couple of minutes to detect satellites, before it can give accurate readings. To turn unit OFF, hold finger on ON/OFF button for approximately 2 seconds b. Menu/Return button is below screen c. Reset: Press ON/OFF and Menu/Return buttons simultaneously d. Touchscreen: Used for operation and configuration 1. Button configuration with full touch screen Coxmate GPS 17 May 2017 Firmware V1.20 Copyright 2017 Page 7...
- Page 8 2+2 Variable Display 5 Variable Display Recall Mode Set Up 6.1 Two Variable Display: This is the opening display (image 1. Below). Rate and Speed will be displayed. 1. Two Variable Display (rating and speed) Coxmate GPS 17 May 2017 Firmware V1.20 Copyright 2017 Page 8...
- Page 9 STOP – timer stopped. Will reset time and distance to zero and go to READY if screen touched. The recorded file is saved. 1. 2 + 2 Variable Display: Rating/Speed will alternate each stroke with Time/Distance – note the bottom left panel to control the timer & recording Coxmate GPS 17 May 2017 Firmware V1.20 Copyright 2017 Page 9...
- Page 10 Navigation: if this selected unit will display how many metres you are from, and what direction you need to travel to get to, a pre-programmed route. Setting routes can be done via the Coxmate website Workout: Pre set your workout (done via menu screen);...
- Page 11 5,10,15,20,25 seconds or disabled. If set to disabled, the timer is stopped manually by touching screen. Please note each time the timer is stopped the recording for that session is completed and the next time the timer is activated it will create a new recording/file. Coxmate GPS 17 May 2017 Firmware V1.20 Copyright 2017 Page 11...
- Page 12 The middle right and bottom right hand corner of the display alters depending on the mode you are in. There are 3 modes: RUN (Normal mode) WORKOUT NAVIGATION Coxmate GPS 17 May 2017 Firmware V1.20 Copyright 2017 Page 12...
-
Page 13: Run Mode
Selecting Route Select will allow you to choose a pre-programmed route which has been downloaded from PC to GPS, or, NONE (no route). It is important to set the seat orientation correctly to ensure the navigation arrows guide you in the correct direction. The current route selected will be displayed in brackets. - Page 14 . To access this software you will need the serial number of the GPS – at rear of unit (image 1. below). The Coxmate GPS comes with a 12 month software licence. Thereafter a nominal annual fee will be charged for those that find the software helpful for analysing and improving their performance.
- Page 15 Further information on using the PC Analysis Software is available via the Coxmate website in the support section including a comprehensive user manual 9.0 Upgrading the Firmware If you subscribe to email updates when notified of a firmware upgrade being available for your unit you will be provided with a link to a folder.
- Page 16 GPS drift is caused by many external factors and consumer grade GPS devices cannot account for these. GPS drift causes the device to appear to be moving on its own. It is most obvious when looking at a track or when zoomed in all the way while at a standstill.
