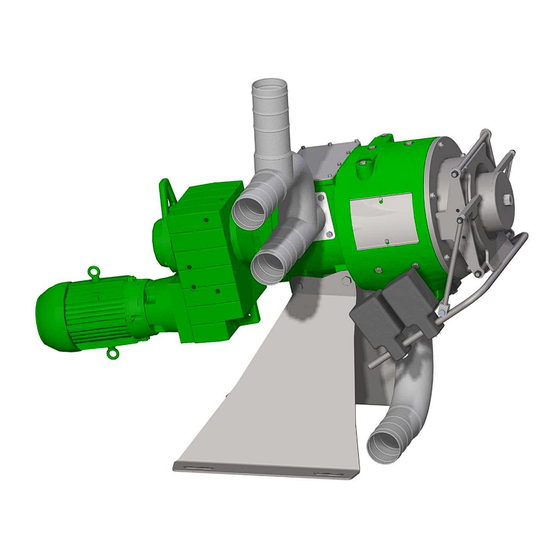

Summary of Contents for Bauer Separator Compact
-

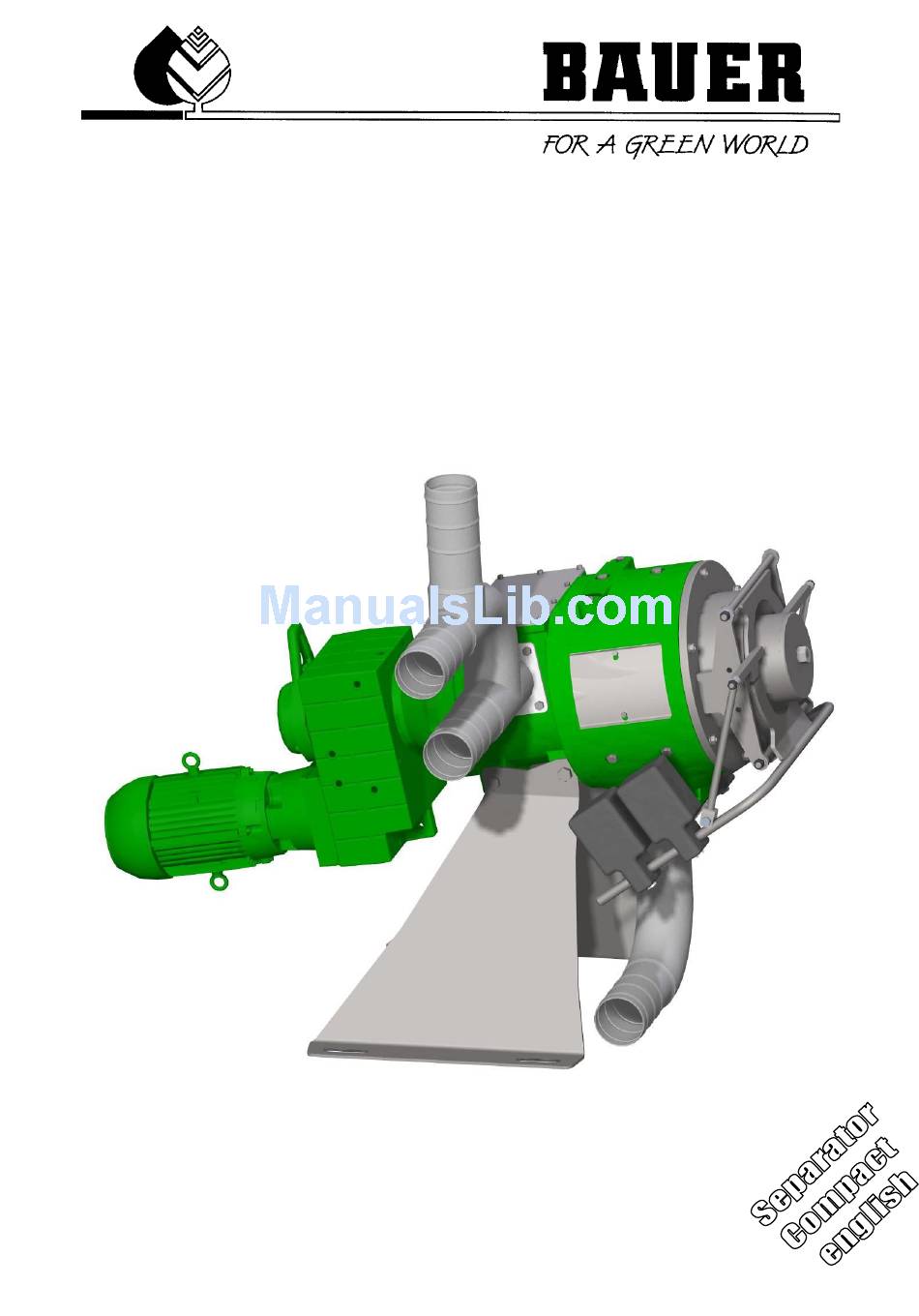

Page 1: Operating Manual
OPERATING MANUAL Separator Compact Version: I- 2014... - Page 2 Without express written permission from the BAUER company, no reproduction or sharing of this operating manual is permitted, even in excerpts. The BAUER company reserves the right to make changes at any time without notice and without as- suming any liability!
- Page 3 It is very important to include with all guarantee claims and all correspondence related with this ma- chine the entire serial number group, including all letters, both for the machine and for its relevant components. This point cannot be stressed enough. Operating Manual for Bauer Separator Compact...
-
Page 4: Table Of Contents
FUNCTION DESCRIPTION ..........................9 SETUP OF THE SEPARATOR ........................10 Installation Diagram ........................... 10 Condition of the BAUER Separator upon Delivery ..................10 Required Tools ............................10 Features, Identification and Information ....................11 Type plates - Information Signs ......................... 12 4.5.1... - Page 5 Principles of a “Normal” Operating Condition ..................31 14.1 14.2 Troubleshooting ............................. 32 15 ACCESSORIES ..............................35 15.1 Separator Control ........................... 35 15.1.1 Motor protection circuit breaker F1 ..................... 35 16 NOTES ................................36 17 CONFORMITY DECLARATION ........................37 Operating Manual for Bauer Separator Compact...
-
Page 6: General Safety Instructions
The recipient of the machine must be instructed with reference to the men- tioned regulations. Should you encounter difficulties in understanding this manual or other instructions, contact the re- spective dealer or the BAUER company for any necessary clarifications. PRODUCT LIABILITY According to the Product Liability Act, every farmer is an entrepreneur! In accordance with Section 9 PHG (Product Liability Act), liability for damage to physical property caused by defective products is expressly excluded. -
Page 7: Qualified Operators
The BAUER separator may be used and operated only by persons who are familiar with the sys- tem and aware of the hazards involved. All relevant rules for accident prevention as well as any other generally accepted rules and regula- tions relating to safety, occupational medicine and traffic laws must be strictly observed. -
Page 8: General Instructions For Safety And Accident Prevention
The system may only be started up if all protective and safety-related features are fully functional. This in- cludes the fact that all removable protective features, EMERGENCY STOP buttons and covers must be present and functional. Operating Manual for Bauer Separator Compact... - Page 9 If the BAUER separator is installed on an elevated platform, this must be equipped with a railing. The plat- form should be sufficiently dimensioned to allow maintenance and service work.
- Page 10 Always ensure sufficient ventilation when working with slurry! When working with biologically active materials in connection with the BAUER separator or connected com- ponents, the decomposition of these materials can lead to the production of life-threatening gases, espe- cially in enclosed spaces.
-
Page 11: Function Description
The solid-liquid separation depends entirely on the type of slurry. For example, the extent to which wa- ter can be drained differs greatly between dairy cattle, beef cattle and pig slurry. Users of the BAUER separator have many options for optimizing the separating result. -
Page 12: Setup Of The Separator
It is recommended that the corresponding electrical control for the separator or for the separator and the Bauer submersed motor pump be pur- chased from BAUER since it will be already adapted to the corresponding drive motors. -
Page 13: Features, Identification And Information
4.4 FEATURES, IDENTIFICATION AND INFORMATION To make it easier for you to familiarize yourself with your new BAUER separator, Fig. 4-2 shows you a longitudinal section of the internal machine design. We assist every customer in optimally selecting the right main separator components for the specific application before it is purchased, manufactured, assembled and shipped. -
Page 14: Type Plates - Information Signs
4.5 TYPE PLATES - INFORMATION SIGNS When you contact your dealer or communicate directly with BAUER GesmbH about wearing parts or for technical support for your separator, you will be asked for your serial number and machine number in order to ensure faster and more effective assistance. -
Page 15: Setup And Assembly
4.7 SETUP AND ASSEMBLY The basic dimensions of the BAUER separator for determining the dimensions of the setup location are shown in Fig. 4-3. The dead weight of the Separator Compact is approx. 380 kg. [mm] 1080 1389 1220 Fig. 4-3 Dimensions of Separator Compact Fig. -
Page 16: Complete System
The supply line available with the BAUER separator as an accessory is a reinforced yet flexible tube. This reinforced tube is resistant to negative pressure. Ventilation openings can be added to the inflow line through the connection of a breather pipe to the inflow element. The ventilation is required for a pump with a very high pump capacity since the high flow speed in the overflow line would otherwise produce a siphon effect that would limit the supply to the separator and impair the separation process. -
Page 17: Inflow Setup
Connection or transition elements for tubes (for the inflow and drainage lines) are available as acces- sories from your dealer or the BAUER company. If no Bauer pump is installed, the pump for supplying the separator should have a pump rate NOTE of at least 15 m³/h since the capacity of the separator otherwise cannot be fully utilized. -
Page 18: Electrical Connection
It is recommended that the corresponding electrical control for the separator or for the separator and the submersed motor pump be purchased from BAUER since it will be already adapted to the corre- sponding drive motors. -
Page 19: Setup And Operation Of The Motor
5.3 INSTALLATION WITHOUT SWITCH CABINET If the BAUER separator was delivered or ordered without a switch cabinet, a few basic rules must be followed in controlling the separator; otherwise, the warranty is void: ... -
Page 20: Preparation For Initial Startup
7.1 CONFIGURATION INSTRUCTIONS Two weight arms and weights are available to stabilize the solid cake and to adjust the dry matter content. These weights should be affixed as necessary. Fig. 7-1 Weight arms and weights Operating Manual for Bauer Separator Compact... -
Page 21: Solid Cake Formation
To do this, place a cake formation aid made of foam rubber that Fig. 7-2 Discharge flaps can be purchased as an option from BAUER behind the flaps or firmly pack by hand some other fibrous material such as hay, stray, silage, etc. -
Page 22: Configuration To Stabilize The Solid Cake
Depending on the medium, the adjust- ments described above must be performed multiple times upon startup until a stable condition is reached and the performance of the separator is optimized. Abb. 7-5 cake too soft Operating Manual for Bauer Separator Compact... -
Page 23: Additional Instructions For Flawless Operation
It may be necessary to thaw the solid cake with hot water before the separator can be operated normally. In order to ensure optimal operation in regions with prolonged cold periods, the separator should be installed in a shelter or room protected against freezing. Operating Manual for Bauer Separator Compact... -
Page 24: Test For Separation Capability
Also ensure that the liquid pressure on the separator does not exceed a value of 2 m water column. Ventilation Inflow Solid Open drainage Fig. 9-1 Typical arrangement for the operation of 3 separators in parallel Operating Manual for Bauer Separator Compact... -
Page 25: Liquid Cleaning
If the cake is frozen solid in the separator, it must be thawed with hot water before restarting. Operating Manual for Bauer Separator Compact... -
Page 26: Maintenance And Inspection
Check the oil level of the gearbox roughly twice per year. Other than a regular supply of sealing medi- um, the Bauer separator normally requires little maintenance. 13.1.1 Supply with Sealing Medium It must be ensured that the used sealing media and greases are compatible with NOTE the seals (FPM material). -
Page 27: Inspection Of The Sieve And The Guide Rails
A plastic profile rail (G-rail) is inserted in the screen guide rails. Screen guide rail G-rail Fig. 13-4 G-rail G-rail Fig. 13-5 Housing of the Separator Compact with screen guide rails and G-rail plastic profiles Operating Manual for Bauer Separator Compact... - Page 28 To do this, remove the 6 bolts located inside on the wear ring. Pull the wear ring out of the screen housing and replace it with a new one. Fig. 13-7 Wear ring Operating Manual for Bauer Separator Compact...
-
Page 29: Inspecting And Reinstalling The Sieve
This must be checked with a thickness gage (Fig. 13-10). Fig. 13-10 Movable screen in the separator, Inspection of the floating capacity with the inspection of the floating capacity by hand thickness gage (left) Operating Manual for Bauer Separator Compact... -
Page 30: Inspecting And Reinstalling The Screw
Then turn the bolts back approx. 30° and lock the lock nuts. The scraping bolts must be readjusted every 4 weeks. Fig. 13-13 Scraping bolts Operating Manual for Bauer Separator Compact... -
Page 31: Evaluation Criteria For The Screw And Sieve With Regard To Wear And Refurbishing
In principle, only the auger can be recoated to be used again; the screen cannot be recoated. In order to ensure the necessary quality and precision, the recoating of the auger may only be per- formed by a workshop authorized by BAUER. WARNING Never hire another shop to recoat the auger for you since incorrect performance and failure to observe the necessary tolerances could destroy the screen and void all warranty claims (see Fig. -
Page 32: Summary Of Maintenance And Inspection Intervals
After 10,000 operating hours (no later than every 2 years) Geared motor oil change (see the gearbox and motor documentation for oil quantity and type) Inspect the bearing (see the gearbox and motor documentation for de- tails) Operating Manual for Bauer Separator Compact... -
Page 33: Problems - Troubleshooting
The search for possible sources of error is simpler when the principle and functioning of the BAUER separator are sufficiently well understood. 14.1 PRINCIPLES OF A “NORMAL” OPERATING CONDITION The auger of the separator has a defined diameter over its length and is adapted to the screen cylin- der. -
Page 34: Troubleshooting
2. The gap width of the screen is too widths are: 0.25, 0.35, 0.50, 0.75, large and 1.0 mm. After changing the Separator is running gap width, accustom yourself to a “ ” change in the normal operating condition. Operating Manual for Bauer Separator Compact... - Page 35 Initial Startup. The cake may be ejected if the sol- id content in the supply medium decreases significantly. Use a finer screen. Solids are too fine and have no fibrous structure Operating Manual for Bauer Separator Compact...
- Page 36 Document the symptoms and the Contact your dealer or the BAUER A problem as described above measures you have taken to correct the company. cannot be corrected despite problem. optimal configuration according to the instructions given above. Operating Manual for Bauer Separator Compact...
-
Page 37: Accessories
The cable dimensions and the preliminary fuse must correspond to the power specifications. The BAUER separator is generally delivered with an electrical switch cabinet that was designed for pre- cisely your application (option). Normally, the switch cabinet has additional connections, e.g. for the feed pump, the fill level sensor, etc., which are controlled by the switch cabinet or which control the operation of the separator. -
Page 38: Notes
16 NOTES Operating Manual for Bauer Separator Compact... -
Page 39: Conformity Declaration
Machine type / base device Compact appropriately satisfies the applicable provisions of the Machinery Directive 2006/42/EC. This declaration becomes void in event of any changes to the machine made without the approval of BAUER GmbH. The following standards in the current versions were applied:...
