X11DPL-i User's Manual

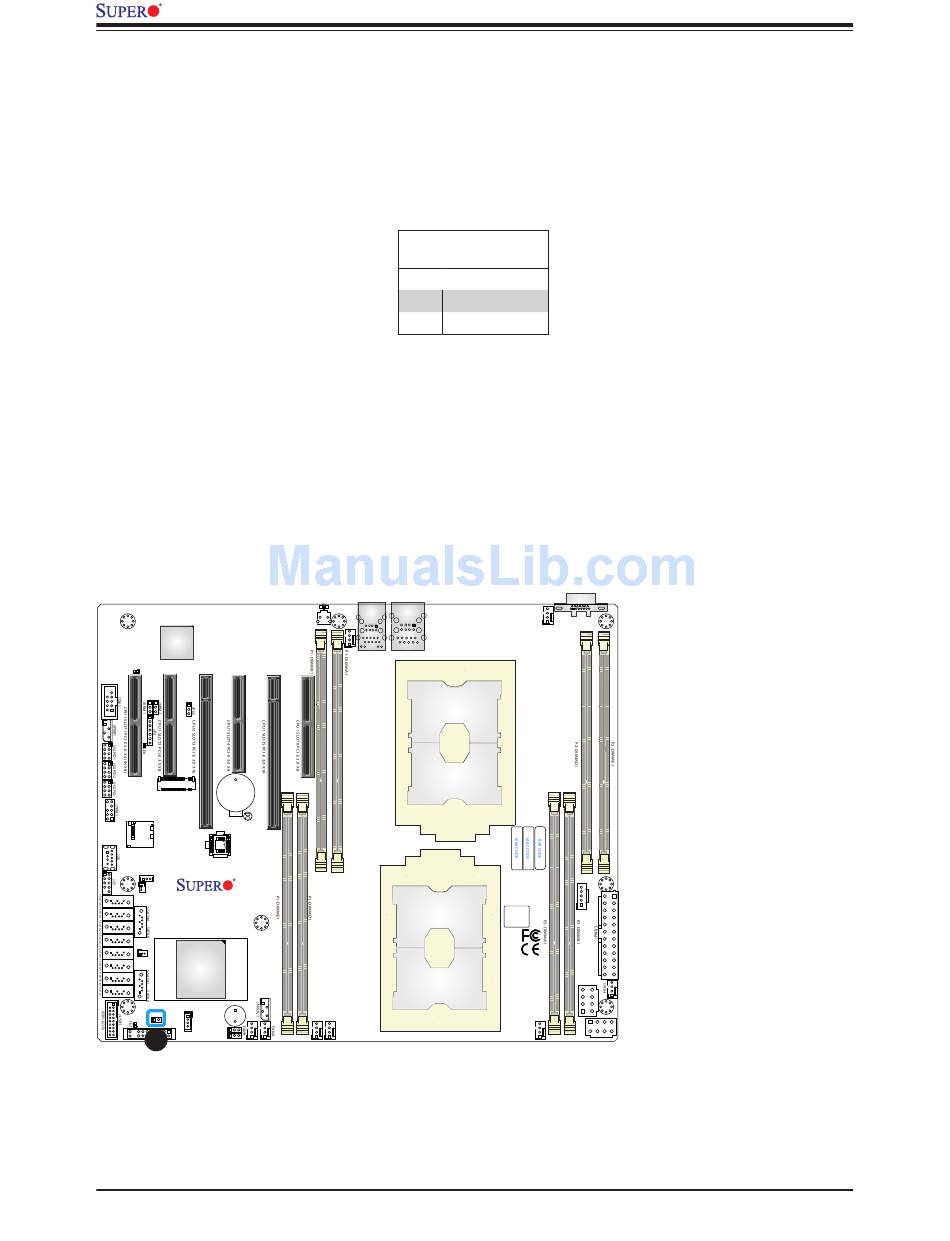

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable
from the chassis to inform you of a chassis intrusion when the chassis is opened. Refer to
the table below for pin definitions.
LEDM1
1
M.2
BT1
JSDCARD1
JBT1
BIOS
USB4(3.0)
USB2/3
JSTBY1
JSD1
X11DPL-i
DESIGNED IN USA
REV:1.01
JSD2
SATA7
SP1
JRK1
JL1
JF1
JWD1
1
JPME2
Chassis Intrusion
Pin Definitions
Pin# Definition
1 Intrusion Input
2 Ground
JLAN1
LE1
FAN5
JUIDB1
LAN1/2 USB0/1
IPMI_LAN
CPU2
CPU1
FAN4 FAN3
50
VGA
FAN6
JPI2C1
BIOS LICENSE
JPWR1
FAN2
JPWR2
1. JL1
