Owner's Manual
Including Installation Instructions And Warranty Information
TO SUIT HEAT PUMP STORAGE WATER HEATER
Document number: QDC0030PD-11
OWNER'S MANUAL
Compact:
150-08ACW-134
270-11AC3-134
340-11AC3-134
340-17ACW-134
Titan Split:
340TIH-134
FOR ADVICE, REPAIRS AND SERVICE
1800 644 705
Document Number: QDC0030PD-11
Date Of Revision: 01 Mar. 2008
Quantum Energy Technologies
MODELS
Page 1 of 40
Advertisement
Table of Contents
Related Manuals for Quantum 270-11AC3-134
Summary of Contents for Quantum 270-11AC3-134
- Page 1 OWNER'S MANUAL Including Installation Instructions And Warranty Information TO SUIT HEAT PUMP STORAGE WATER HEATER Compact: Titan Split: FOR ADVICE, REPAIRS AND SERVICE Document Number: QDC0030PD-11 Document number: QDC0030PD-11 Quantum Energy Technologies MODELS 150-08ACW-134 270-11AC3-134 340-11AC3-134 340-17ACW-134 340TIH-134 1800 644 705 Date Of Revision: 01 Mar.
-
Page 2: Table Of Contents
2a: One Of The Worlds Most Energy Efficient Methods Of Water Heating ... 6 2b: Time Delay On Start ... 7 2c: Features Of Your Quantum Water Heater ... 7 Section 3: INSTALLATION DETAILS ... 7 3a: General Installation Requirements ... 7 3a.1: Location ... - Page 3 10a: The Buttons ... 25 10a.1: SET BUTTON... 25 10a.2: UP BUTTON... 25 10a.3: DOWN BUTTON ... 25 10b: Restore Factory Programming ... 25 10b.1: First Level: Press SET+UP for 6 seconds... 26 Document number: QDC0030PD-11 Quantum Energy Technologies Page 3 of 40...
- Page 4 10d: De-Icing... 27 10e: Operating Principle... 27 10f: Adjusting... 27 Appendix A: TROUBLE SHOOTING GUIDE ON QUANTUM WATER HEATERS ... 31 A.1: No Hot Water; Compressor Not Running ... 31 A.2: Thermal Cut Out Trips Off Repeatedly ... 32 A.3: No Hot Water; Compressor Running ... 33 A.4: Shortage Of Hot Water ...
-
Page 5: Section 1: Appliance Details
Work Carried Out: …………………….………………………………………………….……. Signature of Service Agent: .……………………………….………………………………….. Date of Service: ... Work Carried Out: …………………………………………………………….………………. Signature of Service Agent: .……………………………...……….………….……………….. Document number: QDC0030PD-11 Quantum Energy Technologies Given Name(s): ….………………………... Postcode: …………………………………… Serial Number: ………………..……………. Installer’s Name: …………………………… Serviced By: …………….…………………. -
Page 6: Section 2: Introduction

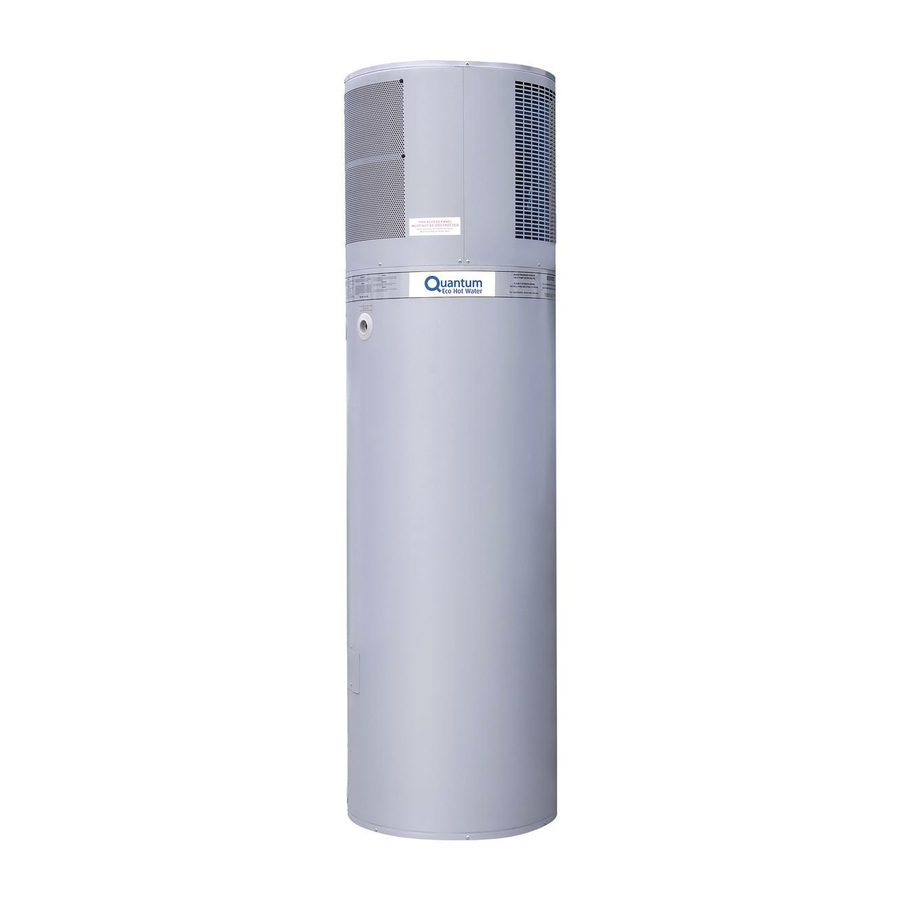

The Quantum compact model has an air conditioning coil as the cold side of the refrigeration circuit. This coil absorbs the heat from air that is forced through it by means of the fan. The Compact design is installed like a conventional electric water heater i.e. -
Page 7: 2C: Features Of Your Quantum Water Heater
400mm above the top of the water heater (if possible) for clearance to replace the anode. The water heater should be placed on a 650mm x 650mm plinth if installed on a floor subject to wet conditions or outdoors. A properly drained overflow tray should be used where property damage could occur from water spillage. -
Page 8: 3A.2: Corrosion Protection
The evaporator drain on both the Compact and Split Air units should be drained to a suitable location. This can be accomplished with a length of hose or pipe but must not be connected directly to the PTR valve or expansion valve drain. -
Page 9: 3F: Cold Water Connection
Ensure that adequate sealing tape is applied to the plugs for a tight, leak proof seal. 3l: Tempering Valves Where a tempering valve is fitted on the hot water outlet of a Quantum (to reduce water temperature to 50°C as per the plumbing code) ONLY high performance valves suitable for “Solar”... -
Page 10: 3M: Electrical Connection
The unit should be connected to Standard Domestic tariff. Off Peak connection is NOT recommended for Quantum heat pump units. If the unit is connected to an “Off Peak” connection, the minimum power availability must be at least 18 hours per day. -
Page 11: 3N.1: Refrigeration Tube Sizes
This is extremely important and MUST be adhered to without exception! DO NOT DRILL ANY HOLES IN OUTER METAL JACKET DAMAGE TO REFRIGERATION LINES MAY RESULT Document number: QDC0030PD-11 Quantum Energy Technologies Copper Tube Size - Inlet Inch (9.5mm) Copper Tube Size - Outlet Inch (15.9mm) -
Page 12: Figure 1: Installation Diagram (Compact Systems)
This is so that cold air being discharged from one unit is not drawn in by the one next to it. The space between multiple units should be a minimum of 200mm. Tank Orientation Diagram for Compact Units Document number: QDC0030PD-11 Quantum Energy Technologies 100 mm Min Condensation Drain Power Cord 15°... -
Page 13: Figure 2: Installation Diagram (Split Systems)
Figure 2: Installation Diagram (Split Systems) Power Connection 35° Water Connections 32° PTR Valve Tank Orientation Diagram For Split Units Document number: QDC0030PD-11 Quantum Energy Technologies 100 mm Min 200 mm i M n Front Access Wall Page 13 of 40... -
Page 14: Section 4: Operating Instructions
4b: Water Quality Your Quantum water heater has been manufactured to suit the water conditions of most Australian metropolitan supplies. Please note that harsh water supplies can have a detrimental effect on the water heater and its life expectancy. If you are unsure about your water quality you can obtain information from your local water supply authority. -
Page 15: 5B: Important Note Regarding Ptr Valve
The water tank must not be drilled or punctured. Drilled holes or punctures may damage the refrigeration pipes located on the skin of the water tank. The Quantum tank is a patented design and in fact forms the condenser of the unit; i.e. it is the hot side of the refrigeration circuit. The coils wound around the outside wall of the tank heat the tank more efficiently than any other water heater design. -
Page 16: 6D: Service Caution - Before Any Work Is Carried Out
(hold for 6 seconds). Turning the power off then back on will also perform a reset. 6f: Routine Service Serving requirements and timing for Quantum heat pump hot water systems. MAINTENANCE REQUIRED Check PTR Valve... -
Page 17: 6F.2: Five Year Service (By Authorized Personnel Only)
6f.2: Five Year Service (By Authorized Personnel Only) The five-year service should be carried out by a licensed tradesperson every five years. It is recommended that your local Quantum distributor carry out this service. The service should include the following: - Replace the Pressure &... -
Page 18: 6F.4: Flushing Of Water Tank
As with other hot water heater tanks, dissolved solids in the water or scale may accumulate in the bottom of the water tank forming sludge. This is generally less of a problem with Quantum units as no internal elements or burners are used. -
Page 19: Section 7: Recognition Of Abnormal Operation
Quantum distributor or service agent. 7b: No Hot Water 1. Is the Electricity switched on? Check that the isolating switch, to which the Quantum is connected, is on. Check that the switch marked “Water Heater” in the switchboard is on. - Page 20 6. If there are no water leakages around the building and no excessive usage of hot water, yet electricity bills are higher than normal (without any other appliance being responsible) then it may indicate a problem with the water heater. Contact your nearest Quantum distributor or service agent.
-
Page 21: Section 8: Warranty Certificate
The date and time of the commencement of such warranty work will be at the discretion of the Company. Quantum does not warrant that such repair work will take place within any particular period. -
Page 22: 8B: Items Not Covered By Warranty
Damage caused by use in a corrosive atmosphere (e.g. such as coastal regions). □ Filter cleaning and / or replacement, unless defective. □ Cleaning / maintenance of the water heater unit. □ Calls made to check the operation of a unit, which is found to be working satisfactorily. □... -
Page 23: Section 9: Specifications
340-17ACW-134 Evaporator Model Dimensions (mm) Compact-150 Internal Compact-270/340 Internal Compact-TITAN Internal Titan Split 655×580×380 Document number: QDC0030PD-11 540mm Diameter Quantum Energy Technologies Figure 3: Specifications & Dimensions 150ACW-134 Dimensions(mm) Mass R134a (Full) Charge (Kg) (gm) 1650 1620 1850 1900 1190... -
Page 24: Figure 4: Split Fin Coil Evaporator - 340 Tih-134
A qualified refrigeration technician must install the Split Air model. While the plumbing and electrical work is the same as the Compact, this unit also requires on site refrigeration work. Document number: QDC0030PD-11 Air Flow ” Discharge Line ” Suction Line Quantum Energy Technologies Refrigeration Connection Power Cable Page 24 of 40... -
Page 25: Section 10: Operation & Adjustment Of The Digital Controller
Section 10: OPERATION & ADJUSTMENT OF THE DIGITAL CONTROLLER Caution: Alteration of the Digital Controllers programming & settings without authorisation from Quantum Energy Technologies will void your warranty. This section is provided ONLY for qualified refrigeration technicians to assist in servicing, repairs or trouble shooting. -
Page 26: 10B.1: First Level: Press Set+Up For 6 Seconds
E04 Compressor overload protection. Auto reset the first time, manual reset the second time. E05 Compressor overheat protection (exceeding H95 setting). Auto reset. E06 Compressor overheat protection (exceeding 105℃). Manual reset. E08 Ambient temperature sensor open or short circuit (Optional). Auto reset. Document number: QDC0030PD-11 Quantum Energy Technologies Page 26 of 40... -
Page 27: 10D: De-Icing
Press the SET button again to enter the next menu or return. Document number: QDC0030PD-11 Quantum Energy Technologies Level F45) and the evaporator temperature Level F08) or the de-icing time has been more than 10 min Level H95), the compressor will be de Level t10). -
Page 28: Figure 5: Layout Of Digital Controller Programming Buttons
Quantum Energy Technologies Owner’s Manual Figure 5: Layout Of Digital Controller Programming Buttons Display Up Button Set Button Down Button Document number: QDC0030PD-11 Page 28 of 40... -
Page 31: Appendix A: Trouble Shooting Guide On Quantum Water Heaters
Owner’s Manual Appendix A: TROUBLE SHOOTING GUIDE ON QUANTUM WATER HEATERS Models covered in this guide 800 Watt. Compact Air Sourced Domestic Hot Water Heater (0.8kW compressor models) 1100 Watt. Compact Air Sourced Domestic Hot Water Heater (1.1kW compressor models) 1700 Watt. -
Page 32: A.2: Thermal Cut Out Trips Off Repeatedly
Check for oil traps in the tubes between evaporator and tank. 5. Poor oil return to compressor. Document number: QDC0030PD-11 Test / Observation Quantum Energy Technologies Action Top up refrigerant or re-charge. Repair leak, or if not repairable, contact QUANTUM service. -
Page 33: A.3: No Hot Water; Compressor Running
Check for not water leakage. c. Check heat loss if the heater is on reticulation circuit. Check according to Table A.3: item 2, 3 & 4. Quantum Energy Technologies Action If water is not heated in the expected time, check for other reasons. -
Page 34: A.5: Testing Undercharge Or Overcharge Of Refrigerant
A.5: Testing Undercharge Or Overcharge Of Refrigerant Unlike normal refrigerating or air conditioning systems, the QUANTUM heat pump operates under a very wide range of evaporating and condensing temperatures. To identify undercharge or overcharge of refrigerant gas in the system, three parameters need to be checked. -
Page 35: A.8: Signs Of Correct Charge
A.10: Signs Of Overcharge Continuous liquid through sight glass: Assuming TX valve is functioning normally, evaporator tends to flood, head pressure tends to be high, current draw is high and compressor is noisy. Document number: QDC0030PD-11 Quantum Energy Technologies Page 35 of 40... -
Page 36: A.11: Technical Data For Service Personnel - Siam Compressors - R134A
220-240VAC, 50Hz 1Φ, 15A Eyre: ID 1.1mm x 2.9m On at 85℃, Off at 75℃ 55℃/5℃ (Del. ≥60℃) 1850g 105℃, manual reset Quantum Energy Technologies 340TIH-134 340-17ACW-134 3.5Turns(7Turns) F.Open TEN2 # 4 C-R: 0.96Ω, C-S: 1.77Ω 60μF (+0, -15%) 400 VAC 220-240VAC, 50Hz 1Φ, 15A... -
Page 37: Warranty Card
Insulation Length Vacuum (millibar) Refrigerant Added Pressure Test (kPa) 56-60 Bourke Road, Alexandria NSW 2015 Australia rn this record sheet to Quantum Energy (at the above addr **REMOVE THIS PAGE** Quantum Energy Technologies Warranty Registered (Office Use Only) □ Date Manufactured: Installation Details □... - Page 38 Quantum Energy Technologies Owner’ Manual BLANK PAGE Document number: QDC0030PD-11 Page 38 of 40...
-
Page 39: Notes (Owner's Use)
Quantum Energy Technologies Owner’ Manual NOTES (Owner’s Use) Document number: QDC0030PD-11 Page 39 of 40... - Page 40 MANUFACTURED BY QUANTUM ENERGY TECHNOLOGIES PTY LTD 56-60 Bourke Road Alexandria NSW 2015 Phone: (02) 4953 9888 Fax (02) 4953 9887 A.B.N: 88 095 959 327 NOTE: Every care has been taken to ensure the accuracy in preparing this publication.
