Summary of Contents for Excelsys XS500-24
- Page 1 Solo Designer Manual...
- Page 2 • Hi-Rel COTS Model Vnom Power Description Set Point Dynamic Vtrim Imax Remote Power Adjust Range (V) Range (V) Sense Good XS500-24 Convection Cooled U-Channel 19-28 14-28 21.0 XS1000-24 1008 Enclosed Fan Cooled 19-28 14-28 42.0 XS500-36 Convection Cooled U-Channel 26-40 20-40 14.0...
- Page 3 Output Voltage Range XS500/1000-24: Multi-turn potentiometer XS500/1000-24: Dynamic Vtrim range XS500/1000-36: Multi-turn potentiometer XS500/1000-36: Dynamic Vtrim range XS500/1000-48: Multi-turn potentiometer XS500/1000-48: Dynamic Vtrim range Output Current Range XS500-24 XS1000-24 XS500-36 XS1000-36 XS500-48 10.5 XS1000-48 Load & Cross Regulation For 25% to 75% load change ±0.2...

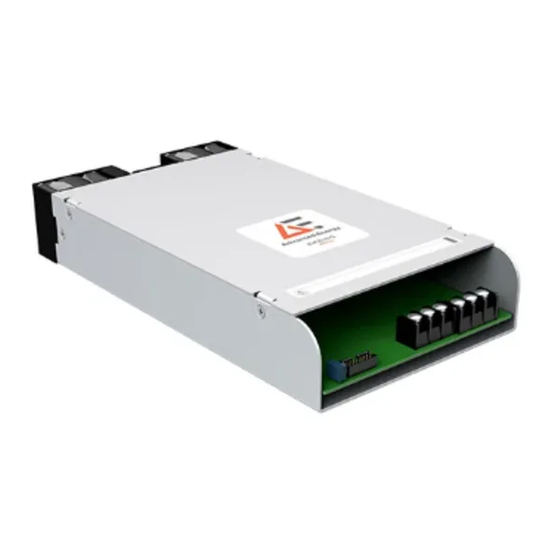

- Page 4 Xsolo 500W - 1000W Single Output Power Supply solo Ultra-high efficiency 1U size Section 6.1 Overview of Xsolo The Xsolo family of single output power supplies provides up to an incredible 1008W in an extremely compact package. Available in two package types, the high efficiency Xsolo delivers an incredible convection cooled 504W in an open-frame U-channel form factor and up to 1008W in an enclosed, fan cooled chassis.
-
Page 5: Installation Considerations
By applying a control voltage (Vcontrol) between J5 Pin 9 (Vtrim) and J5 Pin 10 (-Sense) the output voltage of XS1000-24 and XS500-24 may be adjusted over a wide range. Vcontrol can be Remote voltage programming by an external resistor/poten- read from the graph below or calculated with the formula: tiometer can also be implemented on the Xsolo. - Page 6 Important: Vcontrol should not exceed 1.5V for XS500-24 Important: Vcontrol should not exceed 3.0V for XS1000-48 Example. Example. Setting the output current limit of the XS500-24 to 15A via the Setting the output current limit of the XS1000-48 to 15A via the Itrim Pin Itrim Pin Ioutput/15.267=Vcontrol...
- Page 7 J5 Pin 8 or Pin 14 (Common). For optimal current sharing with OR-ing option a 10% min load is recommended. If paralleling 3 or more Xsolos consult Excelsys for applications support. Recommended Jumper for J20: HARWIN M7567-05 10mS (Jumper Socket, Black, 2.54mm, 2-way)
-
Page 8: Section 6.6 Options
90% efficient at 30% of rated output (300W). At loads below 500W the fan is not required and the XS1000 is Efficiency V’s Load XS1000 Acoustic Noise V’s Output Power XS1000 Output Power (W) Output Power (W) www.excelsys.com... -
Page 9: Section 7.2 Safety Approvals
To ensure that these early fail- Conversely, however, for each 10°C increase, the MTBF ures do not happen while in the possession of the user, Excelsys reduces by a similar factor. Therefore, when comparing manu- carries out a burn-in on each unit, designed to ensure that all facturer's quoted MTBF figures, look at the temperature infor- these early failures are detected at Excelsys. -
Page 10: Section 7.3 Emc Characteristics
Medical 70% 10ms Criteria A Creepage Distances UltiMod, Xsolo, XM, XV, XR, XZ, XN, Further details on all tests are available from Excelsys. XW models Primary mains circuits to earth: 4mm spacing Guidelines for Optimum EMC Performance Primary mains circuits to secondary: 8mm spacing...
