Solatube 330 DS Installation Instructions Manual

Open Ceiling
For Closed Ceiling, see back of this page.
1a
2a
2b
4
5
6
8
For the most current Installation Instructions, please visit www.solatube.com/instructions
Solatube International, Inc. | 2210 Oak Ridge Way | Vista, CA 92081-8341 | www.solatube.com | T: 888.SOLATUBE
Za Hrvatsku: QUADRATUM d.o.o., Zagreb / Tel: 01 2027 072, Mob: 091 2345 129 / info@quadratum.hr, www.quadratum.hr
© 2013 Solatube International, Inc.
®
Solatube SolaMaster
®

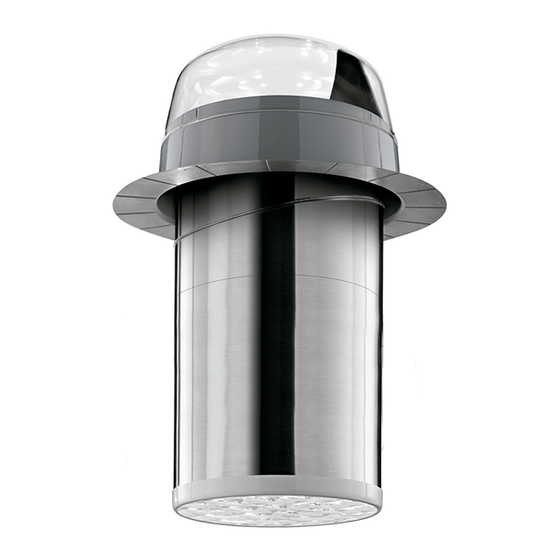

Solatube 330 DS Daylighting System
®
Solatube 750 DS Daylighting System
Installation Instructions
Parts List *
Outer Dome Options
a. 750 DS Dome with Raybender® 3000
1
Technology
b. 330 DS Dome with LightTracker™ Reflector
Inner Dome Option
1b
2
a. Inner Dome for 750 DS (Optional)
b. Inner Dome for 750 DS (Optional,
Polycarbonate*†)
Dome Fasteners
3a
a. Dome Screw #8 X 1 5/8 in (40 mm)
3 b. Dome Spacer
c. Dome Seal
d. Drill Bit #40 (3/32 in/2.5 mm)
3b
Tube Ring
4
a. Tube Ring Seal (Required for all Open Ceiling
Units)
Roof Flashing (4 in (100 mm)*†, 8 in (200 mm)*†, 11
3c
in (280 mm)*† or Curb Cap))
5
a. Flashing Screws - #10 X 2 in (50 mm)
Spectralight® Infinity Tubes
3d
a. 24 in (610 mm) Extension Tube with Tube
6
Fastener Kit
b. 48 in (1220 mm) Extension Tube with Tube
Fastener Kit
Tube Fastener Kit
4a
a. Tube Screws - #8 X 9/16 in (14 mm)
7
b. 2 in (50 mm) Foil Tape - 18 ft (5.5 m)
5a
Diffuser for Open Ceiling
8
a. Diffuser Seal
Required Tools:
7a
Saber or Reciprocating Saw
Flat Bar
7b
Tape Measure
Screw Gun with Phillips Head
Magnetic Compass
Hammer
8a
*Components shown not included in all kits, see label on box.
*†Required for High Velocity Hurricane Zone (HVHZ) areas.
®
Series
Quantity
(1)
(1)
(1)
(1)
(1)
(4)
(4)
(1)
(1)
(1)
(1)
(1)
(21)
(1)
(1)
(1)
(5)
(1)
(1)
(1)
Utility Knife
Caulking Gun
Lumber Crayon
Metal Shears
Required Safety Equipment
1
Part No. 950160 v2.3
