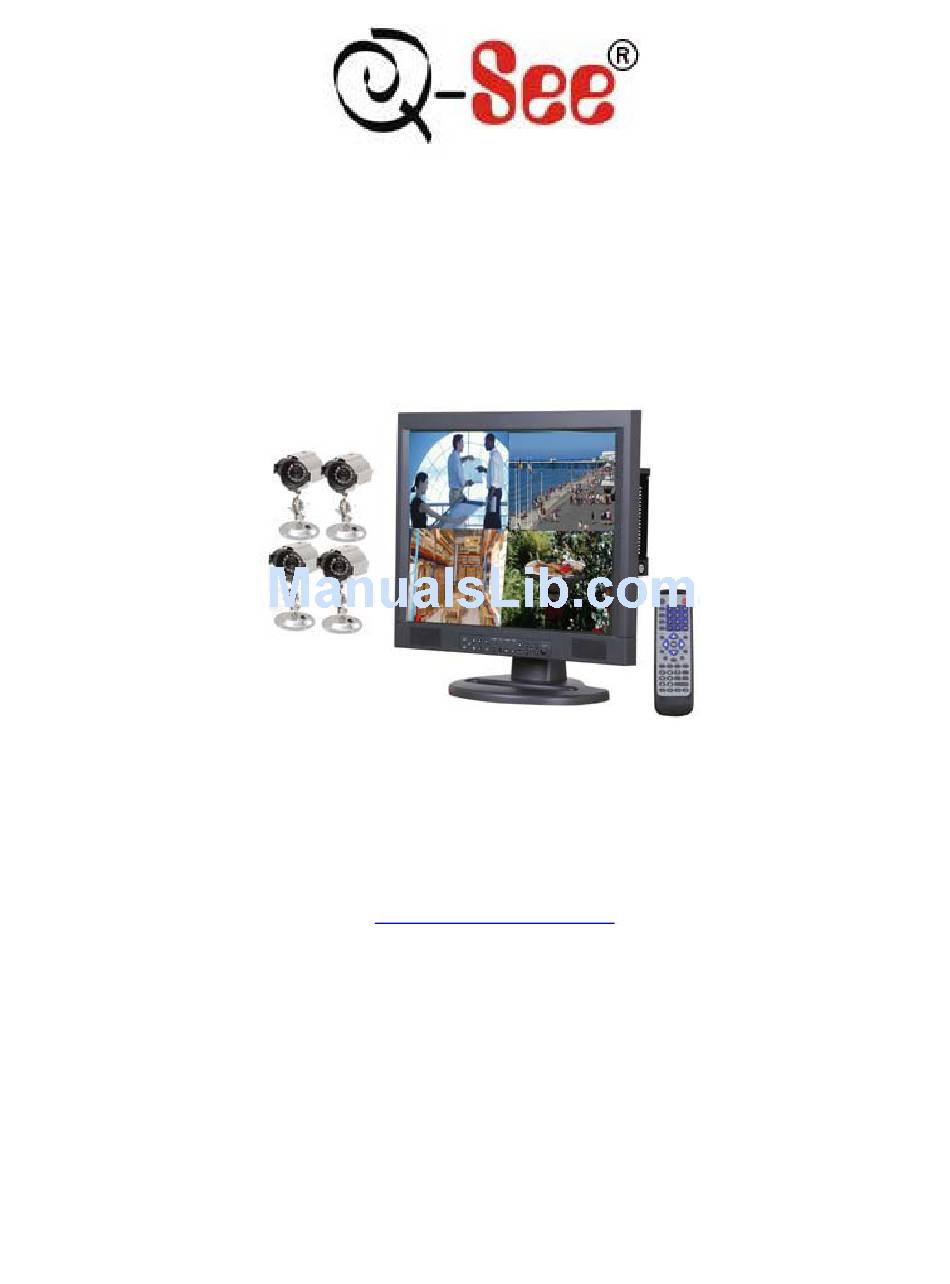

QT17D324SC
User's Manual
Contact Us:
Q-See Products
8015 E. Crystal Dr
Anaheim, CA 92807
Website:
http://www.q-see.com
Customer Service:
Phone: 877-998-3440 x 538
Email: cs@dpsi-usa.com
Tech Support:
Phone: 877-998-3440 x 539
Email: ts@dpsi-usa.com
714-998-3509
Rev 061609
Fax:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QT17D324SC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Q-See QT17D324SC

  • Page 1 QT17D324SC User’s Manual Contact Us: Q-See Products 8015 E. Crystal Dr Anaheim, CA 92807 Website: http://www.q-see.com Customer Service: Phone: 877-998-3440 x 538 Email: cs@dpsi-usa.com Tech Support: Phone: 877-998-3440 x 539 Email: ts@dpsi-usa.com Fax: 714-998-3509 Rev 061609...
  • Page 2: Table Of Contents

    Table of Contents Important Safeguards…………………….………………………………………………………..3 Chapter 1 Product Information……………………………………………………………………4 1.1 Product Description……………………………………………………………..……….4 1.2 Product Features…………………………………………………………………………4 Chapter 2 System Installation…………………………………………………………………..…5 2.1 Installing the Hard Drive……………………………………………………………..…..5 2.2 Rear Panel Layout………………………………………………………………………..5 Chapter 3 System Operation………………………………………………………………..……..7 3.1 Layout of Front Panel and Remote Control…………………………………..………..7 3.1.1 Front Panel………………………………………………………………………..7 3.1.2 Remote Control ………………………………………………..…………………9 3.2 Accessing the System,………………………………………………………………..…12...
  • Page 3: Important Safeguards

    8.Repair (Servicing): Do not attempt to repair this monitor yourself as opening or removing the cover may expose you to dangerous voltage or other hazards. Refer to qualified service personnel. 9.Replacement Parts: Please contact Q-See for replacement parts. QT19D328SC User’s Manual...
  • Page 4: Chapter 1 Product Information

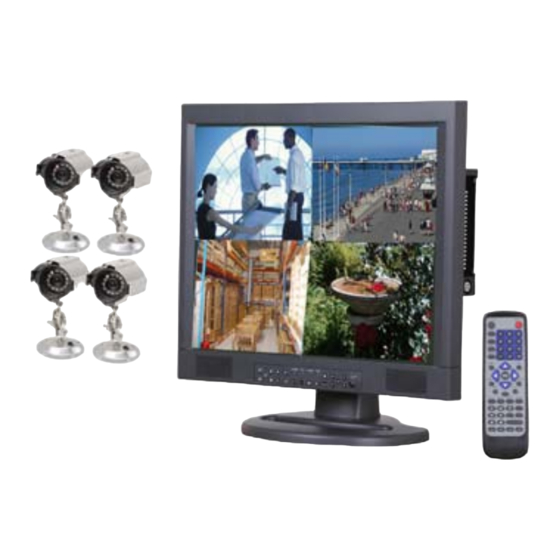

    10.Safety Check: Upon completion of any service or repair to this monitor, ask the service technician to perform safety checks to determine that the monitor is in proper operating condition. 11.Retain Instructions: The safety and operating instructions should be retained for future reference. 1.1 Product Description This product is a four channel digital monitoring product that is specially designed for the security industry.
  • Page 5: Chapter 2 System Installation

     RS-485 interface on the system can be used to control P.T.Z cameras with various communication protocols.  VGA output supports 720×480, 1280×720 and 1920×1080 Resolution modes,better quality picture can be attained by using progressive scanning.  Supports file backup to IDE hard drive. ...
  • Page 6 QT19D328SC User’s Manual AUDIO IN:One Channel left/ One Channel right audio input AUDIO OUT:One Channel left/ one Channel right audio output VGA:One Channel VGA terminal input...
  • Page 7: Chapter 3 System Operation

    3.1 Layout of Front Panel and Remote Control 3.1.1 Front Panel Buttons on front panel and their functions: ① Indicating light area  NET:indicating light for network activity  ALARM:indicating light for alarm activity The alarm light will be on once the alarm is started(no matter what kind of alarm it is for) H.D.
  • Page 8 :Right Directional button 【 】button:for confirmation,choose the menu items, and press this button to enter into the selected sub-menu;Pressing this button can display the real time of the system when playing back recordings.  Functional Buttons Area 【 】Button:Main Menu, used for setting each function of the system. 【...
  • Page 9: Remote Control

    QT19D328SC User’s Manual 3.1.2 Remote Control...
  • Page 10 Buttons on Remote Control and Their Functions: QT19D328SC User’s Manual LO G I N / LO C K PO W ER O N PLAYBAC K Q U AD PAR AM ETER AN ALO G ZO O M + ZO O M - FO C U S- FO C U S+ EXI T...
  • Page 11 ① Digital Button Area 【0-9】Button:Digital buttons,used for digital input or video switch,when in quad mode, press 1,2, 3, 4 digit buttons to switch the picture output between the first, second, third and forth video channels. 【+】 【-】Button:Adjusting various parameters; Menu Operating Buttons Area :UP Directional button;...
  • Page 12 displayed frame by frame,press【Play】button to return to normal speed; 【FWD】Button:Play fast forward through the playback video,at the speed of 2x, 4x times,press【Play】 Button to return to normal speed; 【REV】Button:Play fast backward through the playback video,at speed of 2x, 4x times, press【Play】Button to return to normal speed;...
  • Page 13: Accessing The System

    the system; 【F1】Button:For pick time play on the recorded pictures; 【F2】Button:Press this button to enter into the control menu for PTZ cameras when under the single channel mode.  Press left, right, up and down buttons to change the position of the PTZ camera; ...
  • Page 14: System Login

    Note: If time recording has been setup on this machine,and power is connected during this period, then the machine will start and enter into quad mode directly without needing to press 【on/off】 button again to start the machine. If the channel numbers and time are not being displayed, please press 【ENTER】 button unit or panel, and the channel numbers and time will be displayed on the screen.
  • Page 15: Using The System

    want to turn off the system, the system will change into standby mode from running mode when it is off; If you want to restart the system, please press the 【on/off】button on the remote control. 3.3 Using the System When the system is running, press 【setup】 button to enter into the OSD main menu. Use the “ ”...
  • Page 16: Channel Set

    b). Machine’s device number : Use can use numbers from “000” to “999”. Machine’s device number has been preset to “000” at the factory. You need to input this number when the system is running. Machine’s address : Manually enter the machine’s address here (optional). Machine address could be the address of the place being monitored thru this system.
  • Page 17: Alarm Set

    Blink the video from the camera will still be recorded. 3.3.3 Alarm Set Alarm/Timing Setup Port Alarm Mode Timing S etup Close Record D elay: 030 Open Output D elay: 010 Close Buzzer D uration: 0 00 Close I/O Alarm O ut: O n Motion Alarm Out: On a).
  • Page 18: Ptz Set

    I. Setting the recording time : Press Setup for each channel under “Schedule” to setup the day (Mon-Sun), Time of First Segment, recording mode (Time, Alarm or motion) Time of Second Segment, and type of recording mode. There are 2 segments of recording to accommodate recording overnite.
  • Page 19: Network Set

    Troubleshooting: When Pan/Tilt/Zoom does not operate normally, Please check RS-485 connection and Pan/Tilt/Zoom setup. 3.3.6 Network Set Move the cursor to Network Set and press Enter to get into the system’s network setup menu. See picture below: Network Setup IP Address: 192.168.001.200 Subnet M ask: 255.255.255.000...
  • Page 20 Search Menu Playback All Record Record Status HDD Status Machine Info Exit a). Playback All Record: Use this option to search for recordings by record type (All, Timing, Alarm) and Date/Time. Date Time: Move cursor to this selection, and directly input the date and time, based on the recording date and time you want to playback;...
  • Page 21 Type: includes all events recording mode, alarm mode, motion detection and operation mode; select the type of event you want, or select All Events and click start, the screen below will be displayed: Log Search: All Events 06-17 12:20 06-17 01:00 06-17 02:15 Return PageUp c).
  • Page 22 2)Status: video status: Record/Idle 3)Image Quality: displays video record quality 4)Frame rate: displays video recording frame rate 5)Alarm: setting status alarm/disarm alarm two 6)Motion detection: turn on/ turn off. d). HDD Status: By moving cursor to [HDD Status] option, and pressing the [ENTER] key you will enter into the hard drive status information, this window will display current hard drive status, including total capacity and remaining space.
  • Page 23: Basic Set

    3.3.8 Basic Set By moving the cursor to [Basic Set] option and pressing the [ENTER] key will take you to the basic setup screen: Basic Setup Record Settings: Setup Buzz Settings: Language S ettings: English Fastigium Settings: Record Bag Settings: 30 minute USB S ettings: Setup Video S pot S ettings:...
  • Page 24: Screen Settings

    will start a new file. USB Settings: Select Setup and press the Enter button. You will have two options, Disable and Enable. Select Enable to active the USB port. After you select this option on press Enter the DVR will restart. After enabling the port you can connect the USB 2.0 port on the DVR to a USB 2.0 port on a PC you will be able to back up the files from the hard drive on the DVR to the hard drive on the PC.
  • Page 25 Video Display Video Standard System Resources Audio Input Audio Output Basic Output Gain Audio Distortion Plus Noise Recording Solutions Audio Compression Operating Language System Operating Interface Password control Image Compression Image format Video code rate Video volume taken in H.D. Resolution Digital Processing...
  • Page 26: Appendix B Camera Specifications

    Alarm input Alarm Input options Alarm Output PTZ Port Other Ports Serial Port Network Port Network Transport protocols Network Network Transport interface Browsing Solutions Clock Power Power Consumption Video System Max Brightness Others Max Contrast Response Time Tr/Tf Visual Angle Weight Dimensions ( W×H×D)
  • Page 27: Appendix C Product Service & Warranty

    Effective Pixels 510x492 NTSC Field of View 42° for 6mm, 74° for 3.6mm Connectors BNC (F), 12VDC 2.1mm (F) Minimum Luminance 0 Lux Infrared LEDs/Distance 12/30ft IR LED Wavelength 850nm Video Output 1 Vp-p75 ohm Electronic Shutter Speed 1/50 (1/60)-1/100,000sec Audio Output None S/N Ratio...
  • Page 28 If you have questions: Mailing Address: DPS Inc. 8015 E. Crystal Dr Anaheim, CA 92807 Website: http://www.q-see.com Fax: 714-998-3509 QT19D328SC User’s Manual www.q-see.com website and clicking on the Register link. Contact Us: Customer Service: Phone: 877-998-3440 x 538 Email: cs@dpsi-usa.com...
  • Page 29: Customer Information Card

    Customer Information Card You’s Name Mr./Mrs. Company Name Postal Address Postal code Phone Number E-mail Model Number of Product Serial Number of Product Purchase Date Distributor The material in this document is the intellectual property of our company. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without our company’s prior written permission.
