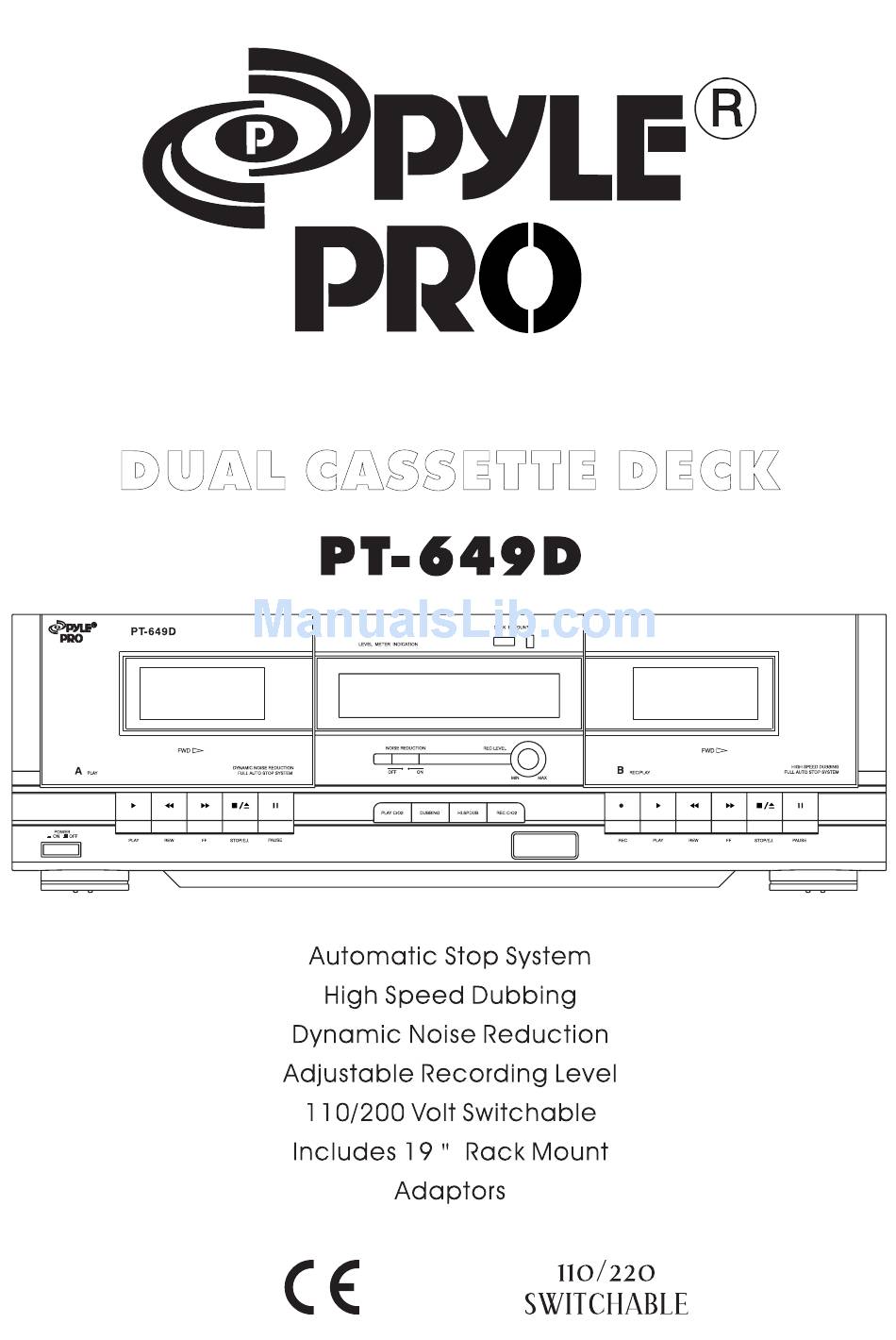

Pyle Pro PT-649D User Manual

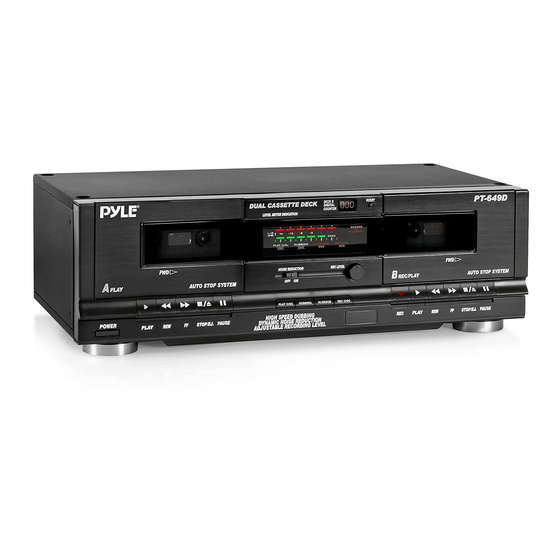

Pyle audio dual cassette deck user's manual
Hide thumbs


Advertisement

Advertisement

Table of Contents
loading

  Related Manuals for Pyle Pro PYLE PRO PT-649D

  Summary of Contents for Pyle Pro PYLE PRO PT-649D

  • Page 2 PANEL INFORMATION DYNAMIC NOISE REDUCTION PLAY FULL AUTO STOP SYSTEM POWER PLAY STOP/EJ. 1. ON/STANDBY SWITCH Depress button to switch “ON” the unit. Press release to switch “OFF” unit into “STANDBY MODE”. If the unit is left unattended for long periods, remove the 13 AMP plug from the power socket. 2.
  • Page 3: Operating Procedures

    OPERATING PROCEDURES T UNER AU DIO Playback a recorded tape ( DECK A or DECK B) 1. Switch on the power of the unit. 2. Press the STOP/EJECT button and insert a recorded cassette. For Cr02/metal tape, further press the Cr02/metal switch and the light at the indicator will be lit up.
  • Page 4 SPECIFICATIONS Type……………………………Stereo double cassette deck Track system…………………. 4-track 2- channel Tape speed……………………..4.8 cm/sec Frequency response (-20dB recording) Chrome tape………………….40-15,000Hz (±3dB) Normal tape………………….40-14,000Hz (±3dB) (0 dB recording) Chrome tape…………………40-8,000Hz (±3dB) Normal tape……………. …..40-8,000Hz (±3dB) S/N ratio……………………….58dB Wow and flutter………………..<0.2% (DIN45500) Crosstalk……………………….40dB (1 khz) Harmonic distortion………….less than 1% (at 1 Khz, OVU 3 H.D.

This manual is also suitable for:

Pt649d
