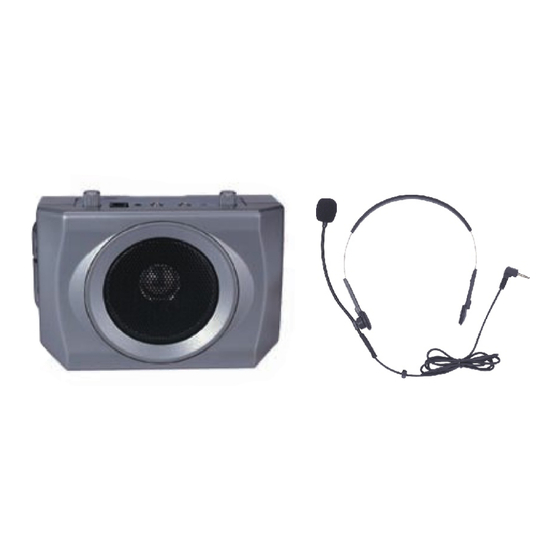

Pyle Pro Waisband Amplifier PWMA30 User Manual

SYSTEM INCLUDES
1. Main unit
2. Headset MIC
3. User's manual
4. Belt
5. 3.5/3.5mm audio cable
SPECIFICATIONS
1. Max. Power
2. Total harmonic distortion
3. Frequency response
4. Operation temperature
5. Power voltage
6. Output impedance
www.pyleaudio.com
X 1
X 1
X 1
X 1
X 1
5W
5% Max
100Hz-10KHz
+/- 3db
-10 ~45
DC 9V
4
4
USER'S MANUAL
Thank you for choosing our waistband amplifier
which will bring you inconceivable, endless of
comfort and convenience in your future work
and life.
This waistband amplifier is perfect to be used in
indoor and outdoor activities such as small
meetings, parties, teaching, karaoke, sales
propagandas and auctions etc.
NOTE
1. When using rechargeable batteries, you can
connect power adaptor(optional) to DC in jack
of the amplifier to charge the battery.
2. Power adaptor can also supply power to
amplifier while charging the battery.
3. When connecting power adapter, do not use
normal non-rechargeable batteries.
4. If you are not going to use the machine for a
long time, please take out the batteries to
avoid possible damage to the main unit by
battery leakage.
PWMA30
Waistband Amplifier
1
