Summary of Contents for Lightwave LW321

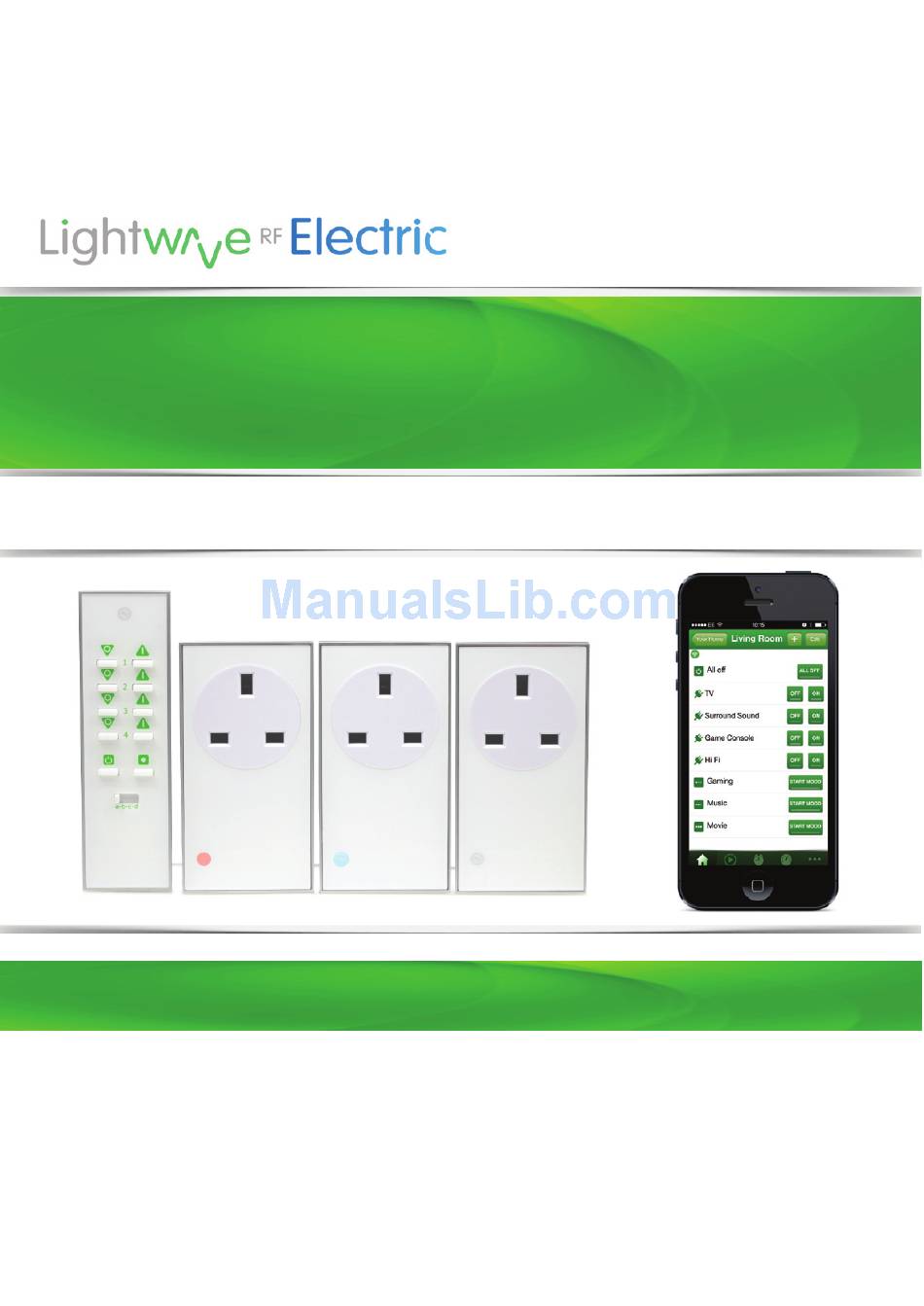

- Page 1 Version 2.1 Plug-in On/Off Socket Kit Model No. LW321 Instruction Manual Connect Series www.lightwaverf.house...
- Page 2 EC DECLARATION OF CONFORMITY Responsible Authority: LightwaveRF PLC, Innovation Campus Birmingham Faraday Wharf Holt Street Birmingham B7 4BB Tel: +44 (0)121 250 3625 Email: enquiries@lightwaverf.com Model Number(s): JSJSLW321 Description: Plug-in On/Off Kit Directives this equipment Complies with: 2006/95/EC The Low Voltage Directive N/A 2004/108/EEC The Electromagnetic Compatibility Directive 1999/5/EC R&TTE Directive 93/68/EEC CE Marking Directive...
-
Page 3: How Do I Get Started
(up to 3000W) to be turned on and off and dimmed using the remote control included in this pack, or by using a smartphone / tablet (requires the Lightwave Link). Help video & further guidance For additional guidance, and to watch a video... -
Page 4: Device Setup
Device setup Overview Transmission LED On & Off buttons Manual button (on side of Plug-in). Press to toggle Plug-in on/off Mood button All Off button LED. Blue when power is Bank selector on / amber when off IMPORTANT: Please retain these instructions for guidance on how to link Remote Handsets and other LightwaveRF Controllers. - Page 5 6 LightwaveRF controllers in total. NOTE: If you are using a smartphone/tablet/PC to control the Plug-in via the Lightwave Link, this will always count as ONE controller and take up one memory slot even if you are using multiple smartphones/tablets.
- Page 6 Device setup NOTE: Linking mode lasts for 12 seconds; if no signal is received from a remote handset during this time then the Plug-in will automatically exit linking mode without linking the device. If, when expecting a quick flashing blue LED to confirm pairing, a slow amber flash is received instead, then the Plug-in memory is FULL and no further remotes may be linked with it unless one of the existing remotes is unpaired first (see below).
- Page 7 NOTE: Reliable range of operation is around 15 metres indoors and up to 100m outdoors using the Lightwave Link. This figure may vary depending upon the environment; very thick walls, bodies of water or large metal objects may interfere with radio range.
-
Page 8: Manual Operation
Manual operation Plug-in Manual Operation Plug the LightwaveRF Plug-in On/Off Socket into a standard 13A wall socket and ensure that the wall socket is turned on. The LED Plug-in will illuminate amber to illustrate that there is power. Plug a working electrical device into the Plug-in and ensure that it is turned on. -
Page 9: Remote Operation
Remote operation Control with a LightwaveRF controller or Smartphone Press ‘on’ button controller, Smartphone or Web App once to switch the Plug-in Socket on (LED indicator will illuminate blue). Press ‘off’ button controller, Smartphone or Web App to switch the Plug-in Socket off (LED indicator will illuminate amber). - Page 10 Remote operation The ‘mood’ and ‘all off’ buttons allow the Plug-in Sockets (and/or other LightwaveRF devices) that are linked to the Handheld Remote to be grouped together on one button command. When saving a mood on the remote, the status of any linked devices (i.e. on or off and the dim level) is also saved.
- Page 11 Creative ideas 1. (Easy): Family safety Products Required: Plug-in Socket, PIR Motion Sensor Here we have a LightwaveRF Plug-in Socket paired to a PIR Motion Sensor. When somebody is detected by the sensor, it triggers the Plug-in automatically and turns a lamp on. So, when one of the kids needs to use the bathroom in the middle of the night, the path is safely lit for them.
- Page 12 At the end of the evening, press the ‘all off’ button to turn off all lights and lamps. Adding the Lightwave Link allows scene lighting to be controlled via a smartphone.
- Page 13 This setup gives you control over your devices from anywhere in the world. Here we have ceiling lights controlled by dimmers and lamps plugged into Lightwave power sockets or Plug-in Sockets. Via the Lightwave Link, every light can be controlled using a smartphone wherever you are. So, when you’re away on holiday, you can turn on lights to make it look like someone’s...
-
Page 14: Troubleshooting
The Plug-in will not consistently operate remotely. Solution: The controller/Lightwave Link may be encountering interference or may be at the edge of its reliable range of operation. First, ensure that there are no large pieces of metal or bodies of water in the path of the transmission. - Page 15 Troubleshooting Problem: The Plug-in is powered (LED is on), but it will not link to a LightwaveRF Handset or controller. Solution: Check the controller battery strength: if the battery strength is low, it will not produce enough power to drive the RF radio signal. Tap any ‘on’...
- Page 16 Yes. There is a limit of 3000W; exceeding this could damage the unit. How many devices can I have on the Lightwave system? Each device has 6 memory slots for up 6 controllers. Note: The Lightwave Link allows a number of different smartphones to control the Plug-in...
- Page 17 FAQs Can I incorporate a Plug-in into a mood? Yes: Plug-ins can be incorporated into a mood. Can I turn off the LED indicator light? No it is not possible to turn off the LEDs as they are necessary to signify the Plug-in’s status.
-
Page 18: Specification
Technical Specification Specification RF frequency: 433.92 MHz Output rating: 3000W Max. Standby Energy Use: Less than 1W Warranty: 2 year standard warranty BS 1363 Certified... - Page 19 Version 2.1 2 Quadrant Park Mundells Welwyn Garden City Herts AL7 1FS 01707 386035 www.lightwaverf.house...
