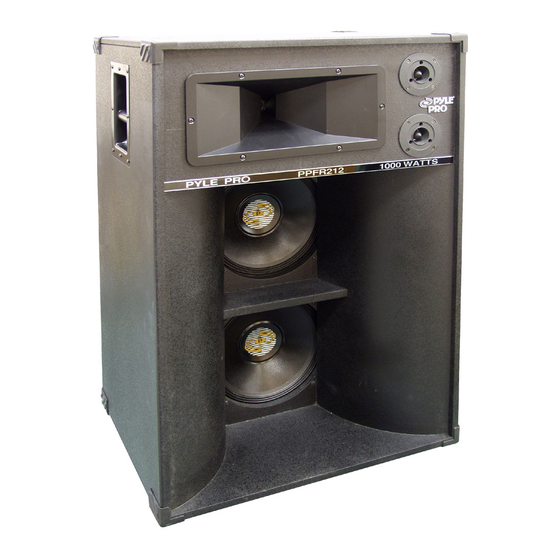

  • Page 2 • Do not attempt to service the unit. Refer service to a certified Pyle Pro technician. • This loudspeaker is capable of producing extremely high SPL levels. Use earplugs when necessary. The PPFR212 features high-level drivers and rugged components and is designed for high- performance applications. The cabinet features heavy-duty construction with reinforced corners.
  • Page 3: Amplifier Requirements

    Your PPFR212 series speaker has an extremely flexible connection panel. There are two Speakon jacks as well as two ¼” jacks. You can also hookup your speaker cabinet using the “Quick Connect” speaker terminals, which accommodate either wire leads or a banana plug.
  • Page 4 material. These wayward frequencies could damage your speaker. A proper match is an amplifier which could drive the speaker up to the cabinet’s RMS rating, without exceeding the amplifier’s own RMS level. When powering on your equipment, make sure the volume level on the amplifier is turned all the way down.
  • Page 5: Troubleshooting

    No Sound: Check connections Try a different speaker cable Check levels on amplifier Confirm amplifier is getting a signal (check signal LED, or use headphone output) Intermittent Output: Check connections Try a different speaker cable Weak Bass: Check the polarity of the speaker connection. It may be reversed. Listen with headphones to confirm the amplifier is being sent a good signal.
  • Page 6 Typical Setup Parallel Setup...
  • Page 7 Recommended Accessories " " " Check out these and other accessories at www.pyleaudio.com # $ % & ' ) * + # $ % ) * +...
