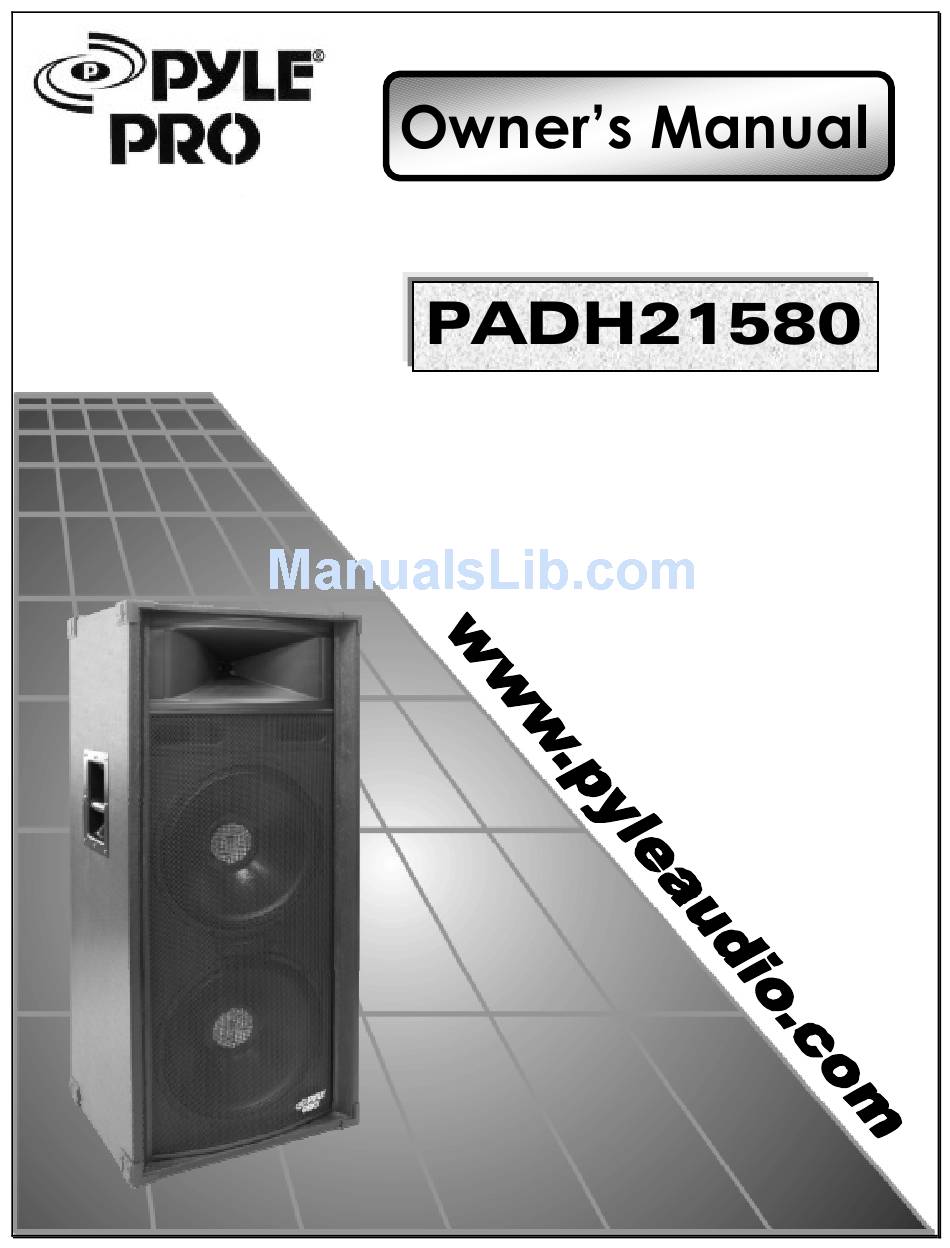

Pyle Pro PADH21580 Owner's Manual

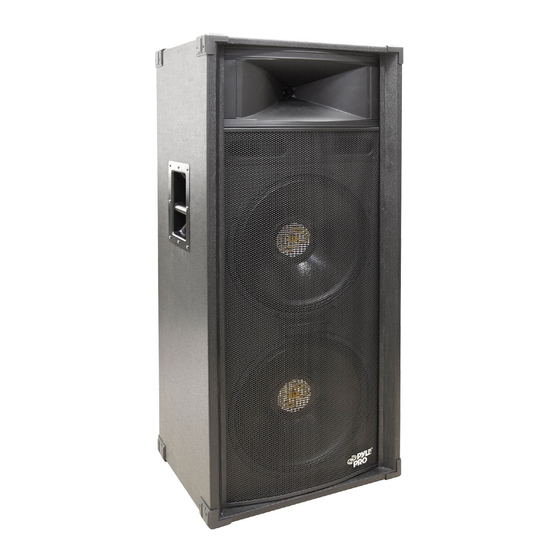

Padh series speaker
Hide thumbs


Advertisement

Advertisement

Table of Contents
loading

  Related Manuals for Pyle Pro PADH21580

  Summary of Contents for Pyle Pro PADH21580

  • Page 2: Maintenance And Safety

    Thank you for purchasing this Pyle Pro PADH series speaker. The loudspeaker is designed to provide you years of high performance in any application that you require. Please read this manual carefully to fully maximize the performance of the speaker. Maintenance and Safety •...
  • Page 3: Amplifier Requirements

    Your PADH series speaker has an extremely flexible connection panel. There are two Speakon jacks as well as two ¼” jacks. You can also hookup your speaker cabinet using the “Quick Connect” speaker terminals, which accommodate either wire leads or a banana plug. The jacks are wired in parallel, which allows you to daisy chain additional...
  • Page 4: Operation

    the program material. These wayward frequencies could damage your speaker. A proper match is an amplifier which could drive the speaker up to the cabinet’s RMS rating, without exceeding the amplifier’s own RMS level. When powering on your equipment, make sure the volume level on the amplifier is turned all the way down.
  • Page 5: Troubleshooting

    No Sound: Check connections Try a different speaker cable Check levels on amplifier Confirm amplifier is getting a signal (check signal LED, or use headphone output) Intermittent Output: Check connections Try a different speaker cable Weak Bass: Check the polarity of the speaker connection. It may be reversed. Listen with headphones to confirm the amplifier is being sent a good signal.
  • Page 6 Typical Setup Parallel Setup...
  • Page 7: Recommended Accessories

    Recommended Accessories " " " Check out these and other accessories at www.pyleaudio.com # $ % & ' ) * + # $ % ) * +...
