Step 4
Step 4
Carefully position monitor so that Wall and
Monitor Plates are vertically aligned, with the
bottom of Monitor plate overlapping the top of
the Wall Plate by approximately 1".
Gently lower monitor into position, sliding the
two plates together until the Monitor Plate
bottoms out. (Fig. 3)
Caution:
Caution:
Make sure that the plates are engaged
on both sides of the mount before releasing grip
on monitor.
Step 5
Step 5
Install two Safety Bolts (3) through bottom of Wall Plate.
(Fig. 3)
Caution :
Caution :
This Product LCD /Plasma Wall Mount Bracket is
intended for use only with the maximum weights indicated .See apparatus
instructions .Use with products heavier than the maximum weights
indicated may result in instability causing possible injury .
-4-
1
2
3

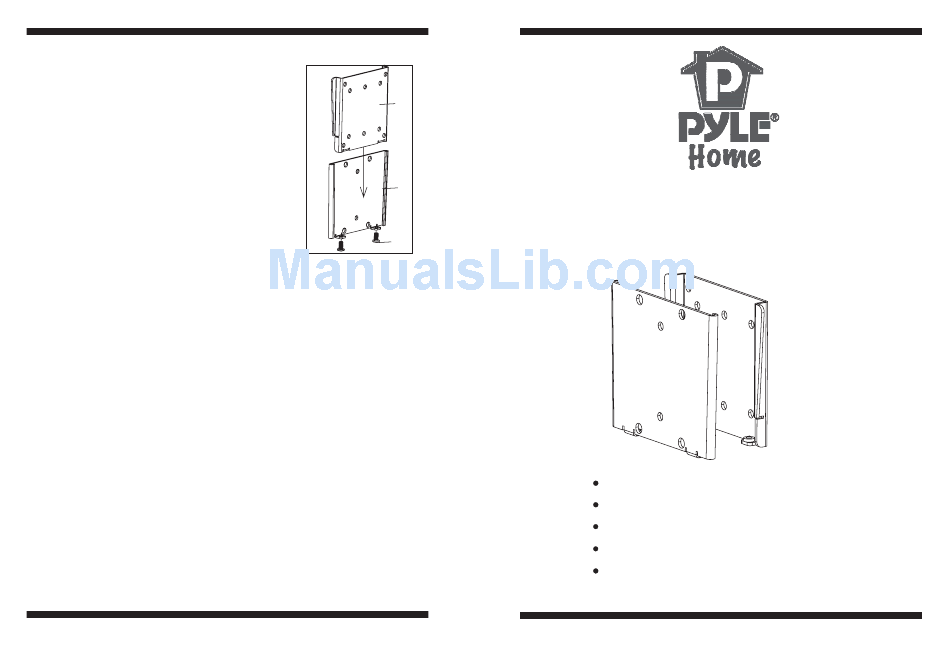

Fig 3

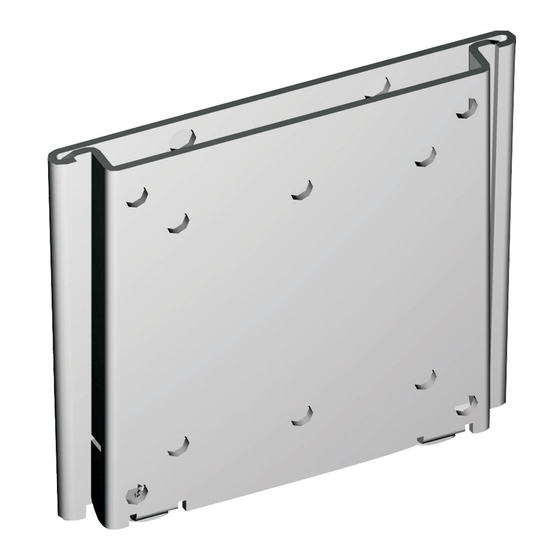

Flat Panel Fixed Mount

INSTALLATION GUIDE

Item No.:PWLB006
Item No.:PWLB006
:
"-
"
TV Size Rang 10
24
Universal VESA mount
Low profile: only
17mm
from wall
Easy to install: sliding plate operation
Max load capacity:15Kg/33lbs
IMPORTANT
IMPORTANT: If don't understand about right install ways, please
consult to normal installing specialist.
