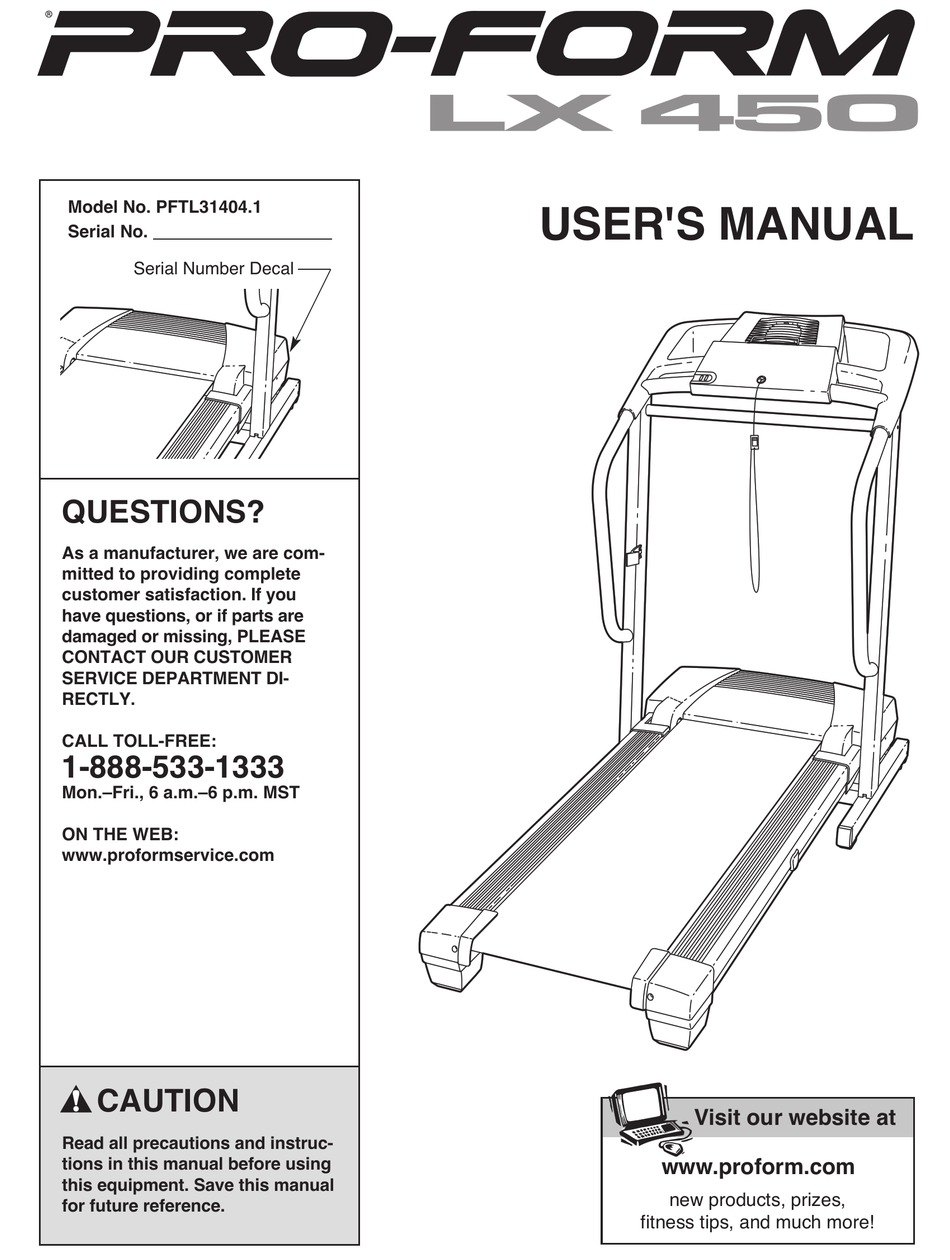

Model No. PFTL31404.1
Serial No.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT DI-
RECTLY.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for ProForm PFTL31404.1
Summary of Contents for ProForm PFTL31404.1
- Page 1 Model No. PFTL31404.1 Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DI- RECTLY.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..............2 BEFORE YOU BEGIN . -
Page 3: Important Precautions
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill. 1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions. - Page 4 22. Inspect and properly tighten all parts of the treadmill regularly. 23. Never insert any object into any opening. DANGER: Always unplug the power cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures de- scribed in this manual.
-
Page 5: Before You Begin
To help us assist you, note the product model ® number and serial number before calling. The model number of the treadmill is PFTL31404.1. The serial number can be found on a decal attached to the tread- mill (see the front cover of this manual for the location). -
Page 6: Assembly
To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480. Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. - Page 7 Straighten the Upright Wire (42), and feed it into the lower end of the Right Upright (24) and out of the upper end. Next, hold the Right Upright against the right side of the Base (69); make sure that the Right Upright is turned so that the upper end is angled in the direction shown.
- Page 8 Attach the ground wire on the Console Base to the small hole in the side of the Left Handrail with the 1/2” Ground Screw (75) as shown. 5. Set the Console Base (47) on the Right Handrail (72) and the Left Handrail (71). Attach the Console Base with four 3/4”...
- Page 9 of the Console Base (47) in the indicated area. Cover the Upright Wire with the Right Grip Plate (36). Be careful not to pinch the Upright Wire. Tighten three 1/2” Screws (73) into the Right Grip Plate and the Console Base.
-
Page 10: Operation And Adjustment
THE PRE-LUBRICATED WALKING BELT Your treadmill features a walking belt coated with high- performance lubricant. IMPORTANT: Never apply sil- icone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear. - Page 11 Note: If there is a thin sheet of plastic on the console, remove it. STEP-BY-STEP CONSOLE OPERATION Before operating the console, make sure that the power cord is properly plugged in (see page 10). Next, locate the reset/off cir- cuit breaker on the treadmill frame near the power cord.
- Page 12 displays. The track—The track represents a distance of 1/4 mile. As you walk or run on the treadmill, the indicators around the track will light in succes- sion until the entire track is lit. The track will then darken and the indicators will again begin to light in succession.
-
Page 13: How To Fold And Move The Treadmill
HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be per- manently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill. -
Page 14: How To Lower Treadmill For Use
1. Hold the upper end of the treadmill with your right hand. Press the storage latch to the left. Pivot the treadmill down until the frame and foot rail are past the storage latch. 2. Hold the treadmill firmly with both hands, and lower the tread- mill to the floor. -
Page 15: Troubleshooting
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call the toll-free telephone number on the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. - Page 16 SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 10. b. If the walking belt is overtightened, treadmill perfor- mance may decrease and the walking belt may be- come damaged. Remove the key and UNPLUG THE POWER CORD.
-
Page 17: Conditioning Guidelines
WARNING: Before beginning this or any exercise program, consult your physi- cian. This is especially important for individu- als over the age of 35 or individuals with pre- existing health problems. The pulse sensor is not a medical device. Various factors, including your movement, may affect the accuracy of heart rate readings. - Page 18 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
- Page 19 NOTES...
- Page 20 No. Qty. Description Hood 3/4” Screw Motor Belt Motor Tension Bolt 3/8” Washer Motor Star Washer Flywheel Drive Motor Drive Motor Assembly Reed Switch Latch Warning Decal Frame Spacer Frame Pivot Nut/Motor Nut Frame Pivot Bolt Walking Platform Screw Right Foot Rail Front Roller/Pulley Magnet Motor Pivot Bolt...
-
Page 22: Ordering Replacement Parts
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give the following information: • The MODEL NUMBER OF THE PRODUCT (PFTL31404.1) • The NAME OF THE PRODUCT (PROFORM • The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual) •...
