Summary of Contents for Pyle view PLDVD170

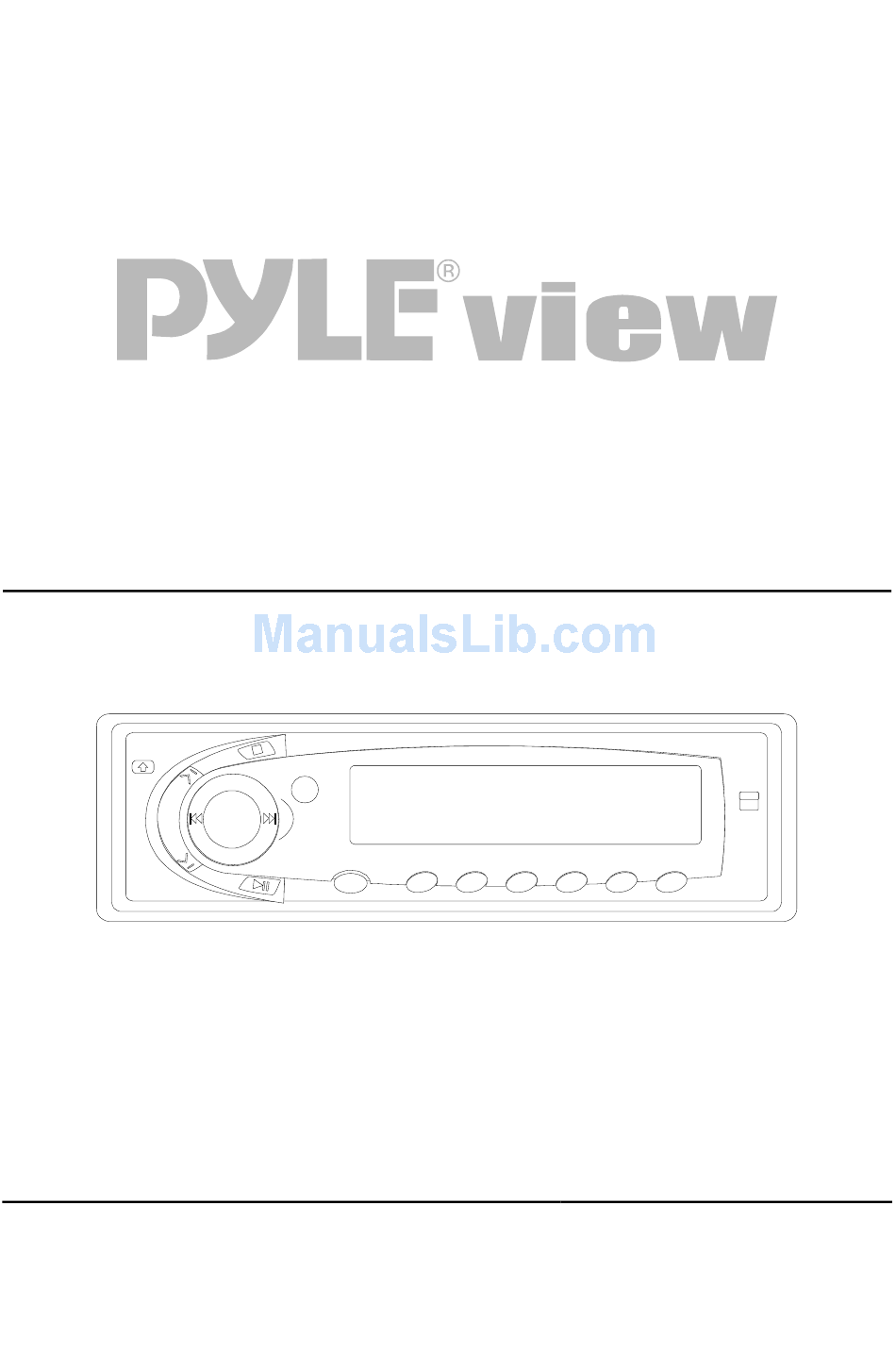

- Page 1 OPERATING INSTRUCTIONS INDASH AM/FM DVD/CD/MP3 PLAYER MODEL PLDVD170...
-
Page 2: Firmware Upgrade
POWER Operating voltage range: 12V Low p ower consumption design. COMPATIBILITY This DVD player can play the following discs: DVD, CD, VCD, DVCD, MP3, CD-R,CD-RW . SYSTEM FUNCTIONS VIDEO OUTPUT SYSTEM System AUTO , NTSC, PAL or PAL M switchable. -
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ------------------------------------------------------------------------------ Safety precautions ------------------------------------------------------------------------------------- Important instructions -------------------------------------------------------------------------------- Precautions ---------------------------------------------------------------------------------------------- Identification of controls ------------------------------------------------------------------------------ When using remote control-------------------------------------------------------------------------- Connections -------------------------------------------------------------------------------------- Outlet wires connection ------------------------------------------------------------------------------- Connecting to an audio system or speakers and monitor input---------------------------- AMP select------------------------------------------------------------------------------------------------ Note on connecting ------------------------------------------------------------------------------------ Playing a disc -------------------------------------------------------------------------------------- Basic playback ------------------------------------------------------------------------------------... -
Page 4: Introduction
This digital versatile disc (DVD) video player uses 12V For future reference, record the model and serial number (located on the case of the DVD player) in the space provided. CAUTION: THIS DVD VIDEO PLAYER IS A CLASS IIa LASER PRODUCT. -
Page 5: Important Instructions
IMPORTANT INSTRUCTIONS 1. Owner's manual After unpacking this product, read the owner's manual carefully, heed all warnings and instruc- tions given in this manual and those marked on the unit ,and follow all the operating and other instruc- tions. Keep this booklet for future reference. 2. -
Page 6: Precautions
If you use the DVD player in such a situation, it may damage discs and internal parts. Remove the disc, turn on the DVD player, and leave it for 2 or 3 hours . After 2 or 3 hours, the DVD player will have warmed up and evaporated any moisture. -
Page 7: Identification Of Controls

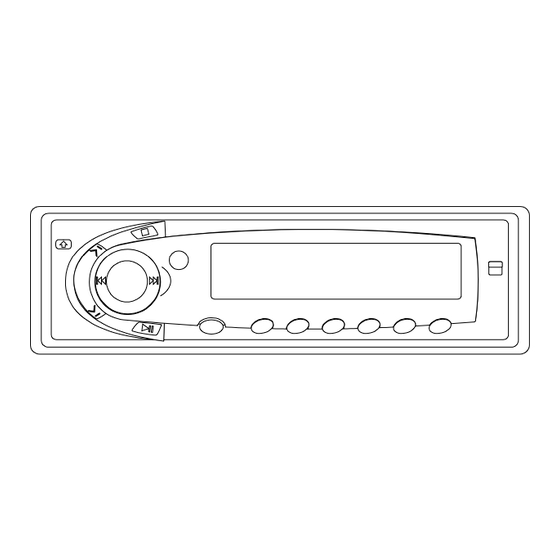

Identification of controls See the page in for the details. Front panel(Fold down design panel ) POWER button DVD/RADIO OPEN button VOL(+,-) button SKIP button SEEK PLAY, PAUSE, BAND button SKIP button in DVD play mode, press the SEEK button on the front panel and release the button, the player plays in SKIP press and hold the SEEK button for more than 1 second , the player plays in SCAN Number buttons Only in Radio mode, the number buttons work as 1~5... -
Page 8: Dvd Display
Identification of controls DVD display Band indicator Operating status indicator AMFM Title indicator The indicators vary depending on the kinds of discs you play. DVD video disc When loading : Example Playing chapter 3 in title 2 During playback: Example Elapsed time of Playing chapter the current title... -
Page 9: Remote Control Operation
Identification of controls Full direction Remote control The instructions in this manual describe the functions on the remote control. See the page in for the details. Remote control operation The button on the remote POWER Power on/off . MUTE Playing without sound DISPLAY Using the on-screen display RPT. -
Page 10: When Using Remote Control
Do not expose the remote sensor of the DVD player to a strong light source such as direct sunlight or other illumination. If you do so, you may not be able to operate the DVD player via the remote control. -
Page 11: Connections
Connections Outlet wires connection (supplied) 1 YELLOW CABLE [VIDEO/AUDIO]: 2 BLACK CABLE [AMPLIFIER : PURPLE CABLE : PURPLE CABLE : 5 BROWN CABLE: GREEN CABLE [FRONT LEFT SPEAKER] : 7 GREY CABLE [ FRONT RIGHT SPEAKER]: GREY(+) 8 BROWN CABLE [REAR LEFT SPEAKER]: 9 BLUE CABLE [ REAR RIGHT SPEAKER]: 10 RED CABLE [POWER]: 11 BLACK CABLE [GROUND]:... -
Page 12: Connecting To An Audio System Or Speakers And Monitor Input
Connecting to a monitor and speakers , or audio system Antenna jack Remote sensor and remote control eye jack. Connect the remote control eye jack to the remote sensor unit. Note: ’ ’ 1)Refer to the amplifier s owner s manual and set the Functions Setting ( Audio, Digital out)----See page 23. -
Page 13: Amp Select
1 Refer to the owner's manual for the connected monitor as well. 2 Connect the DVD video player to your monitor directly. If you connect the DVD player to a VTR, TV/VTR combination or video selector, the playback picture may be distorted as DVD discs are copy protected.(refer to NOTE ON LOCATING ) -
Page 14: Playing A Disc
Occasionally, some picture noise not usually visible during a normal broadcast may appear on the monitor screen while playing a DVD disc. This distortion is because the high resolution picture depends on the monitor you use with this DVD player. You should generally reduce the sharpness adjustment on your monitor when viewing DVD discs. -
Page 15: Playing A Disc
As such, the DVD player may not respond to all operating commands. This is not a defect in the DVD player. Refer to the instruction notes of discs. -
Page 16: Playing At Various Speeds
The DVD player does not play sound and subtitles during reverse and forward scan of DVD discs or VIDEO CDs. However, the DVD player plays sound during fast forward or fast reverse play of audio CDs. button, the playback speed changes. -
Page 17: Advanced Playback
STOP(Play to resume) appears on the screen. 2 Press PLAY The DVD player resumes playback from the location where you stopped playback. To start playback from the beginning regardless of the location where you stopped playback. 1 Press STOP twice. -
Page 18: Locat Ing A Specific Title, Chapter Or Track
If the titles in the menu are assigned a number, you can directly locate a specific title by pressing its designated number with the number buttons. 3 Press ENTER The DVD player starts playback from chapter1 of the selected title. Note The instructions above describe basic procedures which may vary depending on the contents of the DVD disc. -
Page 19: Play Mode
You can combine your favourite titles, chapters, or tracks and play them in any order. You can program up to 16 selections into the memory. (program playback) The DVD player automatically plays titles, chapters, or tracks in the order of your program. 1 Select PROGRAM play mode, the following menu appears. -
Page 20: Playing Repeatedly
Advanced playback Playing repeatedly Repeating a title, chapter, or track You can play the same track or disc repeatedly. While playing, each time you press the RPT. (REPEAT) button, the repeat mode changes as follows. Playing VCD/ CD/MP3 Repeats the same Single track Repeats the entire... -
Page 21: Selecting Sound Effect
Advanced playback Selecting sound With the VOL+, VOL- button, you can change the volume. When the setting appears on the screen, press Volume changes from 0 to 36: In radio mode, VOL XX( volume level 0~36) appears on the front panel. NOTE: The VOLUME setting is not cleared when: 1) you turn the power off,... -
Page 22: Selecting A Playback Audio Setting
Advanced playback Selecting a playback audio setting FOR DVD DISCS You can select a preferred language from those included on the disc. 1 While playing press AUDIO, the current audio setting appears. 2 Each time you press the AUDIO, the audio setting included on the DVD video disc changes. 1/4 Eng When playing the discs in the Dolby digital and DTS system, please select the AUDIO mode in Dolby. -
Page 23: Selecting The Camera Angle
Advanced playback Selecting the camera angle You can select a preferred camera angle to watch a scene. If the scene was recorded from multiple angles, you can easily change the camera angle of the scene you are watching. 1 Press ANGLE button , if the total angle number included on the disc is more than 1, then the angle icon is displayed. -
Page 24: Function Setup
Function setup Using the on-screen display You can view information about a disc and its operational status on the screen. Checking the operational status Press the DISPLAY button, the on-screen display on the screen. 1 Playing VIDEO CD/ CD X:XX:XX X:XX:XX Elapsed time Remaining time of the current track Elapsed track... -
Page 25: Customizing The Function Settings
Function setup Customizing the function settings Press SETUP during stop. The setting menu appears. 5 6 3, Press button to move the cursor to the item, then press ENTER to select the item you want. Language Language Language Video Audio Rating OSD Menu English Subtitle... - Page 26 Function setup Audio Language Video Audio Rating Digital Audio Dolby D Others When using the coaxial cable(see page9), you should set Digital Out PCM or Raw. ’ ’ Refer to the amplifier s owner s manual and make the setting Raw or PCM. Select one mode, if there is no sound change to the other one.
-
Page 27: Mp3 Instruction
MP3 Instruction Insert the MP3 disc then playback start, the MENU of elapsed track appears. Set the MENU on or off by pressing the MENU button on the remote. Press Mode Play To select the track with the number button on the remote Number button ENTER button To move the cursor to the track you want to play,... -
Page 28: Radio Operation
Current band Current station 1 Selecting radio mode Press the DVD/RADIO button less than 1 second to switch from DVD player mode to the radio mode. DVD player Each time the BAND button is pressed , the selected band changes as shown below... -
Page 29: Radio Operation
POWER Power on from the beginning regardless of the mode (DVD, FM, MW,LW) where you power off. Switch between DVD/ DVD player RADIO In radio mode, select the desired channel (ch1~ch5) with the number button (1~5)directly Start automatic tuning and play each receivable stations for several seconds SCAN store the desired station by press the MEM button and favour number button . -
Page 30: Others
Others Safety As the laser beam used in this unit is harmful to the eyes, do not attempt to disassemble the unit. Refer servicing to qualified personnel only. Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further. -
Page 31: Notes On Discs
NOTES on discs How to deal with discs How to hold a disc Do not touch the surface of the information side. When there are stains on the face of disc Wipe with a wet cloth and then with a dry one. Wipe from the center of the disc to the outer edge. -
Page 32: Troubleshooting
Troubleshooting If you experience any of the following difficulties while using the player, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult a professional mobile video installer. There's no sound 1 Check that the player is connected securely and correctly. 2 Make sure you operate the monitor or the amplifier correctly. -
Page 33: Specifications
Specifications Audio Audio output Audio output(digital): Signal-to-noise ratio: more than 90dB Dynamic range: Distortion: Video Video output: Resolution: load impedance: Speaker output Power requirement: Power Power consumption: less than 15W , or less than 100W ( all speakers on , see CONNECTIONS ) TUNER SECTION Frequency range Usable sensitivity... -
Page 34: Accessories And Hardware
Accessories and Hardware Installation Mounting Bracket (Half Sleeve) X 1 Mounting Grommet Set Removal CABLE REMOTE CONTROL CLOCK POWER DI SPLAY RA DIO/D VD DIS PLAY CLE AR ANGLE BAND PLAYMODE TI TLE MENU E NTER S EEK- SEEK + SETUP GOTO SCAN... -
Page 35: Note
Note There are 2 mounting screws on the case of the DVD player( shows) to protect the unit during shipping. You need to remove the sticking papers and screws after unpacking this product. Apply the black sticking papers(supplied)on the screw holes to keep out dust.
