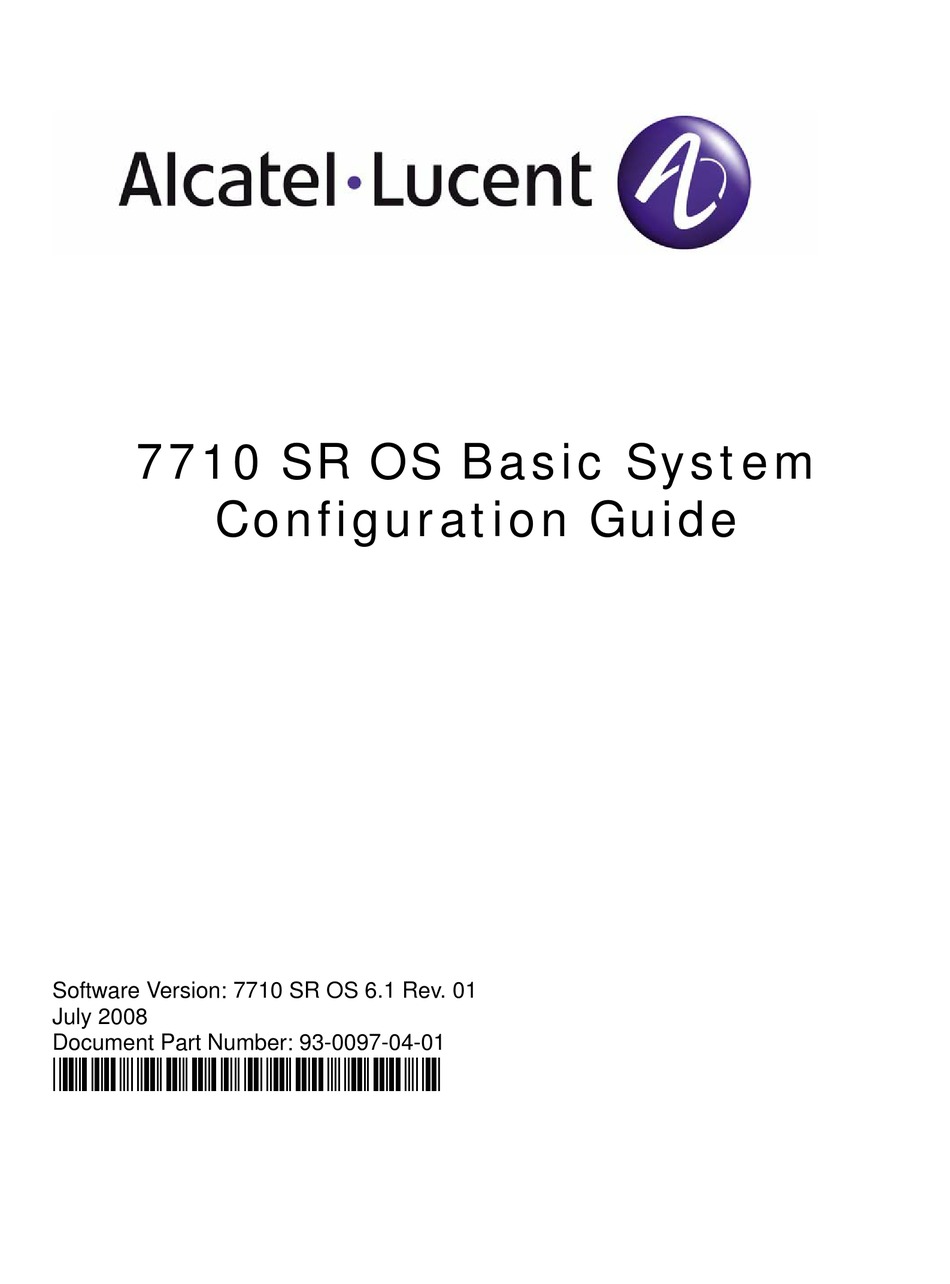

7710 SR OS Basic System

Configuration Guide

Software Version: 7710 SR OS 6.1 Rev. 01
July 2008
Document Part Number: 93-0097-04-01
*93-0097-03-03*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7710 SR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alcatel-Lucent 7710 SR

Summary of Contents for Alcatel-Lucent 7710 SR

  • Page 1: Configuration Guide

    7710 SR OS Basic System Configuration Guide Software Version: 7710 SR OS 6.1 Rev. 01 July 2008 Document Part Number: 93-0097-04-01 *93-0097-03-03*...
  • Page 2 This document is protected by copyright. Except as specifically permitted herein, no portion of the provided information can be reproduced in any form, or by any means, without prior written permission from Alcatel-Lucent. Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective owners.

  • Page 3: Table Of Contents

    Preface Alcatel-Lucent 7710 SR-Series System Configuration Process ....... . .13 CLI Usage CLI Structure.
  • Page 4 Synchronous Ethernet ............193 Page 4 7710 SR OS Basic System Configuration Guide...
  • Page 5 Configuring Manual Synchronization ..........244 7710 SR OS Basic System Configuration Guide...
  • Page 6 ................423 Page 6 7710 SR OS Basic System Configuration Guide...
  • Page 7 Show Synchronization Output Fields ..........406 7710 SR OS Basic System Configuration Guide...
  • Page 8 List of Tables Page 8 7710 SR OS Basic System Configuration Guide...
  • Page 9 7710 SR-c12 Front Panel Console Port........
  • Page 10 List of Figures Page 10 7710 SR OS Basic System Configuration Guide...

  • Page 11: Preface

    About This Guide This guide describes system concepts and provides configuration explanations and examples to configure 7710 SR-Series boot option file (BOF), file system and system management functions. This document is organized into functional chapters and provides concepts and descriptions of the implementation flow, as well as Command Line Interface (CLI) syntax and command usage.

  • Page 12: Technical Support

    This guide describes how to configure Quality of Service (QoS) policy management. Technical Support If you purchased a service agreement for your 7710 SR router and related products from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance.

  • Page 13: Alcatel-Lucent 7710 Sr-Series System Configuration Process

    Each section describes a software area and provides CLI syntax and command usage to configure parameters for a functional area. After the hardware installation has been properly completed, proceed with the 7710 SR-Series router configuration tasks in the following order: Table 1: Configuration Process...
  • Page 14 File System Management on page 105 including host name, address, domain name, and time parameters. Reference List of IEEE, IETF, and other Standards and Protocol Support on page 417 proprietary entities. Page 14 7710 SR OS Basic System Configuration Guide...

  • Page 15: Cli Usage

    Getting Help in the CLI on page 25 • The CLI Command Prompt on page 27 • Displaying Configuration Contexts on page 28 • EXEC Files on page 29 • Entering CLI Commands on page 30 7710 SR OS Basic System Configuration Guide Page 15...

  • Page 16: Cli Structure

    Telnet and secure shell (SSH). The CLI can be used for configuration and management of 7710 SR-Series routers. The 7710 SR-Series CLI command tree is a hierarchical inverted tree. At the highest level is the ROOT level. Below this level are other tree levels with the major command groups; for example, configuration commands and show commands are levels below ROOT.

  • Page 17: Figure 1: Root Commands

    FILE attrib copy delete format move MONITOR ccag repair cpm-filter filter shutdown type port version HELP help router help edit service help globals PASSWORD Figure 1: Root Commands 7710 SR OS Basic System Configuration Guide Page 17...

  • Page 18: Figure 2: Operational Root Commands

    TOOLS dump system trace perform trace uptime users version vrrp Figure 2: Operational Root Commands Page 18 7710 SR OS Basic System Configuration Guide...

  • Page 19: Navigating In The Cli

    Entering Numerical Ranges on page 34 CLI Contexts Use the CLI to access, configure, and manage Alcatel-Lucent’s SR-Series routers. CLI commands are entered at the command line prompt. Access to specific CLI commands is controlled by the permissions set by your system administrator. Entering a CLI command makes navigation possible from one command context (or level) to another.

  • Page 20: Basic Cli Commands

    Changes the user CLI login password. The password can only be password changed at the ROOT level. Verifies the reachability of a remote host. ping Displays the present or previous working context of the CLI session. Page 20 7710 SR OS Basic System Configuration Guide...
  • Page 21 - Telnet to a host traceroute - Determine the route to a destination address tree - Display command tree structure from the context of execution write - Write text to another user *A:ALA-12>config>service# 7710 SR OS Basic System Configuration Guide Page 21...

  • Page 22: Table 3: Command Syntax Symbols

    • Braces within square brackets indicates that you must choose one of the optional parameters. • sdp sdp-id [{gre|mpls}] • Commands in indicate commands and keywords. Bold bold • Commands in indicate command options. Italic italics Page 22 7710 SR OS Basic System Configuration Guide...

  • Page 23: Cli Environment Commands

    Saves the indicator in the prompt. saved-ind- prompt Configures the terminal screen length for the current CLI terminal session. Specifies whether time should be displayed in local time or time-display UTC. 7710 SR OS Basic System Configuration Guide Page 23...

  • Page 24: Cli Monitor Commands

    Enables scheduler statistics monitoring per customer multi- service-site or on a per SAP basis. Enables virtual router instance monitoring at a configurable router interval until that count is reached. Monitors commands for a particular service. service Page 24 7710 SR OS Basic System Configuration Guide...

  • Page 25: Getting Help In The Cli

    The following example displays a partial list of the command output tree tree detail entered at the level. config 7710 SR OS Basic System Configuration Guide Page 25...
  • Page 26 | | | | | +---no slope-policy | +---action | +---expire-time | +---lifetime | +---max-completed | +---results | +---script | +---shutdown | +---schedule | +--day-of-month | +--description | +--hour | +--interval | +--minute Page 26 7710 SR OS Basic System Configuration Guide...

  • Page 27: The Cli Command Prompt

    ALA-1) indicating that the changes have not been saved. When an admin save command is executed the “*” disappears. This behavior is controlled in the saved-ind-prompt command in the environment context. 7710 SR OS Basic System Configuration Guide Page 27...

  • Page 28: Displaying Configuration Contexts

    100 10 unreachables 100 10 ttl-expired 100 10 exit no mac no ntp-broadcast no cflowd no shutdown ---------------------------------------------- *A:ALA-1>config>router>if# Page 28 7710 SR OS Basic System Configuration Guide...

  • Page 29: Exec Files

    7710 SR OS Basic System Configuration Guide Page 29...

  • Page 30: Entering Cli Commands

    - [no] static-route {<ip-prefix/mask>|<ip-prefix> <netmask>} [preference <preference>] [metric <metric>] [tag <tag>] [enable|disable] indirect <ip-address> [ldp [disallow-igp]] - [no] static-route {<ip-prefix/mask>|<ip-prefix> <netmask>} [preference <preference>] [metric <metric>] [tag <tag>] [enable|disable] black-hole *A:ALA-12>config>router# static-route preference 1 10.1.0.0/16 metric Page 30 7710 SR OS Basic System Configuration Guide...

  • Page 31: Editing Keystrokes

    Convert rest of word to lowercase <Esc><l> Delete remainder of word <Esc><d> Delete word up to cursor <Ctrl-w> Transpose current and previous character <Ctrl-t> Enter command and return to root prompt <Ctrl-z> Refresh input line <Ctrl-l> 7710 SR OS Basic System Configuration Guide Page 31...

  • Page 32: Absolute Paths

    4 config>service>ies If the command takes you to a different context, the following occurs: CLI Syntax: config>service>ies>/configure service ies 5 create becomes Example config>service>ies>exit all configure service vprn 5 create config>service>vprn> Page 32 7710 SR OS Basic System Configuration Guide...

  • Page 33: History

    15 show version 16 history *A:ALA-1# !3 *A:ALA-1# show version TiMOS-B-5.0.B1-12 both/i386 ALCATEL SR 7xx0 Copyright (c) 2000-2008 Alcatel-Lucent. All rights reserved. All use subject to applicable license agreements. Built on Fri Feb 9 19:47:36 PST 2008 by builder in /rel6.0/b1/B1-12/panos/main *A:ALA-1#...

  • Page 34: Entering Numerical Ranges

    Entering Numerical Ranges The 7710 SR OS CLI allows the use of a single numerical range as an argument in the command line. A range in a CLI command is limited to positive integers and is denoted with two numbers enclosed in square brackets with two periods (“..”) between the numbers:...
  • Page 35 <Tab> or spacebar, may cease to work. If the command line entered is correct and unambiguous, the command works properly; otherwise, an error is returned. 7710 SR OS Basic System Configuration Guide Page 35...

  • Page 36: Pipe/Match

    Entering CLI Commands Pipe/Match The 7710 SR OS supports the pipe feature to search one or more files for a given character string or pattern. Note: When using the pipe/match command the variables and attributes must be spelled correctly. The attributes following the command and must come before the expression/pattern. The following displays examples of the pipe/match command to complete different tasks: •...

  • Page 37: Table 9: Pipe/Match Characters

    The preceding item is matched one or more times. Used between start and end of a range. An escape character to indicate that the following character is a match criteria and not a grouping delimiter. > Redirect output 7710 SR OS Basic System Configuration Guide Page 37...

  • Page 38: Redirection

    Redirection The 7710 SR OS supports redirection (“>”) which allows the operator to store the output of a CLI command as a local or remote file. Redirection of output can be used to automatically store results of commands in files (both local and remote).

  • Page 39: Basic Command Reference

    [ip-addr | dns-name] [-l username] [router router-instance] — telnet [ip-address| dns-name] [port] [router router-instance] — traceroute {ip-address | dns-name}[ttl value] [wait milliseconds] [no-dns] [source ip-address] [tos type-of-service] — tree [detail] — write {user | broadcast} message-string 7710 SR OS Basic System Configuration Guide Page 39...

  • Page 40: Monitor Commands

    — neighbor neighbor [neighbor...(up to 5 max)] [interval seconds] [repeat repeat] [absolute | rate] — rsvp — interface interface [interface...(up to 5 max)][interval seconds] [repeat repeat] [absolute | rate] — vrrp Page 40 7710 SR OS Basic System Configuration Guide...
  • Page 41 [far-end] ip-address [interval seconds] [repeat repeat] [absolute | rate] — subscriber sub-ident-string sap sap-id sla-profile sla-profile-name [base | ingress-queue- id ingress-queue-id | egress-queue-id egress-queue-id] [interval seconds] [repeat repeat] [absolute | rate] 7710 SR OS Basic System Configuration Guide Page 41...
  • Page 42 — [no] create — [no] more — reduced-prompt [no. of nodes in prompt] — no reduced-prompt — [no] saved-ind-prompt — terminal — length lines — time-display {local | utc} Page 42 7710 SR OS Basic System Configuration Guide...
  • Page 43 The following displays a password configuration example: A:ALA-1>config>system>security# info ---------------------------------------------- password aging 365 minimum-length 8 attempts 5 time 5 lockout 20 admin-password "rUYUz9XMo6I" hash exit ---------------------------------------------- A:ALA-1>config>system>security# 7710 SR OS Basic System Configuration Guide Page 43...
  • Page 44 — Clears LAG-related entities. log — Closes and reinitializes the log specified by log-id. mda — Reinitializes the specified MDA in a particular slot. port — Clears port statistics. qos — Clears QoS statistics. Page 44 7710 SR OS Basic System Configuration Guide...
  • Page 45 Default Execute file commands. filename — The text file with CLI commands to execute. 7710 SR OS Basic System Configuration Guide Page 45...
  • Page 46 The exit all command moves the cursor all the way back to the root level. A:ALA-1# configure A:ALA-1>config# router A:ALA-1>config>router# ospf A:ALA-1>config>router>ospf# exit all A:ALA-1# Parameters all — Exits back to the root CLI context. Page 46 7710 SR OS Basic System Configuration Guide...
  • Page 47 + OAM Test Suite ping - Verify the reachability of a remote host - Show the present working context sleep - Sleep for specified number of seconds - SSH to a host 7710 SR OS Basic System Configuration Guide Page 47...
  • Page 48 82 exit all 83 reduced-prompt 84 configure router 85 interface 86 info 87 interface "test" 88 info 89 reduced-prompt 90 exit all 91 configure 92 card 1 93 card-type 94 exit 95 router Page 48 7710 SR OS Basic System Configuration Guide...
  • Page 49 "to-NYC" hop 1 10.10.10.104 strict hop 2 10.10.0.210 strict no shutdown exit path "to-104" no shutdown exit lsp "to-104" to 10.10.10.104 from 10.10.10.103 rsvp-resv-style ff cspf ---------------------------------------------- A:ALA-48>config>router>mpls# 7710 SR OS Basic System Configuration Guide Page 49...
  • Page 50 10 retry-limit 0 retry-timer 30 secondary "secondary-path" no standby no hop-limit adaptive no include no exclude record record-label bandwidth 50000 no shutdown exit Page 50 7710 SR OS Basic System Configuration Guide...
  • Page 51 — Specify the ip-address of the multicast capable target router. router router-instance — Specify the router name or service ID. Values router-name: Base , management service-id: 1 — 2147483647 Default Base 7710 SR OS Basic System Configuration Guide Page 51...
  • Page 52 The receiver parameter can also be used to specify a local interface address as the destination address for sending the trace query. The response will also be returned to the address specified as the receiver. Page 52 7710 SR OS Basic System Configuration Guide...
  • Page 53 | dns-name — The remote host to ping. The IP address or the DNS name (if DNS name resolution is configured) can be specified. ipv6-address — The IPv6 IP address. Values x:x:x:x:x:x:x:x (eight 16-bit pieces) x:x:x:x:x:x:d.d.d.d x: 0 — FFFF H d: 0 — 255 D 7710 SR OS Basic System Configuration Guide Page 53...
  • Page 54 — This option disregards the routing table and will send this packet to the specified next hop address. This address must be on an adjacent router that is attached to a subnet that is common between this and the next-hop router. Page 54 7710 SR OS Basic System Configuration Guide...
  • Page 55 CLI instance of the user. For example, ALA-1>config>router>bgp>group# pwc ----------------------------------------------- Present Working Context : ----------------------------------------------- <root> configure router Base group test ospf area 1 ----------------------------------------------- ALA-1>config>router>bgp>group# 7710 SR OS Basic System Configuration Guide Page 55...
  • Page 56 -l user — The user name to use when opening the SSH session. router router-instance — Specify the router name or service ID. Values router-name: Base, management service-id: 1 — 2147483647 Page 56 7710 SR OS Basic System Configuration Guide...
  • Page 57 <GLOBAL> Description This command opens a Telnet session to a remote host. Telnet servers in 7710 SR networks limit a Telnet clients to three retries to login. The Telnet server disconnects the Telnet client session after three retries. The number of retry attempts for a Telnet client session is not user-configurable.
  • Page 58 [detail] Context <GLOBAL> Description This command displays the command hierarchy structure from the present working context. Parameters detail — Includes parameter information for each command displayed in the tree output. Page 58 7710 SR OS Basic System Configuration Guide...
  • Page 59 — The message string to send. Allowed values are any string up to 250 characters long composed of printable, 7-bit ASCII characters. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. 7710 SR OS Basic System Configuration Guide Page 59...
  • Page 60 Default more — CLI output pauses at the end of each screen waiting for the user input to continue. Page 60 7710 SR OS Basic System Configuration Guide...
  • Page 61 “*” appears in the prompt string indicating that the changes have not been saved. When an admin save command is executed the “*” disappears. *A:ALA-48# admin save Writing file to ftp://128.251.10.43/./sim48/sim48-config.cfg Saving configuration ..Completed. A:ALA-48# 7710 SR OS Basic System Configuration Guide Page 61...
  • Page 62 In general all time stamps are shown in the time selected. This includes log entries destined for con- sole/session, memory, or SNMP logs. Log files on compact flash are maintained and displayed in UTC format. Default time-display local — Displays time stamps based on the local time. Page 62 7710 SR OS Basic System Configuration Guide...
  • Page 63 — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. filter Syntax filter Context monitor Description This command enables the context to configure criteria to monitor IP and MAC filter statistics. 7710 SR OS Basic System Configuration Guide Page 63...
  • Page 64 ------------------------------------------------------------------------------- At time t = 3 sec (Mode: Absolute) ------------------------------------------------------------------------------- Ing. Matches: 0 Egr. Matches ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Absolute) ------------------------------------------------------------------------------- Ing. Matches: 0 Egr. Matches ------------------------------------------------------------------------------- Page 64 7710 SR OS Basic System Configuration Guide...
  • Page 65 — Displays information on the specified IPv6 filter entry ID for the specified filter ID only. Values 1 — 65535 interval seconds — Configures the interval for each display in seconds. 7710 SR OS Basic System Configuration Guide Page 65...
  • Page 66 At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------ Ing. Matches : 0 Egr. Matches ------------------------------------------------------------------------------ At time t = 3 sec (Mode: Rate) ------------------------------------------------------------------------------ Ing. Matches : 0 Egr. Matches ------------------------------------------------------------------------------ Page 66 7710 SR OS Basic System Configuration Guide...
  • Page 67 — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. Sample Output A:ALA-1>monitor>filter# mac 50 entry 10 interval 3 repeat 3 absolute =============================================================================== Monitor statistics for Mac filter 50 entry 10 7710 SR OS Basic System Configuration Guide Page 67...
  • Page 68 Monitor commands are similar to show commands but only statistical information displays. Monitor commands display the selected statistics according to the configured number of times at the interval specified. Parameters lag-id — The number of the LAG. Page 68 7710 SR OS Basic System Configuration Guide...
  • Page 69 [port-id...(up to 5 max)] [interval seconds] [repeat repeat] [absolute | rate] Context monitor Description This command enables port traffic monitoring. The specified port(s) statistical information displays at the configured interval until the configured count is reached. 7710 SR OS Basic System Configuration Guide Page 69...
  • Page 70 At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------- Octets Packets Errors ------------------------------------------------------------------------------- At time t = 3 sec (Mode: Absolute) ------------------------------------------------------------------------------- Octets Packets Errors ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Absolute) ------------------------------------------------------------------------------- Octets Packets Page 70 7710 SR OS Basic System Configuration Guide...
  • Page 71 A:ALA-12>monitor# port Syntax atm [interval seconds] [repeat repeat] [absolute|rate] Context monitor>port Description This command enables ATM port traffic monitoring. Parameters interval seconds — Configures the interval for each display in seconds. 7710 SR OS Basic System Configuration Guide Page 71...
  • Page 72 Default Values 1 — 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without pro- cessing. No calculations are performed on the delta or rate statistics. Page 72 7710 SR OS Basic System Configuration Guide...
  • Page 73 An existing scheduler-name is in the form of a string up to 32 characters long com- posed of printable, 7-bit ASCII characters. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. 7710 SR OS Basic System Configuration Guide Page 73...
  • Page 74 — Displays scheduler-name statistics applied on the egress SAP. interval seconds — Configures the interval for each display in seconds. Default 11 seconds Values 11 — 60 repeat repeat — Configures how many times the command is repeated. Page 74 7710 SR OS Basic System Configuration Guide...
  • Page 75 Up to 5 IP addresses can be specified. interval seconds — Configures the interval for each display in seconds. Default 5 seconds Values 3 — 60 repeat repeat — Configures how many times the command is repeated. 7710 SR OS Basic System Configuration Guide Page 75...
  • Page 76 At time t = 9 sec ------------------------------------------------------------------------------- Recd. Prefixes Sent Prefixes Recd. Paths Suppressed Paths : 0 Num of Flaps i/p Messages o/p Messages i/p Octets o/p Octets i/p Updates o/p Updates =============================================================================== ALA-12>monitor>router>bgp# Page 76 7710 SR OS Basic System Configuration Guide...
  • Page 77 ISIS Instance SPF Runs Purge Initiated LSP Regens. : 11 CSPF Statistics Requests Request Drops Paths Found Paths Not Found: 0 ------------------------------------------------------------------------------- PDU Type Received Processed Dropped Sent Retransmitted ------------------------------------------------------------------------------- CSNP 7710 SR OS Basic System Configuration Guide Page 77...
  • Page 78 SPF Runs Purge Initiated LSP Regens. : 11 CSPF Statistics Requests Request Drops Paths Found Paths Not Found: 0 ------------------------------------------------------------------------------- PDU Type Received Processed Dropped Sent Retransmitted ------------------------------------------------------------------------------- CSNP PSNP Unknown ------------------------------------------------------------------------------- Page 78 7710 SR OS Basic System Configuration Guide...
  • Page 79 When the keyword rate is specified, the "rate per second" for each statistic is displayed instead of the delta. Monitor commands are similar to show commands but only statistical information displays. Monitor commands display the selected statistics according to the configured number of times at the interval specified. 7710 SR OS Basic System Configuration Guide Page 79...
  • Page 80 At time t = 3 sec (Mode: Absolute) ------------------------------------------------------------------------------- FECs Hello 5288 5289 Keepalive 8226 8226 Init Label Mapping Label Request Label Release Label Withdraw Label Abort Notification Address Address Withdraw ------------------------------------------------------------------------------- Page 80 7710 SR OS Basic System Configuration Guide...
  • Page 81 Label Request Label Release Label Withdraw Label Abort Notification Address Address Withdraw ------------------------------------------------------------------------------- At time t = 3 sec (Mode: Rate) ------------------------------------------------------------------------------- FECs Hello Keepalive Init Label Mapping Label Request Label Release 7710 SR OS Basic System Configuration Guide Page 81...
  • Page 82 Parameters interval seconds — Configures the interval for each display in seconds. Default 5 seconds Values 3 — 60 Page 82 7710 SR OS Basic System Configuration Guide...
  • Page 83 Addr FECs Recv Serv FECs Sent Serv FECs Recv ------------------------------------------------------------------------------- At time t = 9 sec (Mode: Rate) ------------------------------------------------------------------------------- Addr FECs Sent Addr FECs Recv Serv FECs Sent Serv FECs Recv 7710 SR OS Basic System Configuration Guide Page 83...
  • Page 84 : Pkts - 0 Octets - 0 ------------------------------------------------------------------------------- At time t = 3 sec (Mode: Absolute) ------------------------------------------------------------------------------- Transmitted : Pkts - 0 Octets - 0 Received : Pkts - 0 Octets - 0 ------------------------------------------------------------------------------- Page 84 7710 SR OS Basic System Configuration Guide...
  • Page 85 Parameters ospf-instance — Specifies the OSPF instance. Values 1 — 31 ospf3 Syntax ospf [ospf-instance] Context monitor>router>ospf3 Description This command enables the context to configure monitor commands for the OSPF3 instance. 7710 SR OS Basic System Configuration Guide Page 85...
  • Page 86 At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------- Tot Rx Packets : 8379 Tot Tx Packets : 8528 Rx Hellos : 8225 Tx Hellos : 8368 Rx DBDs Tx DBDs : 12 Rx LSRs Tx LSRs Page 86 7710 SR OS Basic System Configuration Guide...
  • Page 87 Bad Dest Addrs : 0 Bad Auth Types : 0 Auth Failures Bad Neighbors Bad Pkt Types Bad Lengths Bad Hello Int. : 0 Bad Dead Int. Bad Options Bad Versions =============================================================================== A:ALA-12>monitor>router>ospf# 7710 SR OS Basic System Configuration Guide Page 87...
  • Page 88 At time t = 9 sec (Mode: Rate) ------------------------------------------------------------------------------- Tot Rx Packets : 0 Tot Tx Packets : 0 Rx Hellos Tx Hellos Rx DBDs Tx DBDs Rx LSRs Tx LSRs Page 88 7710 SR OS Basic System Configuration Guide...
  • Page 89 — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. Sample Output ALA-12>monitor>router# ospf neighbor 10.0.0.104 interval 3 repeat 3 absolute =============================================================================== 7710 SR OS Basic System Configuration Guide Page 89...
  • Page 90 Bad Packets LSA not in LSDB Option Mismatches: 0 Nbr Duplicates ------------------------------------------------------------------------------- At time t = 9 sec (Mode: Rate) ------------------------------------------------------------------------------- Bad Nbr States LSA Inst fails Bad Seq Nums Bad MTUs Page 90 7710 SR OS Basic System Configuration Guide...
  • Page 91 [interval seconds] [repeat repeat] [absolute | rate] Context monitor>router>ospf monitor>router>ospf3 Description This command displays statistical OSPF virtual link information at the configured interval until the configured count is reached. 7710 SR OS Basic System Configuration Guide Page 91...
  • Page 92 — The IP address to uniquely identify a neighboring router in the autonomous system. area area-id — The OSPF area ID, expressed in dotted decimal notation or as a 32-bit decimal integer. interval seconds — Configures the interval for each display in seconds. Page 92 7710 SR OS Basic System Configuration Guide...
  • Page 93 — When the absolute keyword is specified, the raw statistics are displayed, without pro- cessing. No calculations are performed on the delta or rate statistics. rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. 7710 SR OS Basic System Configuration Guide Page 93...
  • Page 94 "rate per second" for each statistic is displayed instead of the delta. Monitor commands are similar to show commands but only statistical information displays. Monitor commands display the selected statistics according to the configured number of times at the interval specified. Page 94 7710 SR OS Basic System Configuration Guide...
  • Page 95 Parameters service-id — The unique service identification number which identifies the service in the service domain. 7710 SR OS Basic System Configuration Guide Page 95...
  • Page 96 SDH and TDM channels, the port ID must include the channel ID. A period “.” separates the physical port from the channel-id. The port must be configured as an access port. If the SONET/SDH port is configured as clear-channel then only the port is specified. Page 96 7710 SR OS Basic System Configuration Guide...
  • Page 97 — When the absolute keyword is specified, the absolute rate-per-second value for each statistic is displayed. rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. 7710 SR OS Basic System Configuration Guide Page 97...
  • Page 98 — Specify the SDP identifier. Values 1 — 17407 far-end ip-address — The system address of the far-end 7710 SR for the SDP in dotted decimal notation. interval seconds — Configures the interval for each display in seconds. Default...
  • Page 99 — Specifies an existing subscriber identification profile to monitor. sap sap-id — Specifies the physical port identifier portion of the SAP definition. Values sap-id null [port-id| bundle-id | lag-id| aps-id] dot1q [port-id| bundle-id | lag-id| aps-id]:qtag1 7710 SR OS Basic System Configuration Guide Page 99...
  • Page 100 — Monitors statistics for this queue. Values 1 — 32 egress-queue-id egress-queue-id — Monitors statistics for this queue. Values 1 — 8 Sample Output A:Dut-A# monitor service subscriber alcatel_100 sap 1/2/1:101 sla-profile sla_default =============================================================================== Page 100 7710 SR OS Basic System Configuration Guide...
  • Page 101 Off. Uncolor Dro. HiPrio Dro. LowPrio For. InProf For. OutProf Ingress Queue 11 (Multipoint) (Priority) Off. HiPrio Off. LowPrio Off. Uncolor Dro. HiPrio Dro. LowPrio For. InProf For. OutProf Egress Queue 1 7710 SR OS Basic System Configuration Guide Page 101...
  • Page 102 0.03 For. InProf 0.00 For. OutProf : 1349 437350 0.34 Queueing Stats (Egress QoS Policy 1000) Dro. InProf 0.00 Dro. OutProf 0.00 For. InProf : 1469 209129 0.16 For. OutProf 0.00 Page 102 7710 SR OS Basic System Configuration Guide...
  • Page 103 ------------------------------------------------------------------------------- At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------- Packets Octets Egress Queue 1 Dro. InProf : 880 127660 Dro. OutProf For. InProf : 164366 23506178 For. OutProf =============================================================================== A:Dut-A# 7710 SR OS Basic System Configuration Guide Page 103...

  • Page 104: Table 11: Show Alias Output Fields

    Alias-command-name ============================================================================== show router interface show service service-using epipe ssvpls show service service-using vpls ssvprn show service service-using vprn show service service-using ies ------------------------------------------------------------------------------ Number of aliases : 5 ============================================================================== A:ALA-103>config>system# Page 104 7710 SR OS Basic System Configuration Guide...

  • Page 105: File System Management

    Creating Directories on page 111 → Copying Files on page 111 → Moving Files on page 112 → Removing Files and Deleting Directories on page 112 → Displaying Directory and File Information on page 113 7710 SR OS Basic System Configuration Guide Page 105...

  • Page 106: The File System

    The File System The File System The 7710 SR OS file system is used to store files used and generated by the system, for example, image files, configuration files, logging files and accounting files. The file commands allow you to copy, create, move, and delete files and directories, navigate to a different directory, display file or directory contents and the image version.

  • Page 107: Urls

    “escape” character. This can cause problems when using an external SCP client application to send files to the 7710 SR OS SCP server. If the external system treats the backslash like an escape character, the backslash delimiter will get stripped by the parser and will not be transmitted to the 7710 SR OS SCP server.

  • Page 108: Wildcards

    7597 bytes. 2 Dir(s) 1082368 bytes free. A:ALA-1>file cf3:\siliconvalley\ # As in a DOS file system, the 7710 SR OS wildcard characters can only be used in some of the file commands. Another example of wildcard usage: Example A:21# show router mpls lsp l-63-8*...

  • Page 109: Table 13: File Command Local And Remote File System Support

    Table 13: File Command Local and Remote File System Support Command local-url ftp-url tftp-url attrib copy delete move repair source only type version shutdown 7710 SR OS Basic System Configuration Guide Page 109...

  • Page 110: File Management Tasks

    # attrib The following displays the file configuration: A:ALA-1>file cf3:\ # attrib cf3:\bootlog.txt cf3:\bof.cfg cf3:\boot.ldr cf3:\bootlog_prev.txt cf3:\BOF.SAV A:ALA-1>file cf3:\ # attrib +r BOF.SAV A:ALA-1>file cf3:\ # attrib cf3:\bootlog.txt cf3:\bof.cfg cf3:\boot.ldr cf3:\bootlog_prev.txt cf3:\BOF.SAV Page 110 7710 SR OS Basic System Configuration Guide...

  • Page 111: Creating Directories

    SSH. The source file for the command must be local. The file must reside on the 7710 SR router. The destination file has to be of the format: user@host:file-name. The destination does not need to be local.

  • Page 112: Moving Files

    A:ALA-1>file cf1:\test1\test2\test3\ # cd .. A:ALA-1>file cf1:\test1\test2\ # rd test3 A:ALA-1>file cf1:\test1\test2\ # cd .. A:ALA-1>file cf1:\test1\ # rd test2 A:ALA-1>file cf1:\test1\ # cd .. A:ALA-1>file cf1:\ # rd test1 A:ALA-1>file cf1:\ # Page 112 7710 SR OS Basic System Configuration Guide...

  • Page 113: Displaying Directory And File Information

    7710 SR OS both.tim file. version Use the CLI syntax displayed below to display directory and file information: CLI Syntax: file>...

  • Page 114: Repairing The File System

    CLI Syntax: file repair [cflash-id] The following displays an example of the command syntax: A:ALA-1>file cf3:\ # repair Checking drive cf3: on slot A for errors... Drive cf3: on slot A is OK. Page 114 7710 SR OS Basic System Configuration Guide...

  • Page 115: File Command Reference

    [force] — file-url [force] — repair [cflash-id] — local-file-url destination-file-url [router router-instance] [force] — [no] shutdown [active] [standby] — [no] shutdown cflash-id — type file-url — version file-url [check] 7710 SR OS Basic System Configuration Guide Page 115...
  • Page 116 Page 116 7710 SR OS Basic System Configuration Guide...

  • Page 117: File System Commands

    If no compact flash is present and the drive is shut down the LED is unlit. State: admin = down, operational = down, equipped = no No compact flash present, drive enabled: 7710 SR OS Basic System Configuration Guide Page 117...
  • Page 118 — If standby is selected, then all drives on the standby CFM are shutdown or enabled. Note: When both active and standby keywords are specified, then all drives on both CFMs are shutdown. Page 118 7710 SR OS Basic System Configuration Guide...

  • Page 119: File Commands

    — Syntax: [local-url | remote-url (255 chars max) local-url - [cflash-id/][file-path] remote-url - [{ftp://|tftp://}login:pswd@remote-locn/][file-path] cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: <none> — Displays the current working directory. 7710 SR OS Basic System Configuration Guide Page 119...
  • Page 120 (partial) suffix. When the wildcard is entered, the following prompt displays for each file that matches the wildcard: “Delete file <filename> (y/n)?” file-url — The file name to delete. Values local-url | remote-url: 255 chars max local-url: [cflash-id/][file-path] Page 120 7710 SR OS Basic System Configuration Guide...
  • Page 121 — Enables the Reliance file system and disables the default DOS file system. This option is valid only on compact flashes 1 and 2. 7710 SR OS Basic System Configuration Guide Page 121...
  • Page 122 | remote-url: 255 chars max local-url: [cflash-id/][file-path] remote-url [ftp://login:pswd@remote-locn/][file-path] cf1:,cf1-A:,cf1-B:,cf2:,cf2-A:,cf2-B:,cf3:,cf3-A:,cf3-B: force — Forces an immediate move of the specified file(s). file move force executes the command without displaying a user prompt message. Page 122 7710 SR OS Basic System Configuration Guide...
  • Page 123 “Are you sure (y/n)?” The destination must specify a user and a host. Parameters local-file-url — The local source file or directory. Values [cflash-id/][file-path]: Up to 256 characters. destination-file-url — The destination file. Values user@hostname:destination-file 7710 SR OS Basic System Configuration Guide Page 123...
  • Page 124 [cflash-id/][file-path] remote-url: [{ftp://|tftp://}login:pswd@remote-locn/][file-path] cflash-id: cf1:|cf1-A:|cf1-B: check — Validates the .tim file. Sample Output B:Performance# file version cf3:/both.tim TiMOS-B-5.0.R1 for 7710 B:Performance# file version ftp://timos:timos@xxx.xxx.xx.xx/./iom.tim check Validation successful TiMOS-I-5.0.R1 for 7710 B:Performance# Page 124 7710 SR OS Basic System Configuration Guide...

  • Page 125: Boot Options

    System Initialization on page 126 → Configuration and Image Loading on page 129 − Persistence on page 131 • Initial System Startup Process Overview on page 132 • Configuration Notes on page 133 7710 SR OS Basic System Configuration Guide Page 125...

  • Page 126: System Initialization

    SR-c4 are named Compact Flash Slot #1 (cf1), Compact Flash Slot #2 (cf2), and Compact Flash Slot #3 (cf3). Configurations and executable images can be stored on flash cards or an FTP file location. There are six Compact Flash slots on the 7710 SR-c12, three for CFM-A and three for CFM-B.

  • Page 127: Figure 3: System Initialization - Part 1

    Figure 3: System Initialization - Part 1 Figure 4 displays the compact flash directory structure and file names. ROOT bof.cfg config.cfg TIMOS-m.n.Yz boot.ldr both.tim Figure 4: Files on the Compact Flash 7710 SR OS Basic System Configuration Guide Page 127...
  • Page 128 — Minor release number Y: A — Alpha release B — Beta release M — Maintenance release R — Released software z — Version number → both.tim — CPM and IOM image file Page 128 7710 SR OS Basic System Configuration Guide...

  • Page 129: Configuration And Image Loading

    GET FIRST/NEXT TERTIARY RUNTIME IMAGE Boot with defaults SNMP shutdown Issue trap NEED Issue log entry ALL CONFIGS CONFIG FOUND PERSISTENCE Issue console msg Figure 5: System Initialization - Part 2 7710 SR OS Basic System Configuration Guide Page 129...
  • Page 130 192.168.x.x/20 active primary-dns 192.168.x.x secondary-dns 128.251.x.x dns-domain dns.domain.com static-route 128.251.x.x/23 next-hop 192.168.x.x static-route 172.22.x.x/22 next-hop 192.168.x.x autonegotiate duplex full speed wait persist console-speed 115200 =============================================================================== A:7710-3# Page 130 7710 SR OS Basic System Configuration Guide...

  • Page 131: Persistence

    The interception capabilities are sought by various telecommunications providers. As lawful interception is subject to national regulation, requirements vary from one country to another. Alcatel-Lucent’s implementation satisfies most national standard’s requirements. LI is configurable for all service types. 7710 SR OS Basic System Configuration Guide...

  • Page 132: Initial System Startup Process Overview

    ESTABLISH ROUTER CONNECTION (CONSOLE PORT) ASSIGN IP ADDRESS TO THE CPM PRIMARY IMAGE CONFIGURE/MODIFY BOF FILE LOCATIONS PRIMARY CONFIG SECONDARY IMAGE SECONDARY CONFIG TERTIARY IMAGE SAVE CONFIG CHANGES TERTIARY CONFIG Figure 6: System Startup Flow Page 132 7710 SR OS Basic System Configuration Guide...

  • Page 133: Configuration Notes

    It is loaded as it is read in at boot time. For example, for services, if a VPRN service, service-id 272, is created first and then an Apipe service, service-id 2, created next, the VPRN 272 will be loaded first because it was created first. 7710 SR OS Basic System Configuration Guide Page 133...
  • Page 134 Configuration Notes Page 134 7710 SR OS Basic System Configuration Guide...

  • Page 135: Configuring Boot File Options With Cli

    Viewing the Current Configuration on page 145 → Modifying and Saving a Configuration on page 147 → Saving a Configuration to a Different Filename on page 149 → Rebooting on page 149 7710 SR OS Basic System Configuration Guide Page 135...

  • Page 136: Bof Configuration Overview

    BOF Configuration Overview BOF Configuration Overview Alcatel-Lucent 7710 SR routers do not contain a boot EEPROM. The boot loader code is loaded from the boot.ldr file. The BOF file performs the following tasks: 1. Sets up the CCM Ethernet port (speed, duplex, auto).

  • Page 137: Basic Bof Configuration

    192.168.x.x/20 active primary-dns 192.168.x.x secondary-dns 128.251.x.x dns-domain dns.domain.com static-route 128.251.x.x/23 next-hop 192.168.x.x static-route 172.22.x.x/22 next-hop 192.168.x.x autonegotiate duplex full speed wait persist console-speed 115200 =============================================================================== A:7710-3# 7710 SR OS Basic System Configuration Guide Page 137...

  • Page 138: Common Configuration Tasks

    − Console Connection on page 141 • Configuring BOF Parameters on page 144 For details about hardware installation and initial router connections, refer to the specific 7710 SR hardware installation guide. Page 138 7710 SR OS Basic System Configuration Guide...

  • Page 139: Searching For The Bof

    Config File URL: Using: 'cf3:/config.cfg' Network Configuration --------------------- You specified a network location for either the software or the configuration file. You need to assign an IP address for this system. 7710 SR OS Basic System Configuration Guide Page 139...
  • Page 140 1.x.x.0/24 next-hop 192.168.xx.xxx autonegotiate duplex full speed wait persist Do you want to overwrite cf3:/bof.cfg with the new settings? (yes/no): y Successfully saved the new settings in cf3:/bof.cfg Page 140 7710 SR OS Basic System Configuration Guide...

  • Page 141: Accessing The Cli

    Accessing the CLI To access the CLI to configure the software for the first time, follow these steps: • When the CFM is installed and power to the chassis is turned on, the 7710 SR software automatically begins the boot sequence. •...

  • Page 142: Figure 7: 7710 Sr-C12 Front Panel Console Port

    Common Configuration Tasks Figure 7 displays an example of the Console port on a 7710 SR-c12 front panel. Console Port SR77056C Figure 7: 7710 SR-c12 Front Panel Console Port Figure 8 displays an example of the Console port on a 7710 SR-c4 front panel.
  • Page 143 Establish the connection by pressing the <Enter> key a few times on your terminal keyboard. Step 4 At the router prompt, enter the login and password. The default login is admin The default password is admin 7710 SR OS Basic System Configuration Guide Page 143...

  • Page 144: Configuring Bof Parameters

    192.168.x.x/20 active primary-dns 192.168.x.x secondary-dns 128.251.x.x dns-domain dns.domain.com static-route 128.251.x.x/23 next-hop 192.168.xx.xx static-route 172.22.x.x/22 next-hop 192.168.xx.xx autonegotiate duplex full speed wait persist console-speed 115200 =============================================================================== A:7710-3# Page 144 7710 SR OS Basic System Configuration Guide...

  • Page 145: Service Management Tasks

    The following displays an example of a configuration file: A:7710-3# admin display-config # TiMOS-B-5.0.R3 both/hops ALCATEL SR 7710 Copyright (c) 2000-2007 Alcatel-Lucent. # All rights reserved. All use subject to applicable license agreements. # Built on Thu Apr 19 19:19:11 PST 2007 by builder in /rel5.0/b1/R3/panos/main...
  • Page 146 UTC exit thresholds rmon exit exit exit... #-------------------------------------------------- echo "Redundancy Configuration" #-------------------------------------------------- redundancy synchronize boot-env exit ...exit all # Finished FRI APR 20 15:06:16 2007 UTC A:7710-3# Page 146 7710 SR OS Basic System Configuration Guide...

  • Page 147: Modifying And Saving A Configuration

    FTP server. The FTP server must be configured to allow multiple sessions from the same login, otherwise, the configuration and index files will not be saved correctly. 7710 SR OS Basic System Configuration Guide Page 147...

  • Page 148: Deleting Bof Parameters

    Page 148 7710 SR OS Basic System Configuration Guide...

  • Page 149: Saving A Configuration To A Different Filename

    Use the following CLI syntax to reboot: CLI Syntax: admin# reboot [active|standby] [now] Example A:ALA-1>admin# reboot A:DutA>admin# reboot Are you sure you want to reboot (y/n)? y Resetting...OK 7710 SR OS Basic System Configuration Guide Page 149...
  • Page 150 Service Management Tasks Alcatel 7xxx Boot ROM. Copyright 2000-2007 Alcatel-Lucent. All rights reserved. All use is subject to applicable license agreements..Page 150 7710 SR OS Basic System Configuration Guide...

  • Page 151: Bof Command Reference

    — tertiary-config file-url — no tertiary-config — [no] tertiary-dns ip-address — tertiary-image file-url — no tertiary-image — wait seconds Show Commands show — [cflash-id | booted] — boot-messages 7710 SR OS Basic System Configuration Guide Page 151...
  • Page 152 BOF Command Reference Page 152 7710 SR OS Basic System Configuration Guide...

  • Page 153: File Management Commands

    A, but the in slot B could also be acting as the active ). The slot name is not case-sensitive. You can use upper or lowercase “A” or “B”. 7710 SR OS Basic System Configuration Guide Page 153...
  • Page 154 Saves must be explicitly executed. The BOF is saved to cf3: if a location is not specified. Parameters flash-id — The compact flash ID where the bof.cfg is to be saved. Values cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: Default cf3: Page 154 7710 SR OS Basic System Configuration Guide...
  • Page 155 Only one wait command can be defined in the BOF. Default Parameters seconds — The time to pause at the start of the boot process, in seconds. Values 1 — 10 7710 SR OS Basic System Configuration Guide Page 155...
  • Page 156 The no form of the command reverts to the default value. Default 115200 — console configured for 115,200 bps operation Parameters baud-rate — The console port baud rate, expressed as a decimal integer. Values 9600, 19200, 38400, 57600, 115200 Page 156 7710 SR OS Basic System Configuration Guide...
  • Page 157 (30 second) check. Default Parameters on — Create when saving the configuration. off — Disables the system index saves between reboots. 7710 SR OS Basic System Configuration Guide Page 157...
  • Page 158 — The location-url can be either local (this ) or a remote FTP server. Values file-url [local-url | remote-url] (up to 180 characters) local-url [cflash-id/][file-path] remote-url [{ftp://|tftp://} login:pswd@remote-locn/][file-path] cflash-id cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: Page 158 7710 SR OS Basic System Configuration Guide...
  • Page 159 — The file-url can be either local (this ) or a remote FTP server. Values file-url [local-url | remote-url] (up to 180 characters) local-url [cflash-id/][file-path] remote-url [{ftp://|tftp://} login:pswd@remote-locn/][file-path] cflash-id cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: 7710 SR OS Basic System Configuration Guide Page 159...
  • Page 160 — The location-url can be either local (this ) or a remote FTP server. Values file-url [local-url | remote-url] (up to 180 characters) local-url [cflash-id/][file-path] remote-url [{ftp://|tftp://} login:pswd@remote-locn/][file-path] cflash-id cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: Page 160 7710 SR OS Basic System Configuration Guide...
  • Page 161 — Specifies ethernet ports to be configurable to use link autonegotiation but with only a single speed/duplex combination advertised. This allows a specific speed/duplex to be guaran- teed without having to turn off autonegotiation, which is not allowed for 1000BASE-T. 7710 SR OS Basic System Configuration Guide Page 161...
  • Page 162 If the port is configured to autonegotiate this parameter is ignored. Default speed 100 — 100 M/bps operation. Parameters 10 — Sets the link to 10 M/bps speed. 100 — Sets the link to 100 M/bps speed. Page 162 7710 SR OS Basic System Configuration Guide...
  • Page 163 — The subnet mask, expressed as an integer or in dotted decimal notation. Values 1 — 32 (mask length), 128.0.0.0 — 255.255.255.255 (dotted decimal) next-hop ip-address — The next hop IP address used to reach the destination. 7710 SR OS Basic System Configuration Guide Page 163...
  • Page 164 — The IP or IPv6 address of the primary DNS server. Values ipv4-address - a.b.c.d ipv6-address: x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x: [0..FFFF]H d: [0..255]D interface - 32 chars max, for link local addresses Page 164 7710 SR OS Basic System Configuration Guide...
  • Page 165 — The IP or IPv6 address of the tertiary DNS server. Values ipv4-address - a.b.c.d ipv6-address: x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x: [0..FFFF]H d: [0..255]D interface - 32 chars max, for link local addresses 7710 SR OS Basic System Configuration Guide Page 165...
  • Page 166 DNS Configuration Commands Page 166 7710 SR OS Basic System Configuration Guide...

  • Page 167: Table 15: Show Bof Output Fields

    The tertiary location of the file that contains the configuration. address The IP address and mask associated with the Ethernet port or the secondary port. The tertiary DNS server for resolution of host names to IP addresses. tertiary-dns 7710 SR OS Basic System Configuration Guide Page 167...
  • Page 168 115200 =============================================================================== A:ALA-1# A:ALA-1# show bof booted ===================================================================== System booted with BOF ===================================================================== primary-image ftp://test:test@192.168.xx.xx/./both.tim primary-config ftp://test:test@192.168.xx.xx/./103.cfg secondary-image cf1:/i650/ secondary-config cf1:/config.cfg address 192.168.xx.xxx/20 active Page 168 7710 SR OS Basic System Configuration Guide...
  • Page 169 Total Memory: 2016MB Chassis Type: sr-c12 Card Type: canada_r1 TiMOS-L-5.0.S1 boot/hops ALCATEL SR 7710 Copyright (c) 2000-2007 Alcatel-Lucent. All rights reserved. All use subject to applicable license agreements. Built on Sat Jan 6 13:11:07 PST 2007 by builder in /rel5.0/current/S1/panos/main...
  • Page 170 Total Memory: 2016MB Chassis Type: sr-c12 Card Type: canada_r1 TiMOS-B-5.0.B1-8 both/hops ALCATEL SR 7710 Copyright (c) 2000-2007 Alcatel-Lucent. All rights reserved. All use subject to applicable license agreements. Built on Mon Mar 19 18:14:32 PST 2007 by builder in /rel5.0/b1/B1-8/panos/main...
  • Page 171 'ftp://*:*@192.168.1.70/./images/env.cfg' ... Executed 19 lines in 0.1 seconds from file ftp://*:*@192.168.1.70/./images/env.cfg TiMOS-B-5.0.B1-8 both/hops ALCATEL SR 7710 Copyright (c) 2000-2007 Alcatel-Lucent. All rights reserved. All use subject to applicable license agreements. Built on Mon Mar 19 18:14:32 PST 2007 by builder in /rel5.0/b1/B1-25/panos/main...
  • Page 172 Total Memory: 2016MB Chassis Type: sr-c12 Card Type: canada_r1 TiMOS-B-5.0.B1-8 both/hops ALCATEL SR 7710 Copyright (c) 2000-2007 Alcatel-Lucent. All rights reserved. All use subject to applicable license agreements. Built on Mon Mar 19 18:14:32 PST 2007 by builder in /rel5.0/b1/B1-8/panos/main...

  • Page 173: System Management

    High Availability Features on page 183 − High Availability Features on page 183 • Redundancy on page 184 • Nonstop Forwarding on page 187 • Nonstop Routing (NSR) on page 187 7710 SR OS Basic System Configuration Guide Page 173...
  • Page 174 Configuring the Chassis Mode on page 204 → Saving Configurations on page 205 → Specifying Post-Boot Configuration Files on page 205 → Network Timing on page 206 → Power Supplies on page 206 Page 174 7710 SR OS Basic System Configuration Guide...

  • Page 175: System Management Parameters

    ASCII printable text string of up to 80 characters. 7710 SR OS Basic System Configuration Guide Page 175...

  • Page 176: System Location

    The system location is the MIB II sysLocation object which is a text string conventionally used to describe the node’s physical location, for example, “Bldg MV-11, 1st Floor, Room 101”. The system location can be any ASCII printable text string of up to 80 characters. Page 176 7710 SR OS Basic System Configuration Guide...

  • Page 177: System Coordinates

    System Management System Coordinates The system coordinates is the Alcatel-Lucent Chassis MIB tmnxChassisCoordinates object. This text string indicates the Global Positioning System (GPS) coordinates of the location of the chassis. Two-dimensional GPS positioning offers latitude and longitude information as a four dimensional vector: 〈...

  • Page 178: System Time

    CRON on page 182 Time Zones Setting a time zone in 7710 SR OS allows for times to be displayed in the local time rather than in UTC. The 7710 SR OS has both user-defined and system defined time zones.
  • Page 179 Alaska Standard Daylight Saving Time UTC -8 Australia AWST Western Standard Time (e.g., Perth) UTC +8 ACST Central Standard Time (e.g., Darwin) UTC +9.5 AEST Eastern Standard/Summer Time (e.g., UTC +10 Canberra) 7710 SR OS Basic System Configuration Guide Page 179...

  • Page 180: Ntp

    (SAA)) can use the clock, and if determined that a major (128 ms or more) adjustment needs to be performed, the adjustment is performed by programmatically stepping the clock. If a minor (less than 128 ms) adjustment must be performed, then the adjustment is Page 180 7710 SR OS Basic System Configuration Guide...

  • Page 181: Sntp Time Synchronization

    In 7710 SR OS, the SNTP client can be configured for either broadcast or unicast client mode. 7710 SR OS Basic System Configuration Guide...

  • Page 182: Cron

    SAPs require the same type of TOD changes. The TOD suite may be configured while using specific ingress or egress ACLs or QoS policies, and is an enhancement of the ingress and egress CLI trees. Page 182 7710 SR OS Basic System Configuration Guide...

  • Page 183: High Availability

    As more and more critical commercial applications move onto the IP/MPLS networks, providing high availability services becomes increasingly important. This section describes high availability features for the routers. Most of these features only apply to routers with two Control Forwarding Modules (CFMs), currently the 7710 SR-c12 model. • Redundancy on page 184 →...

  • Page 184: Redundancy

    • BGP default session timeout is approximately 120 seconds. The timeout intervals are configurable. Therefore, router software has to recover faster than the specified time interval to maintain up time. Page 184 7710 SR OS Basic System Configuration Guide...

  • Page 185: Configuration Redundancy

    7710 SR-Series routers, address this issue because they already have extra processing built into the system. Component Redundancy 7710 SR-Series component redundancy is critical to reduce MTTR for the routing system and primarily consists of the following router features: •...

  • Page 186: Service Redundancy

    (media present, etc.), the standby will be brought online and new accounting files will be created at that point. Users must manually copy the accounting records from the failed CFM. Page 186 7710 SR OS Basic System Configuration Guide...

  • Page 187: Nonstop Forwarding

    Nonstop Routing (NSR) With NSR on the 7710 SR-Series routers, routing neighbors are unaware of a routing process fault. If a fault occurs, a reliable and deterministic activity switch to the inactive control complex occurs such that routing topology and reachability are not affected, even in the presence of routing updates.

  • Page 188: Cfm Switchover

    Users can force the switchover from the active CFM to the standby by using the CLI command. admin redundancy force-switchover now Note that with the 7710 SR-c4 the CLI command does admin reboot active [now] not cause a switchover but a reboot of the entire system.

  • Page 189: Synchronization

    If the active and standby are not synchronized for some reason, users can manually synchronize the standby CFM by rebooting the standby by issuing the command admin reboot standby on the active. 7710 SR OS Basic System Configuration Guide Page 189...

  • Page 190: Synchronization And Redundancy

    Synchronization and Redundancy Synchronization and Redundancy 7710 SR routers supporting redundancy (such as the 7710 SR-c12 model) use a 1:1 redundancy scheme. Redundancy methods facilitate system synchronization between the active and standby Control Forwarding Modules (CFMs) so they maintain identical operational parameters to prevent inconsistencies in the event of a CFM failure.

  • Page 191: Network Synchronization

    Figure 9 provides the following benefits: • Limits the need for high quality clocks at each network element and only requires that they reliably replicate input to remain traceable to its reference. 7710 SR OS Basic System Configuration Guide Page 191...
  • Page 192 It is not necessary for the network to provide these high quality sources, only transfer it reliably, since the source can not transfer time by itself. This significantly enhances the quality of the services transferred. Page 192 7710 SR OS Basic System Configuration Guide...

  • Page 193: Synchronous Ethernet

    (c u rre n tly ) S D H S D H S D H S D H E tH E tH E tH E tH Figure 10: Hypothetical Synchronous Ethernet Reference Network Architecture 7710 SR OS Basic System Configuration Guide Page 193...

  • Page 194: Synchronization Infrastructure

    In order to enable rapid migration of these networks, synchronous Ethernet may be the easiest to achieve (frequency) synchronization to allow the benefits of an Ethernet network infrastructure to be realized without any change to the existing TDM network applications. Page 194 7710 SR OS Basic System Configuration Guide...

  • Page 195: Figure 12: Packet Based Network Timing Infrastructure

    TS Timing (may TS Timing (may have PLL function) have PLL function) Hand-off, freq accuracy Hand-off, freq accuracy & location services & location services Figure 12: Packet Based Network Timing Infrastructure 7710 SR OS Basic System Configuration Guide Page 195...

  • Page 196: Central Synchronization Sub-System

    T1/E1 or CES channel (traffic signal based — adaptive clocking) • Ethernet • BITS port on a Channelized OC3/STM1 CES CMA • 1588 slave process of an Ethernet MDA • Includes the CPM/SFM complex Page 196 7710 SR OS Basic System Configuration Guide...

  • Page 197: Table 17: Revertive, Non-Revertive Timing Reference Switching Operation

    Active Reference Active Reference Reference A Reference B Non-revertive Case Revertive Case Failed Failed Failed Failed holdover holdover Failed Failed Failed holdover holdover Failed Failed Failed holdover holdover A or B 7710 SR OS Basic System Configuration Guide Page 197...

  • Page 198: Synchronous Ethernet

    The determination shall be made so that it minimizes the time to detect and switch between the any of the three states, in the following order: primary, secondary, and holdover. Page 198 7710 SR OS Basic System Configuration Guide...

  • Page 199: Synchronization Status Messages (Ssm)

    Stratum level (for example., 1, 2, 3, SMC, or 4) Traceable, Synchronized - Traceability Unknown (STU), and DON’T USE for Synchronization (DUS). A summary of some of the details are shown in Figure Figure 14: Synchronization Status Messages 7710 SR OS Basic System Configuration Guide Page 199...
  • Page 200 SSM allows equipment to autonomously provision and reconfigure (by reference switching) their synchronization references, while helping to avoid the creation of timing loops. These messages allow synchronization reconfigurations of network synchronization trails when timing is distributed in both directions around a ring. Page 200 7710 SR OS Basic System Configuration Guide...

  • Page 201: Active And Standby Designations

    System Management Active and Standby Designations Typically, the first CFM installed in a 7710 SR-Series chassis assumes the role as active, regardless of being inserted in Slot A or B. The next CFM installed in the same chassis then assumes the role as the standby CFM. If two CFMs are inserted simultaneously (or almost simultaneously) and are booting at the same time, then preference is given to the CFM installed in Slot A.

  • Page 202: When The Active Cfm Goes Offline

    When the CFM that went offline boots and then comes back online, it becomes the standby CFM. When the standby comes online, the following output displays: When the standby comes online, the following output displays: Page 202 7710 SR OS Basic System Configuration Guide...

  • Page 203: Persistence

    IES or VPRN service interface SAP atm oam atm>oam context and then enabled in the context. Rerfer to the IES and VPRN sections of the 7710 SR OS Services Guide for further information. 7710 SR OS Basic System Configuration Guide Page 203...

  • Page 204: Administrative Tasks

    The force keyword forces an upgrade either from mode a to mode b or c with cards provisioned as iom-20g or from mode b to mode c with cards provisioned as iom-20g-b. Page 204 7710 SR OS Basic System Configuration Guide...

  • Page 205: Saving Configurations

    For example, after a configuration file is successfully loaded, the specified URL can contain a nearly identical configuration file with certain commands enabled or disabled, or particular parameters specified and according to the script which loads that file. 7710 SR OS Basic System Configuration Guide Page 205...

  • Page 206: Network Timing

    Power Supplies 7710 SR OS supports a power-supply command to configure the type and number of power supplies present in the chassis. The operational status of a power source is always displayed by the...

  • Page 207: Automatic Synchronization

    CFM) are copied to the same compact flash on the standby CFM. Config Option option synchronizes configuration files by copying the files specified in the active config CFM BOF file to the same compact flash on the standby CFM. 7710 SR OS Basic System Configuration Guide Page 207...

  • Page 208: Manual Synchronization

    If the active and standby are not synchronized for some reason, users can manually synchronize the standby CFM by rebooting the standby by issuing the command admin reboot standby on the activeCFM. Page 208 7710 SR OS Basic System Configuration Guide...

  • Page 209: System Configuration Process Overview

    START CONFIGURE SYSTEM INFORMATION CONFIGURE HIGH AVAILABILITY PARAMETERS (RECOMMENDED) CONFIGURE TIME PARAMETERS CONFIGURE SYNCHRONIZATION PARAMETERS (RECOMMENDED) MODIFYING NETWORK TIMING PARAMETERS (OPTIONAL) Figure 15: System Configuration and Implementation Flow 7710 SR OS Basic System Configuration Guide Page 209...

  • Page 210: Configuration Notes

    This section describes system configuration caveats. General • The 7710 SR-Series router must be properly initialized and the boot loader and BOF files successfully executed in order to access the CLI. Page 210 7710 SR OS Basic System Configuration Guide...

  • Page 211: Configuring System Management With Cli

    Set-time on page 253 → Display-config on page 253 → Tech-support on page 255 → Save on page 255 → Reboot on page 256 → Post-Boot Configuration Extension Files on page 257 7710 SR OS Basic System Configuration Guide Page 211...
  • Page 212 → Using the Revert Command on page 262 → Other Editing Commands on page 262 → Forcing a Specific Reference on page 263 • Configuring System Monitoring Thresholds on page 264 Page 212 7710 SR OS Basic System Configuration Guide...

  • Page 213: System Management

    If the save attempt fails at the destination, an error occurs and is logged. The system does not try to save the file to the secondary or tertiary configuration sources unless the path and filename are explicitly named with the command. save 7710 SR OS Basic System Configuration Guide Page 213...

  • Page 214: Basic System Configuration

    "System Configuration " #------------------------------------------ name "ALA-12" coordinates "Unknown" snmp exit security snmp community "private" rwa version both exit exit time server 192.168.15.221 no shutdown exit sntp shutdown exit zone GMT exit ---------------------------------------------- A:ALA-12>config>system# Page 214 7710 SR OS Basic System Configuration Guide...

  • Page 215: Common Configuration Tasks

    Set-time on page 253 → Display-config on page 253 → Reboot on page 256 → Save on page 255 • System Timing on page 260 → Configuring Timing References on page 261 7710 SR OS Basic System Configuration Guide Page 215...

  • Page 216: System Information

    Use the following CLI syntax to configure the system name: CLI Syntax: config>system name system-name Example alcatel>config>system# name ALA-12 The following example displays the system name: sysName@domain>config>system# info #------------------------------------------ echo "System Configuration " #------------------------------------------ name "ALA-12" . . . exit Page 216 7710 SR OS Basic System Configuration Guide...

  • Page 217: Contact

    CLLI Code The Common Language Location Code (CLLI code) is an 11-character standardized geographic identifier that is used to uniquely identify the geographic location of a 7710 SR router. Use the following CLI command syntax to define the CLLI code: CLI Syntax: config>system...

  • Page 218: Coordinates

    "System Configuration " #------------------------------------------ name "ALA-12" contact "Fred Information Technology" location "Bldg.1-floor 2-Room 201" clli-code "abcdefg1234" coordinates "N 45 58 23, W 34 56 12" . . . exit ---------------------------------------------- A:ALA-12>config>system# Page 218 7710 SR OS Basic System Configuration Guide...

  • Page 219: System Time Elements

    Time Range on page 233 → Time of Day on page 237 Zone command sets the time zone and/or time zone offset for the router. 7710 SR OS zone supports system-defined and user-defined time zones. The system-defined time zones are listed in Table CLI Syntax: config>system>time...

  • Page 220: Table 19: System-Defined Time Zones

    Central Standard Time (e.g., Darwin) UTC +9.5 hours ACST Eastern Standard/Summer Time (e.g., UTC +10 hours AEST Canberra) New Zealand Standard Time UTC +12 hours New Zealand Daylight Saving Time UTC +13 hours NZDT Page 220 7710 SR OS Basic System Configuration Guide...

  • Page 221: Summer Time Conditions

    The following example displays the configured parameters. A:ALA-48>config>system>time>dst-zone# info ---------------------------------------------- start second sunday april 02:00 end first sunday october 02:00 offset 0 ---------------------------------------------- A:ALA-48>config>system>time>dst-zone# offset 0 7710 SR OS Basic System Configuration Guide Page 221...

  • Page 222: Ntp

    CLI Syntax: config>system>time>ntp authentication-check Example config>system>time>ntp# config>system>time>ntp# authentication-check config>system>time>ntp# no shutdown Page 222 7710 SR OS Basic System Configuration Guide...
  • Page 223 The following example in the context shows NTP enabled with the system>time broadcast command configured. A:sim1>config>system>time# info detail ---------------------------------------------- no shutdown authentication-check ntp-server broadcast interface int11 version 4 ttl 127 7710 SR OS Basic System Configuration Guide Page 223...

  • Page 224: Broadcastclient

    A:ALA-12>config>system>time# info ---------------------------------------------- broadcastclient interface int11 no shutdown exit dst-zone PT start second sunday april 02:00 end first sunday october 02:00 offset 0 exit zone UTC ---------------------------------------------- A:ALA-12>config>system>time# Page 224 7710 SR OS Basic System Configuration Guide...
  • Page 225 [authenticate] Example config>system>time>ntp# config>system>time>ntp# multicastclient authenticate config>system>time>ntp# no shutdown The following example shows NTP enabled with the command configured. multicastclient A:ALA-12>config>system>time# info ---------------------------------------------- server 192.168.15.221 multicastclient no shutdown ---------------------------------------------- A:ALA-12>config>system>time## 7710 SR OS Basic System Configuration Guide Page 225...
  • Page 226 192.168.1.1 key-id 1 config>system>time>ntp# no shutdown The following example shows NTP enabled with the command configured. peer A:sim1>config>system>time>ntp# info ---------------------------------------------- no shutdown peer 192.168.1.1 key-id 1 ---------------------------------------------- A:sim1>config>system>time>ntp# Page 226 7710 SR OS Basic System Configuration Guide...
  • Page 227 192.168.1.1 key-id 1 config>system>time>ntp# no shutdown The following example shows NTP enabled with the command configured. server A:sim1>config>system>time>ntp# info ---------------------------------------------- no shutdown server 192.168.1.1 key 1 ---------------------------------------------- A:sim1>config>system>time>ntp# 7710 SR OS Basic System Configuration Guide Page 227...

  • Page 228: Sntp

    The following example shows SNTP enabled with the parameter enabled. broadcast-client A:ALA-12>config>system>time# info ---------------------------------------------- sntp broadcast-client no shutdown exit dst-zone PT start second sunday april 02:00 end first sunday october 02:00 offset 0 exit zone GMT ---------------------------------------------- A:ALA-12>config>system>time# Page 228 7710 SR OS Basic System Configuration Guide...
  • Page 229 The following example shows SNTP enabled with the parameter configured. server-address A:ALA-12>config>system>time# info ---------------------------------------------- sntp server-address 10.10.0.94 version 1 preferred interval 100 no shutdown exit dst-zone PT start-date 2006/04/04 12:00 end-date 2006/10/25 12:00 zone GMT ---------------------------------------------- A:ALA-12>config>system>time# 7710 SR OS Basic System Configuration Guide Page 229...

  • Page 230: Cron

    The following example shows a script named “test” receiving an action to store its results in a file called “test-results”: A:sim1>config>cron# info ---------------------------------------------- script "test" location "ftp://172.22.184.249/./sim1/test.cfg" Page 230 7710 SR OS Basic System Configuration Guide...
  • Page 231 The following example schedules a script named “test2” to run every 15 minutes on the 17th of each month and every Friday until noon on July 17, 2007: *A:SR-3>config>cron# info ---------------------------------------------- schedule "test2" shutdown day-of-month 17 minute 0 15 30 45 weekday friday 7710 SR OS Basic System Configuration Guide Page 231...
  • Page 232 [owner script-owner] description description-string location file-url shutdown Example config>cron# script test config>cron>script# The following example names a script “test”: A:sim1>config>cron# info ---------------------------------------------- script "test" location "ftp://172.22.184.249/./sim1/test.cfg" no shutdown exit ---------------------------------------------- A:sim1>config>cron# Page 232 7710 SR OS Basic System Configuration Guide...

  • Page 233: Time Range

    System Management Time Range 7710 SR ACLs and QoS policy configurations may be enhanced to support time based matching. CRON configuration includes time matching with the 'schedule' sub-command. Schedules are based on events; time-range defines an end-time and will be used as a match criteria.
  • Page 234 The following example shows a daily time range beginning at 11:00 and ending at 12:00. A:sim1>config>cron>time-range# show cron time-range detail =============================================================================== Cron time-range details =============================================================================== Name Triggers Status : Inactive Periodic : daily Start 11:00 End 12:00 =============================================================================== A:sim1>config>cron>time-range# Page 234 7710 SR OS Basic System Configuration Guide...
  • Page 235 Saturday or Sunday accordingly. In addition, see the Schedule parameter to schedule oneshot or periodic events in the context. config>cron> A:sim1>config>cron>time-range# show cron time-range detail =============================================================================== Cron time-range details =============================================================================== Name Triggers 7710 SR OS Basic System Configuration Guide Page 235...
  • Page 236 The following command shows a weekly time range beginning on Friday at 1:01am ending Friday at 1:02am. A:sim1>config>cron>time-range$ info ---------------------------------------------- weekly start fri,01:01 end fri,01:02 ---------------------------------------------- A:sim1>config>cron>time-range$ Page 236 7710 SR OS Basic System Configuration Guide...

  • Page 237: Time Of Day

    If the multi-service-site has an egress aggregate rate limit configured, any egress scheduler policy assignment cannot be applied. While a TOD Suite is assigned to a multi-service-site, it is not possible to configure a scheduler to override it. 7710 SR OS Basic System Configuration Guide Page 237...

  • Page 238: Ancp (Access Node Control Protocol)

    SAPs may not have a TOD suite while belonging to an egress multicast group (EMG). Since all SAPs that belong to the same EMG must have the same egress filter, it is imperative to ensure that the TOD Suite does not modify the egress filter assignment. Page 238 7710 SR OS Basic System Configuration Guide...
  • Page 239 Example config>cron>tod-suite$ egress qos 101 config>cron>tod-suite$ The following command shows an association with egress QoS-SAP policy 101. A:sim1>config>qos# sap-egress 101 create A:sim1>config>cron>tod-suite# egress qos 101 A:sim1>config>cron>tod-suite# info detail ---------------------------------------------- no description 7710 SR OS Basic System Configuration Guide Page 239...
  • Page 240 The following command shows an association with an egress scheduler-policy called test1. A:sim1>config# qos scheduler-policy test1 create A:sim1>config>qos>scheduler-policy# A:sim1# configure cron tod-suite test1 create A:sim1>config>cron>tod-suite# egress scheduler-policy test1 A:sim1>config>cron>tod-suite# info detail ---------------------------------------------- no description egress scheduler-policy test1 exit ---------------------------------------------- A:sim1>config>cron>tod-suite$ Page 240 7710 SR OS Basic System Configuration Guide...
  • Page 241 The following command shows an ingress IP filter association with filter ID 100. sim1>config>filter# ip-filter 100 create A:sim1>config>filter>ip-filter$ entry 10 create A:sim1>config>filter>ip-filter>entry$ A:sim1>config>cron>tod-suite# ingress filter ip 100 A:sim1>config>cron>tod-suite# info detail ---------------------------------------------- no description ingress filter ip 100 exit ---------------------------------------------- A:sim1>config>cron>tod-suite# 7710 SR OS Basic System Configuration Guide Page 241...
  • Page 242 The following command shows an association with an ingress scheduler-policy named test1. A:sim1>config# qos scheduler-policy test1 create A:sim1>config>qos>scheduler-policy# A:sim1# configure cron tod-suite test1 create A:sim1>config>cron>tod-suite#ingress scheduler-policy test1 A:sim1>config>cron>tod-suite# info detail ---------------------------------------------- no description ingress scheduler-policy test1 exit ---------------------------------------------- A:sim1>config>cron>tod-suite# Page 242 7710 SR OS Basic System Configuration Guide...

  • Page 243: Configuring Synchronization And Redundancy

    CLI script file executed switchover-exec following a redundancy switchover from the previously active CFM card. CLI Syntax: admin>redundancy synchronize {boot-env|config} CLI Syntax: config>system switchover-exec file-url 7710 SR OS Basic System Configuration Guide Page 243...

  • Page 244: Configuring Manual Synchronization

    If the active and standby are not synchronized for some reason, users can manually synchronize the standby CFM by rebooting the standby by issuing the command admin reboot standby on the active or the standby CFM. Page 244 7710 SR OS Basic System Configuration Guide...

  • Page 245: Configuring Synchronization Options

    A:ALA-12>config>system# show system synchronization =================================================== Synchronization Information =================================================== Synchronize Mode : Configuration Synchronize Status : No synchronization Last Config Sync Time : 2006/06/27 09:17:15 Last Boot Env Sync Time : 2006/06/24 07:16:37 =================================================== A:ALA-12>config>system# 7710 SR OS Basic System Configuration Guide Page 245...

  • Page 246: Configuring Multi-Chassis Redundancy

    10.10.10.2 create config>redundancy>multi-chassis>peer# description "Mc-Lag peer 10.10.10.2" config>redundancy>multi-chassis>peer# mc-lag config>redundancy>mc>peer>mc-lag# lag 1 lacp-key 32666 system-id 00:00:00:33:33:33 system-priority 32888 config>redundancy>mc>peer>mc-lag# no shutdown config>redundancy>mc>peer>mc-lag# exit config>redundancy>multi-chassis>peer# no shutdown config>redundancy>multi-chassis>peer# exit config>redundancy>multi-chassis# exit config>redundancy# Page 246 7710 SR OS Basic System Configuration Guide...
  • Page 247 System Management The following displays the configuration: A:ALA-48>config>redundancy# info --------------------------------------------- multi-chassis peer 10.10.10.2 create description "Mc-Lag peer 10.10.10.2" mc-lag no shutdown exit no shutdown exit exit --------------------------------------------- A:ALA-48>config>redundancy# 7710 SR OS Basic System Configuration Guide Page 247...

  • Page 248: Configuring Power Supply Parameters

    Configuring an existing power supply to none prior to powering off the unit will prevent an alarm from being generated. There are three power supply positions on the 7710 SR-c4 and two power supply positions on the 7710 SR-c12; power supply 3 is valid on the 7710 SR-c4 only.
  • Page 249 System Management exit exit time sntp shutdown exit zone UTC exit thresholds rmon exit exit #------------------------------------------ echo "System Security Configuration" #------------------------------------------ security telnet-server preserve-key exit no per-peer-queuing exit ---------------------------------------------- A:ALA-12>config>system# 7710 SR OS Basic System Configuration Guide Page 249...

  • Page 250: Atm Parameters

    30 config>system>atm>oam# retry-down 5 config>system>atm>oam# retry-up 3 config>system>atm>oam# exit The following example shows the ATM configuration. ALA-12>config>system>atm# info ---------------------------------------------- atm-location-id 03:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00 retry-up 3 retry-down 5 loopback-period 30 exit ---------------------------------------------- ALA-12>config>system>atm# Page 250 7710 SR OS Basic System Configuration Guide...

  • Page 251: Configuring Backup Copies

    A:ALA-12>config>system>time# info #------------------------------------------ echo "System Configuration" #------------------------------------------ name "ALA-12" contact "Fred Information Technology" location "Bldg.1-floor 2-Room 201" clli-code "abcdefg1234" coordinates "N 45 58 23, W 34 56 12" config-backup 7 ---------------------------------------------- A:ALA-12>config>system>time# 7710 SR OS Basic System Configuration Guide Page 251...

  • Page 252: System Administration Parameters

    [address ip-address |username user-name | {console|telnet|ftp}] Example admin# disconnect The following example displays the disconnect command results. ALA-1>admin# disconnect ALA-1>admin# Logged out by the administrator Connection to host lost. C:\> Page 252 7710 SR OS Basic System Configuration Guide...

  • Page 253: Set-Time

    # Generated TUE AUG 01 11:36:19 2006 UTC exit all configure #------------------------------------------ echo "System Configuration" #------------------------------------------ system name "ALA-12" contact "Fred Information Technology" location "Bldg.1-floor 2-Room 201" clli-code "abcdefg1234" coordinates "N 45 58 23, W 34 56 12" 7710 SR OS Basic System Configuration Guide Page 253...
  • Page 254 1 no description #------------------------------------------ echo "Mirror Configuration" #------------------------------------------ mirror mirror-dest 218 create fc be no remote-source sap 1/1/10:0 create egress qos 1 exit exit no slice-size no shutdown exit A:ALA-12>admin# Page 254 7710 SR OS Basic System Configuration Guide...

  • Page 255: Tech-Support

    System Management Tech-support command creates a system core dump. NOTE: This command should only tech-support be used with explicit authorization and direction from Alcatel-Lucent’s Technical Assistance Center (TAC). Save command saves the running configuration to a configuration file. When the...

  • Page 256: Reboot

    Are you sure you want to reboot (y/n)? y Rebooting... Using preloaded VxWorks boot loader. If synchronization fails, the standby does not reboot automatically. The show redundancy command displays synchronization output information. synchronization Page 256 7710 SR OS Basic System Configuration Guide...

  • Page 257: Post-Boot Configuration Extension Files

    "N 45 58 23, W 34 56 12" config-backup 7 boot-good-exec "ftp://test:test@192.168.xx.xxx/./ok.cfg" boot-bad-exec "ftp://test:test@192.168.xx.xxx/./fail.cfg" power-supply 1 dc power-supply 2 dc lacp-system-priority 1 sync-if-timing begin ref-order ref1 ref2 bits ---------------------------------------------- A:ALA-12>config>system# 7710 SR OS Basic System Configuration Guide Page 257...

  • Page 258: Show Command Output And Console Messages

    Time Last Saved : N/A Changes Since Last Save: Yes Time Last Modified : 2007/04/19 10:03:09 Max Cfg/BOF Backup Rev : 5 Cfg-OK Script : N/A Cfg-OK Script Status : not used Page 258 7710 SR OS Basic System Configuration Guide...
  • Page 259 MAJOR: CLI #1009 An error occurred while processing a CLI command - File ftp://test:test@192.168.xx.xxx/./fail.cfg, Line 5: Command "abc log" failed. TiMOS-B-5.0.R3 both/hops ALCATEL SR 7710 Copyright (c) 2000-2007 Alcatel-Lucent. All rights reserved. All use subject to applicable license agreements. Built on Thu Apr 19 7 19:19:11 PST 2007 by builder in /rel5.0/b1/R3/panos/main...

  • Page 260: System Timing

    System Timing System Timing In the event that network timing is required for the synchronous interfaces in the 7710 SR-Series routers, a timing subsystem is utilized to provide a Stratum 3 quality clock to all synchronous interfaces within the system. The clock source is specified in the config>port>sonet-...

  • Page 261: Configuring Timing References

    Use the following CLI syntax to configure timing reference parameters. The following displays a timing reference configuration example: ALA-12>config>system>sync-if-timing# info ---------------------------------------------- ref-order ref2 ref1 ref1 no shutdown exit ref2 no shutdown exit ---------------------------------------------- ALA-12>config>system>sync-if-timing# 7710 SR OS Basic System Configuration Guide Page 261...

  • Page 262: Using The Revert Command

    Modifications are not persistent across system boots unless this command is entered. • — This command discards changes that have been made to the timing references abort during a session. CLI Syntax: config>system>sync-if-timing abort commit Page 262 7710 SR OS Basic System Configuration Guide...

  • Page 263: Forcing A Specific Reference

    Debug configurations are not saved between reboots. CLI Syntax: debug>sync-if-timing force-reference {ref1 | ref2 | bits} Example debug>sync-if-timing# force-reference 7710 SR OS Basic System Configuration Guide Page 263...

  • Page 264: Configuring System Monitoring Thresholds

    Creating an event entry in the RMON-MIB log table does not create a corresponding entry in the 7710 SR OS event logs. However, when the event is set to trap the generation of a rising alarm or falling alarm notification creates an entry in the 7710 SR OS event logs and that is distributed to whatever 7710 SR OS log destinations are configured: console, session, memory, file, syslog, or SNMP trap destination.
  • Page 265 The following example displays the command output: A:ALA-49>config>system>thresholds# info ---------------------------------------------- rmon event 5 description "alarm testing" owner "Timos CLI" exit cflash-cap-warn cf1-B: rising-threshold 2000000 falling-threshold 1999900 interval 240 trap memory-use-alarm rising-threshold 50000000 falling-threshold 45999999 interval ---------------------------------------------- A:ALA-49>config>system>thresholds# 7710 SR OS Basic System Configuration Guide Page 265...
  • Page 266 Configuring System Monitoring Thresholds Page 266 7710 SR OS Basic System Configuration Guide...

  • Page 267: System Command Reference

    — — address-pref {ipv4-only | ipv6-first} — no address-pref — lacp-system-priority lacp-system-priority — no lacp-system-priority — [no] l4-load-balancing — location location — no location — name system-name — no name 7710 SR OS Basic System Configuration Guide Page 267...
  • Page 268 — system — persistence — dhcp-server — description description-string — no description — location cflash-id — no location — subscriber-mgmt — description description-string — no description — location cflash-id — no location Page 268 7710 SR OS Basic System Configuration Guide...
  • Page 269 — [no] dst-zone [std-zone-name | non-std-zone-name] — {end-week} {end-day} {end-month} [hours-minutes] — offset offset — start {start-week} {start-day} {start-month} [hours-minutes] — zone std-zone-name | non-std-zone-name [hh [:mm]] — no zone 7710 SR OS Basic System Configuration Guide Page 269...
  • Page 270 [time-range time-range-name] [priority priority] — [no] filter ipv6 ipv6-filter-id [time-range time-range-name] [priority priority] — [filter mac mac-filter-id [time-range time-range-name] [priority priority] — no policy-id [time-range time-range-name] [priority priority] — scheduler-policy scheduler-policy-name [time-range time-range-name] [pri Page 270 7710 SR OS Basic System Configuration Guide...
  • Page 271 — [no] enable-tech — radius-discovery — force-discover [svc-id service-id] — reboot [active | standby] | [upgrade] [now] — redundancy — save [file-url] [detail] [index] — synchronize [boot-env | config] — tech-support [file-url] 7710 SR OS Basic System Configuration Guide Page 271...
  • Page 272 — no interval — service-id service-id — no service-id — [no] shutdown — src-ip ip-address — no src-ip — src-mac ieee-address — no src-mac — vlan [0..4094] — no vlan Page 272 7710 SR OS Basic System Configuration Guide...
  • Page 273 [port-id | lag-id] [sync-tag sync-tag] — no port [port-id | lag-id] — range encap-range [sync-tag sync-tag] — no range encap-range — [no] shutdown — [no] srrp — [no] sub-mgmt — synchronize {boot-env | config} 7710 SR OS Basic System Configuration Guide Page 273...
  • Page 274 — time — system — connections [address ip-address [interface interface-name]] [port port-number] [detail] — [sample-period seconds] — information — memory-pools — — sntp — sync-if-timing — thresholds — time — uptime Page 274 7710 SR OS Basic System Configuration Guide...
  • Page 275 — trace Debug Commands debug — sync-if-timing — force-reference {ref1 | ref2 | bits} — no force-reference — [no] system — [host-ip-address/mask] — no — [router router-name] [interface ip-int-name] — persistence 7710 SR OS Basic System Configuration Guide Page 275...
  • Page 276 — dump — redundancy — multi-chassis — mc-ring — srrp-sync-data [instance instance-id] [peer ip-address] — sync-database [peer ip-address] [port port-id | lag-id] [sync-tag sync-tag] [application {dhcps|igmp|igmp-snooping|mc-ring|srrp|sub-mgmt|mld- snooping}] [detail] [type {alarm-deleted|local-deleted}] Page 276 7710 SR OS Basic System Configuration Guide...
  • Page 277 The description command associates a text string with a configuration context to help identify the content in the configuration file. The no form of this command removes the string from the configuration. Default No description associated with the configuration context. 7710 SR OS Basic System Configuration Guide Page 277...
  • Page 278 — The description character string. Allowed values are any string up to 80 characters long composed of printable, 7-bit ASCII characters. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. Page 278 7710 SR OS Basic System Configuration Guide...

  • Page 279: System Information Commands

    Context config>system Description This command indicates the location ID for ATM OAM. Refer to the 7710 SR OS Services Guide for information about ATM QoS policies and ATM-related service parameters. Default no atm-location-id Parameters location-id — Specify the 16 octets that identifies the system loopback location IDas required by the ATM OAM Loopback capability.
  • Page 280 This command specifies the number of consecutive OAM loopback attempts that must succeed after the periodic attempt before the endpoint will transition the state to up. Parameters retries — Specify the number of successful loopback replies before an ATM VC goes up. Page 280 7710 SR OS Basic System Configuration Guide...
  • Page 281 — Specifies the location and name of the file executed following successful completion of the boot-up configuration file execution. When this parameter is not specified, no CLI script file is executed. Values file url: local-url | remote-url: 255 chars max local-url: [cflash-id/][file-path] 7710 SR OS Basic System Configuration Guide Page 281...
  • Page 282 Description This command creates a Common Language Location Identifier (CLLI) code string for the 7710 SR router. A CLLI code is an 11-character standardized geographic identifier that uniquely identifies geographic locations and certain functional categories of equipment unique to the telecommunications industry.
  • Page 283 — The contact name character string. The string can be up to 80 characters long. Any printable, seven-bit ASCII characters can be used within the string. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. 7710 SR OS Basic System Configuration Guide Page 283...
  • Page 284 A-records only (address-preference is IPv4-only). If the address-preference is set to IPv6- first, the DNS server will be queried for AAAA-records (IPv6) first and if a successful replied is not received, then the DNS server is queried for A-records. Page 284 7710 SR OS Basic System Configuration Guide...
  • Page 285 This command configures the Link Aggregation Control Protocol (LACP) system priority on aggregated Ethernet interfaces. LACP allows the operator to aggregate multiple physical interfaces to form one logical interface. Default 32768 7710 SR OS Basic System Configuration Guide Page 285...
  • Page 286 Any printable, seven-bit ASCII characters can be used within the string. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. Page 286 7710 SR OS Basic System Configuration Guide...
  • Page 287 — Specifies the location and name of the CLI script file. Values file url: local-url | remote-url: 255 chars max local-url: [cflash-id/][file-path] remote-url: [{ftp://|tftp://} login:pswd@remote-locn/][file-path] cflash-id: cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: 7710 SR OS Basic System Configuration Guide Page 287...
  • Page 288 2147483647 - 1 during a single sampling interval. Care should also be taken not to set the interval value too low to avoid creating unnecessary processing overhead. Default None Values 1 — 2147483647 Page 288 7710 SR OS Basic System Configuration Guide...
  • Page 289 If the falling-event has a value of zero (0), no associated event exists. If a ’falling event’ is configured, the CLI requires a ’falling-threshold to also be configured. Default Values -2147483648 — 2147483647 7710 SR OS Basic System Configuration Guide Page 289...
  • Page 290 A single threshold crossing event will also be generated if the first sample taken is greater than or equal to this threshold and the associated ’startup-alarm’ is equal to ’rising’ or ’either’. Page 290 7710 SR OS Basic System Configuration Guide...
  • Page 291 If the first sample is less than or equal to the falling threshold value and startup-alarm is equal to falling or either, a single falling threshold crossing event is generated. Default either Values rising, falling, either Configuration example: 7710 SR OS Basic System Configuration Guide Page 291...
  • Page 292 — Specifies the polling period over which the data is sampled and compared with the rising and falling thresholds. Values 1 — 2147483647 rmon-event-type — Specifies the type of notification action to be taken when this event occurs. Page 292 7710 SR OS Basic System Configuration Guide...
  • Page 293 Falling Alarm notification creates an entry in the TiMOS event logs and that is distributed to whatever TiMOS log destinations are configured: CONSOLE, session, memory, file, syslog, or SNMP trap destination. 7710 SR OS Basic System Configuration Guide Page 293...
  • Page 294 CLI users and can be a maximum of 80 characters long. Default TiMOS CLI Configuration example: Default event 5 rmon-event-type both description "alarm testing" owner "TiMOS CLI" Page 294 7710 SR OS Basic System Configuration Guide...
  • Page 295 CLI command. trap — In the case of trap, a TiMOS logger event is generated. The TiMOS logger utility then distributes the notification of this event to its configured log 7710 SR OS Basic System Configuration Guide Page 295...
  • Page 296 After a rising threshold crossing event is generated, another such event will not be generated until the sampled value falls below this threshold and reaches less than or equal the falling- threshold value. Default Values -2147483648 — 2147483647 Page 296 7710 SR OS Basic System Configuration Guide...
  • Page 297 Default either Values rising, falling, either Configuration example: memory-use-warn rising-threshold 500000 falling-threshold 400000 interval 800 rmon- event-type log start-alarm falling 7710 SR OS Basic System Configuration Guide Page 297...
  • Page 298 The configuration of an event controls the generation and notification of threshold crossing events configured with the alarm command. thresholds Syntax thresholds Context config>system Description This command enables the context to configure monitoring thresholds. Page 298 7710 SR OS Basic System Configuration Guide...
  • Page 299 — Specifies the identifier for a power supply tray in the chassis. Values 1 | 2 | 3 — Specifies the power supply slot ID. Option 3 is valid on the 7710 SR-c4 only. type — Specifies the type of power supply for a platform. Based on the value assigned to this object, various power supply monitoring signals are interpreted.

  • Page 300: Date And Time Commands

    24 hour format (00=midnight, 12=noon) mm is the two-digit minute time Syntax time Context config>system Description This command enables the context to configure the system time zone and time synchronization parameters. Page 300 7710 SR OS Basic System Configuration Guide...
  • Page 301 NTP protocol. For authentication to work, the authentication key-id, type and key value must match. The no form of the command removes the authentication key. 7710 SR OS Basic System Configuration Guide Page 301...
  • Page 302 The no form of this command removes the address from the configuration. Parameters router — Specifies the router name used to transmit NTP packets. Base is the default. Select management to use the management port (Ethernet port on the Page 302 7710 SR OS Basic System Configuration Guide...
  • Page 303 — Specifies the local interface on which to receive NTP broadcast packets. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. Values 32 character maximum 7710 SR OS Basic System Configuration Guide Page 303...
  • Page 304 — This optional parameter makes authentication a requirement. If authentication is required, the authentication key-id received must have been configured in the “authentication- key” command, and that key-id’s type and key value must also match. Page 304 7710 SR OS Basic System Configuration Guide...
  • Page 305 — Specify the NTP version number that is generated by this node. This parameter does not need to be configured when in client mode in which case all three nodes are accepted. Default 7710 SR OS Basic System Configuration Guide Page 305...
  • Page 306 — When configuring more than one peer, one remote system can be configured as the preferred peer. When a second peer is configured as preferred, then the new entry overrides the old entry. Page 306 7710 SR OS Basic System Configuration Guide...

  • Page 307: Sntp Commands

    NTP broadcasts are transmitted. SNTP must be shutdown prior to changing either to or from broadcast mode. The no form of the command disables broadcast client mode. Default no broadcast-client 7710 SR OS Basic System Configuration Guide Page 307...
  • Page 308 Only one server in the table can be a preferred server. Default normal interval seconds — Specifies the frequency at which this server is queried. Values 64 — 1024 Default Page 308 7710 SR OS Basic System Configuration Guide...
  • Page 309 — Specifies the maximum amount of time to keep the results from a script run. Values 1 — 21474836 Default 3600 (1 hour) forever — Specifies to keep the results from a script run forever. 7710 SR OS Basic System Configuration Guide Page 309...
  • Page 310 — Specifies the location where the system writes the output of an event script’s execution. Values local-url|remote-url: 255 chars max local-url: [cflash-id/][file-path] remote-url: [{ftp://|tftp://}login:pswd@remote-locn/][file-path] remote-locn: [ hostname | ipv4-address |"["ipv6-address"]" ] ipv4-address: a.b.c.d ipv6-address: x:x:x:x:x:x:x:x[-interface] Page 310 7710 SR OS Basic System Configuration Guide...
  • Page 311 (seconds). The no form of the command removes the context from the configuration. Default none Parameters schedule-name — Name of the schedule. owner owner-name — Owner name of the schedule. 7710 SR OS Basic System Configuration Guide Page 311...
  • Page 312 Integer values must map to a valid day for the month in question. For example, February 30 is not a valid date. Values 1 — 31, -31 — -1 (maximum 62 day-numbers) all — Specifies all days of the month. Page 312 7710 SR OS Basic System Configuration Guide...
  • Page 313 — Specifies all hours. interval Syntax [no] interval seconds Context config>cron>sched Description This command specifies the interval between runs of an event. Parameters seconds — The interval, in seconds, between runs of an event. 7710 SR OS Basic System Configuration Guide Page 313...
  • Page 314 1 —12 (maximum 12 month-numbers) all — Specifies all months. month-name — Specifies a month by name Values january, february, march, april, may, june, july, august, september, october, novem- ber, december (maximum 12 month names) Page 314 7710 SR OS Basic System Configuration Guide...
  • Page 315 1 —7 (maximum 7 week-day-numbers) day-name — Specifies a day by name Values sunday, monday, tuesday, wednesday, thursday, friday, saturday (maximum 7 week- day names) all — Specifies all days of the week. 7710 SR OS Basic System Configuration Guide Page 315...
  • Page 316 - x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x - [0..FFFF]H d - [0..255]D interface - 32 chars max, for link local addresses cflash-id: cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: Page 316 7710 SR OS Basic System Configuration Guide...

  • Page 317: Time Range Commands

    — Specifies end parameters for the absolute time-range. Values absolute-time: year/month/day,hh:mm year: 2005 — 2099 month: 1 — 12 day: 1 — 31 0 — 23 mm: [ 0 — 59 7710 SR OS Basic System Configuration Guide Page 317...
  • Page 318 — Specifies the starting time for the time range. Values Syntax: hh:mm 0 — 23 0 — 59 end-time-of-day — Specifies the ending time for the time range. Values Syntax: hh:mm 0 — 24 0 — 59 Page 318 7710 SR OS Basic System Configuration Guide...
  • Page 319 0 — 59 end-time-in-week — Specifies the end day and time of the week. Values Syntax: day,hh:mm Values sun, mon, tue, wed, thu, fri, sat sunday, monday, tuesday, wednesday, thursday, friday, saturday 7710 SR OS Basic System Configuration Guide Page 319...
  • Page 320 The resolution must be at least one minute apart, for example, start at 11:00 and end at 11:01. A start time and end time of 11:00 is invalid. Values 00 — 23, 00 — 59 Default no time-range Page 320 7710 SR OS Basic System Configuration Guide...
  • Page 321 Only a single reference to a policy may be included without a time-range. Parameters ip-filter ip-filter-id — Specifies an IP filter for this tod-suite. Values 1 — 65535 7710 SR OS Basic System Configuration Guide Page 321...
  • Page 322 Values Up to 32 characters priority priority — Priority of the time-range. Only one time-range assignment of the same type and priority is allowed. Values 1 — 10 Page 322 7710 SR OS Basic System Configuration Guide...
  • Page 323 Values Up to 32 characters priority priority — Specifies the time-range priority. Only one time-range assignment of the same type and priority is allowed. Values 1 — 10 7710 SR OS Basic System Configuration Guide Page 323...
  • Page 324 {end-week} {end-day} {end-month} [hours-minutes] Context config>system>time>dst-zone Description This command configures start of summer time settings. Parameters end-week — Specifies the starting week of the month when the summer time will end. Page 324 7710 SR OS Basic System Configuration Guide...
  • Page 325 Default Values 0 — 60 start Syntax start {start-week} {start-day} {start-month} [hours-minutes] Context config>system>time>dst-zone Description This command configures start of summer time settings. 7710 SR OS Basic System Configuration Guide Page 325...
  • Page 326 Context config>system>time Description This command sets the time zone and/or time zone offset for the device. 7710 SR OS supports system-defined and user-defined time zones. The system-defined time zones are listed in Table 16, System-defined Time Zones, on page 178.
  • Page 327 In these instances, the minutes-offset must be specified. For example, the time zone in Pirlanngimpi, Australia UTC + 9.5 hours. Default hours: 0 minutes: 0 Values hours: -11 — 11 minutes: 0 — 59 7710 SR OS Basic System Configuration Guide Page 327...
  • Page 328 Default No default commit Syntax commit Context config>system>sync-if-timing Description This command is required in order to save the changes made to the system synchronous interface timing configuration. Default No default Page 328 7710 SR OS Basic System Configuration Guide...
  • Page 329 — Configure the source port for the first timing reference. Values port-id slot/mda/port ref2 Syntax ref2 Context config>system>sync-if-timing Description This command enables the context to configure parameters for the second timing reference. 7710 SR OS Basic System Configuration Guide Page 329...
  • Page 330 The only type of T-1 or E-1 that can be used as a reference is one that has adaptive timing. The timing reference for ref1 and ref2 must be specified for ports in the following chassis slots: Page 330 7710 SR OS Basic System Configuration Guide...
  • Page 331 System Management 7710 Model Ref1/Slots SR-c4 1 — 2 SR-c12 1 — 2 port-id — Identify the physical port in the slot/mda/port format. 7710 SR OS Basic System Configuration Guide Page 331...
  • Page 332 This is an optional parameter and can be 80 characters long. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. Page 332 7710 SR OS Basic System Configuration Guide...
  • Page 333 - x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x - [0..FFFF]H d - [0..255]D interface - 32 chars max, for link local addresses cflash-id: cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: 7710 SR OS Basic System Configuration Guide Page 333...
  • Page 334 [detail | index] Context admin Description This command displays the system’s running configuration. By default, only non-default settings are displayed. Specifying the detail option displays all default and non-default configuration parameters. Page 334 7710 SR OS Basic System Configuration Guide...
  • Page 335 When the upgrade keyword is specified, a chassis flag is set for the BOOT Loader (BOOT.LDR) and on the subsequent boot of the 7710 SR OS on the chassis, any firmware images on CFMs requiring upgrading will be upgraded automatically.
  • Page 336 On system reboot, the firmware upgrades can take from approximately 3 minutes for a minimally loaded 7710 SR to 8 minutes for a fully loaded 7710 SR chassis after which the configuration file will be loaded. The progress of the firmware upgrades can be monitored at the console.
  • Page 337 System Management enable-tech Syntax [no] enable-tech Context admin Description This command enables the shell and kernel commands. NOTE: This command should only be used with authorized direction from the Alcatel-Lucent Technical Assistance Center (TAC). radius-discovery Syntax radius-discovery Context admin Description This command performs RADIUS discovery operations.
  • Page 338 - x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x - [0..FFFF]H d - [0..255]D interface - 32 chars max, for link local addresses cflash-id: cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: Page 338 7710 SR OS Basic System Configuration Guide...
  • Page 339 Default no persistence dhcp-server Syntax dhcp-server Context config>system>persistence Description This command configures DHCP server persistence parameters. subscriber-mgmt Syntax subscriber-mgmt Context config>system>persistence Description This command configures subscriber management persistence parameters. 7710 SR OS Basic System Configuration Guide Page 339...
  • Page 340 The no form of this command returns the system to the default. If there is a change in file location while persistence is running, a new file will be written on the new flash, and then the old file will be removed. Default no location Page 340 7710 SR OS Basic System Configuration Guide...
  • Page 341 Only files stored on the router are synchronized. If a configuration file or image is stored in a location other than on a local compact flash, the file is not synchronized (for example, storing a configuration file on an FTP server). Default enabled 7710 SR OS Basic System Configuration Guide Page 341...
  • Page 342 — Synchronizes all files required for the boot process (loader, BOF, images, and configuration files. config — Synchronize only the primary, secondary, and tertiary configuration files. multi-chassis Syntax multi-chassis Context config>redundancy Description This command enables the context to configure multi-chassis parameters. Page 342 7710 SR OS Basic System Configuration Guide...
  • Page 343 This command specifies whether IGMP protocol information should be synchronized with the multi- chassis peer. Default no igmp igmp-snooping Syntax [no] igmp-snooping Context config>redundancy>multi-chassis>peer>sync Description This command specifies whether IGMP snooping information should be synchronized with the multi- chassis peer. Default no igmp-snooping 7710 SR OS Basic System Configuration Guide Page 343...
  • Page 344 This command configures a range of encapsulation values. Parameters encap-range — Specifies a range of encapsulation values on a port to be synchronized with a multi- chassis peer. Values Dot1Q start-vlan-end-vlan QinQ Q1.start-vlan-Q1.end-vlan Page 344 7710 SR OS Basic System Configuration Guide...
  • Page 345 Default no srrp sub-mgmt Syntax [no] sub-mgmt Context config>redundancy>multi-chassis>peer>sync Description This command specifies whether subscriber management information should be synchronized with the multi-chassis peer. Default no sub-mgmt 7710 SR OS Basic System Configuration Guide Page 345...
  • Page 346 If the hash or hash2 parameter is not used, the key is assumed to be in a non-encrypted, clear text form. For security, all keys are stored in encrypted form in the configuration file with the hash or hash2 parameter specified. Page 346 7710 SR OS Basic System Configuration Guide...
  • Page 347 MC-LAG. These keep-alive messages are used to determine remote-node failure and the interval is set in deci-seconds. The no form of this command sets the interval to default value Default 1s (10 hundreds of milliseconds means interval value of 10) 7710 SR OS Basic System Configuration Guide Page 347...
  • Page 348 — Specifies the system priority to be used in the context of the MC- LAG. The partner system will consider all ports using the same lacp-key, system-id, and system- priority as part of the same LAG. Values 1 — 65535 Page 348 7710 SR OS Basic System Configuration Guide...
  • Page 349 This command specifies the destination IP address used in the inband control connection. If the address is not configured, the ring cannot become operational. Parameters ip-address — Specifies the destination IP address. 7710 SR OS Basic System Configuration Guide Page 349...
  • Page 350 If not specified, the default is an empty set. range Syntax [no] range vlan-range Context config>redundancy>mc>peer>mcr>ring>path-b config>redundancy>mc>peer>mcr>ring>path-excl Description This command configures a MCR b-path VLAN range. Parameters vla-range — Specifies the VLAN range. Values [1..4094] - [1..4094] Page 350 7710 SR OS Basic System Configuration Guide...
  • Page 351 Context config>redundancy>mc>peer>mcr>ring>ring-node>connectivity-verify Description This command configures the node cc destination IP address. Default no dst-ip Parameters ip-address — Specifies the destination IP address used in the inband control connection. 7710 SR OS Basic System Configuration Guide Page 351...
  • Page 352 This command specifies the source IP address used in the ring-node connectivity verification of this ring node. Default no src-ip Parameters ip-address — Specifies the address of the multi-chassis peer. Page 352 7710 SR OS Basic System Configuration Guide...
  • Page 353 It is only meaningful if the value of service ID is not zero. A zero value means that no VLAN tag is configured. Default no vlan Parameters [0..4094] — Specifies the set of VLAN IDs associated with the SAPs that are to be controlled by the slave peer. 7710 SR OS Basic System Configuration Guide Page 353...
  • Page 354 System Command Reference Page 354 7710 SR OS Basic System Configuration Guide...
  • Page 355 Displays the remote address of the socket. The socket port is separated by a period. State Listen — The protocol state is in the listen mode. Established — The protocol state is established. Sample Output A:ALA-12# show system connections =============================================================================== 7710 SR OS Basic System Configuration Guide Page 355...
  • Page 356 (including accepts) : 27 connections closed : 26 (including 2 drops) embryonic connections dropped segments updated rtt : 338742 (of 338747 attempts) retransmit timeouts : 75 connections dropped by rexmit timeout Page 356 7710 SR OS Basic System Configuration Guide...

  • Page 357: Table 20: Show System Cpu Output Fields

    CPU Utilization (Test time 2001135 uSec) ========================================= Name CPU Time CPU Usage (uSec) ----------------------------------------- System 3465 0.34% 1349 0.13% RTM/Policies 0.00% OSPF ~0.00% MPLS/RSVP 2113 0.21% ~0.00% IS-IS 0.00% ~0.00% VRRP 0.00% 0.00% Services 0.01% 7710 SR OS Basic System Configuration Guide Page 357...
  • Page 358 The name of the action owner. Administrative Enabled — Administrative status is enabled status Disabled — Administrative status is disabled Script The name of the script Script owner The name of the script owner. Page 358 7710 SR OS Basic System Configuration Guide...
  • Page 359 State : terminated Run exit code : noError Result time : 2006/11/06 20:40:40 Keep history : 0d 00:55:13 Error time : never Results file : ftp://*:*@192.168.15.18/home/testlab_bgp/cron/_20061106-203523. Run exit : Success ------------------------------------------------------------------------------- 7710 SR OS Basic System Configuration Guide Page 359...
  • Page 360 Lifetime : 0d 01:00:00 State : initializing Run exit code : noError Result time : never Keep history : 0d 01:00:00 Error time : never Results file : none =============================================================================== *A:Redundancy# Page 360 7710 SR OS Basic System Configuration Guide...
  • Page 361 Calendar — Displays a schedule which ran based on a calendar. Oneshot — Displays a schedule which ran one time only. Interval Displays the interval between runs of an event. Next scheduled run Displays the time for the next scheduled run. 7710 SR OS Basic System Configuration Guide Page 361...
  • Page 362 : none Number of schedule runs : 10 Last schedule run : 2008/01/01 17:20:52 Number of schedule failures Last schedule failure : no error Last failure time : never =============================================================================== A:sim1>show>cron Page 362 7710 SR OS Basic System Configuration Guide...
  • Page 363 : TiMOS CLI Description : asd Administrative status : enabled Operational status : enabled Script source location : ftp://*****:******@192.168.15.1/home/testlab_bgp /cron/test1.cfg Last script error : none Last change : 2006/11/07 17:10:03 =============================================================================== A:sim1>show>cron# 7710 SR OS Basic System Configuration Guide Page 363...
  • Page 364 Displays the operational state of the Telnet, SSH, and FTP sessions. Oper BOF Source The location of the BOF. Image Source Primary — Indicates that the directory location for runtime image file was loaded from the primary source. Page 364 7710 SR OS Basic System Configuration Guide...
  • Page 365 Cfg-OK Script Sta- Successful/Failed — The results from the execution of the CLI script file specified in the Cfg-OK Script location. Not used — No CLI script file was executed. 7710 SR OS Basic System Configuration Guide Page 365...
  • Page 366 Last Booted Config File: ftp://*:*@138.120.193.125/tftpboot/simbed150/sim150/co nfig.cfg Last Boot Cfg Version : THU JUN 07 10:12:46 2007 UTC Last Boot Config Header: # TiMOS-B-0.0.I1522 both/i386 ALCATEL SR 7710 Copyright (c) 2000-2007 Alcatel-Lucent. # All rights Page 366 7710 SR OS Basic System Configuration Guide...
  • Page 367 ATM Location ID : 01:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00 ATM OAM Retry Up ATM OAM Retry Down ATM OAM Loopback Period: 10 =============================================================================== A:7710-3# memory-pools Syntax memory-pools Context show>system Description This command displays system memory status. 7710 SR OS Basic System Configuration Guide Page 367...

  • Page 368: Table 21: Show Memory Pool Output Fields

    No limit MFIB No limit No limit 79,943,024 79,943,024 78,895,248 MBUF 67,108,864 5,837,328 5,837,328 4,834,280 ------------------------------------------------------------------------------- Current Total Size : 343,495,200 bytes Total In Use 324,492,768 bytes Available Memory 640,178,652 bytes =============================================================================== Page 368 7710 SR OS Basic System Configuration Guide...
  • Page 369 This is the normal startup state. Invalid The peer is not maintaining an accurate clock. This peer will not be used for synchronization. 7710 SR OS Basic System Configuration Guide Page 369...
  • Page 370 No further messages will be sent to the server. DENY — Access denied by remote server. No further messages will be sent to the server. Page 370 7710 SR OS Basic System Configuration Guide...
  • Page 371 Oper Status : up Server enabled : No Server keyId : none System Ref Id : 192.168.15.221 Auth Check : Yes =============================================================================== A:pc-40>config>system>time>ntp# show system ntp all =============================================================================== NTP Status =============================================================================== 7710 SR OS Basic System Configuration Guide Page 371...
  • Page 372 NTP Configured Broadcast/Multicast Interfaces =============================================================================== vRouter Interface Address Type Auth Poll ------------------------------------------------------------------------------- Base i1/1/1 Host-ones bcast management management 224.0.1.1 mcast Base bclnt management management 224.0.1.1 mclnt =============================================================================== NTP Active Associations =============================================================================== Page 372 7710 SR OS Basic System Configuration Guide...

  • Page 373: Table 22: Show System Sntp Output Fields

    Sample Output A:ALA-1# show system sntp =============================================================================== SNTP =============================================================================== SNTP Server Version Preference Interval ------------------------------------------------------------------------------- 10.10.20.253 Preferred =============================================================================== A:ALA-1# thresholds Syntax thresholds Context show>system Description This command display system monitoring thresholds. 7710 SR OS Basic System Configuration Guide Page 373...
  • Page 374 — Both a entry in the RMON-MIB logTable and a TiMOS logger event are generated. none — No action is taken Owner Displays the owner of the event. Sample Output A:ALA-48# show system thresholds ================================================================ Threshold Alarms ================================================================ Page 374 7710 SR OS Basic System Configuration Guide...
  • Page 375 Description : TiMOS CLI - memory usage alarm rising event : value=42841056, >=4000 : alarm-index 3, even t-index 5 alarm-variable OID sgiMemoryUsed.0 Event Id Time Sent : 10/31/2006 08:48:00 ================================================================ A:ALA-48# 7710 SR OS Basic System Configuration Guide Page 375...

  • Page 376: Table 23: Show System Time Output Fields

    : PDT Offset from Non-DST : 0:60 Starts : first sunday in april 02:00 Ends : last sunday in october 02:00 ============================================================================ A:ALA-1# A:ALA-1# show system time (with no DST zone configured) Page 376 7710 SR OS Basic System Configuration Guide...

  • Page 377: Table 24: Show System Tod-Suite Output Fields

    Shows which SAPs this tod-suite is associated with. Associations Shows the SAPs or Multiservice sites where the TOD Suite could not failed-associa- tions be applied successfully. Detail Shows the details of this tod-suite. 7710 SR OS Basic System Configuration Guide Page 377...
  • Page 378 Multi Service Site: mss_1_1 ------------------------------------------------------------------------------- Number of MSS's: 1 =============================================================================== A:kerckhot_4# The following example shows output for TOD suite failed-associations. A:kerckhot_4# show cron tod-suite suite_sixteen failed-associations =============================================================================== Cron tod-suite associations failed Page 378 7710 SR OS Basic System Configuration Guide...
  • Page 379 Intend I Sched Pol : SchedPolCust1_Night E. Sched Pol : SchedPolCust1Egress Intend E Sched Pol : SchedPolCust1Egress_Night Acct. Pol : None Collect Stats : Disabled Anti Spoofing : None Nbr Static Hosts =============================================================================== A:kerckhot_4# 7710 SR OS Basic System Configuration Guide Page 379...
  • Page 380 Filter Id : 160 Applied : No Scope : Template Def. Action : Drop Entries ------------------------------------------------------------------------------- Filter Association : IP ------------------------------------------------------------------------------- Tod-suite "english_suite" - ingress, time-range "day" (priority 5) =============================================================================== A:kerckhot_4# Page 380 7710 SR OS Basic System Configuration Guide...

  • Page 381: Table 25: Show Multi-Chassis Redundancy Output Fields

    If configured, displays the authentication key used between this node and the multi-chassis peer. Source IP Address Displays the source address used to communicate with the multi-chas- sis peer. Admin State Displays the administrative state of the peer. 7710 SR OS Basic System Configuration Guide Page 381...
  • Page 382 ------------------------------------------------------------------------------- Port-id Act/Stdby Opr Primary Sub-group Forced Prio ------------------------------------------------------------------------------- 1/2/1 active 32768 1/2/2 active 32768 1/2/3 active 32768 1/2/4 active 32768 ------------------------------------------------------------------------------- Port-id Role Dist Aggr Timeout Activity ------------------------------------------------------------------------------- 1/2/1 actor Page 382 7710 SR OS Basic System Configuration Guide...

  • Page 383: Table 26: Show Redundancy Multi-Chassis Mc-Lag Peer Output Fields

    Displays the length of time to keep alive the mg-lag peer. Specifies how many “keepalive” intervals the standby SR will wait for Hold On Ngbr Fail- packets from the active node before assuming a redundant-neighbor node failure. 7710 SR OS Basic System Configuration Guide Page 383...
  • Page 384 — Displays multi-chassis LAG statistics. peer ip-address — Shows the specified address of the multi-chassis peer. lag lag-id — Shows information for the specified LAG identifier. Values 1 — 64 Page 384 7710 SR OS Basic System Configuration Guide...
  • Page 385 Indicates the number of configured packets transmitted from this sys- Packets Tx Peer Config tem to the peer. Indicates the number of packets that failed to be transmitted from this Packets Tx Failed system to the peer. 7710 SR OS Basic System Configuration Guide Page 385...
  • Page 386 Packets Dropped Tlv Invalid LagId : 0 Packets Dropped Out of Seq Packets Dropped Unknown Tlv Packets Dropped MD5 Packets Tx : 235 Packets Tx Keepalive : 216 Packets Tx Peer Config Packets Tx Failed =============================================================================== B:Dut-B# Page 386 7710 SR OS Basic System Configuration Guide...
  • Page 387 — The ring is administratively up, but a configuration error prevents it from operating properly. halfBroken — The inband control connection indicates that the ring is broken in one direction (towards the peer). 7710 SR OS Basic System Configuration Guide Page 387...
  • Page 388 ------------------------------------------------------------------------------ VLAN Map Excluded Path Provisioned ------------------------------------------------------------------------------ range 18-18 ------------------------------------------------------------------------------ VLAN Map B Path Operational ------------------------------------------------------------------------------ range 13-13 range 17-17 ------------------------------------------------------------------------------ VLAN Map Excluded Path Operational ------------------------------------------------------------------------------ range 18-18 ============================================================================== *A:ALA-48>show>redundancy>multi-chassis# Page 388 7710 SR OS Basic System Configuration Guide...
  • Page 389 : None ============================================================================== *A:ALA-48>show>redundancy>multi-chassis# *A:ALA-48>show>redundancy>multi-chassis# mc-ring peer 10.0.0.2 ring ring11 ring-node ============================================================================== MC Ring Node entries ============================================================================== Name Loc Oper St. Failure Reason In Use Rem Oper St. ------------------------------------------------------------------------------ connected None 7710 SR OS Basic System Configuration Guide Page 389...
  • Page 390 *A:ALA-48>show>redundancy>multi-chassis# mc-ring peer 192.251.10.104 statistics ============================================================================== MC Ring statistics for peer 192.251.10.104 ============================================================================== Message Received Transmitted ------------------------------------------------------------------------------ MCS ID Request MCS ID Response Ring Exists Request Ring Exists Response Keepalive ------------------------------------------------------------------------------ Total ============================================================================== *A:ALA-48>show>redundancy>multi-chassis# Page 390 7710 SR OS Basic System Configuration Guide...
  • Page 391 Rx Unknown Ring Displays the number of MC-ring signalling packets were received by Node this system that were related to an unknown ring node. 7710 SR OS Basic System Configuration Guide Page 391...
  • Page 392 Rx Unknown Type Rx Unknown Peer Rx Unknown Ring Rx Unknown Ring Node : 36763 Tx No Buffer Tx Transmission Failed Tx Unknown Destination Missed Configuration Events Missed BFD Events ============================================================================== *A:ALA-48>show>redundancy>multi-chassis# Page 392 7710 SR OS Basic System Configuration Guide...

  • Page 393: Table 27: Show Redundancy Multi-Chassis Sync Output Fields

    Displays the number of entries on the remote router. Rem Num Entries Displays the number of locally deleting entries made by the remote Rem Lcl Deleted Entries router. Displays alarm entries on the remote router. Rem Alarm Entries 7710 SR OS Basic System Configuration Guide Page 393...

  • Page 394: Table 28: Show Redundancy Multi-Chassis Sync Peer Output Fields

    If configured, displays the authentication key used between this node Authentication and the multi-chassis peer. Displays the source address used to communicate with the multi-chas- Source IP Address sis peer. Displays the administrative state of the peer. Admin State Page 394 7710 SR OS Basic System Configuration Guide...
  • Page 395 Lcl Deleted Entries Alarm Entries Rem Num Entries Rem Lcl Deleted Entries : 0 Rem Alarm Entries =============================================================================== MCS Application Stats =============================================================================== Application : igmp Num Entries Lcl Deleted Entries Alarm Entries 7710 SR OS Basic System Configuration Guide Page 395...

  • Page 396: Table 29: Show Redundancy Multi-Chassis Sync Peer Detail Output Fields

    Description Displays the multi-chassis redundancy peer. Peer IP Address The text string describing the peer. Description Authentication If configured, displays the authentication key used between this node and the multi-chassis peer. Page 396 7710 SR OS Basic System Configuration Guide...
  • Page 397 Source IP Address : 0.0.0.0 Admin State : Enabled ------------------------------------------------------------------------------- Sync-status ------------------------------------------------------------------------------- Client Applications : SUBMGMT Sync Admin State : Up Sync Oper State : Up DB Sync State : inSync Num Entries 7710 SR OS Basic System Configuration Guide Page 397...
  • Page 398 ------------------------------------------------------------------------------- Rem Num Entries Rem Lcl Deleted Entries : 0 Rem Alarm Entries =============================================================================== Ports synced on peer 10.10.10.20 =============================================================================== Port/Encap ------------------------------------------------------------------------------- lag-1 test123 =============================================================================== *A:subscr_mgt_2# synchronization Syntax synchronization Context show>redundancy Page 398 7710 SR OS Basic System Configuration Guide...

  • Page 399: Table 30: Show System Time-Range Output Fields

    : Start * * * * End * * * * Absolute : Start * * * * End * * * * The following example shows output for time-range associations with previously created IP and MAC filters. 7710 SR OS Basic System Configuration Guide Page 399...

  • Page 400: Table 31: System Timing Output Fields

    Displays the length of time the system has been up in days, System Up Time hr:min:sec format. Sample Output A:ALA-1# show uptime System Up Time : 11 days, 18:32:02.22 (hr:min:sec) A:ALA-1# sync-if-timing Syntax sync-if-timing Context show>system Page 400 7710 SR OS Basic System Configuration Guide...

  • Page 401: Table 32: System Timing Output Fields

    Not applicable — This MDA does not use the transmit timing subsystem. Indicates whether the method is presently selected. Selected for Use Indicates the reason why the method is not selected. Not Selected Due To 7710 SR OS Basic System Configuration Guide Page 401...
  • Page 402 Selected for Use : No Not Selected Due To disabled Source Port : None =============================================================================== A:ALA-1# chassis Syntax chassis [environment] [power-supply] [ccm] Context show Description This command displays general chassis status information. Page 402 7710 SR OS Basic System Configuration Guide...
  • Page 403 The code used to identify the router. Serial number part number. Not user modifiable. Manufacture date The chassis manufacture date. Not user modifiable. Manufacturing Factory-inputted manufacturing text string. Not user modifiable. string 7710 SR OS Basic System Configuration Guide Page 403...
  • Page 404 Up — The specified power supply is up. Down — The specified power supply is down. Sample Output A:ALA-1# show chassis =============================================================================== Chassis Information =============================================================================== Name : 7710-3 Type : 7710 SR-c12 Page 404 7710 SR OS Basic System Configuration Guide...
  • Page 405 Manufacturing string : MfgString ccm-0 Manufacturing deviations : MfgDeviation ccm-0 Administrative state : up Operational state : up Temperature : 32C Temperature threshold : 75C Time of last boot : N/A 7710 SR OS Basic System Configuration Guide Page 405...

  • Page 406: Table 33: Show Synchronization Output Fields

    (BOF). Displays the results of the last synchronization operation between the Boot/Config Sync Status primary and secondary Page 406 7710 SR OS Basic System Configuration Guide...
  • Page 407 Failover Reason : N/A Boot/Config Sync Mode : None Boot/Config Sync Status : No synchronization Last Config File Sync Time : Never Last Boot Env Sync Time : Never =============================================================================== A:ALA-1>show>redundancy# 7710 SR OS Basic System Configuration Guide Page 407...
  • Page 408 — The clock will use the first timing reference. ref2 — The clock will use the second timing reference. system Syntax [no] system Context debug Description This command displays system debug information. http-connections Syntax http-connections [host-ip-address/mask] http-connections Context debug>system Page 408 7710 SR OS Basic System Configuration Guide...
  • Page 409 — maximum 32 characters; must begin with a letter. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. persistence Syntax [no] persistence Context debug>system Description This command displays persistence debug information. 7710 SR OS Basic System Configuration Guide Page 409...
  • Page 410 — Dumps the specified port ID of the multi-chassis peer. port lag-id — Dumps the specified Link Aggregation Group (LAG) on this system. sync-tag sync-tag — Dumps the synchronization tag used while synchronizing this port with the multi-chassis peer. Page 410 7710 SR OS Basic System Configuration Guide...
  • Page 411 [instance instance-id] [peer ip-address] Context tools>dump>redundancy>multi-chassis Description This command dumps multi-chassis SRRP sync database information. Parameters instance-id — [1..4294967295] ip-address — Dumps the specified address (in the form of a.b.c.d). 7710 SR OS Basic System Configuration Guide Page 411...
  • Page 412 This command clears multi-chassis Link Aggregation Group (LAG) information. Parameters peer ip-address — Clears the specified address of the multi-chassis peer. lag lag-id — Clears the specified LAG on this system. Page 412 7710 SR OS Basic System Configuration Guide...
  • Page 413 This command clears multi-chassis ring global statistics. peer Syntax peer ip-address Context clear>redundancy>multi-chassis>mcr>statistics Description This command clears multi-chassis ring peer statistics. Parameters ip-address — Clears ring peer statistics for the specified IP address. 7710 SR OS Basic System Configuration Guide Page 413...
  • Page 414 — Clears the specified application information that was synchronized with the multi- chassis peer. Values all: all supported applications dhcp-server: local dhcp server igmp: internet group management protocol igmp-snooping: igmp-snooping Page 414 7710 SR OS Basic System Configuration Guide...
  • Page 415 An inherent behavior enables the revertive mode which causes a re-evaluation of all available references. trace Syntax trace log Context clear Description This command allows an operator to clear the trace log. 7710 SR OS Basic System Configuration Guide Page 415...
  • Page 416 Clear Commands Page 416 7710 SR OS Basic System Configuration Guide...

  • Page 417: Standards And Protocol Support

    Standards and Protocol Support Standards Compliance Physical layer specification: General RFC 4760 Multi-protocol Extensions for characteristics BGP (previously RFC 2858) IEEE 802.1d Bridging GR-1248-CORE - Generic Requirements RFC 5065 Confederations for BGP IEEE 802.1p/Q VLAN Tagging for Operations of ATM Network (obsoletes 3065) IEEE 802.1s Multiple Spanning Tree Elements (NEs).
  • Page 418 Standards and Protocols FRF2.2 -PVC Network-to- Network RFC 2463 Internet Control Message draft-ietf-mpls-te-mib-04.txt Interface (NNI) Implementation Protocol (ICMPv6) for the Internet draft-ietf-mpls-ldp-mib-07.txt Agreement. Protocol Version 6 Specification ITU-T Q.933 Annex A- RFC 2464 Transmission of IPv6 Packets Multicast over Ethernet Networks RFC 1112 Host Extensions for IP IPSec RFC 2529 Transmission of IPv6 over...
  • Page 419 Standards and Protocols RFC 2013 UDP-MIB draft-ietf-isis-wg-mib-05.txt RFC 3209 Extensions to RSVP for Tunnels RFC 2096 IP-FORWARD-MIB IANA-IFType-MIB RFC 4090 Fast reroute Extensions to RFC 2138 RADIUS IEEE8023-LAG-MIB RSVP-TE for LSP Tunnels RFC 2206 RSVP-MIB OSPF RFC 2452 IPv6 Management Information PSEUDO-WIRE RFC 1765 OSPF Database Overflow Base for the...
  • Page 420 Standards and Protocols RADIUS RFC 2401 Security Architecture for Internet Protocol RFC 2865 Remote Authentication Dial In User Service draft-ietf-bfd-mib-00.txtBidirectional Forwarding Detection Management RFC 2866 RADIUS Accounting Information Base SONET/SDH draft-ietf-bfd-base-05.txt Bidirectional Forwarding Detection GR-253-CORE SONET Transport Systems: Common Generic Criteria. draft-ietf-bfd-v4v6-1hop-06.txt BFD Issue 3, September 2000 IPv4 and IPv6 (Single Hop)
  • Page 421 Standards and Protocols Proprietary MIBs TIMETRA-APS-MIB.mib TIMETRA-ATM-MIB.mib TIMETRA-BGP-MIB.mib TIMETRA-CAPABILITY-7750- V4v0.mib TIMETRA-CFLOWD-MIB.mib TIMETRA-CHASSIS-MIB.mib TIMETRA-CLEAR-MIB.mib TIMETRA-FILTER-MIB.mib TIMETRA-GLOBAL-MIB.mib TIMETRA-IGMP-MIB.mib TIMETRA-ISIS-MIB.mib TIMETRA-LAG-MIB.mib TIMETRA-LDP-MIB.mib TIMETRA-LOG-MIB.mib TIMETRA-MIRROR-MIB.mib TIMETRA-MPLS-MIB.mib TIMETRA-NG-BGP-MIB.mib TIMETRA-OAM-TEST-MIB.mib TIMETRA-OSPF-MIB.mib TIMETRA-OSPF-V3-MIB.mib TIMETRA-PIM-MIB.mib TIMETRA-PORT-MIB.mib TIMETRA-PPP-MIB.mib TIMETRA-QOS-MIB.mib TIMETRA-RIP-MIB.mib TIMETRA-ROUTE-POLICY-MIB.mib TIMETRA-RSVP-MIB.mib TIMETRA-SECURITY-MIB.mib TIMETRA-SERV-MIB.mib TIMETRA-SUBSCRIBER- MGMTMIB.mib TIMETRA-SYSTEM-MIB.mib TIMETRA-TC-MIB.mib TIMETRA-VRRP-MIB.mib TIMETRA-VRTR-MIB.mib Standards and Protocols Page 421...
  • Page 422 Standards and Protocols Page 422 Standards and Protocols...

  • Page 423: Index

    28, 25 entering CLI commands 30, 23, 29 monitor commands navigating structure File system overview compact flash devices URLs configuring command reference 115, 111 displaying information 7710 SR OS Basic System Configuration Guide Page 423...
