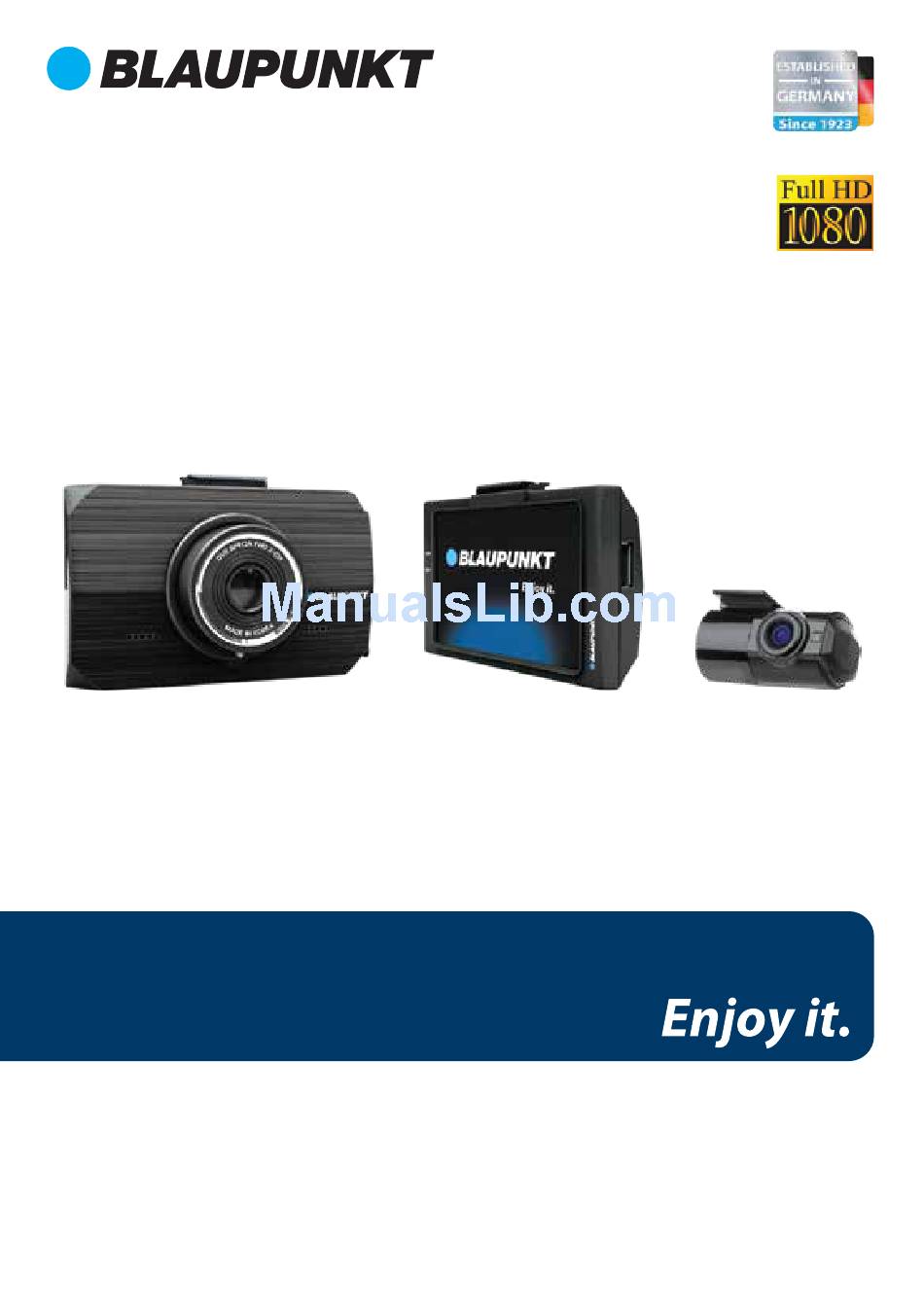

Page 1: Digital Video Recorder
DIGITAL VIDEO RECORDER BP 9.0A/AG FHD 2-CHANNEL Enjo y it. Operating and Installation Instructions... - Page 2 SD card from device menu. Please reset device or change micro SD card Disclaimer : • In no event shall Blaupunkt be liable for any if similar error continues. Note : All les will be deleted when formatting direct, indirect, punitive, incidental, special...
- Page 3 STRUCTURE 1. Rear DVR cable output 6. Lens 11. On/O 2. GPS tracking cable input 7. Microphone 12. Power cable input 3. Wireless control dongle input 8. Micro SD card slot 13. Bracket hole 4. LCD touch screen 9. Recording indicator light 14.
- Page 4 FUNCTION System Setup Tap the left side of the LCD screen to enter into MENU while recording.Tapping right side of the screen will enter into di erent Video mode instead of MENU Mode Category Function Quick Menu Live Live Image Menu Setting Menu Mute...
- Page 5 FUNCTION Android Mobile Application Search “Blaupunkt DVR BP9.0A” on Google Play. Mobile App device OS version requirements : Android 4.4 (KitKat) or higher. Google Play Store Pair DVR with Android Smartphone (DVR Firmware ver 1.1.604 or higher) The distance range between the DVR (with Wireless Control dongle) and smartphone is approximately 10 meters (33ft) in an open eld environment.
- Page 6 FUNCTION iOS Mobile Application Search “Blaupunkt DVR BP9.0A” on App Store. Mobile App device OS version requirements : iOS 10.0.2 or higher. App Store Pair DVR and Smartphone (DVR Firmware ver 1.1.604 or higher) The distance range between the DVR (with Wireless Control dongle) and smartphone is approximately 10 meters (33ft) in an open eld environment.
- Page 7 FUNCTION LIVE VIEW (Show real time video) 1. Select to change Front or Rear camera view 2. Select to start or stop recording 3. Select to return to MENU 4. Select to view recorded video VOD VIEW (Playback List) 1. Normal Video Playlist 2.
-
Page 8: Config Settings
FUNCTION CONFIG SETTINGS Basic settings Mode setting Front video quality Rear video quality Motion level Shock level (Park) Shock level (Driving) Speaker volume Mic volume Cut-o voltage High temp shutdown Auto LCD o time OSD (On Screen Display) output Speed display Front LED Recording channel Speed alarm... -
Page 9: Firmware Update
All data will be deleted after formatting WLAN security Change wireless connection password by entering alphabetical or numerical characters. Device will be reset to default setting when resetting the password. Default password : 00000000 1.1.604 FIRMWARE UPDATE Visit www.blaupunkt.com to download updates... - Page 10 FUNCTION Blaupunkt DVR BP9.0A/AG PC Viewer Visit www.blaupunkt.com to download below viewer. View Video & Map Extract le to play front/rear video le in normal View Video & Files video player Folder Search File Type P:/microSD Cut-o Voltage Setting 1. Setting on LCD Screen : Menu > System Set > Cut O Voltage 2.
-
Page 11: Specifications
SPECIFICATIONS Resolution ：Front : 2MP, 140° wide viewing angle, Rear : 2MP, 120° wide viewing angle Display mode : Front, Rear, PIP Screen display : 3.5" Touch Screen (320x480) Mode : Video G-sensor : Supported Memory : Support up to 128GB Micro SD, Class 10 & above Resolutions : Front : 1920x1080 FHD (30fps), Rear : 1920x1080 FHD (30fps) Loop recording : 120MB/43sec Video format : AVI... - Page 12 2 301 17 006 16 02 2 301 17 007 16 02 Designed and engineered by Blaupunkt...
