- Page 1 10.4" Overhead TFT-LCD Monitor PLVW1040R...
-
Page 2: Table Of Contents
1. Table of Contents------------------------------------------------------ 1 2. Warning ------------------------------------------------------- ------- 1 3. Usage Notice ---------------------------------------------------------- 2 4. Package ---------------------------------------------------------------- 3 5. Remote Control --------------------------------------------------------3 6. User Controls --------------------------------------- ---------------- 4 7. Start Your Installation ------------------------------------------------ 4 8. Setting Up The Dome Lamps ---------------------------------------- 5 9. -
Page 3: Usage Notice
Usage Notice Follow all warnings, precautions and maintenance as recommended in this user's manual to maximize the life of your LCD monitor To avoid the damage of the LCD monitor and risk of electronic shock, do not permeate the LCD monitor with water or any drink. -
Page 4: Package

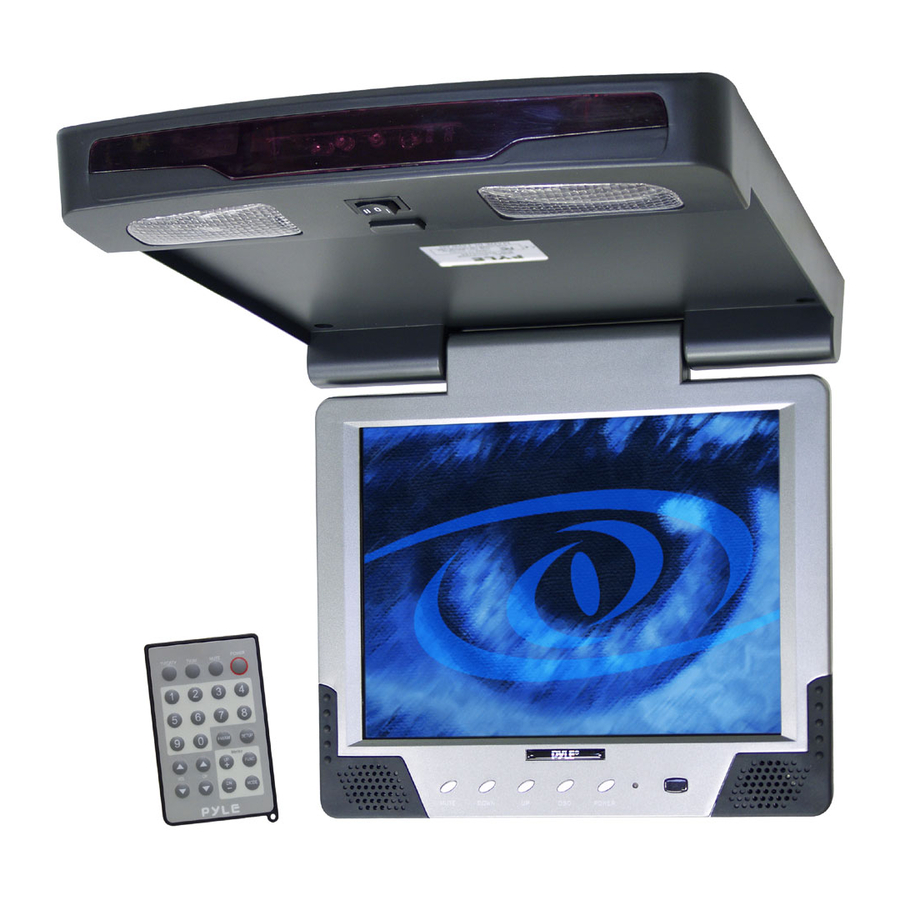

Package This LCD monitor comes with all the items below. Check to make sure your unit complete. Contact your dealer immediately if anything is missing. PLVW1040R * 10.4" High RES TFT-LCD Monitor * Overhead Console Mounting Bracket * Credit Card Size Remote Control with Batteries... -
Page 5: User Controls
User Controls User Control Overview * Panel Control Start Your Installation Wiring * Monitor connection... -
Page 6: Setting Up The Dome Lamps
Setting Up The Dome Lamps *Operating the dome Lamps 1. There are three function buttons for the Dome lamps operation: OFF, DOOR, and ON. (Refer to the following figure) A. OFF: To turn off the lamps. B. DOOR: To make the lamps turned on only when car doors are opened. -
Page 7: Installation Your Monitor
Installation your Monitor Take care to select a suitable fitting location and securing method for the monitor: *The unit should not distract or obstruct the driver. *The installation should not inhibit the entry to, or the exit from the vehicle. *The unit should not interfere with other vehicle components e,g (sliding sunroof). -
Page 8: Closing Monitor
Closing Monitor 1. Return the monitor to the central viewing position. (Refer to the following figure) 2. Push the monitor/TV back into the monitor base unit until the screen engages with the release button. Operating the Monitor * Powering up the monitor The monitor will be automatically turned on when releasing the monitor from the base unit and "OFF"... -
Page 9: Osd Menus In A/V Source
* OSD Menus in A/V Source MAIN MENU CUBS.1 = NTSC H. SYNC = +15.7K Hz V. SYNC = -60.0Hz BRIGHTNESS CONTRAST COLOR SOURCE AUDIO RECALL EXIT * Quick Adjustment OSD Menus 1. By pressing the "SELECT" button, you may open the following OSD menus directly. -
Page 10: Function Descriptions
Function Descriptions Panel Control * Menu: Pop up the OSD menus. Press the "Menu" button again to exit the OSD menus. When in sub-menu, press "MENU" again to go back to the main menu. * Select: 1. Switch among each function items in OSD menus. 2. -
Page 11: Specifications
Specifications Screen Size Resolution Number of colors Pixel pitch & Format Brightness Maximum Contrast Ratio Operating Temperature Storage Temperature Back light View Angle L/R View Angle U/D Monitor Dimension Monitor Weight Graphic Mode On Screen Display Power Saving mode Power Consumption A/V Video input Video Input level Video Input Impedance... -
Page 12: Appendix
Appendix Changing the New Battery in Remote Control 1. Push the cassette button to wards the right. (As shown # 1 in below figure) 2. Pull the all battery cassette away from the remote control. As shown # 2 in below figure) Change a new battery. Cassette Button Battery...
