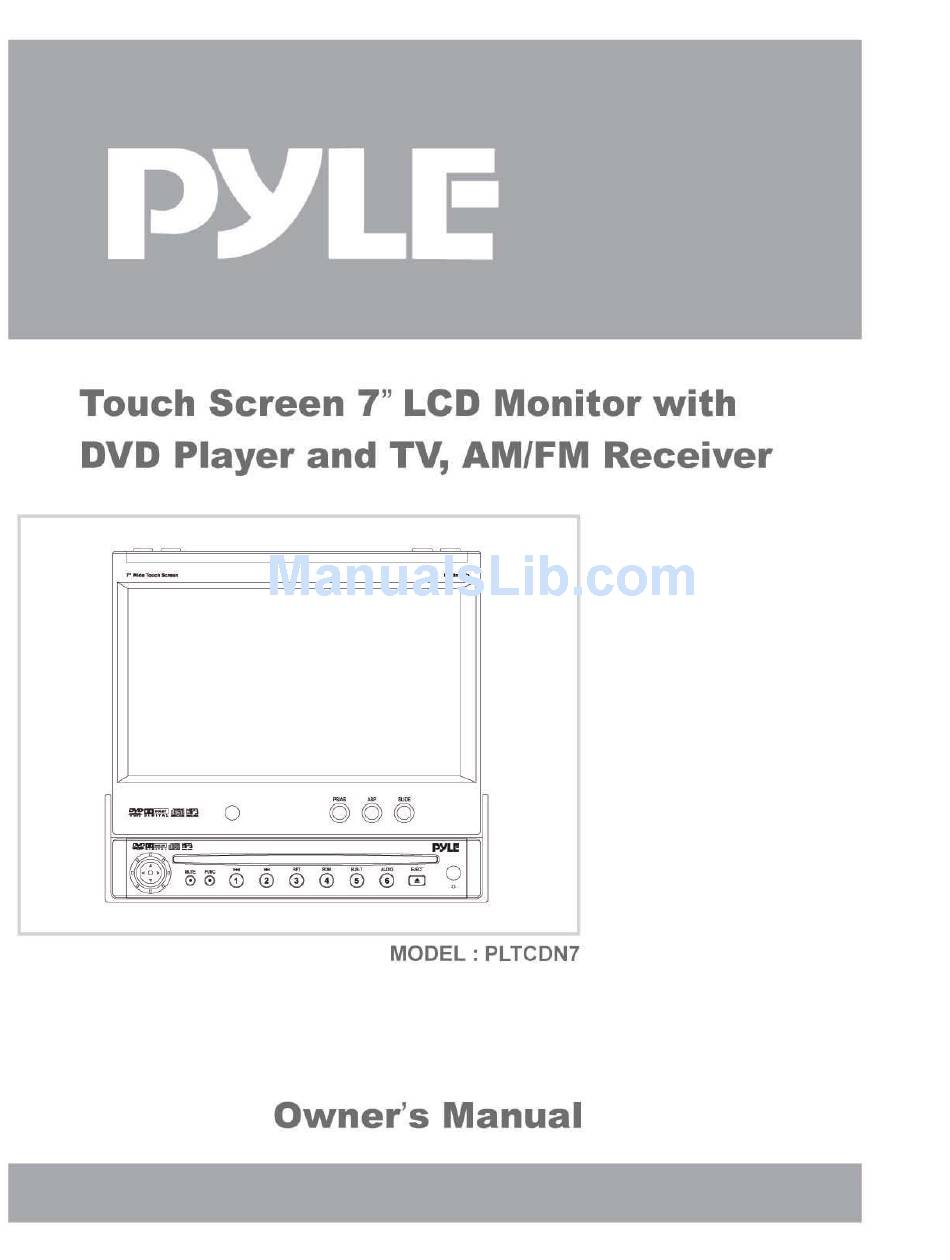

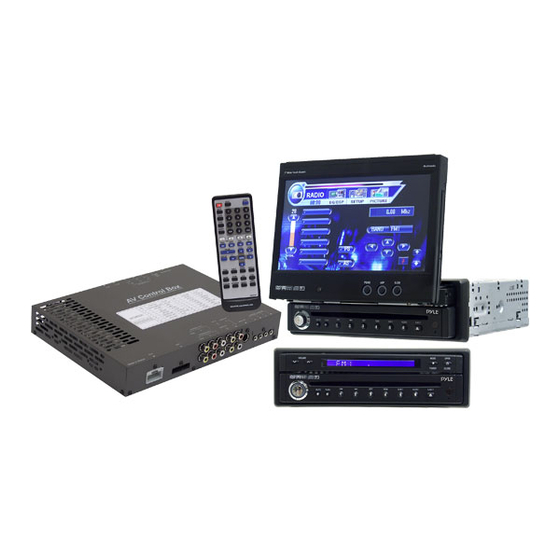

Thank you for purchsing this product. * Please read this owner's manual carefully before installation and operating this unit and follow up all instructions for safe connecting, operating this product. Otherwise, the unit can be damaged. * Pleas keep this manual in a handy place for future use. Contents Precaution... -
Page 3: Precaution
Precautions Warning Screen While the vehicle is in motion, the monitor only shows "WARNING PICTURE" to prevent trafficaccident. Stop the car in a safe location and apply the parking break to watch the picture. 1. Driving on extremely bumpy roads which cause severe vibration may cause the sound to skip. 2. -
Page 4: Playable Discs
Playable Discs This product only requires using of 12cm following circular discs. DVD-R, DVD-RW, CD-R and CD-RW can be played back, but it depends on the recorded condition. Region number(Regional restriction number) 1 - USA, CANADA 2 - EUROPE, JAPAN, SOUTH AFRICA, MID EAST ASIA 3 - KOREA, SOUTH ASIA 4 - LATIN AMERICA, SOUTH AMERICA, AUSTRALIA, NEW ZELAND 5 - RUSSIA, INDIA, MONGOLIA, AFRICA... -
Page 5: Operating With The Main Unit
Operating with the main unit Number 1. VOLUME 2. VOLUME 3. MODE POWER 4.OPEN/CLOSE 5. JOG 6. JOG 7. JOG 8. JOG 9. JOG Center 10. MUTE 11. FUNC 12. Preset 1 13. Preset 2 14. Preset 3 15. Preset 4 16. -
Page 6: Operating With The Remote Control
Operating with the Remote Control REMOTE CONTROLLER KEY FUNCTION Replacing the battery for the remote control 1.Slide and hold the hooker (®Á in the figure) of the battery cover to in the direction of the arrow 2. Slide the battery cover downward hoding the hooker in the direction of the arrow. -
Page 7: Turning Off The Power
Basic Operations Resetting *In case the unit does not operate normally, press the [RESET] button with a pointed object to restart the operation when the power of the unit is on. *Pressing the [RESET] button will turn off the power. Press the [MODE/POWER] button to turn power on. - Page 8 [OPEN/CLOSE] * The monitor can be closed only when it is positioned parallel with the front of unit. Position manually the monitor parallel with the front of unit by holding left and right side of the monitor with hands and then press the [OPEN/CLOSE] button to close it.
-
Page 9: Manual Tuning
Radio Operation Press the [MODE/POWER] button repeatedly until radio mode is selected. In case the radio is tuned over 3 hours wih closing the monitor, The unit will be hotter. Please make sure to open the monitor when you want to listen to radio over 2 hours, or else the unit may be damaged. -
Page 10: Basic Opreations With Touch Keys
Basic Operations with Touch Keys This unit has Touch Screen feature. You can select/adjust the functions by touchung touch keys displaying on the monitor. You can touch the screen with finger or the plastic pen supplied with this unit. 1. Press the [OPEN/CLOSE] button to open the monitor and turn on the power. 2. -
Page 11: System Settings With Touch Keys
System Settings with Touch Keys Adjusting the Bass Level 1. Touch [EQ/DSP] to show the audio menu. 2. Touch [ ] or [ ] to decrease or increase the bass level. Adjusting the Treble Level 1. Touch [EQ/DSP] to show the menu. 2. - Page 12 System Settings with Touch Keys Setting Clock 1. Touch [SETUP] and then Touch [SYSTEM] to show the menu. 2. Touch HOUR [ ] or [ ] to adjust the hour. 3. Touch MIN [ ] or [ ] to adjust the minute. * The screen dispalys 24 hours and sub LCD dispalys 12 hours.
-
Page 13: Radio Opration With Touch Keys
Radio Operation with Touch Keys 1. Touch softly with finger anywhere of the screen to show touch key menu. 2. Touch [MODE] to show the mode menu and then touch [RADIO] to select radio mode. Selecting Radio Reception Area 1. Touch [SETUP] and then Touch [SYSTEM] to show the menu. 2. - Page 14 [SETUP] [VIDEO STD] [VIDEO STD] NTSC -> PAL BG -> PAL DK -> PAL I -> PAL AUS -> NTSC <TV System for Your Country> NTSC PAL BG PAL I PAL DK PAL AUS [MODE] [BAND] [BAND] TV1 -> TV2 -> TV3 -> TV1 [BAND] [AS] [BAND]...
-
Page 15: Dvd/Cd Changer Operation With Touch Keys
DVD/CD Changer Operation with Touch Keys Setting Up a DVD/CD Changer 1. Touch [SETUP] and then Touch [EXT. DEVICE] to show the menu. 2. Touch [CDC] to select DVD or CD changer source. Each time [CDC] is touched, the source is switched as follows. NONE ->... -
Page 16: Navigation Operation With Touch Keys
Navigation Operation with Touch Keys Setting Up 1. Touch [SETUP] and then Touch [EXT. DEVICE] to show the menu. 2. Touch [NAVI] to select a navigation Input source. Each time [NAVI] is touched, Input source is switches as follows. <Version 1> NONE ->... -
Page 17: General Setup
[MODE] [Setup] SETUP MENU -- MAIN PAGE GENERAL SETUP SPEAKER SETUP AUDIO SETUP PREFERENCES EXIT SETUP [Setup] (Enter) [DVD]... -
Page 18: Angle Mark
PIC MODE Select according to the disc recording format. If you are not sure of the recording format, it is recommended to select [AUTO]. [AUTO]: Automatically select the image mode according to the disc recording format. [HI-RES]: Play with high resolution for TV format. [NON-FLICKER]: Selected to lower flash playing for movie format. - Page 19 [LT/RT]: [STEREO]: [OFF]: [STEREO] [ANALOG]: [SPDIF/RAW]: [SPDIF/PCM]: [ANALOG] [SPDIF/RAW] [SPDIF/PCM] [LINE OUT] [RF REMOD] [RF REMOD] [STEREO] [L-MONO] [R-MONO] [MIX-MONO] [STEREO] [OFF]: [ON]: [AUTO]: [ON] [LPCM 48K] [LPCM 96K] [LPCM 96K]...
-
Page 20: Disc Menu
AUDIO Select a desired audio language. KOREAN, ENGLISH, FRENCH, SPANISH, CHINESE, JAPANESE *The factory default setting is [ENGLISH]. *This option is available only when the language selected is recorded in the disc. SUBTITLE Select a desired subtitle language. KOREAN, ENGLISH, FRENCH, SPANISH, CHINESE, JAPANESE, OFF *This option is available only when the language selected is recorded in the disc. -
Page 21: Dvd Video Operation With Touch Keys
DVD Video Operation with Touch Keys 1. Insert a DVD disc into the disc slot hole. The mode automatically switches to DVD mode and Playback starts. 2. Press the [OPEN/CLOSE] button to open the monitor. *In case playback does not operate normally, press the [RESET] button with a pointed object to restart the operation. -
Page 22: Repeat Playback
Slow Playback 1. Press the [SLOW] button. Each time the [SLOW] button is pressed, the slow playback speed goes from forward 2X, 4X, 8x, backward 2X, 4X, 8X to normal playback. 2. Press the [ II] button to return to normal playback. *There is no sound during slow playback. -
Page 23: Vcd Operation With Touch Keys
VCD Operation with Touch Keys 1. Insert a VCD disc into the disc slot hole. The mode automatically switches to DVD mode and Playback starts. 2. Press the [OPEN/CLOSE] button to open the monitor. 3. Touch the screen to show the touch keys. Pausing Disc Play Touch [ II] to pause playback. -
Page 24: Listening To Cd With Touch Keys
Listening to CD with Touch Keys 1. Insert a Music CD disc into the disc slot hole. The mode automatically switches to DVD mode and Playback starts. 2. Press the [OPEN/CLOSE] button to open the monitor. 3. Touch the screen to show the touch keys. Pausing Disc Play Touch [ II] to pause playback. -
Page 25: Listening To Mp3 With Touch Keys
Listening to MP3 with Touch Keys 1. Insert an MP3 disc into the disc slot hole. The mode automatically switches to DVD mode and Playback starts. 2. Press the [OPEN/CLOSE] button to open the monitor. 3. Touch the screen to show the touch keys. 4. -
Page 26: Accessories
Main Unit Remote control with a battery x each 1EA NINET Cable x 1EA Touch Ceramic Pen x1EA Trim Plate x 1EA Mounting Half Sleeve x 1EA Mounting Bracket x1EA Removal Key x 2EA Hex Head Screw (M5 x 15mm) x 4EA Binding Head Screw (#15 x 15) x 1EA Spring Washer 5.2 x 1EA Plate Washer... -
Page 27: Installation
Installation Installing the Unit 1. Place the universal mounting bracket (Half Sleeve) into the instrument panel and bend each stopper of the mounting bracket inward by a screwdriver. 2. Insert the unit into the mounting bracket until it locks after connecting the wires. 3. -
Page 28: Wire Connections
Wire Connection 1. Be sure that the PARKING SENSOR WIRE must be grounded or opened. If it is connected to ACC (B+). The unit can be damaged. 2. Do not ground the POWER ANTENNA wire. If it is grounded, the unit can be damaged. -
Page 29: Connection For Av Equipments
Connection for AV Equipments... - Page 30 Connection for AV Equipments...
-
Page 31: Troubleshooting Guide
Troubleshooting guide What might appear to be malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems. Problem The power does not turn Nothing happens when the buttons are pressed. - Page 32 Problem One of the speaker wires is being pinched by a screw in the car. The sound quality is poor or The speakers are not distorted. wired correctly. The car antenna is not extended. Radio reception is poor. The antenna control wire is not connected.
-
Page 33: Specifications
Specifications Power Requirement Current Consumption Operating Temperature Storage Temperature General DVD Monitor Install Size JunctionBox Display Size LCD Type Drive Method Monitor Section Number of Pixels Back Lighting Viseo System Maximum Power Output Pre Output Voltage Subwoofer Output Voltage RMS Speaker Impedance Audio Section Decoder...
