Summary of Contents for PYLE Audio PLTK120

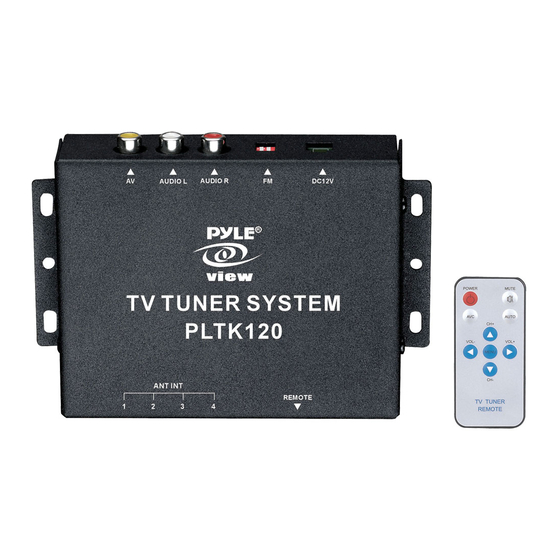

- Page 1 HTTP://WWW.PYLEAUDIO.COM TV TUNER SYSTEM PLTK120 O W N E R S M A N U A L...
-
Page 2: Specifications
Changing the battery in the remote 1. The remote s battery is held in a small drawer on one edge of the remote. To open this drawer, press and hold the small button on the edge of this drawer(as show below) and slide the drawer out. - Page 3 Precautions Please read this manual completely and carefully before installing the equipment. 1. Do not operate this equipment while driving, safe driving should always be your highest priority. 2. Do not install these components in an area exposed to rain, moisture, direct sunlight, extreme heat or cold, excessive dust, dirt or humidity.
-
Page 4: System Features And Controls
Remote function 1. POWER: Power on/off 2. MENU: In AV mode push the MENU button to access on screen menu. Use CH- or CH+ button to move on screen point to next or previous command item. And use VOL+ or VOL- button to increase or decrease current option value. - Page 5 Please note that the following drawing describes connections for all system possibilities and your particular system may vary from this. Connection ANTENNA INFRARED REMOTE RECEIVER REMOTE ANT IN TV TUNER SYSTEM PLTK120 A/V OUTPUT DC 12V AUDIO R AUDIO L VIDEO TO DC+12V TO DC+12V GROUND POWER...
