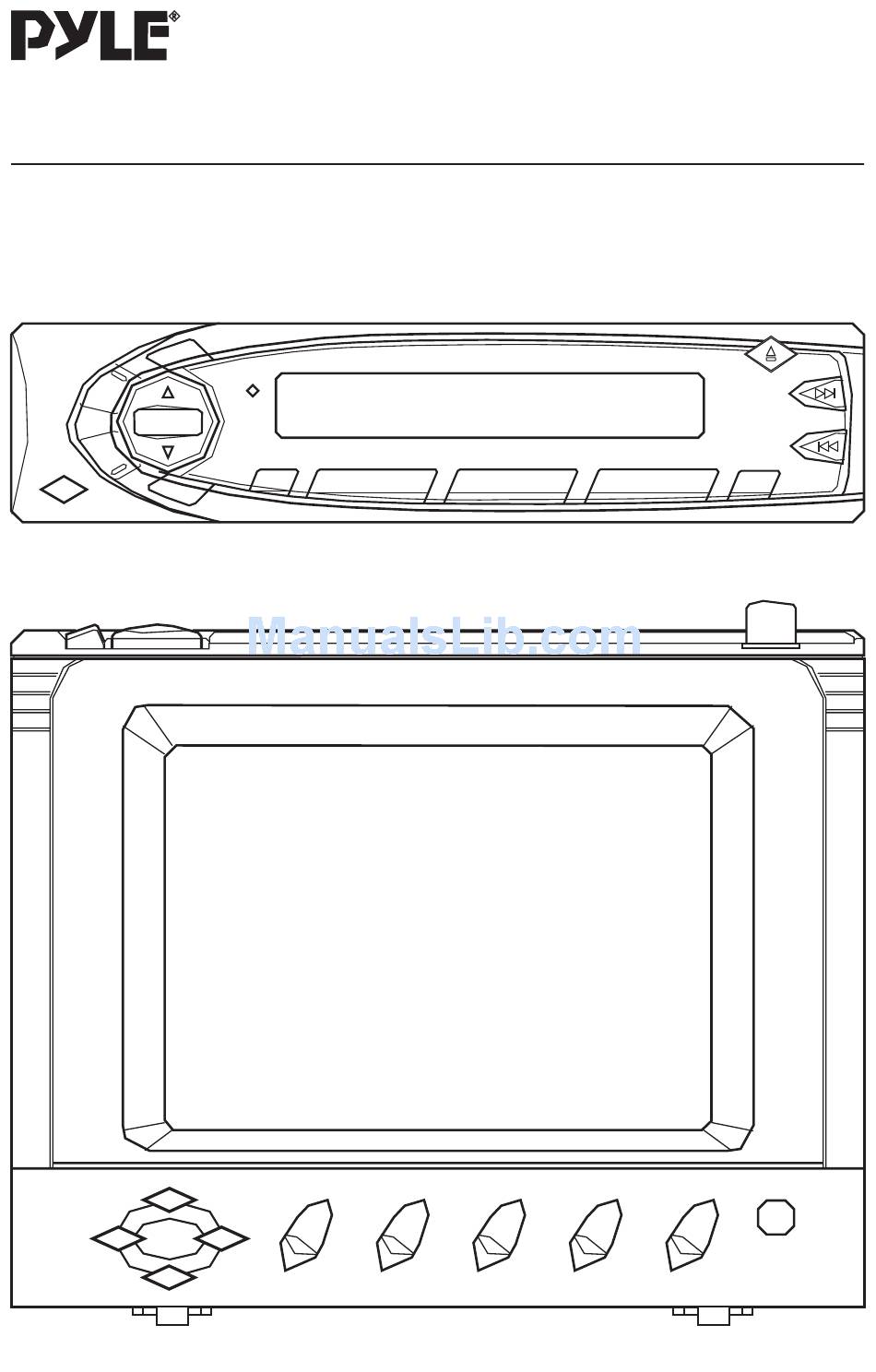

- Page 1 PLPK5TVD OWNER’S MANUAL COLOUR LCD TV/RECEIVER...
-
Page 2: Installation Hardware
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. •... -
Page 3: Mounting The Tuner Unit
MOUNTING THE TUNER UNIT Step 1 1. Bracket (A) 2. Mounting Bolt (M5 x 5) 3. Bracket (B) 4. Hexagonal Bolt with Washer (M6 x 12) 8. Double Sided Tape INSTALL THE DISPLAY UNIT Before install the display unit, please remove its tail screw and cable parts. This unit can be properly installed either from “front”... -
Page 4: Din Rear-Mount
(Fig. 2) Removing the unit DIN REAR-MOUNT Installation using the screw holes on the both sides of the unit. 1. Dashboard 2. Nut (M5) 3. Spring Washer 4. Tapping Screw with Washer (M5 x 25) 5. Screw 6. Plain Washer 7. - Page 5 HOW TO OPEN AND CLOSE THE SCREEN DISPLAY 1. Press release button to draw out the screen display. Release Button 2. Turning the display upward. 3. Adjusting the viewing angle. Angle should be adjusted slowly without applying unreasonable force.
- Page 6 4. Turning the display downward. Make sure to return the display to centre position before drawing in. It cannot be draw in with its angles adjusted. 5. Push the panel, the display will be drawn in.
-
Page 7: Electrical Connection
ELECTRICAL CONNECTION RADIO/TV MAIN UNIT RADIO/TV MAIN UNIT (VIEW FROM REAR) (VIEW FROM FRONT) TV DIVERSITY ANTENNA INPUT AV INPUT TV MONITOR RADIO CONTROL VIDEO AUDIO–R AUDIO–L DISPLAY UNIT TO POWER SUPPLY RADIO CONTROL TV MONITOR... - Page 8 OPERATION 11 7...
-
Page 9: General Operation
GENERAL OPERATION • ON/OFF Switch on the unit by pressing PWR button (1). When system is on, press it again to turn it off. • FACEPLATE RELEASE Press REL button (2) to draw out the faceplate, push the panel to draw in. When the faceplate is drawn out, turn the faceplate upward and adjust TV display. -
Page 10: Liquid Crystal Display
Time Setting - Set hours: Holding down T/F button (5) for several seconds, and the clock is blinking on the display, press button (14) to adjust the hour. - Set minutes: Holding down T/F button (5) for several seconds, and the clock is blinking on the display, press button (13) to adjust the minutes. -
Page 11: Radio Operation
RADIO OPERATION • SELECTING BAND Press BAND button (11) to change between three FM bands and two AM bands. Each band stores up to six preset stations. • SELECTING STATION During radio mode, press MAN/SKP button to decrease frequency by one step of channel spacing. Hold the button longer for fast tuning. -
Page 12: Selecting Receiving Mode
TV OPERATION • SELECTING RECEIVING MODE Press TV/AV button (17) to select among TVch/AV1/AV2. • SELECTING CHANNEL Press CH+ button (9) or CH– button (10) to choose channel upward or downward • MENU CONTROL In TV mode Press MENU button (18) to switch the MENU CONTROL mode. And the main menu includes three sub-menus: PICTURE MENU, TUNER MENU and SYSTEM MENU. -
Page 13: Tuner Menu
Note: When you set the color mode to “PAL” in SYSTEM MENU, there is no “TINT” item to display. In this menu, the range of setting value is 00~63, and the recommended range of these values are listed below: BRIGHT: 10~32 CONTRAST: 20~40... - Page 14 BAND setup You can use CONTROL+ button (19) or CONTROL– button (20) to switch between UHF, VHFL and VHFH band. FINE setup When the frequency has warp, and the picture displayed unstable, you can use CONTROL+ button (19) or CONTROL– button (20) to start FINE function to adjust AFT (Auto Frequency Trace) setup Use CONTROL+ button (19) or CONTROL–...
-
Page 15: System Menu
SEARCH setup Use CONTROL+ button (19) or CONTROL– button (20) to start manual station search. And it will start from the band you select in BAND setup. The SKIP and AFT two items will be set automatically. ASM (Auto Search Memory) setup Use CONTROL+ button (19) or CONTROL–... - Page 16 COLOR setup Use CONTROL+ button (19) or CONTROL– button (20) to switch color mode among AUTO, PAL, N3.58 and N4.43. SOUND setup Use CONTROL+ button (19) or CONTROL– button (20) to switch sound mode among M, B/G, I and D/K. LANG.
- Page 17 CORING setup Use CONTROL+ button (19) or CONTROL– button (20) to switch between ON and OFF. When the coring function is on, it can effectively decease the picture noise and improve the image quality. HALFTONE setup Use CONTROL+ button (19) or CONTROL– button (20) to switch the menu background between ON and OFF.
-
Page 18: Program Scanning
• PROGRAM SCANNING Press SCAN button (22), “SCAN OFF” will display on the lower left corner of the screen. Press it again, the screen will display “SCAN ON”, then it begins to scan 1.5 seconds of each channel in sequence. When it completes, the screen will display “SCAN OFF”. -
Page 19: Remote Control Handset
REMOTE CONTROL HANDSET CONTROL & FUNCTION KEYS POWER = Press POWER to turn the unit ON or OFF TV/AV = Switch between TV/AV1/AV2 0 - 9 = Numeric buttons, press to select the corresponding channel -/-- = Digital selecting button, cooperatively used with numeric buttons MUTE = Press to mute the sound. -
Page 20: Specification
SPECIFICATION GENERAL Power Supply Voltage Maximum Power Load Impedance Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Monitor Screen Size Resolution TV Sensitivity RADIO Frequency Coverage Sensitivity (30 dB S/N) Image Rejection Stereo Separation Frequency Coverage Sensitivity (20 dB S/N) Image Rejection : DC 12 Volts, Negative Ground...
