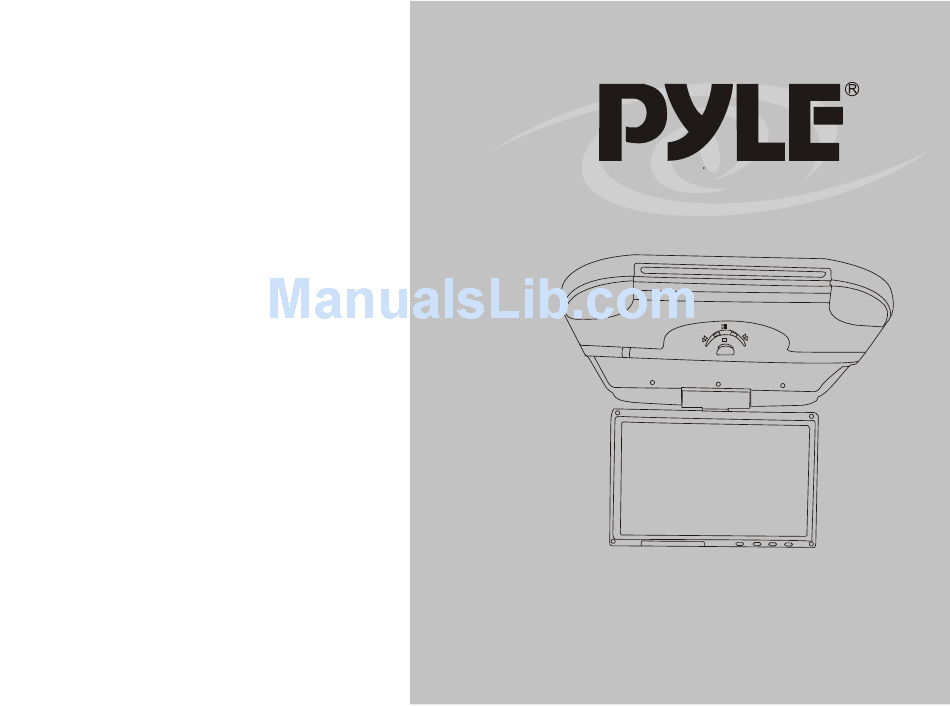

- Page 1 10.2 TFT LCD COLOR MONITOR/DVD Instruction Manual WWW.PYLEAUDIO.COM WARNING: HAZARD DO NOT OPERATE THIS UNIT UNLESS VEHICLE IS PARKED PLRD102 IN SAFE AND LEGAL AREA...
- Page 2 1. SPECIFICATIONS TFT-LCD MONITOR Screen size: 10.2 inch 16:9 TFT Resolution: 800 (H)x600(V) Power source : DC12V 20% Electric current: 1.35A 20% System: PAL/NTSC Operation temperature: -10 -55 Storage temperature: -10 -80 Disc zone: multizone Disc format compatible: MP3, SVCD, VCD, DVD, CD, CD-R, CD-RW, DVD-RW, DVD-R 2 NOTICE A.Please do not try to repair.
- Page 3 Attachment 1.maintain of DVD MONITOR please use normally rotund disc. If you put in an abnormity, not rotund disc, they will be locked by the player or can not play well. Make sure the disc before play has no split, scratch or warp. Do not touch the record surface ( not printed side) Keep disc in the disc pack after playing;...
- Page 4 Installation 3.INSTALLATION Use the 6 pieces of machine screws(4x20BA) , and fix the setting plate to the place, then assembly the unit of monitor to the setting plate. BASIC TROUBLE SHOOTING Fault reason red wire goes to 12v +; black one goes to ground No power Fuse Blowout Power line unconnected...
- Page 5 REMOTE CONTROL FUNCTIONS 1.PDVD: DVD power 2.DISPLAY: show information about disc 3.PBC: when it plays super VCD, VCD2.0, it can show menu of the song: song 1, song 2,--- choose number directly. AUDIO 4.RESUME: memorial play Inhale / eject disc STEP 6.GOTO: set time MUNE...
- Page 6 FUNCTIONS 1)Brightness Enter into MENU, use + - buttons to adjust the picture s b rightness, can adjust the range in 0~100. attached is the main menu. NTSC N720x240 Brightness Contrast Saturation Language Volume Exit Select 2) Contrast Enter into MENU, use buttons to adjust the picture s contrast .
- Page 7 B: language setting Press SETUP to set up the language , attached is the main menu and sub menu: LANGUAGE SETUP LANGUAGE SETUP LANGUAGE SETUP OSD LANGUAGE OSD LANGUAGE AUDIO LANG AUDIO LANG SUBTITLE LANG SUBTITLE LANG MENU LANG MENU LANG EXIT SETUP EXIT SETUP LANGUAGE SETUP...
- Page 8 7)Exit Enter into MENU, use buttons to adjust the exit NTSC N720*240 Brightness Contrast Saturation Language Volume Exit Select DVD FUNCTIONS 1). DVD PLAYER DVD reading indication light will gleam when loading DVD DISC; and then when disc is reading the light turns to be shining. 2) PAUSE press when playing , it will pause playing for you to see inactive...
