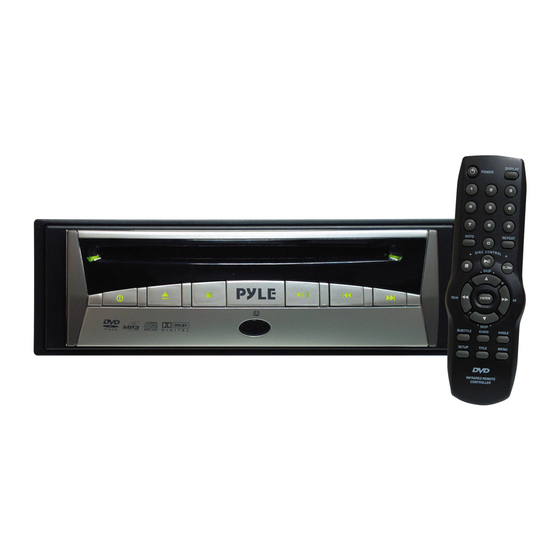

  • Page 1 PLDVD130 OWNER’S MANUAL Mobile Video System • Multi-subtitle Languages Function • Multi-audio Languages Function • Multi-angle Function • Parental Control...
  • Page 2: Use This Product Safely

    FEATURES Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD) This player can play discs recorded in either PAL or NTSC format. • A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders.
  • Page 3: Table Of Contents

    CONTENTS Safety Information ...4 Disc Notes ...5 Installation ...6 Electric Connection ...7 Remote Control...8 Preparing the Remote Control ...9 Loading a DVD/VCD/CD Disc...9 Ejecting a Disc ...9 Location and Function of Keys...9 Basic Operation ...10 On-Screen Display Function...11 Multi-audio Language Function...12 Menu Function (For DVD only)...13 Title Menu Function (For DVD only) ...13 Multi-subtitle Language Function (For DVD only)...13...
  • Page 4: Safety Information

    SAFETY INFORMATION CAUTION: MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED.
  • Page 5: Disc Notes

    DISC NOTES Disc formats supported by this player 12 cm disc (Single-sided disc only) Video CD 12 cm disc 12 cm disc 12 cm disc Discs which cannot be played with this player • DVD-ROM • DVD-R/DVD-RAM • CDV • CD-G Handling and Cleaning •...
  • Page 6: Installation

    INSTALLATION SCREW M4x5 Note: 1. First remove the two screws that locket the unit core, then attach the brackets on both sides of unit with screws (M4x5), last install the unit with screws (M5x25). 2. When fix the unit, you can slide the screw (M5x25) to left side or right side to meet your needed position.
  • Page 7: Electric Connection

    ELECTRIC CONNECTION DVD PLAYER DC 12V IN DC 12V OUT A/V OUT DIGITAL REMOTE AUDIO VIDEO YELLOW VIDEO OUT AUDIO R OUT AC/DC WHITE ADAPTOR AUDIO L OUT (OPTIONAL) (OPTIONAL) DIGITAL AUDIO REMOTE CONTROL RECEIVER CIGARETTE LIGHTER...
  • Page 8: Remote Control

    REMOTE CONTROL POWER Press POWER to turn the unit ON or OFF 0 - 9 Numeric buttons GOTO Disc search button, cooperatively used with numeric buttons Press it to stop playback Press Press In case of MENU mode, those buttons served as cursor buttons SUBTITLE Changing of the SUBTITLE language on multi-subtitle language DVD disc...
  • Page 9: Preparing The Remote Control

    REMOTE CONTROL Preparing the Remote Control Inserting the Batteries 1. Open the battery compartment cover. 2. Insert the new batteries. Make sure that the positive and negative terminals of the batteries are oriented indicated. 3. Close the cover Battery: Two AAA size battery. Using the Remote Control Face the remote control towards the player front face IR mark (remote control...
  • Page 10: Basic Operation

    BASIC OPERATION Stopping Play - Brief press the (Stop) button to stop the unit playback, when press the button on the front panel or on the remote control, it can continuous normal playback. - Press (Stop) button twice, it will stop the playback and go back to initial Track/Chapter.
  • Page 11: On-Screen Display Function

    BASIC OPERATION Disc Search (GOTO) FOR DVD Press GOTO button twice, the screen will display the following message: TITLE 01/01 TIME -- : -- : -- 00:00:25 You can select the item you want to watch through TIME setting by using numeric buttons and ENTER key.
  • Page 12: Multi-Audio Language Function

    BASIC OPERATION (2) Press DISPLAY for the second time: SINGLE REMAIN 00:03:15 (3) Press DISPLAY for the third time: TOTAL ELAPSED 00:00:25 (4) Press DISPLAY for the fourth time: TOTAL REMAIN 00:40:35 (5) Press DISPLAY for the fifth time: The message on the screen will be cleared. (1)Press DISPLAY for the first time: SINGLE ELASPED 00:00:25...
  • Page 13: Menu Function (For Dvd Only)

    BASIC OPERATION MONO LEFT MONO RIGHT MENU Function (For DVD Only) Press MENU button while the disc is playing and the disc menu will be displayed. You can navigate with the remote control navigation keys and select a feature with the ENTER key. TITLE Menu Function (For DVD only) If the DVD has multiple titles recorded on...
  • Page 14: Setup

    SETUP INITIAL SETUP SETUP MENU --- MAIN PAGE GENERAL SETUP SPEAKER SETUP AUDIO SETUP PREFERENCES EXIT SETUP 1. Press SETUP in the stop mode. (Press the stop button twice to ensure the player under STOP mode.) 2. The initial SETUP menu is displayed. 3.
  • Page 15 SETUP --- GENERAL PAGE --- TV DISPLAY PIC MODE AUTO ANGLE MARK HI-RES OSD LANG N-FLICKER CAPTIONS SCR SAVER MAIN PAGE PIC mode setup Select AUTO, the player PIC mode will depend on DVD disc. Select HI-RES format for best image resolution.
  • Page 16: Speaker Setup

    SETUP --- GENERAL PAGE --- TV DISPLAY PIC MODE ANGLE MARK OSD LANG CAPTIONS SCR SAVER MAIN PAGE SCR SAVER setup Select the SCR SAVER output ON/OFF. SPEAKER SETUP --- SPEAKER SETUP PAGE --- DOWNMIX LT/RT STEREO MAIN PAGE This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode.
  • Page 17: Preferences Setup

    SETUP --- AUDIO SETUP --- AUDIO OUT OP MODE DYNAMIC LPCM OUTPUT MAIN PAGE Dynamic Range Control Select DRC and adjust the dynamic range of a Dobly Digital encoded program. There are 8 steps between full compression and off compression. --- AUDIO SETUP --- AUDIO OUT OP MODE...
  • Page 18 SETUP --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE ENGLISH DISC MENU FRENCH PARENTAL SPANISH PASSWORD CHINESE DEFAULTS JAPANESE SMART NAV MAIN PAGE SUBTITLE language setup Select the preferred SUBTITLE language by using the cursor buttons. --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE...
  • Page 19: Defaults Table

    SETUP --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS RESET SMART NAV MAIN PAGE DEFAULTS Select reset to become factory initial setting. --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS NO MENU SMART NAV WITH MENU...
  • Page 20: Specifications

    SPECIFICATIONS Supply Voltage Current Consumption Signal System Discs Played Audio Output Level Audio Signal Output Characteristics Note: Specifications and design are subject to modification, without notice, due to improvements in technology. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
