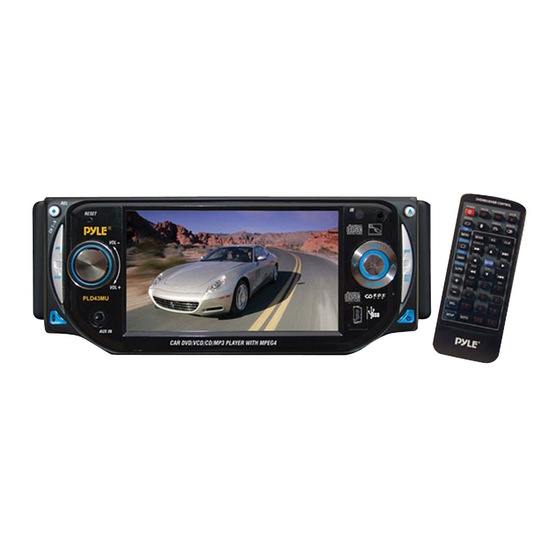

OWNER's MANUAL
Mobile Video System
REL
RESET
VOL-
MOD
VOL+
AUX IN
Motorized Slide Down And
4.3 Inch Wide Color Touch Screen Monitor
CAR DVD/VCD/CD/MP3 Player
AM/FM Digital PLL Tuning Radio
MPEG4 Player
USB Connect
PLD43MU
CAR DVD/VCD/CD/MP3 PLAYER WITH MPEG4
DVD/RECEIVER CONTROL
DVD/RECEIVER CONTROL
POWER
MUTE
PLAY/PAUSE
STOP
REPEAT
ANGLE
MO/ST
MENU
MODE
EQ
CLK
LO/DX
OSD
BAND
ENTER
TITLE/PBC
A/PS
VOL
TOP
INT
1
2
3
VOL
RDM
4
5
6
7
8
9
SEL
+10
0
SETUP
GOTO
Detachable Panel
IR
TOUCH SCREEN
EQ
BND
SEL
MU
Advertisement
Table of Contents
Related Manuals for Pyle Mobile Video System PLD43MU
Summary of Contents for Pyle Mobile Video System PLD43MU
- Page 1 PLD43MU OWNER's MANUAL Mobile Video System RESET VOL- VOL+ AUX IN CAR DVD/VCD/CD/MP3 PLAYER WITH MPEG4 Motorized Slide Down And 4.3 Inch Wide Color Touch Screen Monitor CAR DVD/VCD/CD/MP3 Player AM/FM Digital PLL Tuning Radio MPEG4 Player USB Connect TOUCH SCREEN DVD/RECEIVER CONTROL DVD/RECEIVER CONTROL POWER...
-
Page 2: Table Of Contents
Contents Preautions ... Safety Information... Disc Notes ... Installation ... Detaching the control panel ... Changing the control panel ... Electric Connection ... Remote Control ... Control Panel ... Touch Panel Unit Keys ... Basic Operations TFT Monitor Adjustment ... Rear View Camera Audio Quality Adjustments Setting Audio Mode ... -
Page 3: About The Liquid Crystal Display (Lcd) Panel
Precautions THANK YOU FOR PURCHASING THIS CAR DVD PLAYER . Before operating the unit, read this manual thoroughly and keep it handy for future reference . To avoid injury or accident , read the following precautions before installing and operating the unit . ON INSTALLATION DO NOT install any receiver in locations where;... -
Page 4: Safety Information
Safety Information CAUTION: THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE . HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER CORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT... -
Page 5: Disc Notes
Disc Notes Disc formats supported by this player Audio and Video Disc size 12 cm Audio and Video Disc size 12 cm Audio Disc size 12 cm Audio Disc size 12 cm CD-RW Discs which cannot be played with this player DVD-ROM DVD-R/DVD-RAM CD-G... -
Page 6: Installation
Installation NOTES: Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. Use only the parts included with the unit to ensure proper installation. - Page 7 Installation HEX NUT SPRING WASHER PLAIN WASHER TAPPING SCREW KEY PLATE If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove the PLASTIC COVER of the both sides away, then insert the two KEY PLATE into left and right side of chassis as above illustration. DASH BOARD METAL MOUNTING STRAP...
-
Page 8: Protective Case
Installation How To Remove And Install The Front Panel When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. Detaching The Front Panel Before detaching the control panel, be sure to turn off the power. 1). -
Page 9: Panel Angle Adjustment
Panel Angle Adjustment CHANGING THE CONTROL PANEL ANGLE When you want to change the viewing angle of the operating unit to play, you can touch the section on touch screen (or press the the front panel ) repeatedly to select the desired angle as follows: Angle 1 Angle 4 Caution:... -
Page 10: Electric Connection
Electric Connection WIRING CONNECTION MAIN UNIT ANTENNA CONNECTOR IGNITION SWITCH(B+) CHOKE MEMORY YELLOW BACK-UP(B+) BLACK GROUND(B-) FUSE AUTO BLUE ANTENNA WHITE FRONT Lch SPK. WHITE/BLACK GREEN REAR Lch SPK. GREEN/BLACK Note: the earth connection cable (parking brake B-) must be connected in order for DVD pictures to be played back to the monitor. -
Page 11: Remote Control
Remote Control Press it briefly to show/hide the clock, press longer to set the time. 1. CLK Press it to change between RADIO ,DISC and AUX IN mode. 2. MODE Press it to stop playback. Press PLAY/PUASE to resume playback . 3. -
Page 12: Preparing The Remote Control
Remote Control Preparing the Remote Control Installing The Lithium Coin Battery 1.First push to inside as the direction indicated by the arrow (See Remove the battery holder as the direction indicated by the arrow (See 2.Replace the battery Set a new battery property with (+)side up as illustrated (See 3.Insert the battery holder. -
Page 13: Control Panel
Control Panel Key Functions Touch Panel RESET VOL- VOL+ AUX IN Touch Screen Key : 1.SWF : subwoofer function 2.LUD : loud function 3.DSP : EQ function (pop/classic/jazz/rock/flat) 4.CLK : clock function mute function 6.MOD: select input mode 7.VOLUME+ : volume adjustment (+) 8.SEL : select the menu of the Sound/Picture... -
Page 14: Unit Keys
Control Panel Unit Keys : RESET VOL- VOL+ AUX IN 1.REL BUTTON Press this button to release the front panel for removal . Refer to see page 6. (POWER On/Off )BUTTON Press this button to switch the device on. WELCOME appears in the display. Press it again to switch the device off. - Page 15 Control Panel 7. APS, DISPLAY FUNCTIONS (using the SELECT knob) Scan Function In Radio mode, swing the SEL knob briefly in the APS/DISP direction , the radio briefly plays all the preset stations of the frequency band . Automatic Preset Setup In Radio mode, swing the SEL knob in direction of the APS/DISP for approximately 2 seconds to active automatic station storage.
-
Page 16: Mode Button
Control Panel the speed of rapid forward/reverse changes according to the disc as follow: Normal Playback 2x DVD/VCD/CD/MP3: b) In Radio Mode: Move the SEL button in the direction of manually. Keep the SEL taste pressed down in the start the search for a radio station automatically. 12. -
Page 17: Basic Operations
Basic Operation Power ON/OFF Press it button on front panel or on the remote to switch the device ON or OFF . Ejecting The Disc Use your singer touch the “ range on touch screen , the control panel of the unit will swing downwards .Then you can insert the disc or eject the disc . -
Page 18: Tft Monitor Adjustment
Basic Operation TFT Monitor Adjustment During DISC playback, use your finger touch briefly the SEL section on the screen (or press SEL knob on the front panel to across the Picture mode selection menu, by repeatedly touch the SEL section, and then touch the VOL+/- (or rotate the VOL+/-) to adjust the selected mode . -
Page 19: Setting Audio Mode
Basic Operation Balance: R10 to L10 Adjust sound balance between left and right speakers by using VOL + / - Fader: F10 to R10 Adjust sound balance between front and rear speakers by using VOL + / VOL - . Setting Audio Modes Touch the screen the DSP range (or press the EQ button on the... -
Page 20: Radio Operations
Radio Operation Listening to the Radio Switching To Radio Mode Repeatedly Touch the MOD section on the touch screen to select the RADIO mode. (You can press the MOD button on front panel to select the Radio mode .) the following information will appears on the monitor : FM1 87.5 DISC-IN... -
Page 21: Radio Operation
Radio Operation Automatic Memory Storing & Program Scanning Automatic Preset Setup In Radio Mode, Touch the APS section and keep on the touch screen(or swing the SEL knob in direction of the APS/DISP) for about 2 seconds to active automatic station storage. -
Page 22: Disc Operations
DISC Operation Basic Operation During the DISC playback, use the finger touch the touch screen , it display will following : VOL- VOL+ 1.previous 7.To next page 2.next 8.eject 3.pause 9.vol+(adjustment +) 4.stop 10.select 5.mute 11.vol-(adjustment -) 6.mode 12.panel angle change Switching the DVD mode Touch the MOD section on the touch screen (or press MOD... -
Page 23: Disc Operation
DISC Operation Mute Function Touch the “ ” section on touch screen (or press the MU button on front pane) during playback will mute sound but the disc continues playing . Touch it again , sound will resume . Selecting The Play Modes DVD 11-0:44:36 DISC-IN 11:08 AM... -
Page 24: Int Function
DISC Operation 2). RDM(RANDOM) Function During DISC playback, Touch the RDM section ( press the 4/RDM button longer on remote control to play in random. Each playing, the order is different . (depend on the disc used for VCD). 3). INT Function FOR CD : Touch the screen the INT section (or long press the 3/INT button on... -
Page 25: On-Screen Display Function
DISC Operation ON-SCREEN DISPLAY FUNCTION During playback, touch the screen the OSD section (or press the OSD on the remote), it will display the following as below : 1. DVD: A.Touch or Press for first time: TITLE ELAPSED TT 01/01 CH 01/38 0:02:06 Title Number, Total Title Number, Chapter Number, Total Chapter Number... -
Page 26: Disc Special Functions
DISC Special Functions DVD/VCD Special Function DVD 11-0:44:36 DISC-IN 11:08 AM SUBTITLE AUDIO GOTO TITLE 1. Multi-subtitle Language Function (for DVD Only) SUBTITLE During DVD playback. Touch the SUBTITLE section on touch screen(or press the SUBTITLE on the remote) . Each time the button is pressed or touch, number of the subtitle language changes in sequential order. -
Page 27: Setup
Setup USING THE MENU DOLBY ...GENERAL SETUP PAGE... TV Display Angle Mark OSD Lang Spdif Output SPDIF/RAW Captions Screen Saver Last Memor y Go To General Setup Page 1. Touch the section of DVD setup on touch screen (or press the SETUP on the remote .) 2.The SETUP menu is displayed. -
Page 28: General Setup
Setup GENERAL SETUP DOLBY ...GENERAL SETUP PAGE... TV Display Angle Mark Angle Mark OSD Lang Spdif Output Captions Screen Saver Last Memor y Set Angle Mark ANGLE MARK DISPLAY SETUP If it is set to ON, when the multi-angle DVD disc is playing, (the angle mark) will appears on the screen;... -
Page 29: Speaker Setup
Setup GENERAL SETUP DOLBY ...GENERAL SETUP PAGE... TV Display Angle Mark OSD Lang Spdif Output Captions Screen Saver Screen Saver Last Memor y Screen Saver 6.SCR SAVER SETUP Select the SCR SAVER output ON/OFF. DOLBY ...GENERAL SETUP PAGE... TV Display Angle Mark OSD Lang Spdif Output... -
Page 30: Tv Type Setup
Setup --- PREFERENCES PAGE --- DOLBY ...Preference Page... TV Type TV Type Audio OSD Lang Subtitle Disc Menu AUTO Parental NTSC NTSC Password Default Set TV Standard 1.TV TYPE SETUP This player can play discs recorded in either PAL or NTSC format.Select NTSC format, when you connected to NTSC TV.Select PAL format, when you connected to PAL TV.Select AUTO... -
Page 31: Defaults Table
Setup --- PREFERENCES PAGE --- Age control DOLBY ...Preference Page... TV Type 4PG13 Audio 5PGR OSD Lang Subtitle Disc Menu 7NC 17 Parental Parental 8ADULT 8ADULT Password Default Set Parental Control 5.PARENTAL Select suitable parental guidance by the cursor buttons and conformed by pressing ENTER button. -
Page 32: Other Main Operations
Other Main Operation USB Operation (17) Following the diagram below, connect your USB device to the front panel USB port . If it is properly connected, the device will be mounted and start playing automatically. (USB connect line) you can also select the desired item of the USB device The buttons on the remote control, on the device, have the same functions as the touch buttons... -
Page 33: Mp3/Wma/Jpeg Play
Other Main Operation MP3/WMA/JPEG/MPEG4 DISC PLAY 1.When inserting an MP3/WMA/JPEG/MPEG4 disc. Ex: When MP3 file is detected. 00:56 04:07 Repeat one 003/112 woman 1 new ton ..Touch the screen, it will display the following as below : when the parking brake is applied . MP3 01-0:44:36 DISC-IN 11:08 AM... -
Page 34: Specifications
Specification Supply Voltage: 12V DC (11V-15V) Current Consumption: Less than10 A Signal System: Compositive video 1.0Vp-p 75 Discs Played: (1)DVD-VIDEO Disc (2)Compact Disc (CD-DA, VIDEO CD) Audio Signal Output: 2ch&4ch line out Characteristics: (1)Frequency Response (2)S/N Ratio (3)Wow and Flutter For 3 Bands (Europe) Frequency Coverage:... -
Page 35: Trouble Shooting
Trouble Shooting Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. SYMPTOM CAUSE The car ignition switch is not on No power The fuse is blown Presence of disc inside the player.
