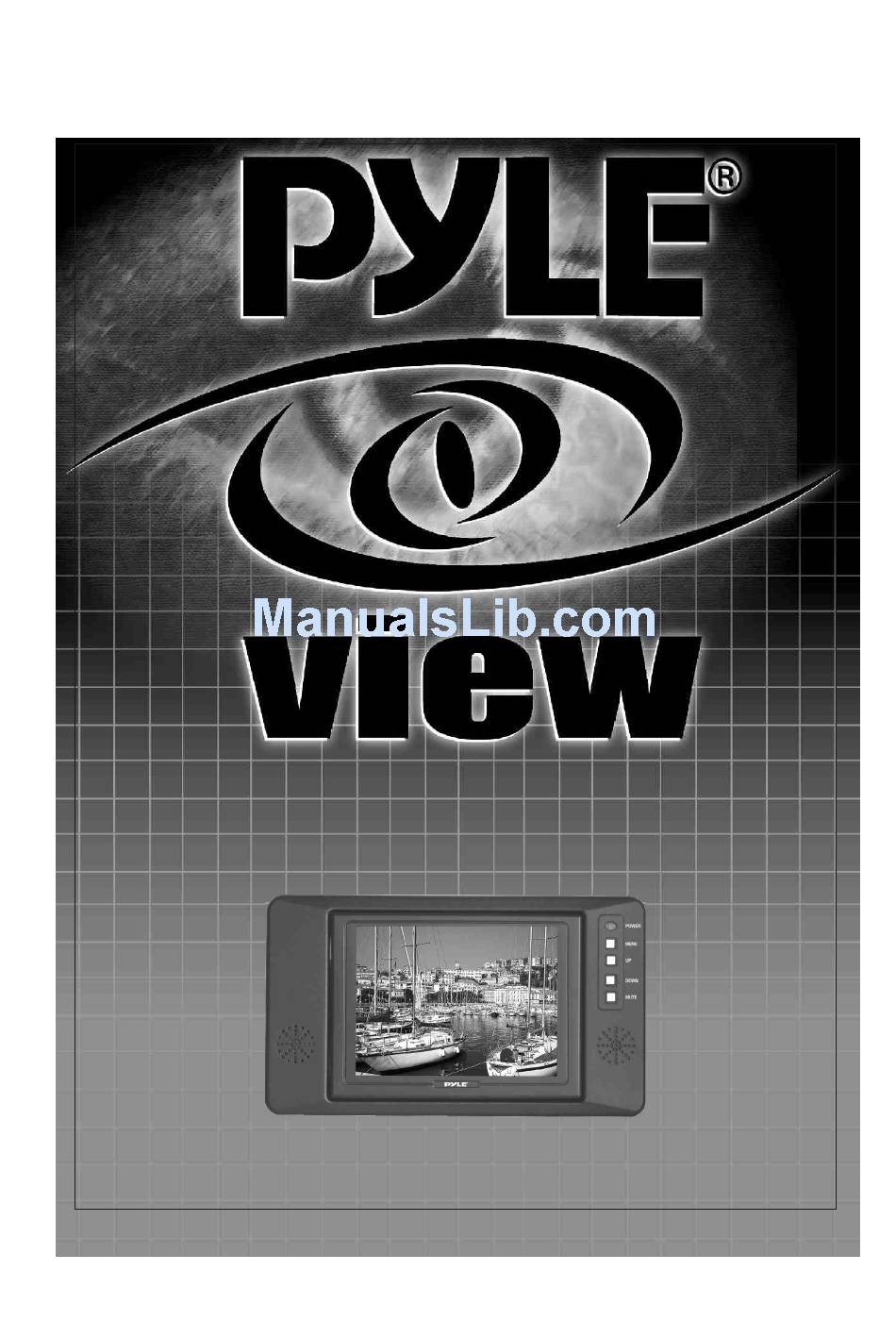

  • Page 1 5.6" TFT-LCD SUN VISOR SCREEN MONITOR PLVSMN56...
  • Page 2 1. SPECIFICATION * VIDEO - SCREEN SIZE ----------------------------------- 5.6" DIAGONAL - RESOLUTION -----------------------------------960(H) x 234(V) - COLOR CONFIGURATION ------------------ RGB Stripe - DOT PITCH -------------------------------------- 0.500(H) x 0.500(V) - VIEWING ANGLE ------------------------------ 70 (H) x 40 (V) - COLOR SYSTEM -------------------------- NTSC - BRIGHTNESS-------------------------------200 CD/M * ELECTRICAL - VIDEO INPUT ----------------------------- 1 Vp-p, 75ohms...
  • Page 3 Function Descriptions: * Power : Press the "POWER" button from the main unit to turn on the monitor. * Menu: Press the MENU from the main unit to pop up the OSD functions by turns. Up/Down: Press UP or DOWN directly is to adjust volume. Using MENU button together can adjust the other functions.
  • Page 4 3. FUNCTION DC +12V (RED) GND (BLACK) VIDEO INPUT (YELLOW) AUDIO INPUT DIN CABLE CAR CABLE 4. DIMENSION 5. SUN VISOR KIT...
