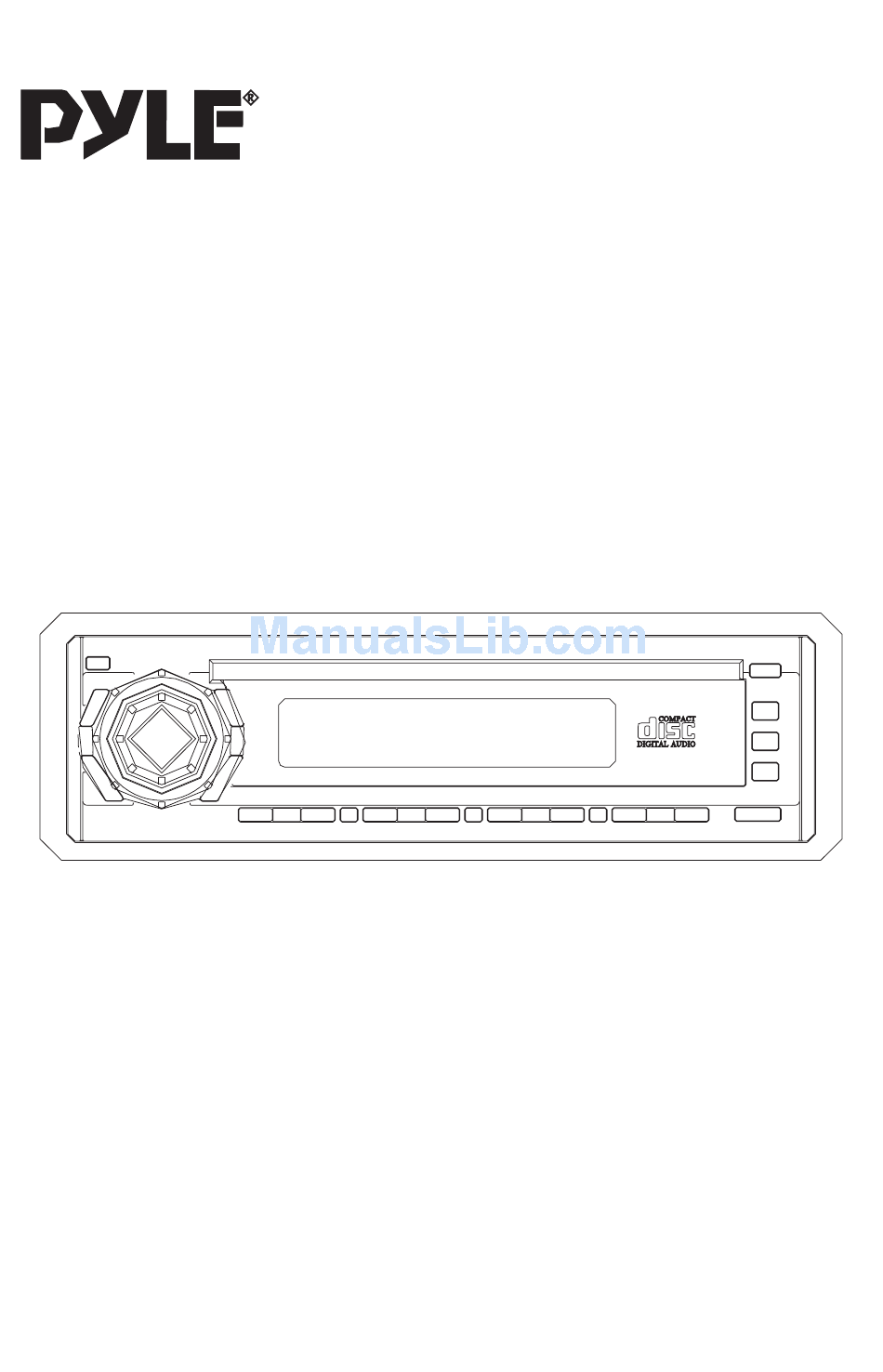

Page 1: Instruction Manual

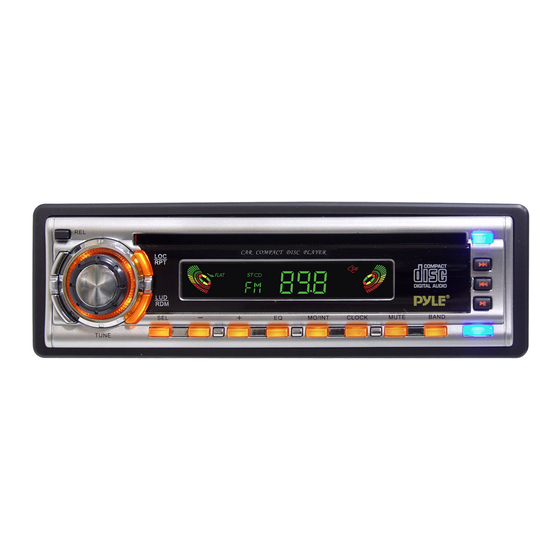

PLCD24 INSTRUCTION MANUAL ANTI-THEFT FULL DETACHABLE SYSTEM AUTO-LOADING COMPACT DISC PLAYER AM/FM-MPX WITH MANUAL TUNING RADIO www.pyleaudio.com... -
Page 2: Basic Operation
BASIC OPERATION 1. RELEASE BUTTON Press it to detach the front panel when you want to take the unit away. 2. LOC/RPT BUTTON LOCAL/DISTANCE MODE: When in the radio mode, press it to select local or distance broadcast station receive sensitivity. - Page 3 BASIC OPERATION 1. By pushing short. 1) RADIO mode changed the mode to CDP mode. 2).CDP mode changed the PLAY mode to PAUSE mode and vice versa. 2. By pushing long. It is engaging whether "AF SEARCH" mode ON or OFF. If "AF SEARCH"...
-
Page 4: Mute Button
BASIC OPERATION - In CDP mode : CDP -> (CLOCK)-> (PS)->FREQ. -> (PTY) -> Each displaying time is 5 sec, and comeback to 1'st position after 5 sec. When pressed long, until time flashes. and you can adjust time now. To adjust hour: with time be flashed on display, push the tune When adjustment is completed, release the button. -
Page 5: Electric Connection
ELECTRIC CONNECTION FOR 4X7W or 4X25W ANTENNA CONNECTOR IGNITION SWITCH (B+) YELLOW MEMORY (B+) BLACK GROUND(B-) AUTO ANTENNA FRONT LchSPK WHITE/BLACK REAR LchSPK GREEN/BLACK FOR 2X7W ANTENNA CONNECTOR IGNITION(B+) MEMORY (B+) GROUND (B-) POWER ANTENNA LEFT SPEAKER NOTE: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. -
Page 6: Installation
INSTALLATION DASH BOARD METAL MOUNTING STRAP HEX NUT SPRING WASHER PLAIN WASHER PLAIN WASHER CONSOLE TAPPING SCREW SLIDE BRACKET HOUSING HEX BOLT... -
Page 7: Disc Notes
DISC NOTES DISC PLAY: Cleaning discs Before playing, clean the disc with a clean, lint-free. Flip the disc in the direction of the arrow. NOTE: Do not use so solvents such as benzine, thinners. Commercially available cleaners or anti static spray damage the unit. Insert a disc with the label surface down. -
Page 8: Specifications
SPECIFICATIONS Supply voltage Current consumption Audio signal output characteristics Frequency Coverage Sensitivity (S/N = 30 dB) : 20 dBu Stereo Separation Frequency Coverage Sensitivity (S/N = 20 dB) : 40 dBu Frequency Coverage Sensitivity (S/N = 20 dB) : 45 dBu Note: Specifications and design are subject to modification, without notice, due to improvements in technology. -
Page 9: Troubleshooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. Should any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of disc inside loaded or ejected. - Page 12 88-C2490-01...
