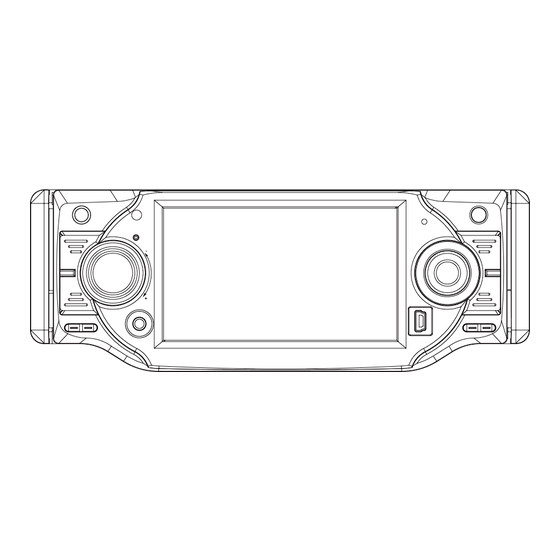

- Page 1 PLD41MUT OWNER'S MANUAL Mobile Video System Motorized Slide Down And Detachable Panel 4 Inch Wide Color Digital Screen TFT Car DVD/VCD/CD/MP3 Player/TV Tuner AM/FM Digital Pll Tuning Radio MPEG4 Player USB Connect Remote Control www.pyleaudio.com...
-
Page 2: Table Of Contents
CONTENTS Safety Information... Disc Notes ... Installation ... Change Angle ... Electric Connection ... Remote Control ... Basic Operation ... MP3/WMA/JPEG Disc Play ... AUX Operation ... Alternate Auido/video Source ... TFT Monitor Operation ... Rear View Camera ... MPEG4 Player ... USB Operation ... -
Page 3: Safety Information
SAFETY INFORMATION CAUTION: THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE . HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER CORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT... -
Page 4: Disc Notes
DISC NOTES Disc formats supported by this player 12 cm disc V I D E O (Single-sided disc only) Video CD 12 cm disc 12 cm disc 12 cm disc CD-RW Discs which cannot be played with this player DVD-ROM DVD-R/DVD-RAM CD-G Handling and Cleaning... -
Page 5: Installation
INSTALLATION NOTES: Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. Use only the parts included with the unit to ensure proper installation. - Page 6 INSTALLATION HEX NUT SPRING WASHER PLAIN WASHER TAPPING SCREW KEY PLATE If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove the PLASTIC COVER of the both sides away, then insert the two KEY PLATE into left and right side of chassis as above illustration. DASH BOARD METAL MOUNTING STRAP...
- Page 7 INSTALLATION How To Remove And Install The Front Panel When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. Detaching The Front Panel Before detaching the control panel, be sure to turn off the power. 1.Press the release button and the left hand side of the front panel will release.
-
Page 8: Change Angle
CHAGNE ANGLE CHANGING THE CONTROL PANEL ANGLE When you want to change the viewing angle of the operating unit to play, you can press the as follows: Angle 1 Angle 4 Caution: Do not insert your finger behind the control panel. (angle)button repeatedly to select the desired angle Angle 2 Angle 3... -
Page 9: Electric Connection
ELECTRIC CONNECTION WIRING CONNECTION TV ANT IN ANTENNA CONNECTOR IGNITION SWITCH(B+) CHOKE MEMORY YELLOW BACK-UP(B+) BLACK GROUND(B-) FUSE AUTO BLUE ANTENNA FRONT Lch SPK. REAR Lch SPK. Note: the earth connection cable (parking brake B-) must be connected in order for DVD pictures to be played back to the monitor. -
Page 10: Remote Control
REMOTE CONTROL Press it to change the display to clock display. 1.CLK Press it to change between TV, RADIO ,DISC and AUX IN mode. 2.MODE Press it to stop playback. 3.STOP Display the SETUP menu. 4.SETUP In radio mode, press it to select STEREO or MONO mode (In disc 5.MO/ST(AUDIO) mode, press it to changing of the AUDIO soundtrack on multi- audio soundtrack DVD disc. -
Page 11: Preparing The Remote Control
REMOTE CONTROL Preparing the Remote Control Inserting the Batteries 1.First push to inside as the direction indicated by the arrow (See Remove the battery holder as the direction indicated by the arrow (See 2.Replace the battery Set a new battery property with (+)side up as illustrated (See 3.Insert the battery holder. -
Page 12: Basic Operation
BASIC OPERATION 17 16 1.REL BUTTON Press the REL button to detach the removable front panel. 2.PWR On/Off BUTTON Press this button to switch the device On, WELCOME appears in the display. Press it again to switch the device Off, SEE YOU appears in the display. 3-4.VOL+/VOL- &... - Page 13 BASIC OPERATION 6. EQ BUTTON Swing the SEL knob briefly in the EQ direction to turn to equalization function and to select desired audio mode. There are five kinds of mode as below: 7. APS/DISP BUTTON In Radio Mode: a) Memory function: swing the SEL knob in the direction of APS/DISP for approximately 2 seconds to active automatic station storage.
- Page 14 BASIC OPERATION BUTTONS (TUNE, SEEK, TRACK, SKIP UP/DOWN) a) In DISC, USB mode: if you wish to jump forwards or backwards press the SEL button (4) briefly in direction. (Note: in DVD mode, press the SEL button continually twice in direction to skip back one track during playback.) Note:For some VCD 2.0 dics(PBC-playback control), be unavailable.
- Page 15 BASIC OPERATION TOP/RPT/INT/RDM FUNCTION (Only for the RC.) A.To memorize the current frequency, press any one of the six preset buttons[1-6] on the remote controller hold for more than 2 seconds. B.To recall the preset memory, press one of the preset buttons [1-6]. C.Press 1/TOP button to select the first track/chapter to play.
-
Page 16: Mp3/Wma/Jpeg Disc Play
BASIC OPERATION MP3/WMA/JPEG DISC PLAY 1.When inserting an MP3/WMA/JPEG disc. Ex: When Mp3 file is detected. 00:56 04:07 Repeat one 003/112 woman 1 new ton ..In stop mode , use then press ENTER button to confirm. Pressing REPEAT button repeatedly can select two kinds of repeat play mode. 2.REP-ONE: Play the same song over and over again. -
Page 17: Tft Monitor Operation
BASIC OPERATION TFT MONITOR OPERATION Press SEL 4 button briefly to across the sound/picture mode selection menu by repeatedly pressing the SEL button you can select the individual menu items such as volume, bass, treble, balance, fader, color, bright, contrast and tint . Then rotate the VOL + / - to adjust the selected mode. -
Page 18: Usb Operation
BASIC OPERATION USB Operation A.Plug the USB connect line to the USB socket (see number 19) of the unit properly,(See fig.1) when the USB appliance connect to the USB port of the connect line, the system star playing track of the USB appliance automatically. -
Page 19: Multi-Audio Language Function
BASIC OPERATION e.Press for the fifth time: The message on the screen will be cleared for SVCD and VCD. C.Example for MP3: Each time OSD is pressed, the message displayed on screen changes as follows: SINGLE ELAPSED SINGLE REMAIN Multi-audio Language Function For DVD: Press AUDIO... -
Page 20: Setup
SETUP GENERAL SETUP --- GENERAL PAGE --- -----General setup page---- TV Display Angle Mark OSD Lang SPDIF/RAW Spdif Output Captions Screen Saver Last Memory Go To General Setup Page 1. Press SETUP button on the remote control . 2.The SETUP menu is displayed. 3.Select the preferred item by using the buttons 4.Press ENTER button. - Page 21 SETUP -----General setup page---- TV Display Angle Mark OSD Lang Spdif Output Captions Screen Saver Last Memory Set Angle Mark ANGLE MARK DISPLAY SETUP If it is set to ON, when the multi-angle DVD disc is playing, mark) will appears on the screen; if is set to OFF, the mark will not appear.
-
Page 22: Speaker Setup
SETUP -----General setup page---- TV Display Angle Mark OSDLang Spdif Output Captions Screen Saver Last Memory Screen Saver 6.SCR SAVER SETUP Select the SCR SAVER output ON/OFF. -----General setup page---- TV Display Angle Mark OSD Lang Spdif Output Captions Screen Saver Last Memory Set Last Memory State 7.LAST MEMORY SETUP... -
Page 23: Preferences Setup
SETUP PREFERENCES SETUP --- PREFERENCES PAGE --- -----Preference Page---- TV Type Audio Subtitle Disc Menu Parental Password Default Set TV standard 1.TV TYPE SETUP This player can play discs recorded in either PAL or NTSC format.Select NTSC format, when you connected to NTSC TV.Select PAL format, when you connected to PAL TV.Select AUTO format, the player TV output format... -
Page 24: Defaults Table
SETUP -----Preference Page---- TV Type Audio Subtitle Disc Menu Parental Password Default Set Parental Control 5.PARENTAL Select suitable parental guidance by the cursor buttons and conformed by pressing ENTER button. -----Preference Page---- TV Type Audio Subtitle Disc Menu Parental Password CHANGE Default Change Password... -
Page 25: Specifications
SPECIFICATION GENERAL Supply Voltage Current Consumption SIGNAL SYSTEM DISCS PLAYED AUDIO SIGNAL OUTPUT CHARACTERISTICS RADIO FM TUNER SECTION Tuning Range IF Range Usable sensitivity(30dB) AM TUNER SECTION Frequency Range IF Range Usable sensitivity(30dB) TV TUNER TV System TV Sensitivity TFT MONITOR Monitor Screen Size Number of Pixels Color System... -
Page 26: Trouble Shooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. SYMPTOM The car ignition switch is not on No power The fuse is blown Presence of disc inside the player.
