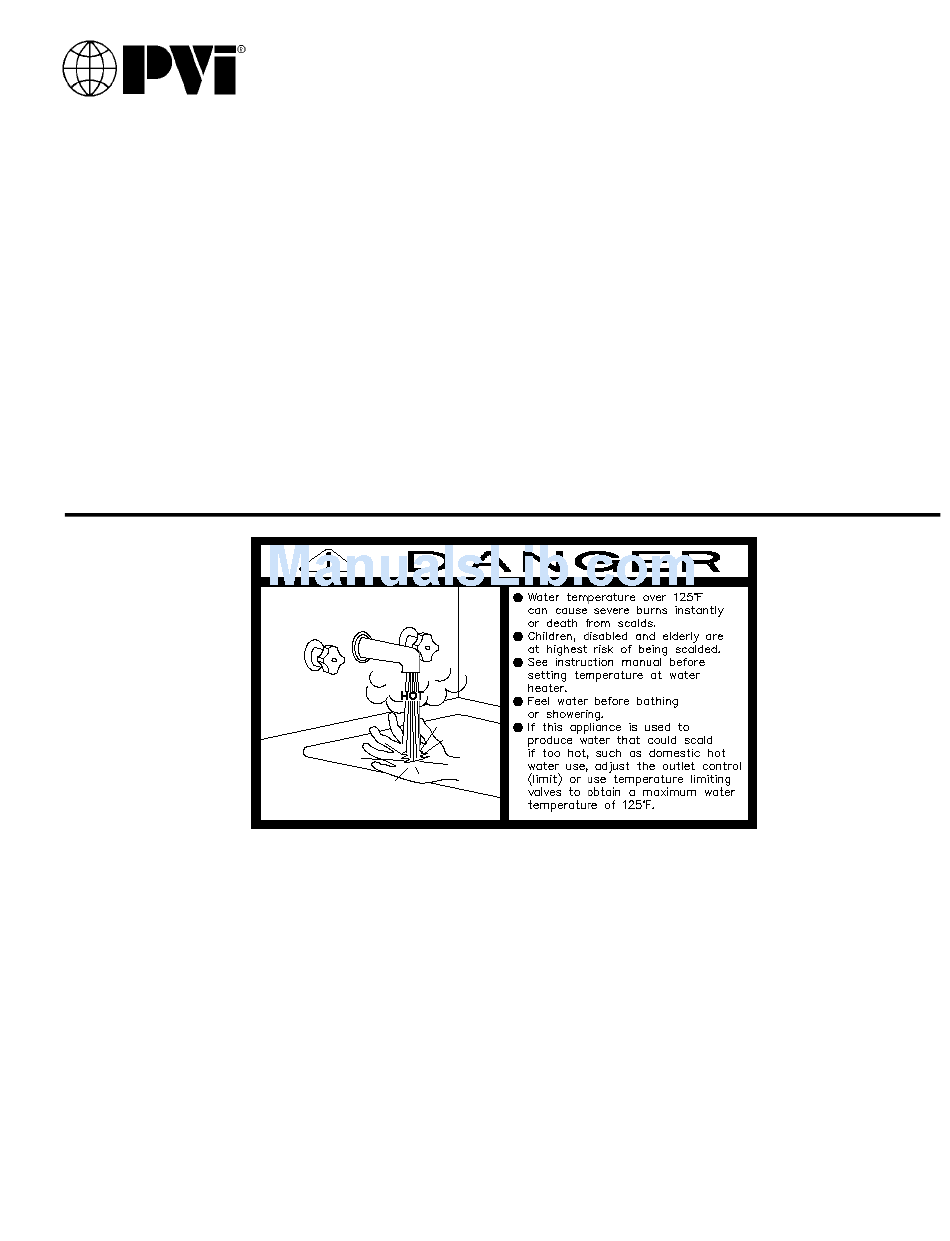

OPERATION and MAINTENANCE

This water heater is equipped with an
adjustable thermostat to control water
temperature.
Hot
required for automatic dishwasher and
laundry use could cause scald burns
resulting in serious personal injury and/or
death. The temperature at which injury
occurs varies with the person's age and
time of exposure. The slower response time
of disabled persons increases the hazards
to them. Never allow small children to use a
hot water tap or to draw their own bath
water. Never leave a child or disabled
person unattended in a bathtub or shower.
PV500-33 05-2002

GENERAL INSTRUCTIONS

For the
INSTALLATION,
DURAWATT EXR

WATER HEATERS

water
temperatures
MODEL NO. ______________
SERIAL NO. ______________
of
Since the thermostat temperature setting
could be set too high, adjust the thermostat
temperature setting to 125°F or lower.
Lower settings help reduce risk of scald
injury. Remember, no water heater system
will provide exact temperature at all times.
Allow a few days of operation at this setting
to
determine
setting consistent with your needs and
remember, "Hotter water increases the risk
of scald injury." Also, the water heater
should be located in an area where the
general public does not have access to set
temperatures.
1
the
correct
temperature
Section 33

Advertisement

loading
Need help?

Need help?

Do you have a question about the Water Heater and is the answer not in the manual?

Questions and answers

Summary of Contents for PVI Industries Water Heater

  • Page 1: General Instructions

    GENERAL INSTRUCTIONS OPERATION and MAINTENANCE This water heater is equipped with an adjustable thermostat to control water temperature. water required for automatic dishwasher and laundry use could cause scald burns resulting in serious personal injury and/or death. The temperature at which injury occurs varies with the person’s age and...
  • Page 2 DURAWATT EXR WATER HEATER 1. Status lights (GRN-Power on; YEL-Elements on; RED-Over temp or low water 2. Float low water cutoff 3. Temperature limiting device (Set at 190°F) 4. Temperature & pressure relief valve 5. Control enclosure 6. Supply & remote signal connections...
  • Page 3 DURAWATT EXR WATER HEATER ELECTRICAL CONNECTIONS 1. Check rating plate on water heater for correct voltage, phase and amperage. Refer to wiring diagram for control component identification. 2. Use a proper wire size and branch circuit protection as required by the National Electrical Code and state/local codes.
  • Page 4 DURAWATT EXR WATER HEATER 8. Open water outlet valve. Water heater is ready for operation. Heat up time will be dependent on input and tank capacity. 9. After startup and with the water heater operating, allow the water in the tank to reach desired temperature and the heating elements shut off.
