Page 1: Operation Manual
QA40BT CD / SD / USB / MP3 / AM / FM / BLUETOOTH RECEIVER QA40BT CD/SD/USB/RADIO/BT/MP3/AUX DIGITAL MEDIA RECEIVER WITH BLUETOOTH MP3 / WMA SD CARD Bluetooth I N P U T S L O T I N P U T... -
Page 2: Safety Precautions
Welcome Congratulations on your purchase of this Quantum Audio head unit. Your Selection of a Quantum Audio product indicates a true appreciation of fine musical reproduction. To ensure proper use of this unit, please make sure to read the owner's manual carefully before operating and keep it for future reference. -
Page 3: Panel Function

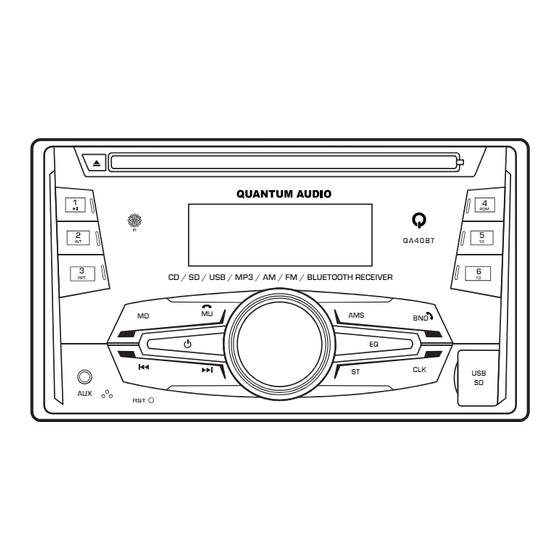

Panel Function QA40BT CD / SD / USB / MP3 / AM / FM / BLUETOOTH RECEIVER 9 10 1112 13 14 15 16 17 1819 20 21 1. Track Play/pause & Radio Preset 1 13. Track Forward 2. Track Intro & Radio Preset 2 14. -
Page 4: Remote Function
Remote Function Power Pause/play/Radio Preset l Intro/Radio Preset 2 Repeat /Radio Preset 3 Random/Radio Preset 4 Radio Preset 5 Radio Preset 6 Audio Mute Volume Control Mode Selection Radio ST/MO Loudness Selection Radio Scan Display Radio APS/AMS Radio LOC/DX Phone Select Track Selection Select Button Disk Eject... -
Page 5: Installation Instructions
Installation Instructions - Yellow: (Radio memory): Connect this lead to the constant 12V (+) post of the vehicle's battery. - Red: (ACC) switched 12V only when the ignition is turned on or in the accessory position. - Black: (Ground) Connect this lead to chassis ground on the vehicle. Make sure the connection is made to bare metal and is securely fastened - Blue: Power antenna /Amp remote turn on Speaker wire connections:... -
Page 6: Troubleshooting
This guide will help you isolate the problem if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized Quantum Audio dealer PROBLEM... - Page 7 (1) year. This warranty applies to the original purchase only. Quantum Audio will either repair or replace (as its option) any unit that has been found to be defective and under warranty provided the defect occurs within the one (1) year warranty period.
