PVI Industries 250P225A-TPL Specifications

LOW NO
Recovery gph
MODEL
NUMBER
40° - 120°F 40° - 140°F
250 P 225A-TPL 250
375 P 225A-TPL 375
500 P 225A-TPL 500
Recoveries based on 83% thermal efficiency. ASHRAE 90.1 compliant for efficiency and standby loss.
"J" dimension is for the burner housing only – gas train may exceed this dimension.
Standard gas train.
* The information presented is for natural gas 0.6 S.G.
Dimensions are in inches unless otherwise specified.
For standard and optional equipment, see form #PV6550.
STANDARD GAS PRESSURE REQUIREMENTS:
SEE TABLE FOR MINIMUM PRESSURE BY MODEL NUMBER.
MAXIMUM STATIC INLET GAS PRESSURE IS 14" W.C.
FOR GAS PRESSURES OUTSIDE OF THIS RANGE,
CONTACT YOUR PVI REPRESENTATIVE.
VENTING REQUIREMENTS:
-.02" TO -.06" W.C. (NEGATIVE PRESSURE).
TYPE B VENTING.
ENTIRE VENT SYSTEM SHOULD NEVER BE SIZED BASED UPON
THE VENT CONNECTION DIAMETER EXCLUSIVELY. CHECK
NATIONAL FUEL GAS CODE UNDER "FAN ASSISTED."
PV 6554 02/25/04
TURBOPOWER
x
®
POLYSHIELD POLYMER-LINED STORAGE TANK
TANK SERIES 225 GALLONS VERTICAL
Min. Inlet
INPUT
Flow Gas
Btu/h
Pressure
" W.C.
200 199,000 4.5
300 300,000 4.5
400 399,000 4.5
PVI INDUSTRIES, LLC
FORT WORTH, TEXAS 76111
(800) 784-8326 • www.pvi.com
• PACKAGED WATER HEATER
®

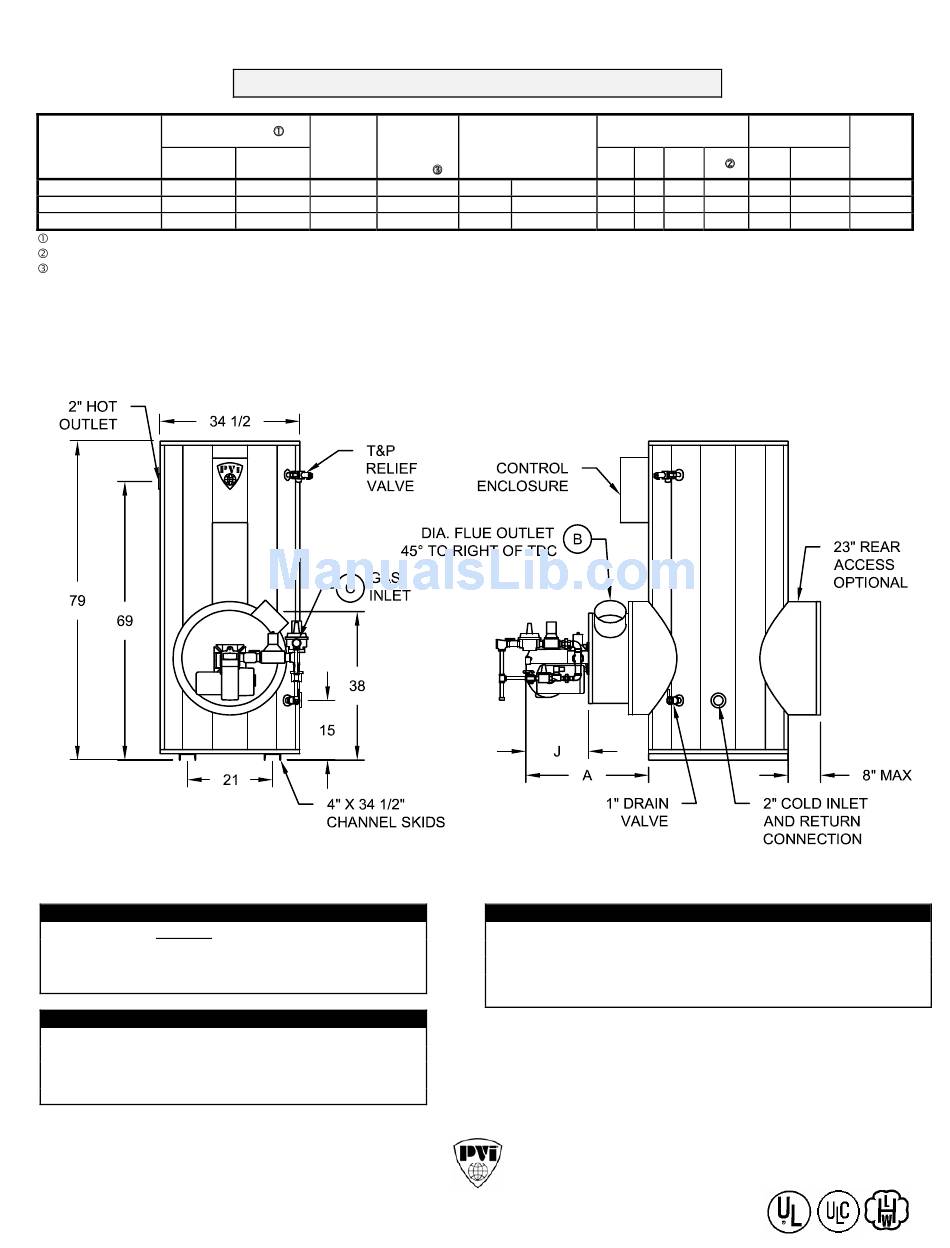

Dimensions (inches)
SCAQMD Energy
Model No.
A
2TPL 199 MBtu/h 27
3TPL 299 MBtu/h 27
4TPL 399 MBtu/h 27
STANDARD ELECTRICAL REQUIREMENTS:
CONTROL VOLTAGE: 120V, 1Ø, 60 HZ., 2 AMPS.
MOTOR VOLTAGE: 1/3 HP ARE 120V, 1Ø, 60 HZ.
208V, 230V AND 460V MOTORS ARE AVAILABLE BUT WILL
REQUIRE A SEPARATE 120V/2 amps CONTROL CIRCUIT OR AN
OPTIONAL CONTROL CIRCUIT TRANSFORMER.
PVI RESERVES THE RIGHT TO CHANGE THE DESIGN AND
Blower
Motor
B C J HP Amps
4 1/2 16 1/3 8
4 3/4 16 1/3 8
5 3/4 16 1/3 8
SPECIFICATION WITHOUT NOTICE.
Product is patented in the U.S., Canada, and Mexico.
Shipping
Weight
lbs
1230
1240
1250
