PVI Industries 1000N400A-TPO Specification Sheet

TURBOPOWER
Recovery gph
Model
Number
40°- 120°F 40°- 140°F
250 N 400A-TPO
500 N 400A-TPO
750 N 400A-TPO
1000 N 400A-TPO
1250 N 400A-TPO
1500 N 400A-TPO
2000 N 400A-TPO
2500 N 400A-TPO
3000 N 400A-TPO
3500 N 400A-TPO
4000 N 400A-TPO
Recoveries based on 83% thermal efficiency. ASHRAE 90.1 compliant for efficiency and standby loss.
"J" dimension is for the burner housing only.
4" x 42" Channel skids for inputs ≤ 1000 MBtu/h.
4" x 53" Channel skids for inputs > 1000 MBtu/h.
Dimensions are in inches unless otherwise specified.
For standard and optional equipment, see form PV 6004.
VENTING REQUIREMENTS
-.02" TO -.06" W.C. (NEGATIVE PRESSURE)
ENTIRE VENT SYSTEM SHOULD NEVER BE SIZED BASED
UPON THE VENT CONNECTION DIAMETER EXCLUSIVELY.
FOR PROPER SIZING, CONSULT VENTING SUPPLIER.
* REAR ACCESS MODULE
MODEL PREFIX M
250-1500 23"
2000-2500 23"
3000-4000 30"
PV 5420 04/05
® OIL
®
NICKELSHIELD
TANK SERIES 400 GALLONS
Input
Btu/h
250 200 199,000
500 400 399,000
750 600 600,000
1000 800 800,000
1250 1000 1,000,000
1500 1200 1,200,000
2000 1600 1,600,000
2500 2000 2,000,000
3000 2400 2,400,000
3500 2800 2,800,000
4000 3200 3,200,000
L STD or OPTIONAL
8" OPTIONAL
18" STANDARD
25" STANDARD
FORT WORTH, TEXAS 76111
(800) 784-8326

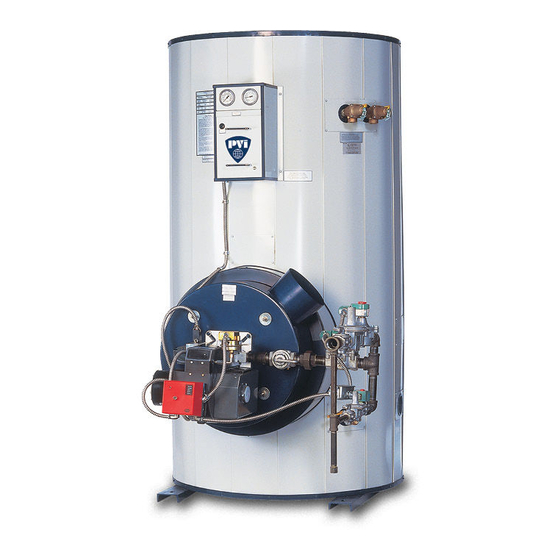

PACKAGED WATER HEATER
NICKEL-PLATED STORAGE TANK

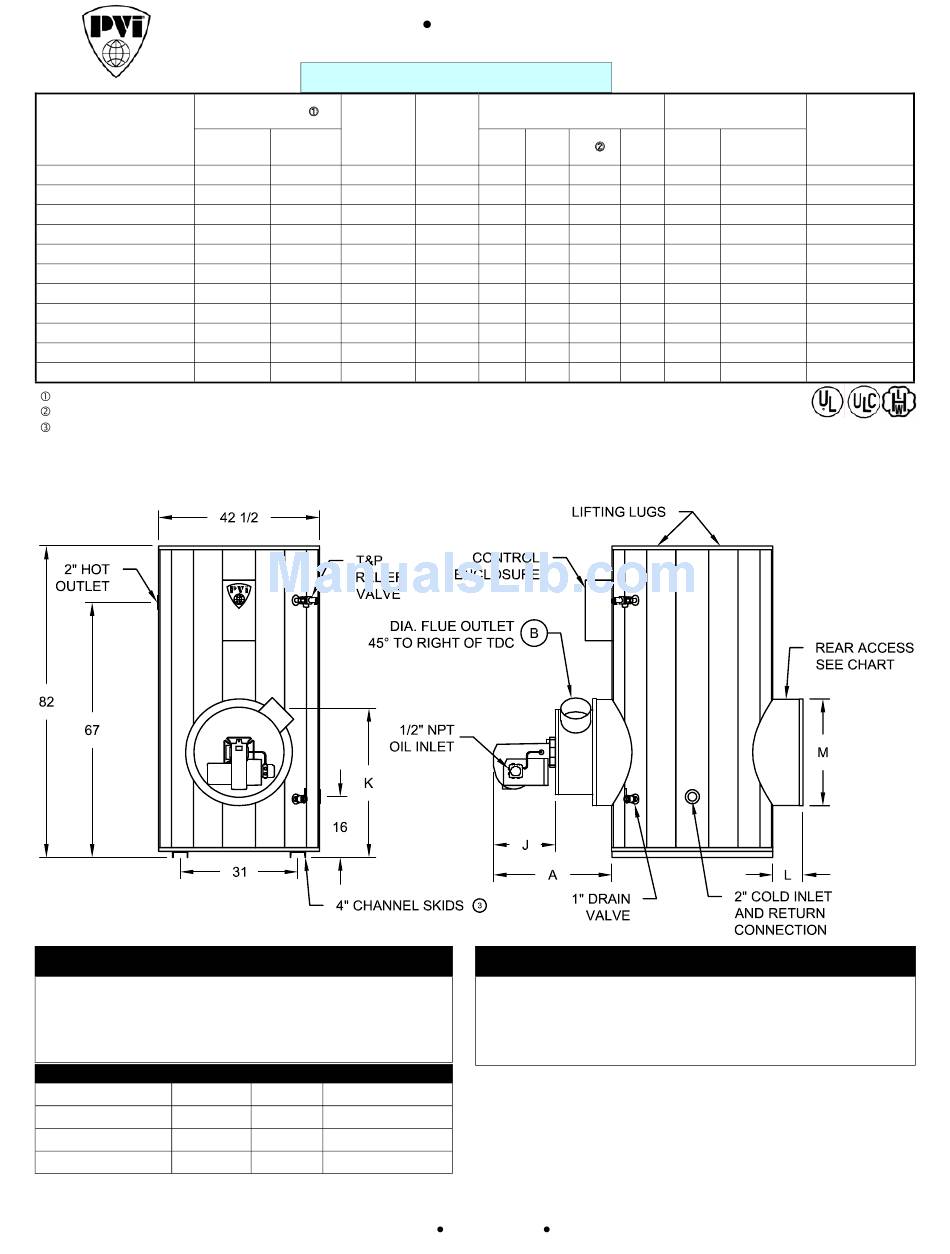

Dimensions (inches)
Gph
#2 Oil
A B
1.4 29 4
2.8 29 5
4.3 32 6
5.7 32 8
7.2 49 8
8.6 49 8
11.4 61 10
14.3 61 10
17.1 60 12
20.0 60 12
22.8 60 12
STANDARD ELECTRICAL REQUIREMENTS
CONTROL VOLTAGE: 120V, 1Ø, 60 HZ., 2 AMPS.
MOTOR VOLTAGE:
208V, 230V, AND 460V MOTORS ARE AVAILABLE BUT WILL
REQUIRE A SEPARATE 120V/2 amps CONTROL CIRCUIT OR AN
OPTIONAL CONTROL CIRCUIT TRANSFORMER.
PVI INDUSTRIES, LLC
(817) 335-9531 www.pvi.com
Blower
Motor
Volt/Ph/
J K HP
Amps
17 39 1/3
115/1∅/8
17 39 1/2
115/1∅/10
17 39 1/2
115/1∅/10
17 39 1/2
115/1∅/10
17 39 1/2
115/1∅/10
17 39 1/2
115/1∅/10
25 39 1-1/2
115/1∅/20
25 39 1-1/2
115/1∅/20
25 50 1-1/2
115/1∅/20
25 50 5
230/3∅/16
25 50 5
230/3∅/16
PVI RESERVES THE RIGHT TO CHANGE THE DESIGN
AND SPECIFICATION WITHOUT NOTICE.
Product is patented in the U.S., Canada, and Mexico.
