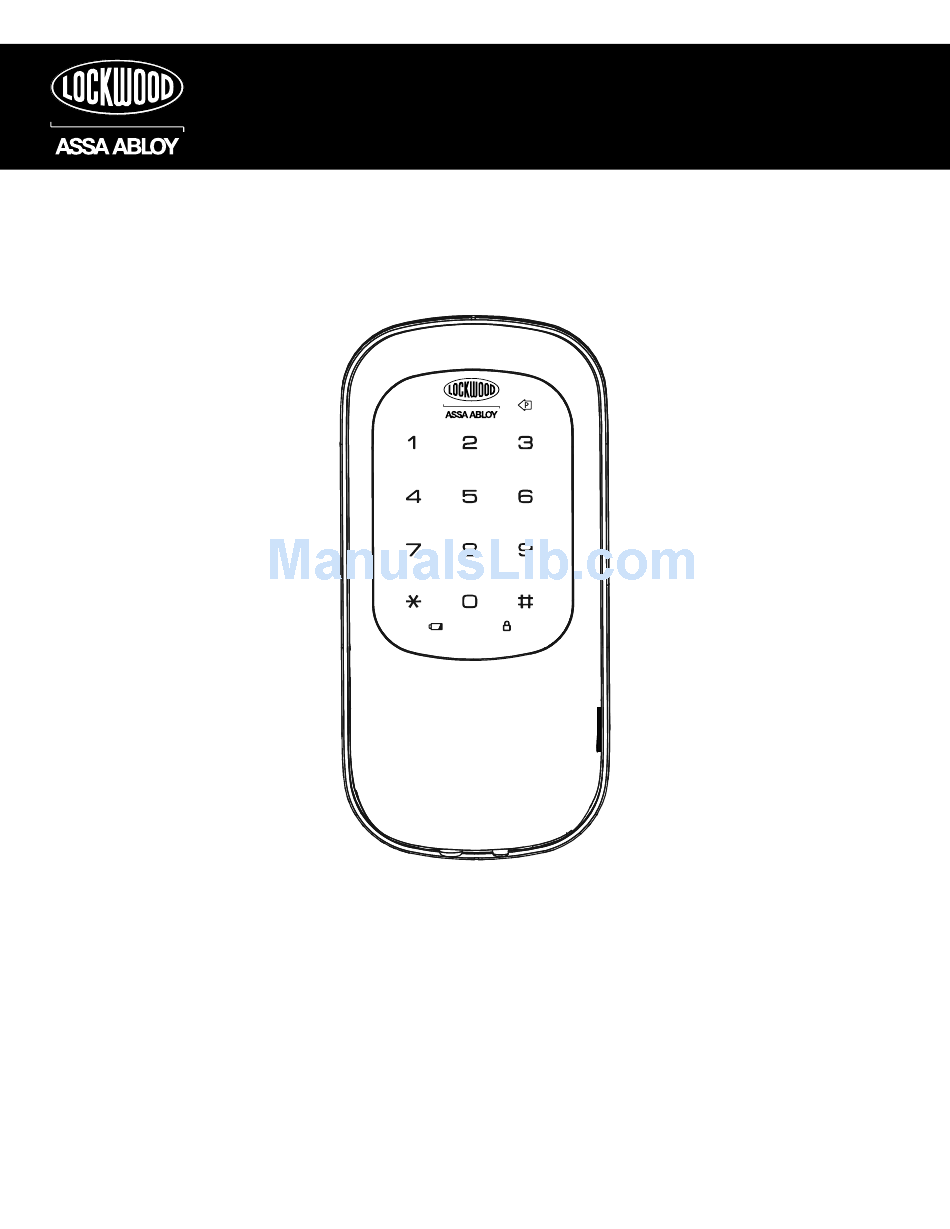

- Page 1 KEYLESS WIRELESS DIGITAL DEADBOLT USER GUIDE LKDDBW/SC - 0316 Lockwood Keyless Wireless Digital Deadbolt...
-
Page 3: Table Of Contents
Table of Contents Warnings _______________________________________________________________________________________________4 Introduction _____________________________________________________________________________________________4 Installation _______________________________________________________________________________________________ Components and Tools _________________________________________________________________________________5 Prepare Lock for Installation _____________________________________________________________________________6 Install Lock ___________________________________________________________________________________________7 Programming _____________________________________________________________________________________________ Programming Features-Menu Keys-Definitions _____________________________________________________________9 Components and Tools ________________________________________________________________________________10 Definitions __________________________________________________________________________________________10 Operation ___________________________________________________________________________________________11 Feature Programming Through Menu Mode Using Master PIN code ___________________________________________13 Miscellaneous Information __________________________________________________________________________________ Pairing with Z-Wave/ZigBee Controllers __________________________________________________________________14 Hardware Troubleshooting _____________________________________________________________________________16... -
Page 4: Warnings
IMPORTANT: The accuracy of the door preparation is critical for the proper functioning and security of this product. Misalignment can cause premature wear and a lessening of security. The Lockwood Digital Deadbolt should only be serviced by a qualified technician. -
Page 5: Installation
INSTALLATION Components and tools Included in the box... • Installation & Programming Guide • Inside Mounting Plate • Strike Plate • Outside Escutcheon • Battery Cover • Screw Pack • 4 AA Alkaline Batteries • Bolt • Plastic Gaskets • Inside Escutcheon •... -
Page 6: Prepare Lock For Installation
Prepare lock for installation Unpack the Lock The lock is packed representative of how it will install on the door. Before installing the lock on the door: A. Inside escutcheon 1. Loosen the screw (Phillips #2) holding the battery cover. (The screw remains attached to battery cover) Battery Cover 2. -
Page 7: Install Lock
Install Lock 1. Install bolt in door. NOTE: The bolt must be in a retracted (unlocked) position when installing the lockset. Attach with (2) M4 x 25.4mm screws supplied. (2) M4 x 25.4mm [8-32 x 1"] Flat Head Combination Screws 2. - Page 8 CAUTION: Use care when assembling to ensure that the cable lies against the back recessed area of the inside escutcheon (Fig. 6A). Position and bend cable, using the harness clips as shown in Fig. 6A to prevent binding when installing the escutcheon over the mounting plate.
-
Page 9: Programming
Register U PROGRAMMING Programming Features-Menus-Keys-Definitions ________________________________________9 Operation ________________________________________________________________________11 Programming Features - Menus - Keys - Definitions Outside Inside Advanced Loc User Number (UN) Phillips Head Screw P Key Touchscreen 1~25 : without network modile (Return to Previous) Battery Cover 1~250 : with network module Default Low Battery Numbers... -
Page 10: Components And Tools
Register Continue Complete Components and tools Low Battery Warning All Code Lockout Mode Return to previous step Delete Continue Complete Definitions Automatic Re-lock Enable Master PIN Code: The Master PIN code is used for programming and for feature settings. It must be registered prior Disable to programming the lock. -
Page 11: Operation
Operation Register Master PIN Code Before Programming Step 1 Touch the screen with the back of your hand or fingers to activate. Step 2 Press the key. Lock Response: “Register Master Code; press the # key to continue.” Step 3 Press the key. - Page 12 Set Up User Codes User PIN Codes can only be programmed through the Master PIN Code*. 1. Touch the screen with the back of your hand or fingers to activate 2. Enter a 4-8 digit Master PIN code followed by the key.
-
Page 13: Feature Programming Through Menu Mode Using Master Pin Code
Feature Programming Through Menu Mode Using Master PIN code 1. Enter the 4-8 digit Master PIN code followed by the key. 2. Enter digit corresponding to the function to be performed followed by the key. Volume Se User Number (UN) Master PIN Setting* 1~25 : without network modile 1~250 : with network module... -
Page 14: Pairing With Z-Wave/Zigbee Controllers
(PC or hand-held device) to ensure communication between the lock and the If the Lockwood Wireless Digital Deadbolt shows option B as above, the Digital Deadbolt has been paired controller unit. with another Z-Wave/Zigbee controller and needs to be unpaired. - Page 15 This means the Digital Deadbolt is ready to be paired. To do that, the controller must be set on the paired mode. Then the above step 3 needs to be followed in the Lockwood Wireless Digital Deadbolt to include it controller unit.
-
Page 16: Hardware Troubleshooting
Troubleshooting Hardware Troubleshooting Cycle the lock in both the locked and the unlocked positions. If problems are found: Symptom Suggested Action Door is binding a. Check that door and frame are properly aligned and door is free swinging. b. Check hinges: They should not be loose or have excessive wear on knuckles. Bolt will not deadlock a. -
Page 17: Programming Troubleshooting
Programming Troubleshooting Symptom Suggested Action Lock does not respond - door is open and • Press each keypad button to see if they respond when pressed. accessible. • Check batteries are installed and oriented correctly in the battery case. • Check batteries are in good condition; replace batteries if discharged. •... -
Page 18: Reset Lock To Factory Default
TO RESET THE LOCK TO FACTORY DEFAULT, SEE THE FOLLOWING: Reset Lock to Factory Default The following procedure returns the lock to its factory defaults by deleting all user codes (including the Master PIN code) and returning all programming features to their original default settings (see below). 1. -
Page 19: Installing The Network Module
Installing/Removing the Network Module IMPORTANT: The batteries must be removed prior to removing and/or inserting the network module: Remove battery cover • Remove batteries • Remove and/or insert network module • Reinstall batteries • Use feature programming step 7 (page 13) for enrollment of the Network Module. -
Page 20: Pin Code Management Sample Sheet
Pin Code Management Sample Sheet PIN Code Management (up to 20 users) Location: Door Number: User Type User Name PIN Code User Type User Name PIN Code Master User 01 User 11 User 02 User 12 User 03 User 13 User 04 User 14 User 05... - Page 21 Lockwood is the leading brand in the Australian locking industry. With an established reputation for high quality products, this iconic brand provides a wide range of locking solutions to residential housing, commercial building and industrial application markets.
