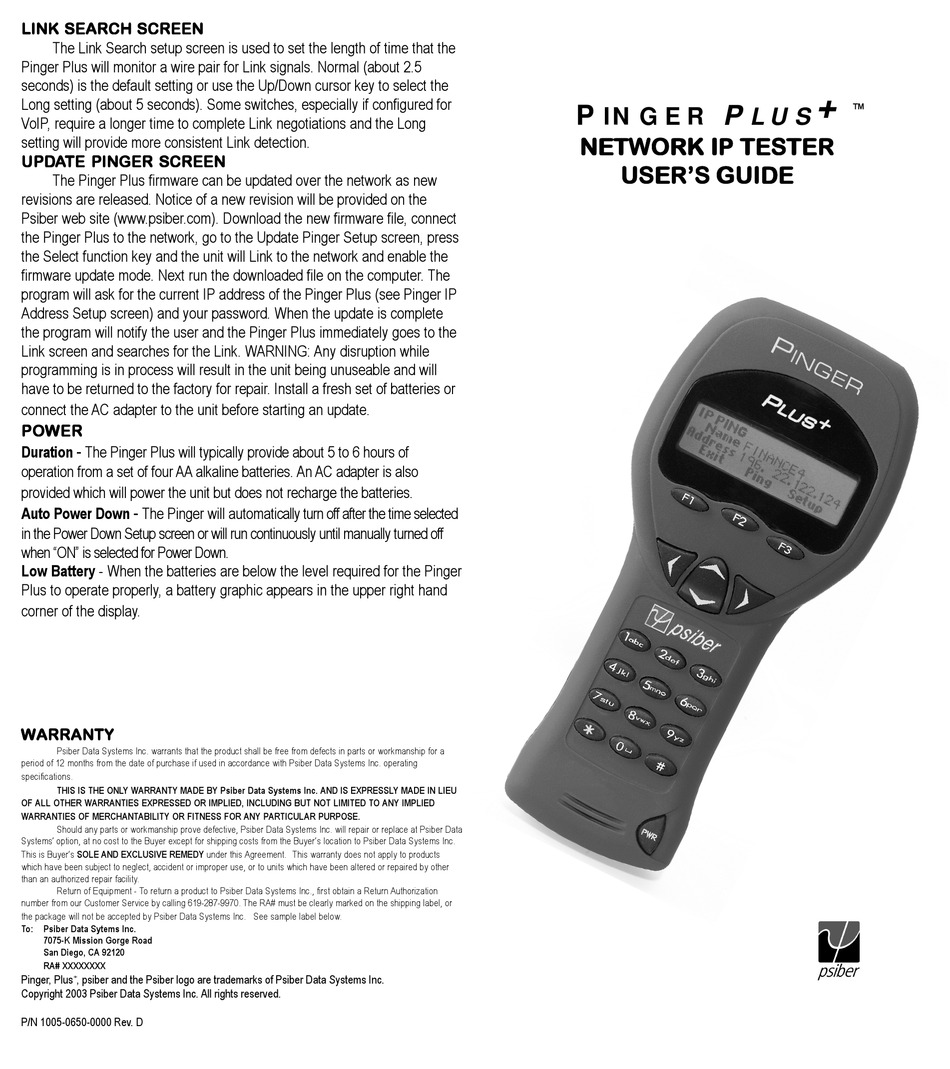

Psiber Data Systems Psiber PINGER User Manual

LINK SEARCH SCREEN

LINK SEARCH SCREEN LINK SEARCH SCREEN
LINK SEARCH SCREEN LINK SEARCH SCREEN
The Link Search setup screen is used to set the length of time that the
Pinger Plus will monitor a wire pair for Link signals. Normal (about 2.5
seconds) is the default setting or use the Up/Down cursor key to select the
Long setting (about 5 seconds). Some switches, especially if configured for
VoIP, require a longer time to complete Link negotiations and the Long
setting will provide more consistent Link detection.
UPDA A A A A TE PINGER SCREEN UPD UPD TE PINGER SCREEN TE PINGER SCREEN TE PINGER SCREEN
UPD UPD TE PINGER SCREEN
The Pinger Plus firmware can be updated over the network as new
revisions are released. Notice of a new revision will be provided on the
Psiber web site (www.psiber.com). Download the new firmware file, connect
the Pinger Plus to the network, go to the Update Pinger Setup screen, press
the Select function key and the unit will Link to the network and enable the
firmware update mode. Next run the downloaded file on the computer. The
program will ask for the current IP address of the Pinger Plus (see Pinger IP
Address Setup screen) and your password. When the update is complete
the program will notify the user and the Pinger Plus immediately goes to the
Link Screen and searches for the Link. WARNING: Any disruption while
programming is in process will result in the unit being unuseable and will
have to be returned to the factory for repair. Install a fresh set of batteries or
connect the AC adapter to the unit before starting an update.
PO PO WER WER
PO PO POWER WER WER
-
Duration The Pinger Plus will typically provide about 5 to 6 hours of
Operation from a set of four AA alkaline batteries. An AC adapter is also
provided which will power the unit but does not recharge the batteries.
-
Auto Power Down The Pinger will automatically turn off after the time selected
in the Power Down Setup screen or will run continuously until manually turned off
when "ON" is selected for Power Down.
Low Battery - When the batteries are below the level required for the Pinger
Plus to operate properly, a battery graphic appears in the upper right hand
corner of the display.
WARRANTY WARRANTY WARRANTY WARRANTY WARRANTY
Psiber Data Systems Inc. warrants that the product shall be free from defects in parts or workmanship for a
period of 12 months from the date of purchase if used in accordance with Psiber Data Systems Inc. operating
specifications.
THIS IS THE ONLY WARRANTY MADE BY Psiber Data Systems Inc. AND IS EXPRESSLY MADE IN LIEU
OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
Should any parts or workmanship prove defective, Psiber Data Systems Inc. will repair or replace at Psiber Data
Systems' option, at no cost to the Buyer except for shipping costs from the Buyer's location to Psiber Data Systems Inc.
This is Buyer's SOLE AND EXCLUSIVE REMEDY under this Agreement. This warranty does not apply to products
which have been subject to neglect, accident or improper use, or to units which have been altered or repaired by other
than an authorized repair facility.
Return of Equipment - To return a product to Psiber Data Systems Inc., first obtain a Return Authorization
number from our Customer Service by calling 619-287-9970. The RA# must be clearly marked on the shipping label, or
the package will not be accepted by Psiber Data Systems Inc. See sample label below.
To: Psiber Data Sytems Inc.
7075-K Mission Gorge Road
San Diego, CA 92120
RA# XXXXXXXX
Pinger, Plus , psiber and the Psiber logo are trademarks of Psiber Data Systems Inc.
+
Copyright 2003 Psiber Data Systems Inc. All rights reserved.
P/N 1005-0650-0000 Rev. D
P P
INGER LUS
NETW NETW NETWORK IP TESTER NETW NETW ORK IP TESTER ORK IP TESTER ORK IP TESTER ORK IP TESTER
USER'S GUIDE USER'S GUIDE
USER'S GUIDE USER'S GUIDE USER'S GUIDE
+
TM
