Summary of Contents for PS Audio GCHA

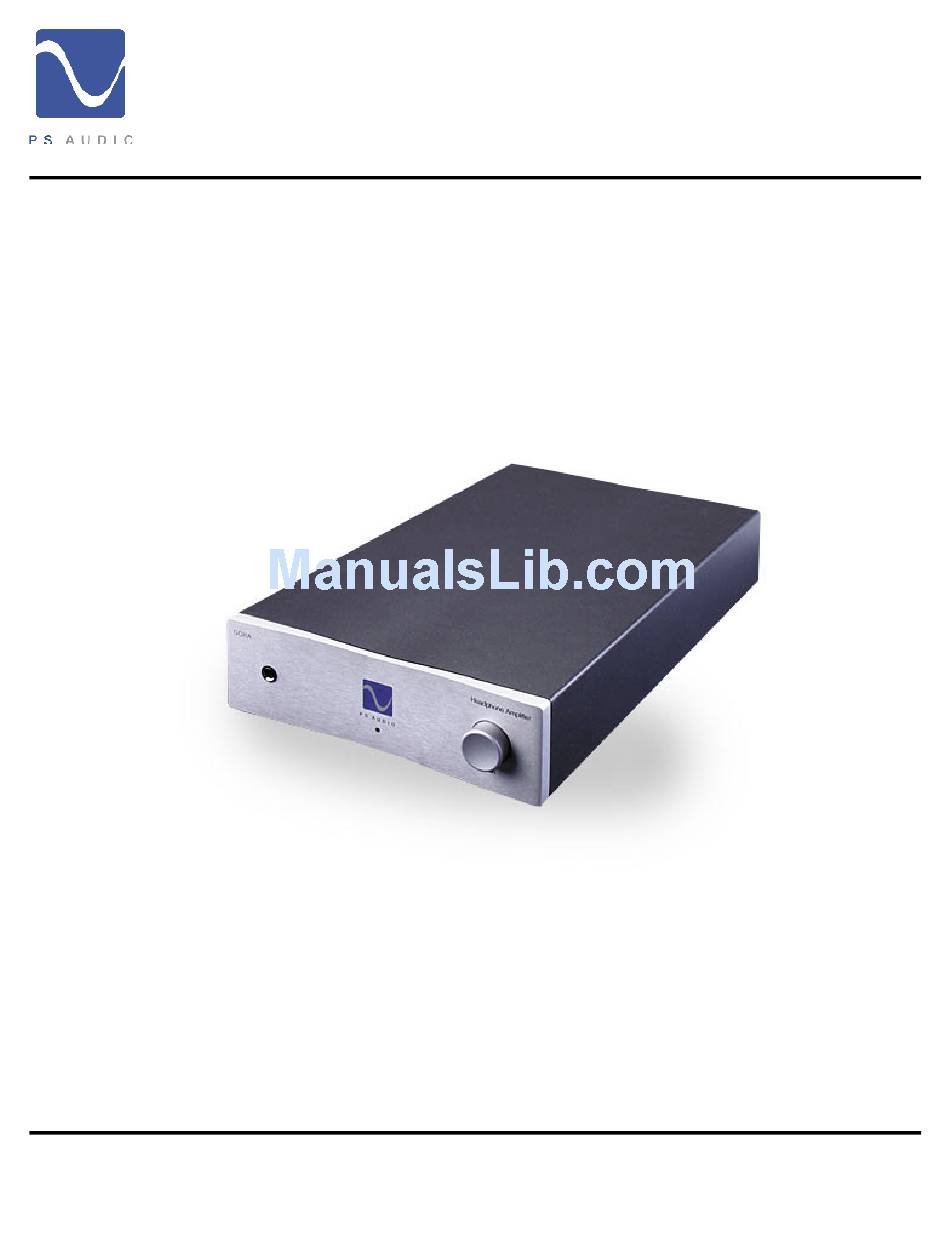

- Page 1 ® Owner’s Reference Owner’s Reference GCHA Headphone Amplifi er Instructions for use GCHA Headphone Amplifi er Document 15-044-21-1 4826 Sterling Drive, Boulder, CO 80301 Introduction i PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2005 PS Audio International Inc. All rights reserved.
-
Page 2: Important Safety Instructions
When making connections to this or any other component, make sure all components are off. Turn off all systems’ power before connecting the PS Audio component to any other component. Make sure all cable terminations are of the highest quality. -
Page 3: Table Of Contents
Troubleshooting Warranty Service 4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 service@psaudio.com www.psaudio.com Table Of Contents ©2005 PS Audio International Inc. All rights reserved. Owner’s Reference GCHA Headphone Amplifi er 2 - 3 4 - 5 6 - 7 8 - 9... -
Page 4: Introduction

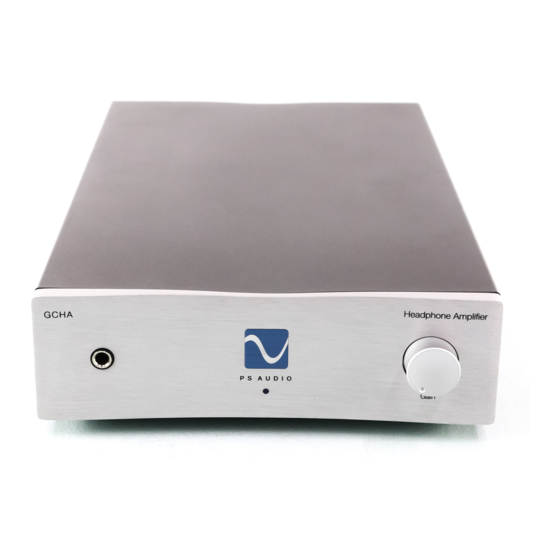

The GCHA is a high-end headphone amplifi er designed for audiophile listening. It is based on PS Audio’s unique Gain Cell Technology. The GCHA contains a Gain Cell’s preamplifi er stage and a Class A biased output stage. The GCHA can accept audio signals from any analog source or digital audio from your USB-compliant computer. -
Page 5: Getting Started
Once your new GCHA is unpacked, you’ll need to fi nd a convenient place to set it. Location There are several ways to mount the GCHA: on a shelf next to the preamplifi er, CD or DVD player, or on a desk or table near your computer. -
Page 6: Quick Start Guide
Once the GCHA has been powered, turn the front panel gain control clockwise to turn the unit “on”. Make sure the Once it is “on”, note the blue light on the front panel of the GCHA, under the logo, should be lit. Your GCHA is on GCHA Headphone Amplifi... -
Page 7: Input Selection
® It should not be necessary to reboot your computer once the GCHA is connected, however, fi rst time users of the GCHA may need to reboot or otherwise instruct the computer to install the new USB device if the unit does not install automatically when plugged in. -
Page 8: Questions And Answers
There is no harm in leaving the unit on at all times as the lifespan of the GCHA will be unaffected. There is a user replaceable internal fuse inside the GCHA. However, this fuse should not be replaced Are there any without fi... -
Page 9: Turning The Unit On/Off
I run GCHA rated for. For instance, do not take a 120 volt rated GCHA and attempt to use it in a 220 volt country. Failure to observe this cautionary note will void your warranty. If you need to operate the GCHA at a voltage other than the voltage it was designed for, contact your dealer, distributor or the factory for help. -
Page 10: Troubleshooting
AC power or the front panel gain control is in the off position. not power up If you suspect the unit is not getting power, test the receptacle feeding the GCHA power to see if No AC in there is power. The easiest way to do this is by using a lamp that you have previously verifi ed works. - Page 11 From the Control Panel, choose Sounds, Speech and Audio Devices. Open this dialog box and adjust the system volume all the way up. If you do not adjust the system volume up, the GCHA may not have enough volume to satisfy your listening requirements.
-
Page 12: Warranty
In the event the product fails to meet this Warranty and the above conditions have been met, the purchaser’s sole remedy under this Limited Warranty shall be to return the product to PS Audio or an authorized PS Audio repair center where the defect will be repaired without charge for parts or labor. -
Page 13: Outside The Us
PS Audio will fulfi ll the conditions of the warranty. Such product must be returned at the owner’s expense to the PS Audio factory, together with a photocopy of the bill of sale for that product, a detailed description of the problem, and any information necessary for return shipment. - Page 14 RA number must be inside the box to number qualify for service. If you are transferring your warranty, you must fi rst contact PS Audio or your dealer or distributor for details. To contact the PS Audio Service Department:...
- Page 15 2. Insure and accept all liability for loss or damage to the product during shipment to the dealer or distributor’s Service Department and ensure all freight (shipping) charges are prepaid. If you feel your country’s dealer or distributor is either unwilling or unable to service your PS Audio If you have products, please contact our service department at service@psaudio.com or at the above contact...
- Page 16 ® Notes Owner’s Reference GCHA Headphone Amplifi er 4826 Sterling Drive, Boulder, CO 80301 Notes PH: 720.406.8946 service@psaudio.com www.psaudio.com ©2005 PS Audio International Inc. All rights reserved.
