Summary of Contents for BDI Novia 8421

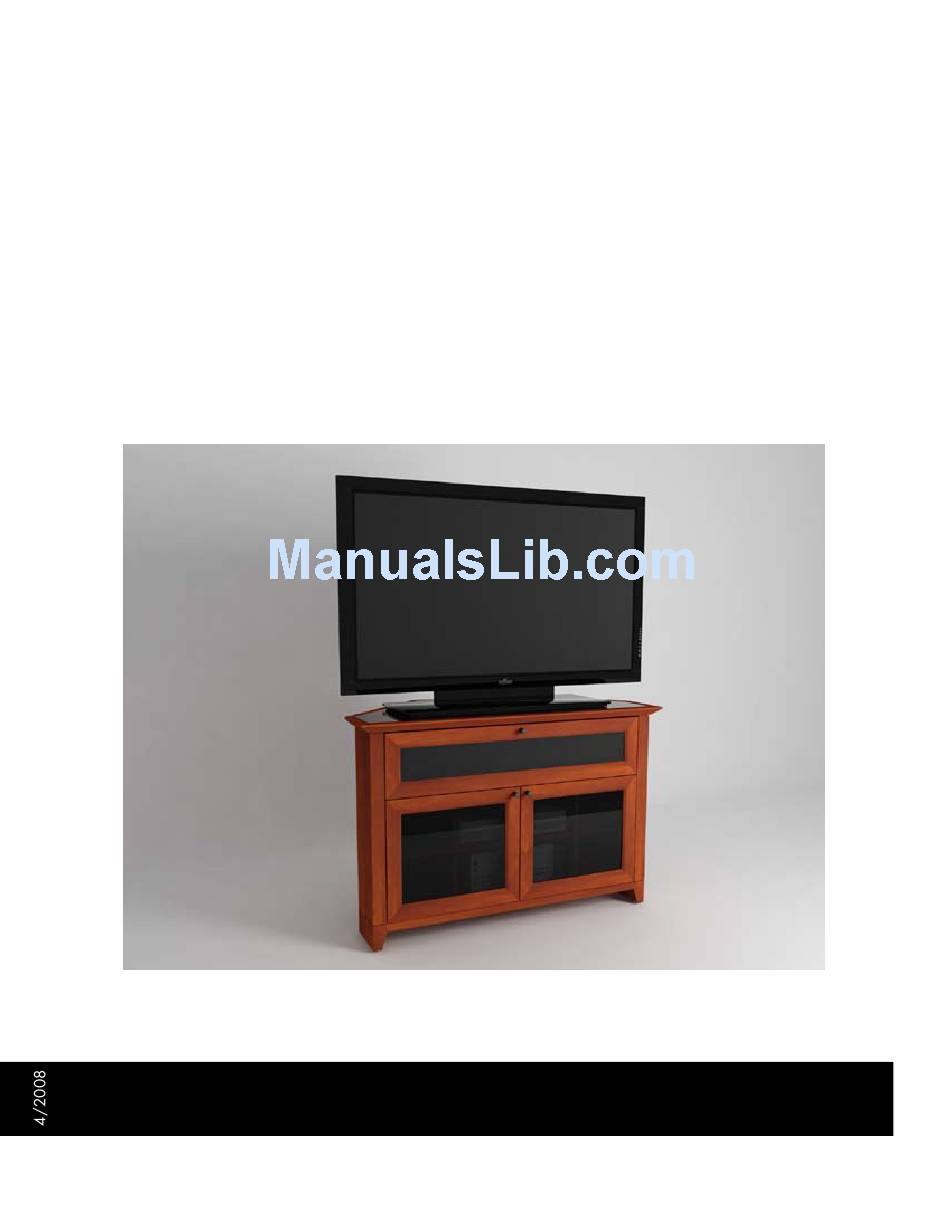

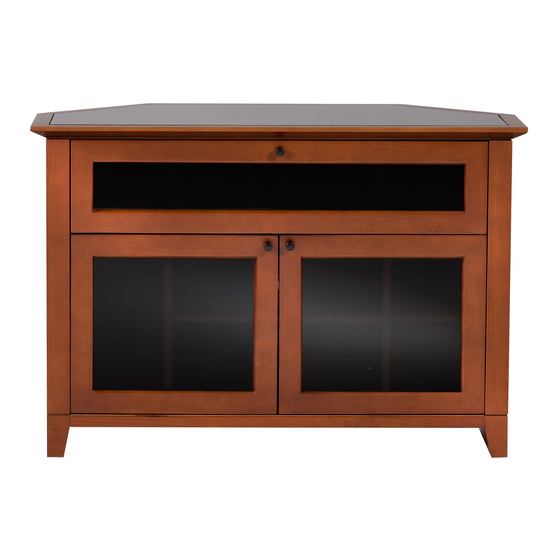

- Page 1 Novia ® 8421 Assembly Instructions...
- Page 2 C - Leveler Wrench x 1 Unpack and identify the parts listed above. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer D - Knob Screw x 3 Service at: customerservice@bdiusa.com All other concerns please contact your local BDI Retailer.
- Page 3 Step 3 Install Knob (E) to the front side of door and drawer faces using Knob Screw (D) and Phillips Screwdriver (B). The shelf pins located inside the left and right cabinet space may be repositioned, allowing you to raise or lower the shelf to the desired level.
- Page 4 Option A The flip-down door compartment may be used to house a center channel speaker (up to 37.5” width x 10.5” depth x 8” height). Option B In conjunction with a center channel speaker, or component (up to 19.25” width x 15.5” depth x 8” height), this area may be used to store DVD’s, VHS cassettes, and CD’s.
- Page 5 Option C Side compartment may be used to accommo- date a vertical standing video game unit. To do this, first remove the wood strip and then adjustable shelf. Optional glass panel insert is available. Contact BDI Customer Service at: customerservice@bdiusa.com...
- Page 6 Step 5 Leveling There are adjustable levelers on the bottom of the cabinet, which may be adjusted depending on your leveling situation. Two of the four leveler glides are accessible near the bottom of the side panels using the Leveler Wrench (C) Turn clockwise to raise cabinet.
- Page 7 This allows easier cabinet movement for greater access to rear panels and wire-management, and permits easier cleaning/vacuuming underneath the cabinet. By following the simple steps in this guide, you can be sure that your BDI cabinet is in optimum tune. If you need additional assistance, contact BDI at customerservice@bdiusa.com.
- Page 8 Fine-tuning your Novia Home Theater Cabinet (continue) Some BDI cabinets feature a ‘flip-down’ door with two round hinge assemblies and an articulating arm assembly. (Refer to the image.) By fine-tuning at each hinge location, you can noticeably adjust the overall door position.
