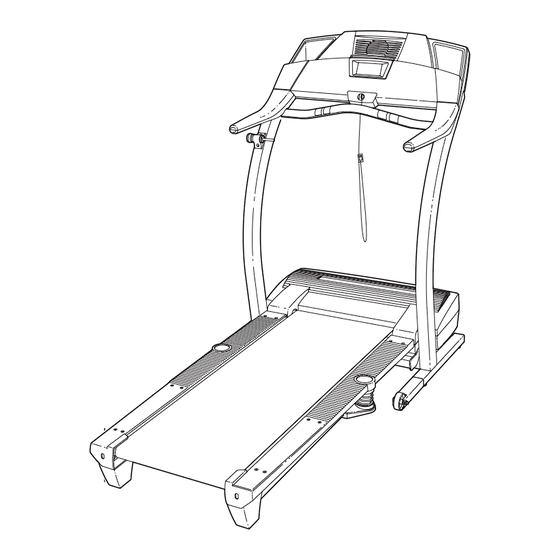

Model No. PFTL721040
USER'S MANUAL
Serial No.
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
we will guarantee complete sat-
isfaction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Visit our website at
Read all precautions and instruc-
tions in this manual before using
www.proform.com
this equipment. Save this manual
new products, prizes,
for future reference.
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for ProForm PFTL721040
Summary of Contents for ProForm PFTL721040
- Page 1 Model No. PFTL721040 USER'S MANUAL Serial No. Serial Number Decal QUESTIONS? If you have questions, or if there are missing or damaged parts, we will guarantee complete sat- isfaction through direct assis- tance from our factory. TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL- FREE CUSTOMER HOT LINE.
-
Page 2: Table Of Contents
HOW TO FOLD AND MOVE THE TREADMILL ........ -
Page 3: Important Precautions
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. To purchase a surge suppressor, see your local PROFORM dealer or call 1-888-533- 1333 and order part number 146148. 12. Failure to use a properly functioning surge suppressor could result in damage to the con- trol system of the treadmill. - Page 4 SAVE THESE INSTRUCTIONS The decals shown here have been placed on your treadmill. If a decal is missing, or if it is not legible, please call our Customer Service Department, toll-free, and order a free re- placement decal (see the front cover of this manual).
-
Page 5: Before You Begin
The model number of the treadmill is PFTL721040. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location). -
Page 6: Assembly
During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor- mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner. - Page 7 2. With the help of a second person, carefully tip the Uprights (97) down as shown. (Note: It may be helpful to place one foot on one of the Extension Legs [92] as you tip the Uprights.) Make sure that the Extension Legs remain in the Uprights.
- Page 8 Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the walking belt (see page 27). To protect the floor or carpet, place a mat under the treadmill. If there are thin sheets of clear plastic on the decals, remove them.
-
Page 9: Operation And Adjustment
(see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call 1-888-533-1333 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS). - Page 10 In addition, the console features six preset programs. Each program automatically controls the speed and in- cline of the treadmill as it guides you through an effec- tive workout. You can even create your own custom programs and store them in memory for future use.
- Page 11 Stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing on page 10) and slide the clip onto the waistband of your clothes.
- Page 12 When you are finished exercising, remove the key. Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi- tion or the treadmill will be damaged.
- Page 13 If the speed and/or in- cline of the treadmill is about to change, the speed setting and/or the incline setting will flash in the display to alert you.
- Page 14 When the program has ended, make sure that the incline of the treadmill is at the lowest set- ting. Next, remove the key from the console and put it in a safe place.Note: If the display remains lit after the key is removed, the console is in the “demo”...
- Page 15 (see step 5 on this page) and your heart rate is still too far below the current target heart rate, the incline of the treadmill will also increase to bring your heart rate closer to the target heart rate.
- Page 16 Speed and Incline buttons. Every few times a Speed but- ton is pressed, an additional indicator will appear or disappear in the Current Segment column.
- Page 17 To restart the program, press the Start button or the Speed + button. The walking belt will begin to move at 1 mph. When the next segment of the pro- gram begins, the treadmill will automatically adjust to the speed and incline settings for the next seg- ment.
- Page 18 B. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player.
- Page 19 B. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
- Page 20 CONNECT YOUR HOME STEREO on page 19. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
- Page 21 Stop button or remove the key and go to step 1 on page 20. Note: If the speed or incline of the treadmill does not change when a “chirp” is heard: • Make sure that the letters “iFIT” appear in the display and that the time is not flashing.
- Page 22 Additional options are soon to be available. See www.iFIT.com for details. To use a program from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 19. In addition, you must have an internet connection and an internet service provider.
- Page 23 THE INFORMATION MODE/DEMO MODE The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also al-...
-
Page 24: How To Fold And Move The Treadmill
You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill. 1. Hold the treadmill with your hands in the locations shown at the right. To decrease the possibility of injury, bend your legs and keep your back straight. - Page 25 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the latch pin.
-
Page 26: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-888-533-1333, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). - Page 27 3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, in- sert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened. c. If the walking belt still slows when walked on, please call our Customer Service Department toll- free.
-
Page 28: Conditioning Guidelines
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone. Aerobic Exercise If your goal is to strengthen your cardiovascular sys- tem, your exercise must be “aerobic.”... - Page 29 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
-
Page 30: Part List
PART LIST—Model No. PFTL721040 To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual. Key No. Qty. Description Left Foot Rail Foot Rail Screw Isolator Bolt (Top) Isolator Decal Isolator Top Cap Isolator Spring... - Page 31 Key No. Qty. Description Console Base Console Back Ground Screw Key Clip Hood Console Screw Left Tray Idler Arm Washer Right Tray iFIT.com Wire iFIT.com Jack Motor Bolt Hood Cover Screw Key No. Qty. Description Hood Cover Shock 12” Blue Wire, M/F 12”...
- Page 32 EXPLODED DRAWING—Model No. PFTL721040 R1104A...
- Page 33 EXPLODED DRAWING—Model No. PFTL721040 R1104A...
-
Page 34: How To Order Replacement Parts
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). Before calling, please note the following information: • The MODEL NUMBER of the product (PFTL721040) • The NAME of the product (PROFORM 840 treadmill) • The SERIAL NUMBER of the product (see the front cover of this manual) •...
