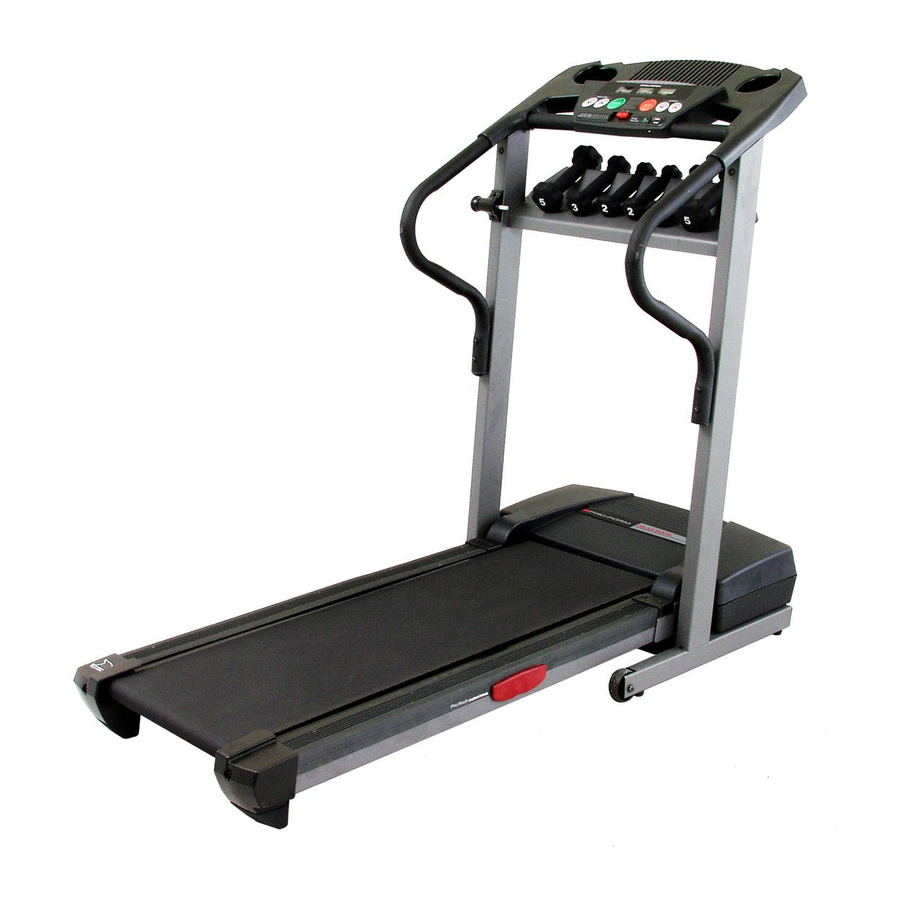

Model No. PFTL313340
Serial No.
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
we will guarantee complete sat-
isfaction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for ProForm PFTL313340
Summary of Contents for ProForm PFTL313340
- Page 1 Model No. PFTL313340 Serial No. Serial Number Decal QUESTIONS? If you have questions, or if there are missing or damaged parts, we will guarantee complete sat- isfaction through direct assis- tance from our factory. TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL- FREE CUSTOMER HOT LINE.
-
Page 2: Table Of Contents
HOW TO FOLD AND MOVE THE TREADMILL ........ -
Page 3: Important Precautions
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 10. To purchase a surge suppressor, see your local PROFORM dealer or call 1-888-533- 1333 and order part number 146148, or see your local electronics store. - Page 4 SAVE THESE INSTRUCTIONS The decals shown have been placed on your treadmill. If a decal is missing or illegible, please call our Customer Service Department, toll-free, to order a free replacement decal (see the front cover of this manual).
-
Page 5: Before You Begin
The model number of the treadmill is PFTL313340. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location). -
Page 6: Assembly
During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner. - Page 7 2. Identify the Right Upright (108) and the Left Upright (73) by observing the positions of the indicated brackets. See the inset drawing. Make sure that there are two U-Nuts (112) in the lower end of each Upright. Straighten the Wire Harness (42), and feed it into the lower end of the Right Upright (108) and out of the upper end.
- Page 8 5. Set the Crossbar (40) on the brackets on the Handrails (71, 72). Attach the Crossbar with two Crossbar Screws (39). Do not tighten the Crossbar Screws yet. Attach the end of the ground wire to the small hole in the side of the Right Handrail (72) with a 1/2”...
- Page 9 10.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the...
-
Page 10: Operation And Adjustment
(see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call 1-888-533-1333 and order part number 146148, or see your local electronics store. - Page 11 Before operating the console, make sure that the power cord is properly plugged in (see page 10). Next, stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing above), and slide the clip onto the waistband of your clothes.
- Page 12 To stop the walking belt, press the Stop button. The elapsed time will begin to flash in the Time/Distance display. Note: During the first few minutes that the treadmill is used, inspect the alignment of the walking belt, and align it if necessary (see page 16).
-
Page 13: How To Fold And Move The Treadmill
1. Hold the upper ends of the handrails. Place one foot on the base as shown. 2. Tilt the treadmill back until it rolls freely on the front wheels. Carefully move the treadmill to the desired location. To re- duce the risk of injury, use extreme caution while mov- ing the treadmill. - Page 14 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the lock knob to the left and hold it. Pivot the treadmill down until the frame is past the lock pin.
-
Page 15: Troubleshooting
PROBLEM: The power turns off during use SOLUTION: a. Check the reset/off circuit breaker located on the treadmill frame near the power cord (see the drawing above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in. - Page 16 3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, in- sert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened. c. If the walking belt still slows when walked on, call our Customer Service Department toll-free.
-
Page 17: Conditioning Guidelines
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone. Aerobic Exercise If your goal is to strengthen your cardiovascular sys- tem, your exercise must be “aerobic.”... - Page 18 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
- Page 19 NOTES...
- Page 20 REMOVE THIS EXPLODED DRAWING AND PART LIST FROM THE MANUAL Save this EXPLODED DRAWING and PART LIST for future reference. Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of the User’s Manual.
- Page 21 PART LIST—Model No. PFTL313340 No. Qty. Description Hood 3/4” Screw Motor Belt Motor Tension Bolt Flat Washer Motor Star Washer Flywheel Motor Motor Assembly Reed Switch Latch Warning Decal Frame Spacer Frame Pivot Bolt Platform Screw Left Foot Rail Front Roller/Pulley...
- Page 22 EXPLODED DRAWING—Model No. PFTL313340 R1104A...
-
Page 23: Ordering Replacement Parts
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information: • The MODEL NUMBER OF THE PRODUCT (PFTL313340) • The NAME OF THE PRODUCT (PROFORM • The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual) •...
