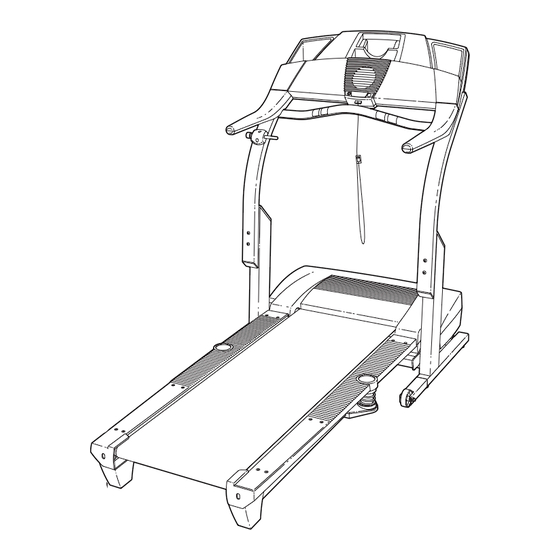

Model No. PCTL96040
USER'S MANUAL
Serial No.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, please call:
1-888-936-4266
Mon.–Fri. 8h00 until 18h30 EST
(excluding holidays).
CAUTION
Read all precautions and instruc-
tions in this manual before using
Visit our website at
this equipment. Save this manual
for future reference.
www.proform.com
Advertisement
Table of Contents
Related Manuals for ProForm PCTL96040
Summary of Contents for ProForm PCTL96040
- Page 1 Model No. PCTL96040 USER’S MANUAL Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing parts, please call: 1-888-936-4266 Mon.–Fri. 8h00 until 18h30 EST (excluding holidays).
-
Page 2: Table Of Contents
HOW TO FOLD AND MOVE THE TREADMILL ........ -
Page 3: Important Precautions
2. Use the treadmill only as described. 3. Place the treadmill on a level surface, with at least 2 m (8 ft.) of clearance behind it and 0.5 m (2 ft.) on each side. Do not place the tread- mill on any surface that blocks air openings. - Page 4 20. When using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed changes. In some in- stances, the speed may change before the personal trainer describes the change.
-
Page 5: Before You Begin
(excluding holidays). To help us assist you, please note the product model number and serial number be- fore calling. The model number is PCTL96040. The se- rial number can be found on a decal attached to the treadmill (see the front cover of this manual for the lo- cation). -
Page 6: Assembly
During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor- mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner. - Page 7 3. Attach the Latch Assembly (82) to the Left Upright (84) with the two Latch Screws (46). Start both Latch Screws before tightening either of them. Note: The Latch Screws may be preattached to the Left Upright. 4. Refer to step 6 and locate the four Upright Bolts (86). Loosen the Upright Bolts two to three turns.
- Page 8 Uprights. Retighten all four Upright Bolts (86). 8. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the...
- Page 9 If you purchase the optional chest pulse sensor (see page 22), follow the steps below to install the receiver included with the chest pulse sensor. 1. Make sure that the power cord is unplugged. Remove the indicated Screw (108) and the Access Door (122). 2.
-
Page 10: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PERFORMANT LUBE WALKING BELT Your treadmill features a walking belt coated with PERFORMANT LUBE , a high-performance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat- form. Such substances will deteriorate the walking belt and cause excessive wear. - Page 11 Two pulse programs are also offered. Each program automatically adjusts the speed and in- cline of the treadmill to keep your heart rate within a tar- get range while you exercise. The console also features iFIT.com interactive technol- ogy.
- Page 12 Stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing on page 11) and slide the clip onto the waistband of your clothes.
- Page 13 Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi- tion or the treadmill will be damaged.
- Page 14 In addition, if the speed and/or incline of the treadmill is about to change, the Speed display and/or the Distance/Incline dis- play will flash to alert you. When the first segment is completed, all speed settings will move one col- umn to the left.
- Page 15 When the program has ended, make sure that the incline of the treadmill is at the lowest set- ting. Next, remove the key from the console and put it in a safe place. Note: If the displays and...
- Page 16 If your heart rate is too far below or above the target heart rate, the speed of the treadmill will automatically increase or decrease to bring your heart rate closer to the target heart rate. If the...
- Page 17 B. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player.
- Page 18 B. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
- Page 19 CONNECT YOUR HOME STEREO on page 18. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
- Page 20 Stop button or remove the key and go to step 1 on page 20. Note: If the speed or incline of the treadmill does not change when a “chirp” is heard: • Make sure that the iFIT.com indicator is lit and that the Time/Pace display is not flashing.
- Page 21 HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 18. In addi- tion, you must have an internet connection and an in- ternet service provider.
- Page 22 THE INFORMATION MODE/DEMO MODE The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also al- lows you to switch the console from miles per hour to kilometers per hour.
-
Page 23: How To Fold And Move The Treadmill
You must be able to safely lift 20 kg (45 lbs.) to raise, lower, or move the treadmill. 1. Hold the treadmill with your hands in the locations shown at the right. To decrease the possibility of injury, bend your legs and keep your back straight. - Page 24 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the latch pin.
-
Page 25: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-888-936-4266, Monday through Friday, 8h00 until 18h30 eastern time (excluding holidays). - Page 26 (2–3 in.) off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened. c. If the walking belt still slows when walked on, please call our Customer Service Department.
-
Page 27: Conditioning Guidelines
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone. Aerobic Exercise If your goal is to strengthen your cardiovascular sys- tem, your exercise must be “aerobic.”... - Page 28 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
-
Page 29: Part List
PART LIST—Model No. PCTL96040 To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual. Key No. Qty. Description Left Foot Rail Foot Rail Screw Isolator Bolt (Top) Isolator Decal Isolator Top Cap... -
Page 30: Part Identification Chart
Key No. Qty. Description Console Base Optic Disk Ground Screw/Choke Screw Key Clip Fan Screw Console Screw Left Tray 3/4 Tek Screw CD Holder (58)—8 Right Tray iFIT.com Wire iFIT.com Jack Motor Bracket Bolt Photo Switch Screw Left Handrail Left Top Handgrip Photo Switch Nut Left Bottom Handgrip PART IDENTIFICATION CHART... -
Page 31: How To Order Replacement Parts
Friday 8h00 until 18h30 eastern time (excluding holidays). When ordering parts, please be prepared to give the following information: • The MODEL NUMBER of the product (PCTL96040) • The NAME of the product (PROFORM • The SERIAL NUMBER of the product (see the front cover of this manual) •... -
Page 32: Limited Warranty
11) Which type of magazines do you read regularly? Sports Business 12) Do you wish to be sent further bulletins about ICON products? Colour Price No Opinion Exercise Cycle Treadmill Weight Bench Stepper Other Fitness Motoring Computer General THANK YOU FOR YOUR TIME ©... - Page 33 EXPLODED DRAWING—Model No. PCTL96040 R0604A SAVE THIS EXPLODED DRAWING FOR FUTURE REFERENCE. To identify the parts shown on this EX- PLODED DRAWING, refer to the PART LIST on pages 29 and 30 of the USER’S MANUAL.
- Page 34 EXPLODED DRAWING—Model No. PCTL96040 R0604A...
