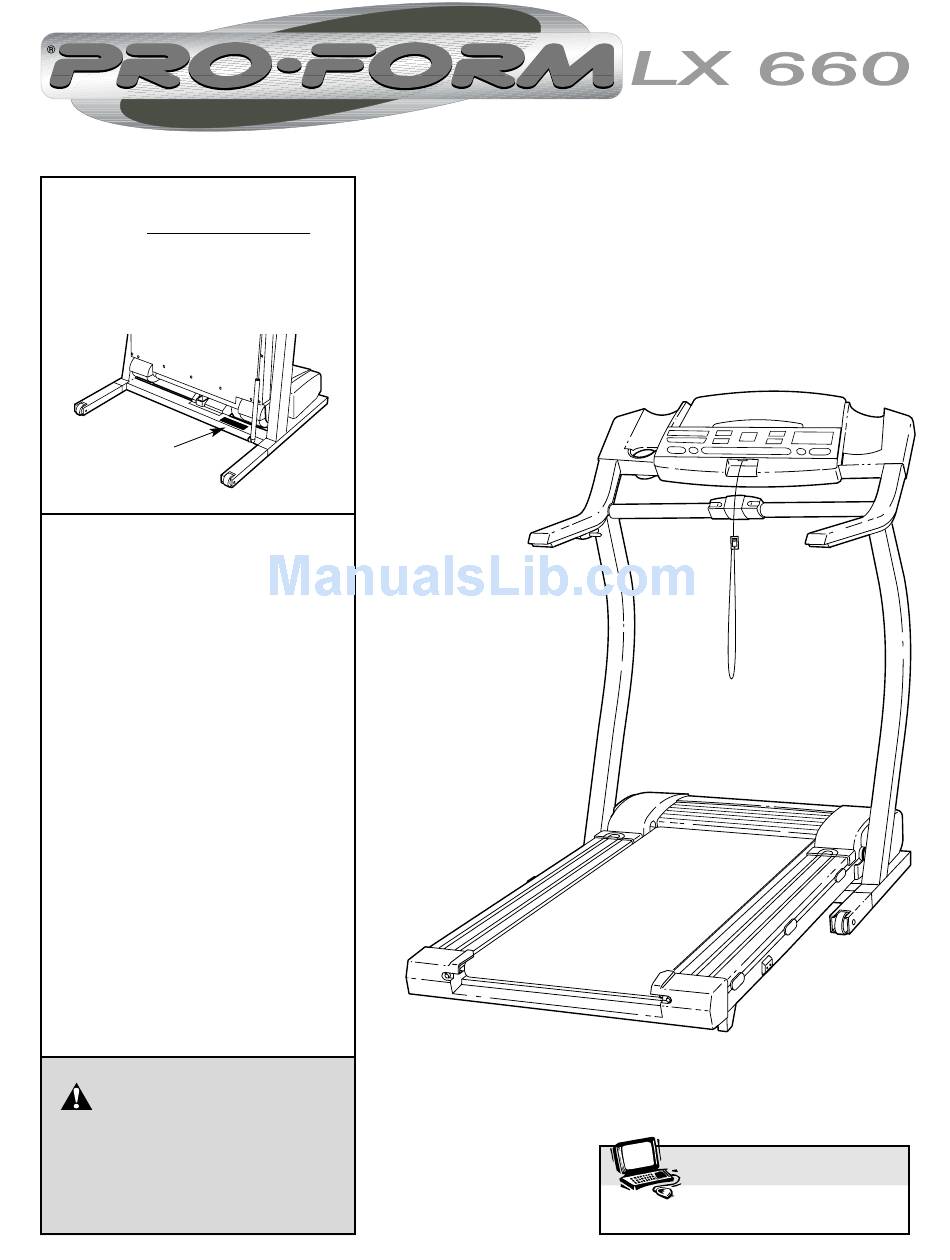

Model No. PCTL59210
Serial No.
Find the serial number in the location
shown below. Write the serial number
in the space above for reference.
Serial
Number
Decal
If you require SERVICE for
this product, please call
SEARS:
1-800-4 MY HOME
(469-4663)
If you are MISSING PARTS or
require INFORMATION on how
to operate this product, call
1-888-936-ICON
(4266)
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.proform.com
Advertisement
Table of Contents
Related Manuals for ProForm PCTL59210
Summary of Contents for ProForm PCTL59210
- Page 1 Model No. PCTL59210 Serial No. Find the serial number in the location shown below. Write the serial number in the space above for reference. Serial Number Decal If you require SERVICE for this product, please call SEARS: 1-800-4 MY HOME...
-
Page 2: Table Of Contents
HOW TO FOLD AND MOVE THE TREADMILL ........ -
Page 3: Important Precautions
2. Use the treadmill only as described. 3. Place the treadmill on a level surface, with at least 2.4 m (8 ft.) of clearance behind it and 0.5 m (2 ft.) on each side. Do not place the treadmill on any surface that blocks air open- ings. - Page 4 SAVE THESE INSTRUCTIONS The decals shown below have been placed on your treadmill. If a decal is missing, or if it is not legible, please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING REPLACEMENT PARTS on page 27).
-
Page 5: Before You Begin
The model number of the treadmill is PCTL59210. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location). -
Page 6: Assembly
This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner. - Page 7 3. With the help of a second person, carefully tip the Uprights (82) back to the vertical position. Attach the Latch Assembly (9) and the Latch Spacer (56) to the left Upright (82) with two Screws (101) as shown. 4. Insert a Handrail Extension (85) into the post on the left Upright (82).
- Page 8 7. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 23). To protect the floor or carpet from damage, place a mat under the treadmill.
-
Page 9: How To Plug In Power Cord
OPERATION AND ADJUSTMENT THE PERFORMANT LUBE WALKING BELT Your treadmill features a walking belt coated with PERFORMANT LUBE , a high-performance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat- form. Such substances will deteriorate the walking belt and cause excessive wear. -
Page 10: Console Diagram
Six certified personal trainer programs are also offered. Each program automatically controls the speed and incline of the treadmill to give you an effec- tive workout. The console also features new iFIT.com interactive technology. IFIT.com technology is like having a per-... -
Page 11: How To Turn On The Power
Move the on/off switch to the on position. Stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing on page 10) and slide the clip onto the waistband of your clothes. - Page 12 When you are finished, remove the key. Step onto the foot rails, press the STOP button, and adjust the incline of the treadmill to the low- est setting. The incline must be at the lowest setting when the treadmill is folded to the stor- age position or the treadmill will be damaged.
- Page 13 When the program has ended, make sure that the incline of the treadmill is at the lowest set- ting. Next, remove the key from the console and put it in a safe place. Note: If the displays and various indicators on the console remain lit after the key is removed.
- Page 14 B. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player.
- Page 15 B. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
- Page 16 CONNECT YOUR HOME STEREO on page 14. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
- Page 17 STOP button or remove the key and go to step 1 on page 16. Note: If the speed or incline of the treadmill does not change when a “chirp” is heard: • Make sure that the iFIT.com indicator is lit and that the TIME/INCLINE/SEGMENT TIME dis- play is not flashing.
- Page 18 Additional options are soon to be available. See www.iFIT.com for de- tails. To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 15. In addition, you must have an internet connection and an internet service provider.
- Page 19 THE INFORMATION MODE/DEMO MODE The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also allows you to switch the console from miles per hour to kilometers per hour.
-
Page 20: How To Fold And Move The Treadmill
2. Move your right hand to the position shown and hold the treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the treadmill until the latch pin is aligned with the hole in the catch. Insert the latch pin into the catch. - Page 21 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the pin.
-
Page 22: Troubleshooting
PROBLEM: The power turns off during use SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in. - Page 23 Repeat until the walking belt is properly tightened. PROBLEM: The incline of the treadmill does not change correctly or does not change when iFIT.com CDs and videos are played SOLUTION: a. With the key inserted in the console, press one of the INCLINE buttons. While the incline is changing, remove the key.
-
Page 24: Conditioning Guidelines
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone. Aerobic Exercise If your goal is to strengthen your cardiovascular sys- tem, your exercise must be “aerobic.”... -
Page 25: Suggested Stretches
SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. -
Page 26: Part List
PART LIST—Model No. PCTL59210 To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual. No. Qty. Description Motor Belt Pulley/Flywheel/Fan Motor Nut Motor/Pulley/ Flywheel/Fan Incline Motor Bolt Optic Switch Incline Motor Incline Motor Spacer... -
Page 27: Ordering Replacement Parts
To order replacement parts, call toll-free 1-888-936-4266, Monday through Friday 8h00 until 18h30 Eastern Time (excluding holidays). When ordering parts, please be prepared to give the following information: • the MODEL NUMBER OF THE PRODUCT (PCTL59210) • the NAME OF THE PRODUCT (PROFORM •... -
Page 28: Limited Warranty
Television Ads Colour Magazine Ads Price Product Innovation Printed in Canada © 2002 ICON Health & Fitness, Inc. PURCHASE DATE: No Opinion Exercise Cycle Treadmill Weight Bench Stepper Other Fitness Motoring Computer General THANK YOU FOR YOUR TIME © 2002 ICON of Canada, Inc. Printed in Canada... - Page 29 EXPLODED DRAWING—Model No. PCTL59210 R0402A...
- Page 30 EXPLODED DRAWING—Model No. PCTL59210 R0402A...
