QP-650U Plus Service Manual
Quantun Electronics,LLC
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the QP650U Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for QUANTUN QP650U Plus

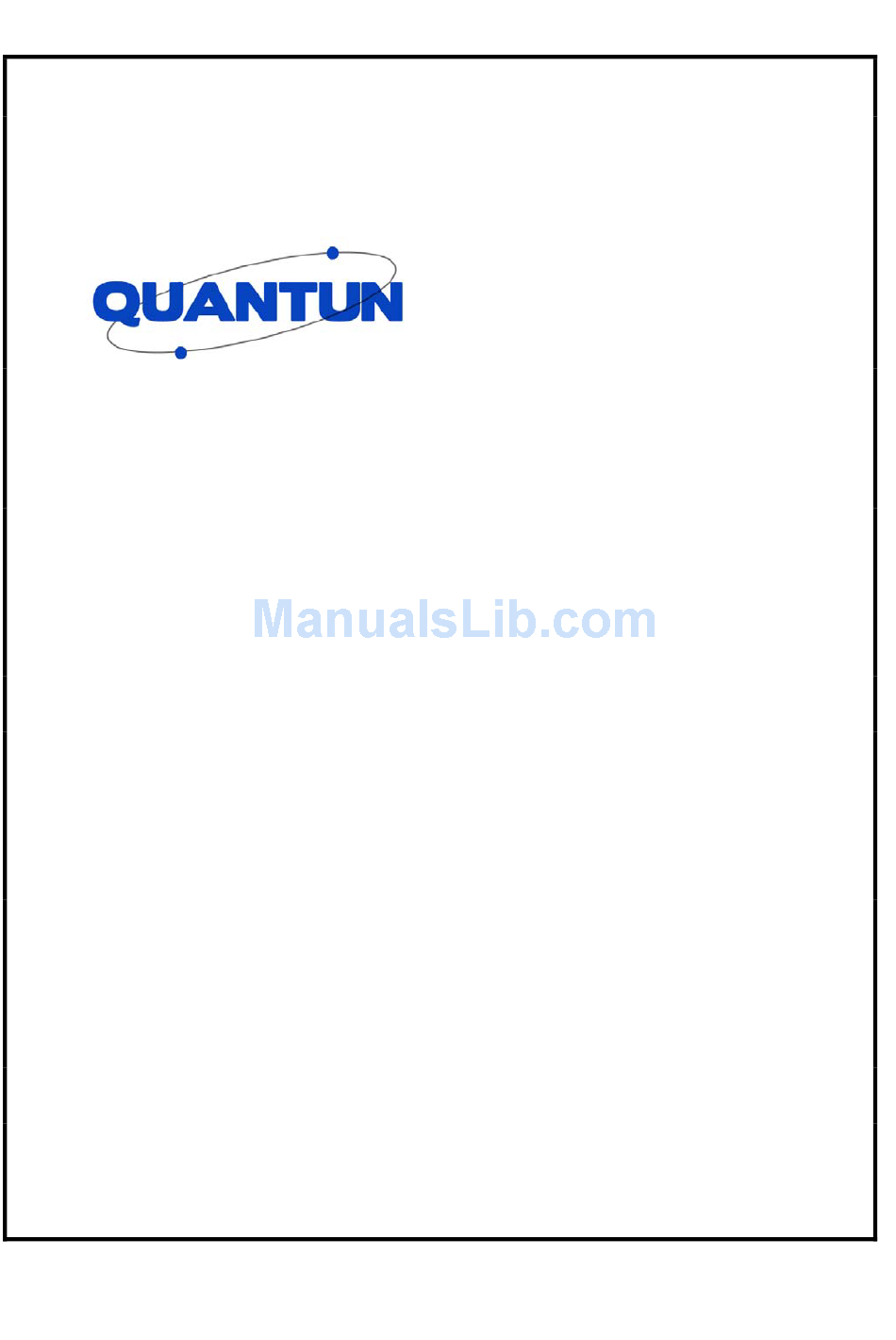

  • Page 1 QP-650U Plus Service Manual Quantun Electronics,LLC - 1 -...
  • Page 2 Revised History Date Decription Version Note 2010-3-9 Issue V0.1A - 2 -...
  • Page 3 Content General……………………………………………………………………………3 Brief Introduction………………………………………………………………..4 Software Description…………………………………………………………..6 Circuit Description……………………………………………………………..10 CPU Pins…………………………………………………………………………15 Part List 1………………………………………………………………………..17 Adjustment Description……………………………………………………….49 Disassembly and Assembly………………………………………………..52 Exploded View………………………………………………………………..56 Part List 2……………………………………………………………………….57 PC Board View………………………………………………………………….58 Block Diagram…………………………………………………………………..62 Schematic Diagram…………………………………………………………..63 Specifications…………………………………………………………………66 - 3 -...
  • Page 4 QP-650U Plus General General Manual Scope This manual is intended for use by experienced technicians familiar with similar types of communication equipment. It contains all service information required for the equipment and is current as of the publication date. User Safety Information The following precautions are recommended for personnel safety: DO NOT transmit until all RF connectors are verified secure and any open connectors are properly terminated.
  • Page 5 QP-650U Plus Brief Introduction Brief Introduction Antenna LED indicator The light will glow red during transmission. The light will glow green during receiving. During transmission, the light flashes red when the battery voltage is low. 3. Channel selector knob Turn the channel selector knob to select from channels 1-16 (Channel 16 can be programmed by your dealer as scan function).
  • Page 6 QP-650U Plus Brief Introduction 1)VOX 2)Power Level 3)monitor 4)monitor momentary 5)scan 6)squelch off 7)squelch off momentary 8)channel lock 9) battery indicator 7. Microphone 8. Speaker 9. External jack Remove the jack cover and insert an earphone; or insert programming cable into the jack to program the radio via programming software.
  • Page 7 QP-650U Plus Software Specification Software Specification Radio Feature Description Use channel selector knob to choose from 16 channels Channel Annunciation, The feature enables radio to report the current channel number when power on or switching channel,. Channel Spacing 12.5KHz/20KHz/25KHz Narrow/Middle/wide Optional High/low Power (Dealer programmable) CTCSS/CDCSS 51+104 groups, user definable...
  • Page 8 QP-650U Plus Software Specification (4) High/low power (5) Busy channel lockout (6) Tail Elimination (7) VOX level (8) Squelch level (9) Time-out timer DTMF PTT ID (10) VOX level (11) Scan mode (12) Scan revert channel (13) Priority scan channel (14)...
  • Page 9 QP-650U Plus Software Specification Manual Adjust Mode (1) Enter the manual adjust mode Turn channel knob to Channel1, Turn on the power while holding down PTT and Side key simultaneously for 2 seconds, orange LED will flashing two times., release the PTT and SK1 key , then press PTT button for 2 seconds, the red led flashes and release the two keys again, the radio enters manual adjust mode.
  • Page 10 QP-650U Plus Software Specification Defination CH. NO. Frequency Bandwidth User Wired Clone Mode (1). Turn on the power while holding down Side key for 2 seconds, green LED flash two times, the radio enters wired clone mode. (2). Press the PTT key to begin wired clone and slave radio red LED lights, when clone is completed, master radio orange led lights, and slave radio red Led goes out.
  • Page 11 QP-650U Plus Circuit Description Circuit Description 1. Power Supply Power supply of the radio is derived from the battery, which supplies battery B+ through power switch. U608 supplies 5V (5M) voltage for the control circuit. U607 supplies 3V voltage for the PLL circuit. And U200 supplies voltage for the transmit(V_TX), receive(V_RX) and vco(V_SAVE) circuit.
  • Page 12 QP-650U Plus Circuit Description The output signal from phase comparator is filtered through a low pass filter to generate a level D.C., and the level D.C. controls oscillator frequency by controlling VCO. The operating frequency is generated by Q100 in transmit mode and by Q101 in receive mode. Operating frequency generate a control voltage by phase comparator to control varactor diodes so that the oscillator frequency is consistent with the MCU preset frequency(D100、D101、D104 and D105 in transmit mode, and D102、D103、D106 and D107 in receive mode).
  • Page 13 QP-650U Plus Circuit Description again in U200 to create a 450 KHz second IF signal. The second IF signal then passes through a 450KHz ceramic filter to eliminate unwanted signals before it is amplified and detected in U200. 4. Transmitter AF and signaling AF signal from the microphone is amplified and low-pass-filtered in U200, which also enters CYC/CDC/DTMF etc signaling generated by CPU.
  • Page 14 QP-650U Plus Circuit Description 5. Base band and signaling system The block diagram of signaling section is shown as figure 5. Fig. 5 AF and Signaling Circuit CTC/CDC Transmit: CTC/CDC signaling produced by CTC_PLL pass a low pass filter and then enters VCXO.
  • Page 15 QP-650U Plus Circuit Description CTC/CDC Code Audio Processor TXD/RXD PLL IC BEEP APC_SW DTMFO QT_OUT APC/TV SAVE PTT/RXD RSSI M_Band MONI BUSY SPV_C MIC_EN QT_IN VOXDET BATT Fig.6 MCU Block Diagram Circuit in this section is mainly comprised of MCU, EEPROM etc. MCU control circuit accomplishes the following functions: accomplish the reset initialization according to the programmed feature of the radio when power on;...
  • Page 16 QP-650U Plus MCU PINS CPU Pins PIN No. PIN Name Description EEPROM DATA MODE RESET Reset input XOUT Crystal oscillator output pin Crystal oscillator input pin DTMF DTMF output APC/TV Power control/ receiver tuning out PLLCLK PLL clock output PLLEN PLL strobe output 0: Wideband control 1: Narrowband control...
  • Page 17 QP-650U Plus MCU PINS PIN No. PIN Name Description LEDR Red light control:H,lit;L,out LEDG Green light control:H,lit;L,out PTT key IN Side Key1 EXT_DEV EXT_DEV detect APCSW APC SW BUSY Squelch level input BATT Battery voltage detect VOXDET VOX level input RSSI RSSI level input QT_IN...
  • Page 18 QP-650U Plus Part list1 Part list 1 Description Refer. NO. Qty. Note 1501061040 Capacitor 0603 0.1UF K 50V C100 1701084750 TAN-Capacitor 0805 4.7UF M 10V C101 1701121060 TAN-Capacitor 1206 0.1UF M 16V C102 1501041030 Capacitor 0402 0.01UF K 25V C105 1501041020 Capacitor 0402 1000PF K 50V C106...
  • Page 19 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501040600 Capacitor 0402 6PF B 50V C124 1501060590 Capacitor 0603 0.5PF B 50V C125 1501061040 Capacitor 0603 0.1UF K 50V C126 1501041040 Capacitor 0402 0.1UF K 16V C127 1501040600 Capacitor 0402 6PF B 50V C130 1501041020 Capacitor 0402 1000PF K 50V...
  • Page 20 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501044710 Capacitor 0402 470PF J 50V C201 1501044740 Capacitor 0402 0.47UF Z 25V C202 1501042240 Capacitor 0402 0.22UF Z 25V C203 1501041020 Capacitor 0402 1000PF K 50V C204 1501041040 Capacitor 0402 0.1UF K 16V C205 1501044710 Capacitor 0402 470PF J 50V...
  • Page 21 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501044730 Capacitor 0402 0.047UF K 25V C225 1501041050 Capacitor 0402 1UF K 6.3V C226 1501046830 Capacitor 0402 0.068UF K 25V C227 1501043910 Capacitor 0402 390PF J 50V C228 1701081060 TAN-Capacitor 0805 10UF M 6.3V C229 1501041050 Capacitor 0402 1UF K 6.3V...
  • Page 22 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501045620 Capacitor 0402 5600PF K 25V C244 1501043300 Capacitor 0402 33PF J 50V C245 1501041050 Capacitor 0402 1UF K 6.3V C246 1501041050 Capacitor 0402 1UF K 6.3V C247 1501041040 Capacitor 0402 0.1UF K 16V C249 1501041020 Capacitor 0402 1000PF K 50V...
  • Page 23 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501041020 Capacitor 0402 1000PF K 50V C265 1501041010 Capacitor 0402 100PF J 50V C266 1501041040 Capacitor 0402 0.1UF K 16V C267 1501041040 Capacitor 0402 0.1UF K 16V C272 1501041010 Capacitor 0402 100PF J 50V C280 1501041010 Capacitor 0402 100PF J 50V...
  • Page 24 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501041050 Capacitor 0402 1UF K 6.3V C310 1501041030 Capacitor 0402 0.01UF K 25V C311 1701081060 TAN-Capacitor 0805 10UF M 6.3V C312 1701081060 TAN-Capacitor 0805 10UF M 6.3V C313 1701084750 TAN-Capacitor 0805 4.7UF M 10V C314 1501041040 Capacitor 0402 0.1UF K 16V...
  • Page 25 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501041040 Capacitor 0402 0.1UF K 16V C333 1501041010 Capacitor 0402 100PF J 50V C334 1501044710 Capacitor 0402 470PF J 50V C335 1501041020 Capacitor 0402 1000PF K 50V C336 1501044710 Capacitor 0402 470PF J 50V C337 1501045600 Capacitor 0402 56PF J 50V...
  • Page 26 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501041020 Capacitor 0402 1000PF K 50V C408 1501044710 Capacitor 0402 470PF J 50V C410 1501042200 Capacitor 0402 22PF J 50V C411 1101040000 Resistor 0402 0Ω J 1/16W C412 1501041020 Capacitor 0402 1000PF K 50V C414 1501041040 Capacitor 0402 0.1UF K 16V...
  • Page 27 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501044710 Capacitor 0402 470PF J 50V C437 1501041020 Capacitor 0402 1000PF K 50V C439 1501041050 Capacitor 0402 1UF K 6.3V C440 1501041050 Capacitor 0402 1UF K 6.3V C441 1501044710 Capacitor 0402 470PF J 50V C442 1501040500 Capacitor 0402 5PF B 50V...
  • Page 28 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501041800 Capacitor 0402 18PF J 50V C459 1501040600 Capacitor 0402 6PF B 50V C500 1501041800 Capacitor 0402 18PF J 50V C502 1501041500 Capacitor 0402 15PF J 50V C504 1501040500 Capacitor 0402 5PF B 50V C505 1501041040 Capacitor 0402 0.1UF K 16V...
  • Page 29 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501041810 Capacitor 0402 180PF J 50V C526 1501041030 Capacitor 0402 0.01UF K 25V C527 1501041030 Capacitor 0402 0.01UF K 25V C528 1501041030 Capacitor 0402 0.01UF K 25V C529 1501044710 Capacitor 0402 470PF J 50V C530 1501041020 Capacitor 0402 1000PF K 50V...
  • Page 30 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501041030 Capacitor 0402 0.01UF K 25V C546 1501041030 Capacitor 0402 0.01UF K 25V C547 1501044710 Capacitor 0402 470PF J 50V C548 1501041040 Capacitor 0402 0.1UF K 16V C549 1501040200 Capacitor 0402 2PF B 50V C560 1501044710 Capacitor 0402 470PF J 50V...
  • Page 31 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501041020 Capacitor 0402 1000PF K 50V C666 1501041020 Capacitor 0402 1000PF K 50V C667 1701084750 TAN-Capacitor 0805 4.7UF M 10V C668 1701082250 TAN-Capacitor 0805 2.2UF M 10V C669 1501041030 Capacitor 0402 0.01UF K 25V C670 1501044710 Capacitor 0402 470PF J 50V...
  • Page 32 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1501041030 Capacitor 0402 0.01UF K 25V C689 1501041030 Capacitor 0402 0.01UF K 25V C690 1501041020 Capacitor 0402 1000PF K 50V C694 1701081060 TAN-Capacitor 0805 10UF M 6.3V C695 CF21990030 Ceramic Filter 450KHz±6KHz CF300 D201050030 Varactor HVC376BTRF-E R...
  • Page 33 QP-650U Plus Part list1 Description Refer. NO. Qty. Note D201050020 Varactor HVC350BTRF-E D503 D201050020 Varactor HVC350BTRF-E D504 D201050020 Varactor HVC350BTRF-E D506 D201050020 Varactor HVC350BTRF-E D507 D401050010 Diode HSM88ASTL-E D508 D501090010 LED KPT-1608SGC D601 D501090020 LED KPT-1608SRC-PRV D602 D101030030 Diode MA2S11100L D603 4462990010 SPK JACK PJ-D3027...
  • Page 34 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 2001063350 Inductor 0603 3.3uH L109 2001063350 Inductor 0603 3.3uH L110 2001042730 Inductor 0402 27nH L111 2001041230 Inductor 0402 12nH L113 2001043930 Inductor 0402 39nH L114 2001043330 Inductor 0402 33nH L115 1101040000 Resistor 0402 0Ω...
  • Page 35 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 2201042210 Ferrite 0402 220Ω L402 2001101050 Inductor 1008 1uH L403 2201086000 Ferrite 0805 60Ω±25% L404 2001042220 Inductor 0402 2.2nH L405 2301360080 Coil E2-0.35*1.6*8TR L406 2201086000 Ferrite 0805 60Ω±25% L407 2101082210 Inductor 0805 220nH L408 1101040000 Resistor 0402 0Ω...
  • Page 36 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 2301320050 Coil E2-0.30*1.2*5TL L507 2001041030 Inductor 0402 100nH L508 2001065640 Inductor 0603 560nH L509 2001065640 Inductor 0603 560nH L510 2001041530 Inductor 0402 15nH L530 2001041530 Inductor 0402 15nH L532 2001042730 Inductor 0402 27nH L533 2201042210 Ferrite 0402 220Ω...
  • Page 37 QP-650U Plus Part list1 Description Refer. NO. Qty. Note T101130010 UFMMT717 PNP Q205 F101010020 2SK1824-T1-A Q206 T101040010 DTA114EE(TL) Q300 T101020010 2SC5108-Y Q400 T101050010 2SC4988FRTR-E Q401 F101030010 RD01 Q402 F101030020 RQA0002 Q403 T101040050 DTC114EE(TL) Q430 T101040020 DTA144EE Q431 T101100010 AT-41511-TR1G Q500 F101050010 3SK318YB-TL-E-Q Q501...
  • Page 38 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1101042710 Resistor 0402 270Ω J 1/16W R101 1101041520 Resistor 0402 1.5KΩ J 1/16W R102 1101041030 Resistor 0402 10KΩ J 1/16W R104 1101041210 Resistor 0402 120Ω J 1/16W R105 1101041510 Resistor 0402 150Ω J 1/16W R106 1101041840 Resistor 0402 180KΩ...
  • Page 39 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1101043310 Resistor 0402 330Ω J 1/16W R206 1101041040 Resistor 0402 100KΩ J 1/16W R207 1101041040 Resistor 0402 100KΩ J 1/16W R208 1101041530 Resistor 0402 15KΩ J 1/16W R210 1101042240 Resistor 0402 220KΩ J 1/16W R211 1101043030 Resistor 0402 30KΩ...
  • Page 40 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1101043940 Resistor 0402 390KΩ J 1/16W R227 1101041850 Resistor 0402 1.8MΩ J 1/16W R228 1101041240 Resistor 0402 120KΩ J 1/16W R229 1101043320 Resistor 0402 3.3KΩ J 1/16W R230 1101044720 Resistor 0402 4.7KΩ J 1/16W R231 1101048240 Resistor 0402 820KΩ...
  • Page 41 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1101041020 Resistor 0402 1KΩ J 1/16W R246 1101041000 Resistor 0402 10Ω J 1/16W R247 1101044790 Resistor 0402 4.7Ω J 1/16W R249 1101041020 Resistor 0402 1KΩ J 1/16W R250 1101044790 Resistor 0402 4.7Ω J 1/16W R255 1101041030 Resistor 0402 10KΩ...
  • Page 42 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1101044730 Resistor 0402 47KΩ J 1/16W R305 1101041540 Resistor 0402 150KΩ F 1/16W R306 1101042230 Resistor 0402 22KΩ J 1/16W R307 1101044710 Resistor 0402 470Ω J 1/16W R308 1101041010 Resistor 0402 100Ω J 1/16W R309 1101041020 Resistor 0402 1KΩ...
  • Page 43 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1101041030 Resistor 0402 10KΩ J 1/16W R328 1101041030 Resistor 0402 10KΩ J 1/16W R329 1101041030 Resistor 0402 10KΩ J 1/16W R330 1101041030 Resistor 0402 10KΩ J 1/16W R400 1101042200 Resistor 0402 22Ω J 1/16W R401 1101044730 Resistor 0402 47KΩ...
  • Page 44 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1101062710 Resistor 0603 270Ω J 1/10W R419 1101120590 Resistor 1206 0.5Ω J 1/4W R420 1101120590 Resistor 1206 0.5Ω J 1/4W R421 1101120590 Resistor 1206 0.5Ω J 1/4W R422 1101041540 Resistor 0402 150KΩ F 1/16W R430 1101041540 Resistor 0402 150KΩ...
  • Page 45 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1101041040 Resistor 0402 100KΩ J 1/16W R502 1101042210 Resistor 0402 220Ω J 1/16W R503 1101041230 Resistor 0402 12KΩ J 1/16W R504 1101041230 Resistor 0402 12KΩ J 1/16W R505 1101043920 Resistor 0402 3.9KΩ J 1/16W R506 1101041040 Resistor 0402 100KΩ...
  • Page 46 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1101041030 Resistor 0402 10KΩ J 1/16W R530 1101040000 Resistor 0402 0Ω J 1/16W R540 1101044720 Resistor 0402 4.7KΩ J 1/16W R630 1101042240 Resistor 0402 220KΩ J 1/16W R631 1101043940 Resistor 0402 390KΩ J 1/16W R632 1101041020 Resistor 0402 1KΩ...
  • Page 47 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1101061050 Resistor 0603 1MΩ J 1/16W R671 1101041020 Resistor 0402 1KΩ J 1/16W R672 1101041020 Resistor 0402 1KΩ J 1/16W R673 1101041020 Resistor 0402 1KΩ J 1/16W R674 1101041020 Resistor 0402 1KΩ J 1/16W R675 1101041020 Resistor 0402 1KΩ...
  • Page 48 QP-650U Plus Part list1 Description Refer. NO. Qty. Note 1101044730 Resistor 0402 47KΩ J 1/16W R704 1101041030 Resistor 0402 10KΩ J 1/16W R705 1101041030 Resistor 0402 10KΩ J 1/16W R710 1101041030 Resistor 0402 10KΩ J 1/16W R711 1101040000 Resistor 0402 0Ω J 1/16W R712 1161041020 Resistor-Array 0402 1K*4 J 1/16...
  • Page 49 QP-650U Plus Part list1 Description Refer. NO. Qty. Note CF21990020 Ceramic Filter 450KHz±4KH U614 1401996830 Varistor(2*2) 68KΩ(+25%) VR200 1401996830 Varistor(2*2) 68KΩ(+25%) VR260 1401996830 Varistor(2*2) 68KΩ(+25%) VR300 1401996830 Varistor(2*2) 68KΩ(+25%) VR602 4212990020 MIC CM9745CD-423-P2.8 C110128900 VCTCXO 12.8MHz X300 C111966000 Crystal 19.6608MHz X602 CF01990020 Crystal Fiter 38.850MHz...
  • Page 50 QP-650U Plus Adjustment Description Adjustment Description The radio can be adjusted by manual adjustment. Manual adjustment procedure is as follow. (Refer to “All reset mode” and “manual adjust mode” in the section Software Specification.) Instrument: Radio Communication Test Set 1 set 3A/10V Power Supply 1 set Digital Voltmeter...
  • Page 51 QP-650U Plus Adjustment Description TX section Item Condition Test Method Purpose Instrument 1. Transmit Turn to CH5; TX Test Adjust VR200 Frequency Error frequency ≤100Hz 2. CDCSS balance Turn to CH5. TX TEST PTT key standard waveform Adjust at 1 point (wideband), HPF:20HZ SFK2 key LPF:300HZ...
  • Page 52 QP-650U Plus Adjustment Description 7. DTMF Turn to CH8. TX Test PTT key 3.2KHz (25KHz) deviation Adjust at 1 point (wideband), HPF: 20Hz SK1 key 2.5KHz (20KHz) 1 point (medium band), LPF: 15KHz 1.8KHz (12.5KHz),) 1 point (narrow band). 8. VOX GAIN1 Turn to CH9.
  • Page 53 QP-650U Plus Disassembly and Assembly Disassembly and Assembly Remove the Battery Turn the radio off. Slide the battery latches upwards. Pull the top part of the battery away from the radio’s body and lift the battery from the radio. Figure 1 Disassemble main unit (aluminum chassis and PCB) 1.
  • Page 54 QP-650U Plus Disassembly and Assembly Figure 3 The disassembly is shown as the figure 4. Figure 4 Disassemble PTT button Push the PTT button in indicated direction until out of the cover. (See figure 5) Figure 5 - 54 -...
  • Page 55 QP-650U Plus Disassembly and Assembly Assemble PTT button Paste double-coated tape to the cover. And then press the PTT button into the corresponding opening in the cover. (See figure 6) Figure 6 Attach the battery 1. Fit the extensions at the bottom of the battery into the slots on the radio chassis. Press the top part of the battery towards the radio until a click is heard.
  • Page 56 QP-650U Plus Exploded View Exploded View - 56 -...
  • Page 57 1.00 5200700000 S710 Battery lock 1.00 5001600000 650 House 1.00 5002000000 650 PTT key nog 1.00 5100500010 650 PTT Silica key 1.00 Quantun Logo Label 7606506000 1.00 5002100000 650 name plate 1.00 5002300000 650 Earphone cover 1.00 - 57 -...
  • Page 58 QP-650U Plus PC Board View PC Board View QP-650U Plus PCB Top Layer View (1) - 58 -...
  • Page 59 QP-650U Plus PC Board View QP-650U Plus PCB Top Layer View (2) - 59 -...
  • Page 60 QP-650U Plus PC Board View QP-650U Plus PCB Bottom Layer View (1) - 60 -...
  • Page 61 QP-650U Plus PC Board View QP-650U Plus PCB Bottom Layer View (2) - 61 -...
  • Page 62 QP-650U Plus Block Diagram Block Diagram - 62 -...
  • Page 63 QP-650U Plus Schematic Diagram Schematic Diagram RF Section - 63 -...
  • Page 64 QP-650U Plus Schematic Diagram AF Section - 64 -...
  • Page 65 QP-650U Plus Schematic Diagram MCU Section - 65 -...
  • Page 66 QP-650U Plus Specifications Specifications General Frequency Range UHF: 400-470MHz Channel Capacity Channel Spacing 25/20/12.5KHz Operating Voltage 7.4V Battery 1400mAh(Li-ion) Frequency Stability ±2.5ppm Operating Temperature -20℃~+50℃ Antenna Impedance 50Ω Transmitter RF Power Output 5W/1W Modulation 16KΦF3E/8KΦF3E Spurious and Harmonics ≤7.5uW FM Noise 40dB Audio Distortion ≤5 %...
